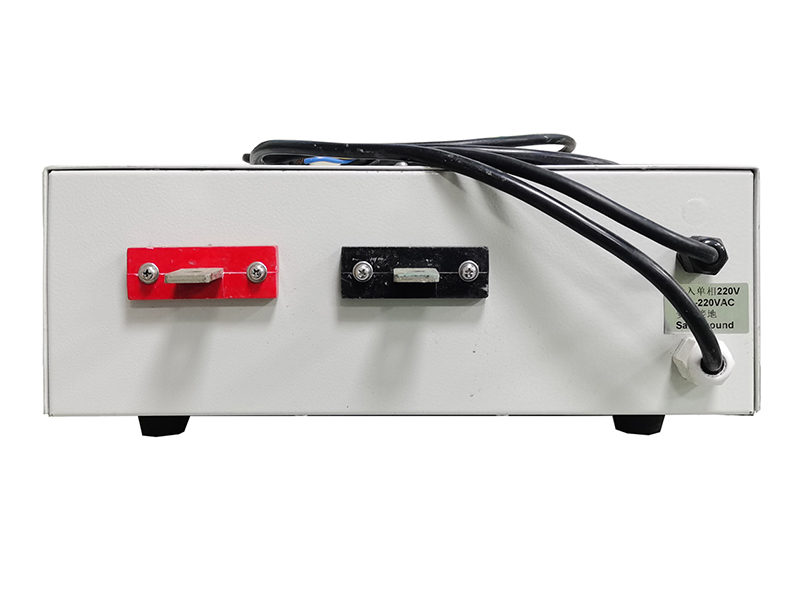

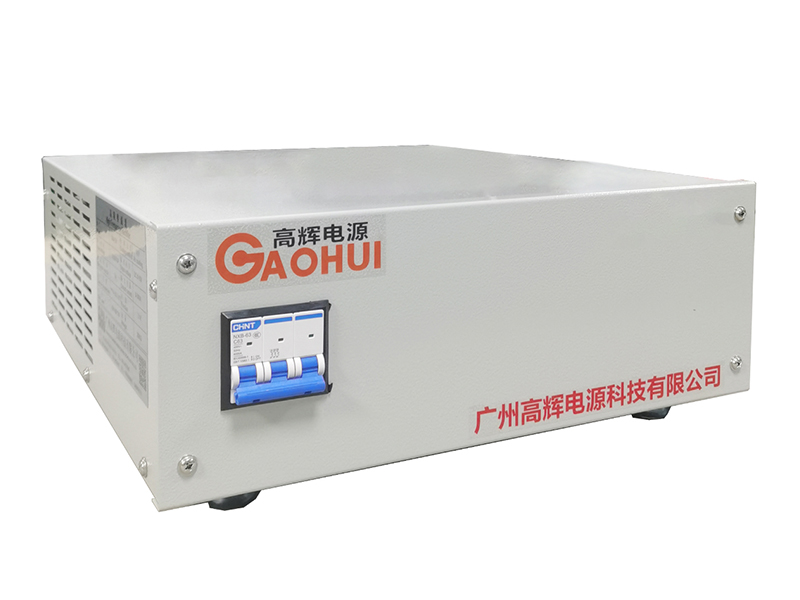

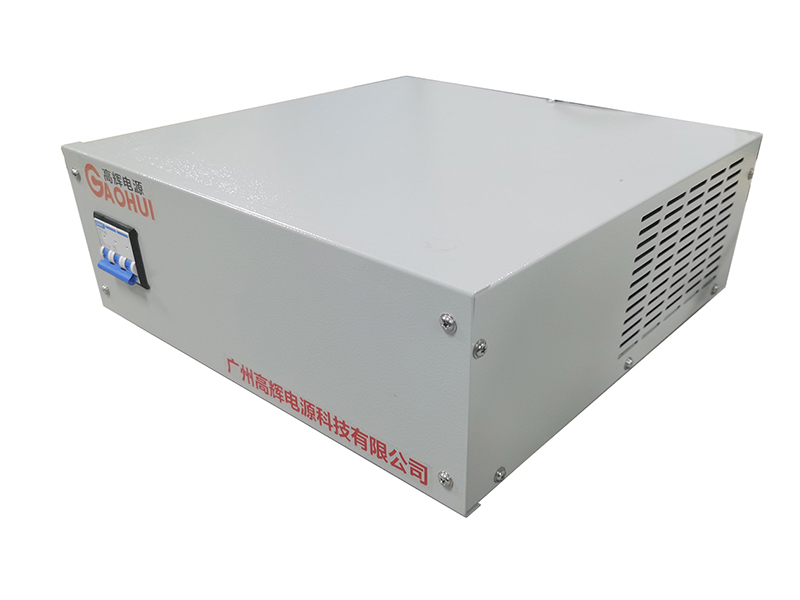

The Barrel Gold Rectifier from Gaohui Rectifier powers bulk gold-tone plating of small fasteners and buckles in rotating barrels. This Barrel Gold Rectifier delivers high current for barrel loads. Furthermore, the Barrel Gold Rectifier maintains stable output as parts tumble. Therefore, shops achieve consistent finishes at scale.
Cooling: Forced Air | Application: Barrel Gold-Tone Plating | Ripple: ≤3% | Load: 1-2 Barrels
The 300A 15V rectifier powers one or two standard plating barrels measuring 400 × 500 mm. It handles gold-tone and antique-gold baths for buckles, zipper pulls, and watch bracelets. Specifically, a loaded barrel draws 200 to 280A for 30 to 45 minutes. Furthermore, the 15V output overcomes barrel contact resistance as parts tumble.
Moreover, the rectifier supports timed cycles for batch processing. Low ripple prevents dark spots on delicate parts. Consequently, throughput stays high without quality loss.
Furthermore, Gaohui recommends barrel dimensions and load weights for the 300A output. We help you calculate the right part count per barrel. Consequently, first-time barrel platers avoid under- or over-loading.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, 3-phase |
| DC Output Current | 0–300A adjustable |
| DC Output Voltage | 0–15V adjustable |
| Cooling Method | Forced air |
| Ripple Factor | ≤3% RMS |
| Barrel Capacity | 1–2 standard barrels |
| Timer | Digital, up to 99 min |
| Dimensions | 600 × 500 × 350 mm |
| Weight | 80 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:

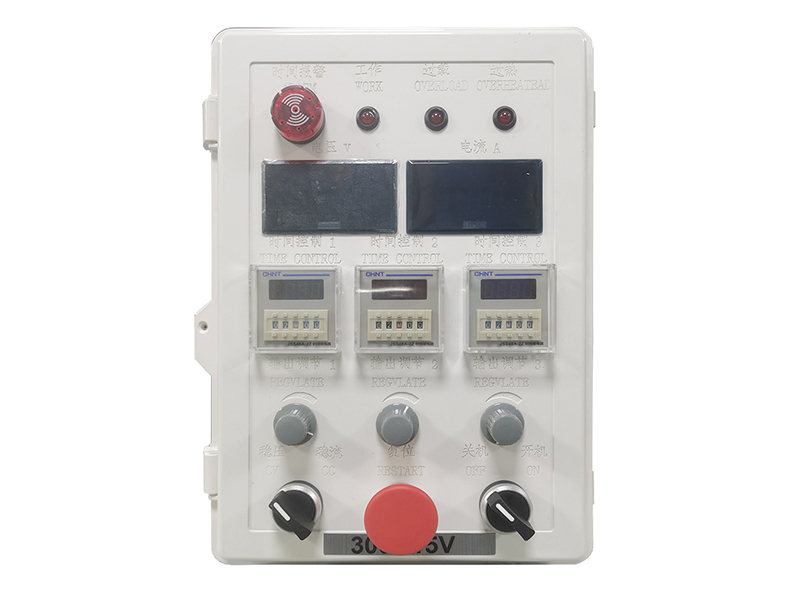

The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Small barrels? View the Small Barrel Rectifier 100A.
Need rack plating instead? Check the Gold Plating Rectifier 100A.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
