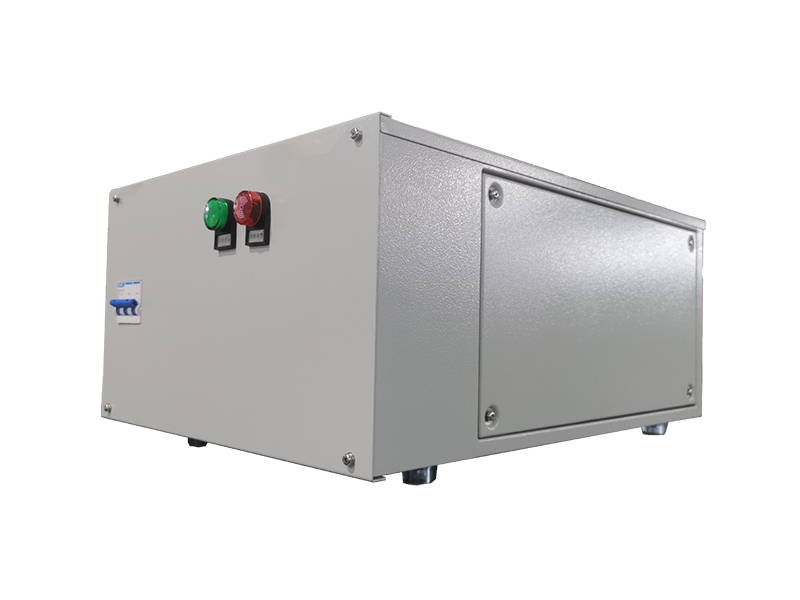

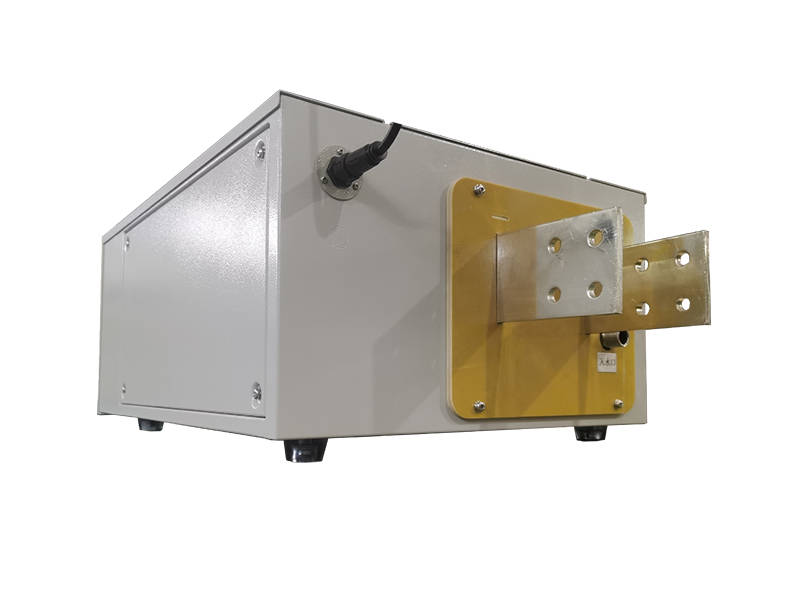

The Ceramic Oxidation Rectifier from Gaohui Rectifier powers sulfuric acid anodizing of aluminum extrusions and panels. This Ceramic Oxidation Rectifier delivers high-current DC for ceramic and decorative oxide layers. Furthermore, the Ceramic Oxidation Rectifier handles the rising voltage of growing films. Therefore, anodizing shops rely on it.
Cooling: Water-Cooled | Application: Aluminum Anodizing | Ripple: ≤3% | Capacity: 1000-2000L Tanks
The 1500A 12V water-cooled rectifier serves anodizing tanks of 1000L to 2000L. It handles architectural extrusions and cookware. Specifically, decorative anodizing runs at 1 to 1.5 A/dm² for 30 to 60 minutes. Furthermore, the rectifier automatically ramps voltage as the oxide film thickens.
Moreover, the water-cooled design fits in compact line layouts. Consequently, the oxide layer builds evenly across long extrusions.

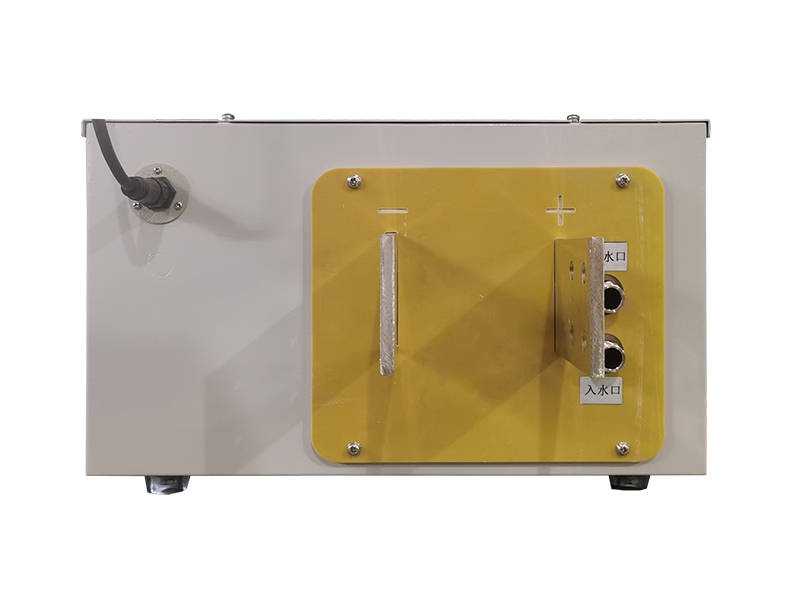

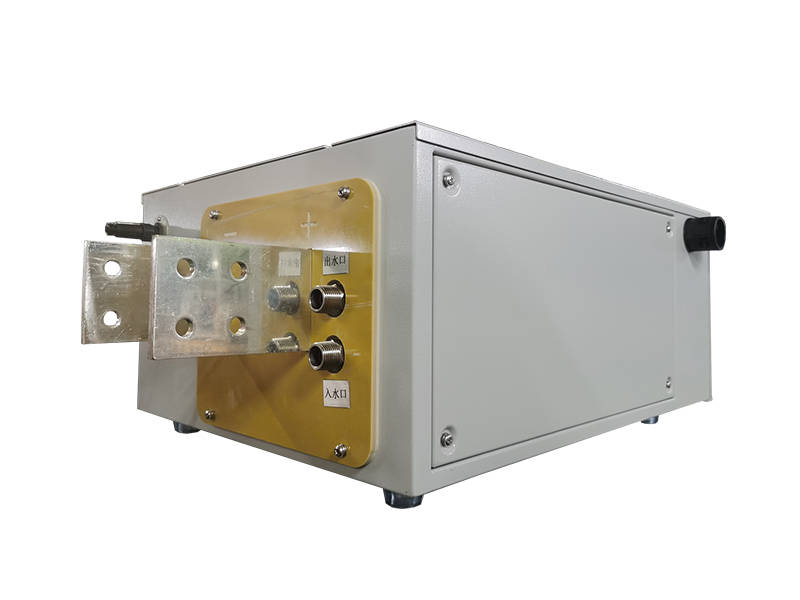

Furthermore, Gaohui provides water cooling layout drawings. We specify hose size and flow rate. Consequently, installation is straightforward even for first-time anodizing shops.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, 3-phase |
| DC Output Current | 0–1500A adjustable |
| DC Output Voltage | 0–12V adjustable |
| Cooling Method | Water-cooled |
| Ripple Factor | ≤3% |
| Voltage Ramp | Programmable |
| Timer | Up to 999 min |
| Dimensions | 1000 × 700 × 500 mm |
| Weight | 350 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Lab anodizing? View Precision Plating Rectifier 10A 30V.
Bigger line? Check Industrial Reversing Rectifier 3000A.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
