The Pulse Plating Rectifier from Gaohui Rectifier offers pulse and reverse capability for advanced plating research. This Pulse Plating Rectifier supports both forward and reverse current pulses. Furthermore, the Pulse Plating Rectifier delivers 18V for demanding bath chemistries. Therefore, research groups study modern pulse plating.
Cooling: Forced Air | Application: Pulse & Reverse Lab | Ripple: ≤2% | Reverse: Programmable

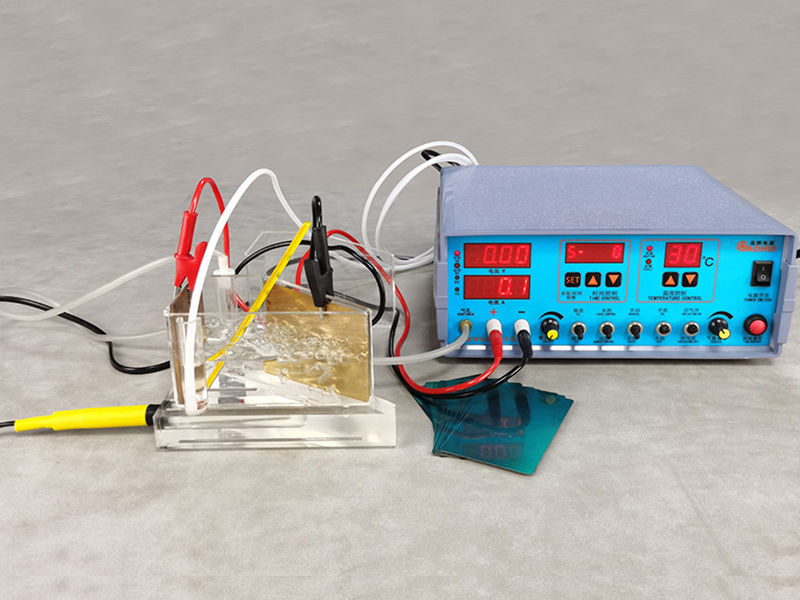

The 20A 18V rectifier is designed for universities and corporate R&D centers researching pulse plating and pulse reverse (PPR) processes. It supports forward pulses, reverse pulses, and duty cycle adjustment from 1% to 99%. Specifically, a study on nanocrystalline nickel uses 10 ms on, 5 ms off at 15A. Furthermore, the 18V output covers high-resistance baths like hard anodizing and selective plating.

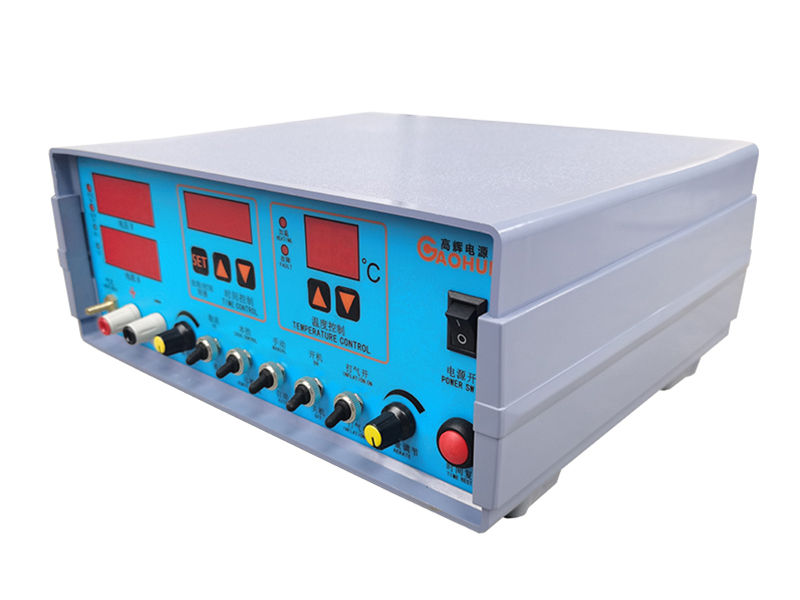

Moreover, the rectifier stores up to 5 preset recipes. For instance, a team comparing DC plating versus pulse plating runs 30 samples per day. Consequently, they switch recipes at the touch of a button. The compact chassis fits on a standard lab bench.
Furthermore, pulse plating research demands precise timing control. This rectifier's 0.1 Hz to 10 kHz range covers most academic studies. Consequently, universities publish results using Gaohui Rectifier equipment.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 220V ±10%, 50/60Hz |
| DC Output Current | 0–20A adjustable |
| DC Output Voltage | 0–18V adjustable |
| Pulse Mode | Forward / Reverse / Bidirectional |
| Duty Cycle | 1%–99% adjustable |
| Pulse Frequency | 0.1 Hz – 10 kHz |
| Ripple Factor | ≤2% |
| Dimensions | 400 × 300 × 200 mm |
| Weight | 18 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Standard lab? View Experimental Rectifier 20A 12V.
High voltage? Check Plating Lab Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
