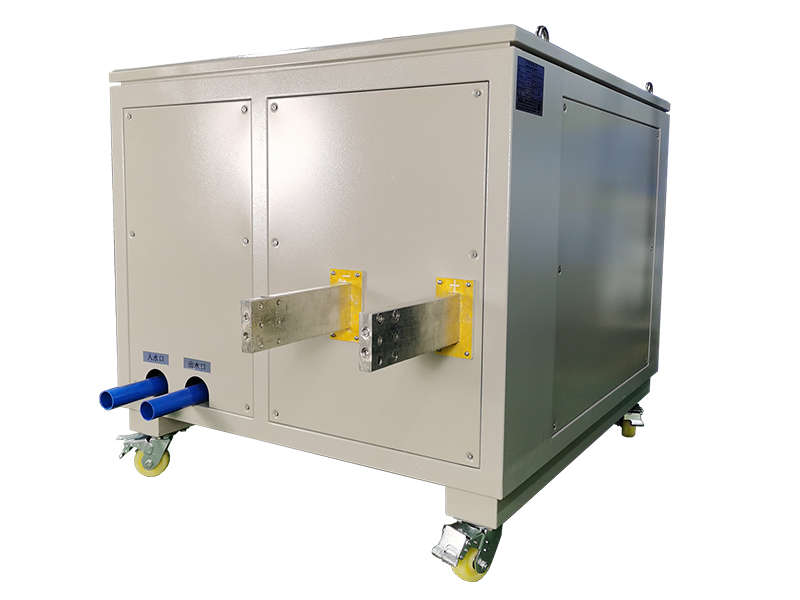

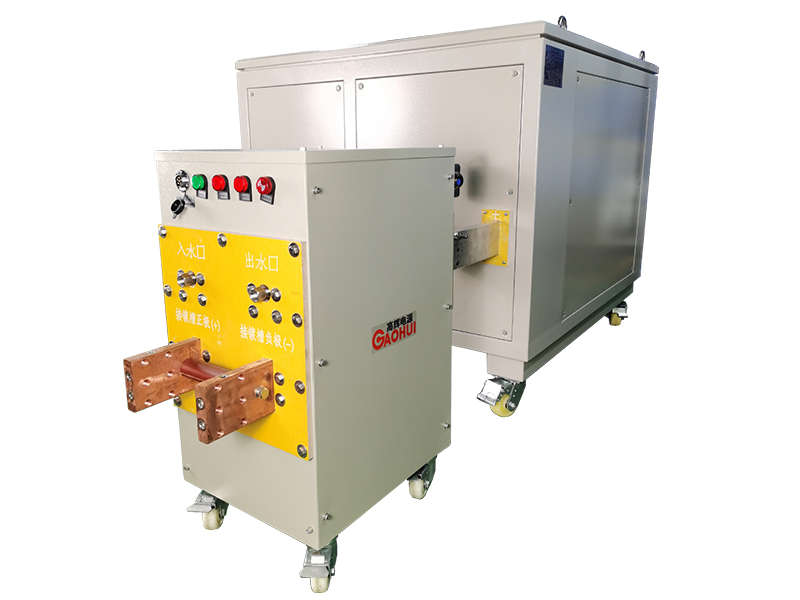

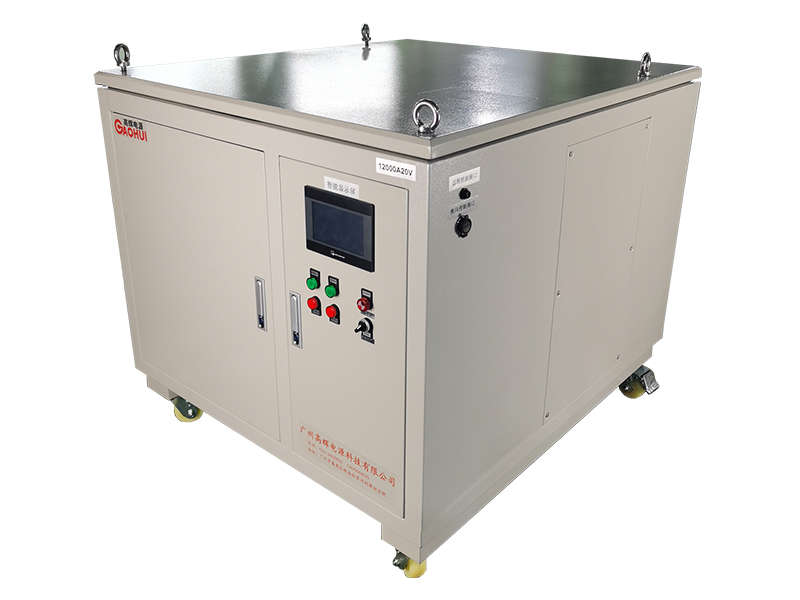

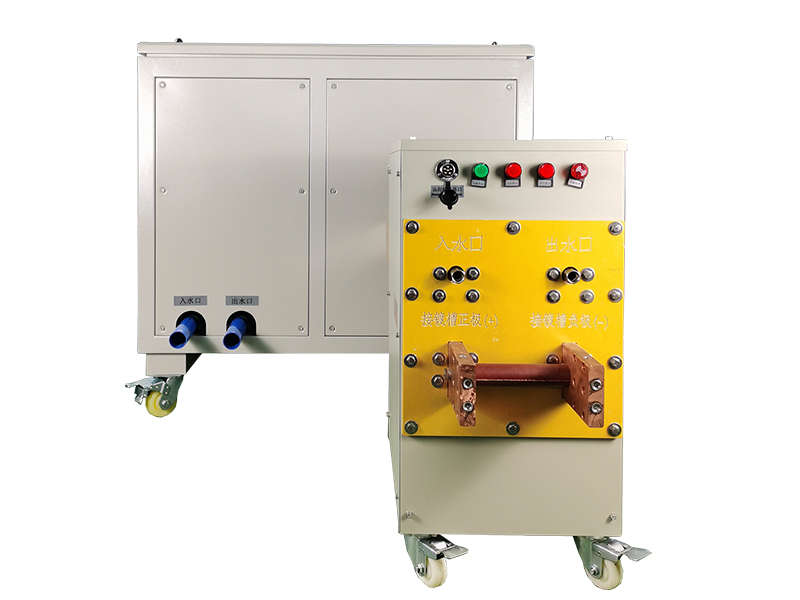

The Auto Reversing Chrome Rectifier from Gaohui Rectifier combines 12000A at 20V with automatic polarity reversal across three modules. This Auto Reversing Chrome Rectifier handles both plating and reverse etching in one integrated system. Furthermore, the Auto Reversing Chrome Rectifier shares load among the modules for extended component life. Consequently, lines that need periodic reversal gain a robust, unified power source. Moreover, reverse chrome lines facilities select this Auto Reversing Chrome Rectifier for its water cooled design and 12000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Reverse Chrome Lines | Ripple: ≤5% | Interface: RS485
The 12000A 20V rectifier serves hard chrome tanks from 6000L to 9000L with reverse-etch cycles for adhesion. It is ideal for crankshafts, camshafts, heavy shafts and large tooling. For example, an engine-line supplier can etch and plate crank journals with a single programmable sequence. Furthermore, the 20V output supports higher-resistance baths and longer rack runs. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485 standard port allows remote monitoring.
Moreover, the three-module layout allows scheduled maintenance without stopping the line. In addition, automatic reversal timing is programmable to match each part family. Consequently, operators get repeatable surface quality on critical components. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Auto Reversing Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–12000A adjustable |
| DC Output Voltage | 0–20V adjustable |
| Parallel Modules | 3 modules, load-sharing |
| Reversing | Automatic, programmable |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485 standard |
| Dimensions | 3 × 1100 × 700 × 1500 mm |
| Weight | 2400 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 10000A 15V Reversing Chrome Rectifier.
Need more current? Check the 20000A 15V Automatic Chrome Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
