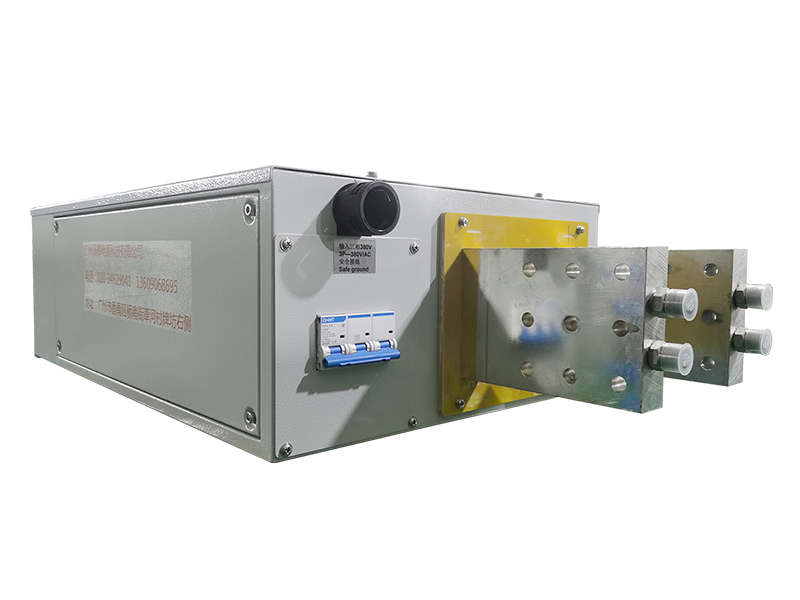

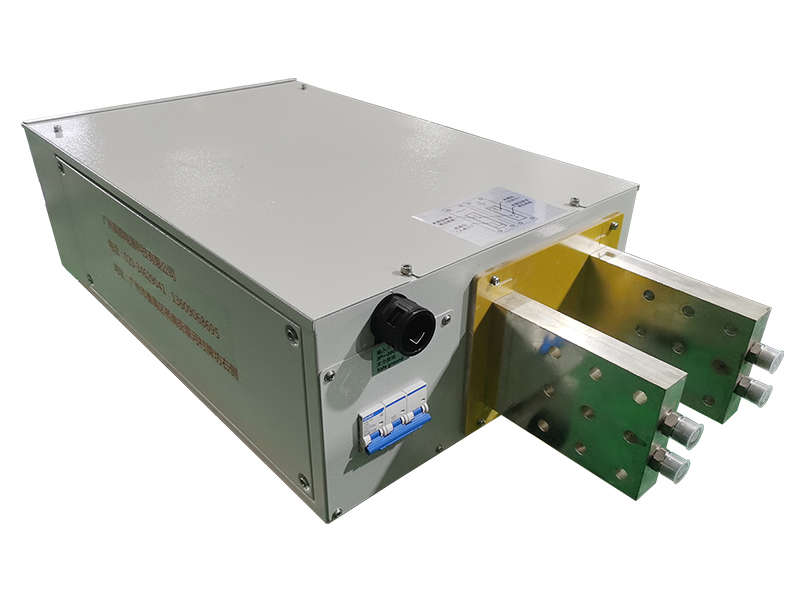

The Electronic Reversing Chrome Rectifier from Gaohui Rectifier switches polarity electronically at 3000A and 18V. This Electronic Reversing Chrome Rectifier provides rapid forward-reverse cycling without mechanical contactors. Furthermore, the Electronic Reversing Chrome Rectifier supports pulse reverse sequences that refine grain structure and improve adhesion. Consequently, precision platers use it for high-performance hard chrome on critical components. Moreover, pulse reverse chrome facilities select this Electronic Reversing Chrome Rectifier for its water cooled design and 3000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Pulse Reverse Chrome | Ripple: ≤3% | Interface: RS485
The 3000A 18V rectifier is engineered for hard chrome tanks from 1000L to 2000L that run pulse reverse or periodic reversal programs. It is ideal for plating gun barrels, precision spindles and high-wear tooling where deposit quality is paramount. For example, a defense contractor can apply stress-free hard chrome to a barrel bore with programmed reverse pulses. Furthermore, electronic switching eliminates contact wear and allows millisecond-level polarity changes. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485 standard port allows remote monitoring.

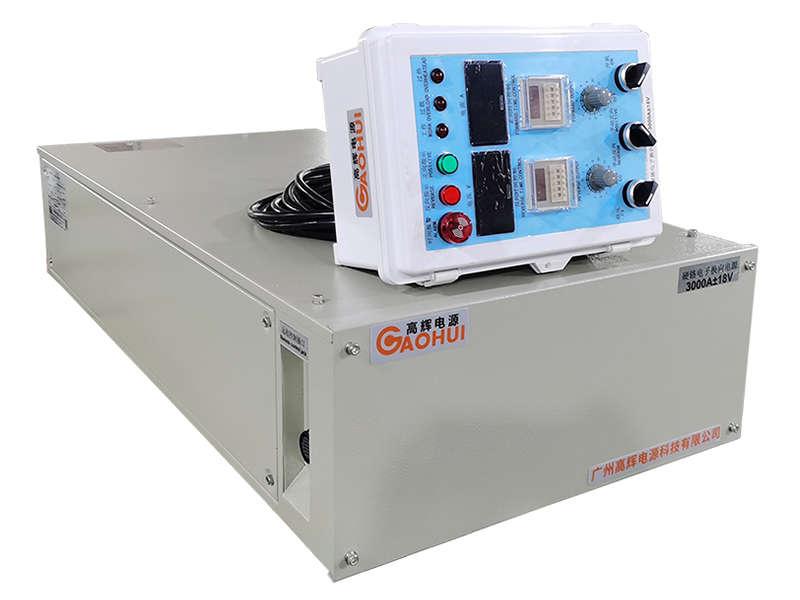

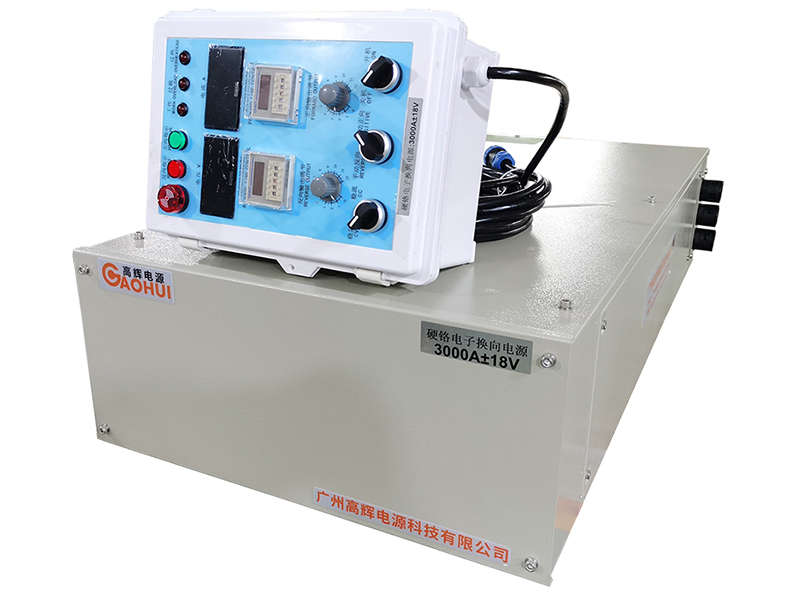

Moreover, the programmable cycles balance plating rate and stress relief for very thick deposits. In addition, water cooling keeps the semiconductor switches within safe temperatures during continuous pulsing. Consequently, this rectifier delivers repeatable micro-structure control that mechanical reversing cannot match. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Electronic Reversing Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–3000A adjustable |
| DC Output Voltage | 0–18V adjustable |
| Reversing | Electronic, programmable pulses |
| Cooling Method | Water cooled |
| Ripple Factor | ≤3% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485 standard |
| Dimensions | 900 × 600 × 1300 mm |
| Weight | 340 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 1500A 16V Medium Chrome Rectifier.
Need more current? Check the 10000A 15V Reversing Chrome Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
