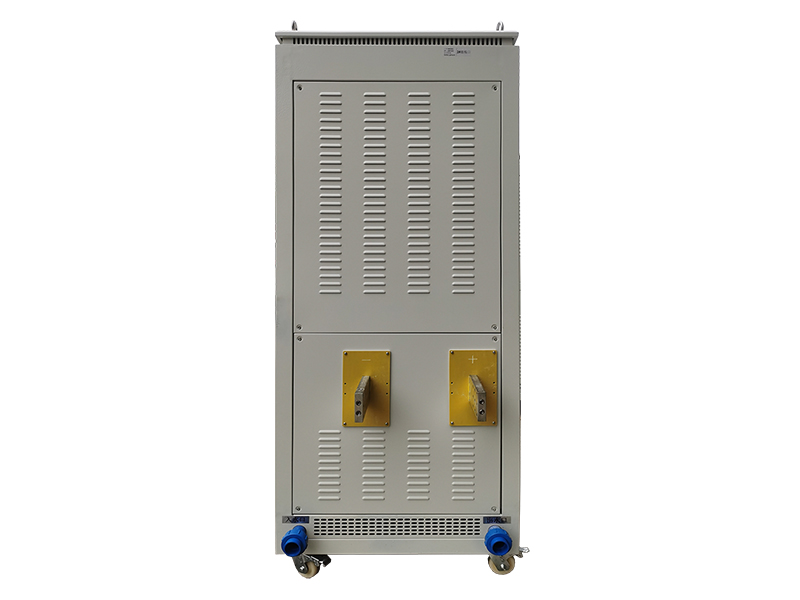

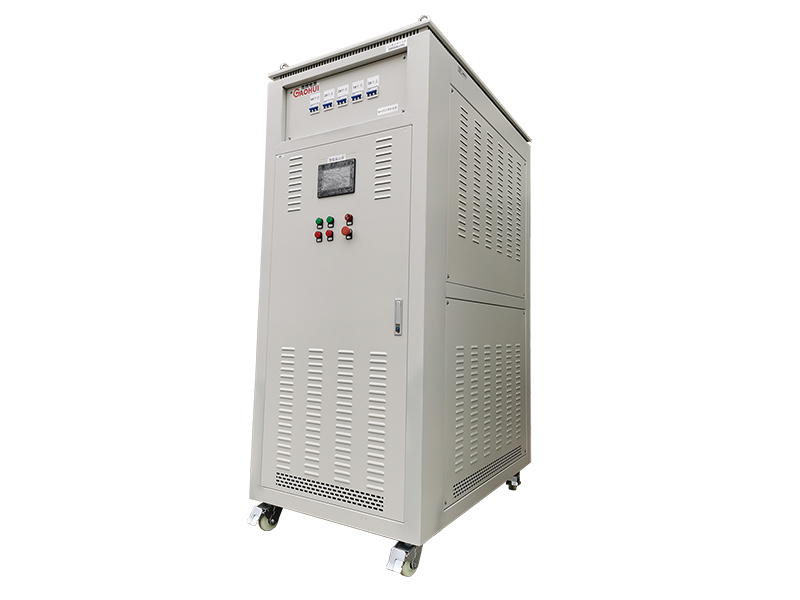

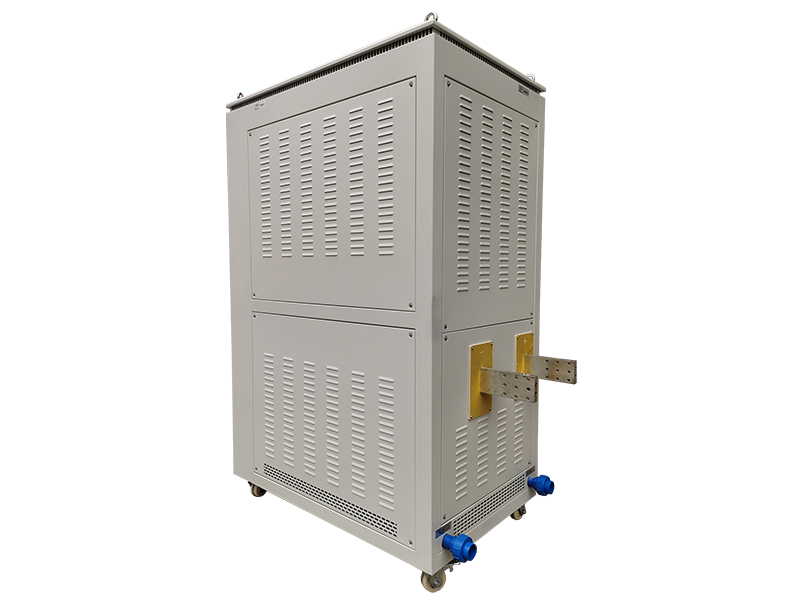

The Synchronous Chrome Rectifier from Gaohui Rectifier coordinates five N+1 modules for perfectly synchronized electronic reversal. This Synchronous Chrome Rectifier flips all modules together at 20000A and 18V with no mechanical contactors. Furthermore, the Synchronous Chrome Rectifier provides millisecond-level polarity control across the entire system. Consequently, it is the premium choice for advanced pulse-reverse hard chrome. Moreover, synchronized reverse plating facilities select this Synchronous Chrome Rectifier for its water cooled design and 20000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Synchronized Reverse Plating | Ripple: ≤3% | Interface: PLC
The 20000A 18V system is engineered for very large hard chrome tanks above 10000L that run synchronized pulse-reverse programs. It is ideal for aerospace components, high-performance tooling and precision heavy rolls. For example, a specialist shop can apply stress-controlled hard chrome to a large shaft with synchronized reverse pulses. Furthermore, electronic switching avoids contact wear and delivers consistent waveforms across all five modules. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the PLC supervision port allows remote monitoring.
Moreover, synchronization ensures every module changes polarity at the exact same instant, preventing current imbalance. In addition, PLC supervision manages complex multi-step recipes and logs each cycle for quality records. Consequently, this rectifier supports the most demanding chrome specifications. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Synchronous Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–20000A adjustable |
| DC Output Voltage | 0–18V adjustable |

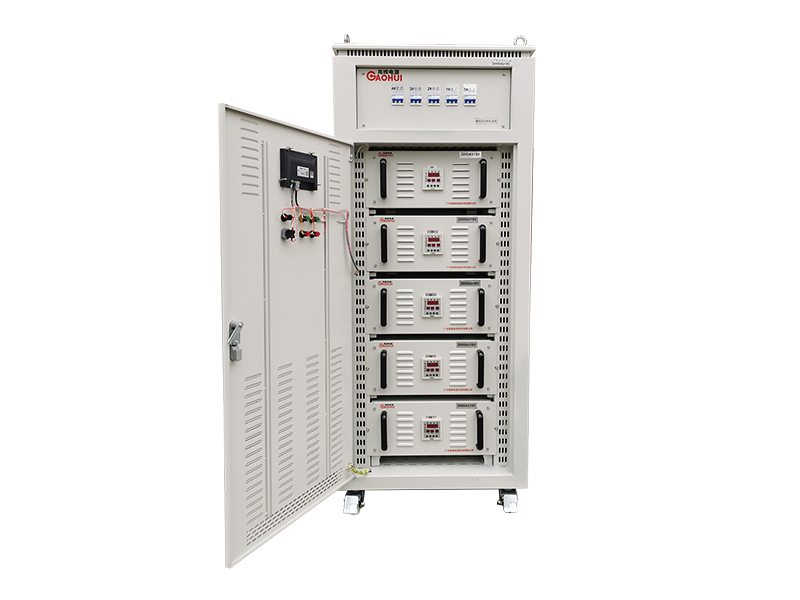

| Parallel Modules | 5 modules, N+1 configuration |
| Reversing | Synchronous electronic |
| Cooling Method | Water cooled |
| Ripple Factor | ≤3% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | PLC supervision |
| Dimensions | 5 × 1200 × 800 × 1600 mm |
| Weight | 4200 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 20000A 18V Polarity Reversing Chrome Rectifier.
Need the largest? Check the 60000A 15V High Power Chrome Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
