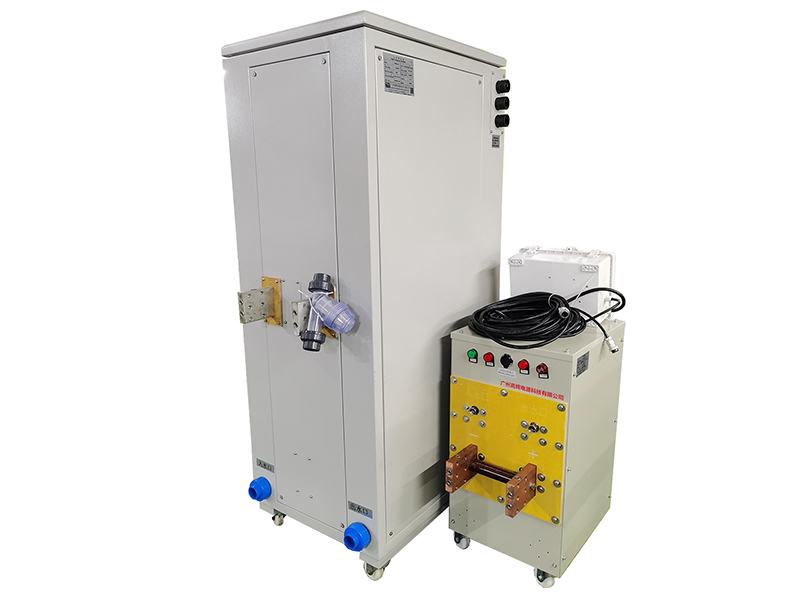

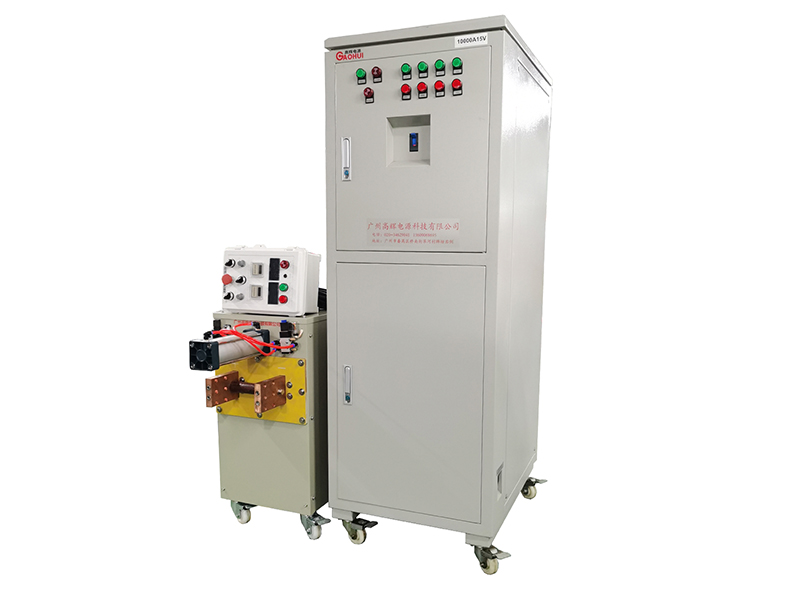

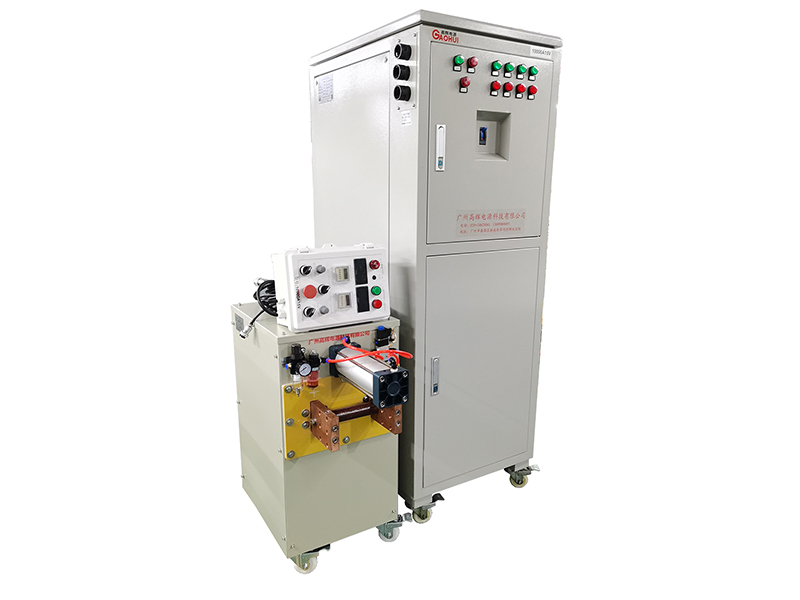

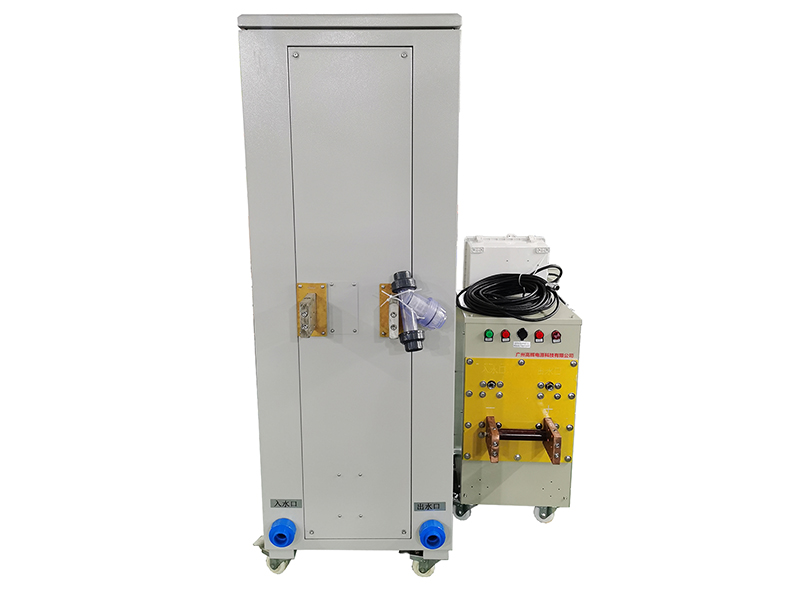

The Reversing Chrome Rectifier from Gaohui Rectifier combines 10000A output with automatic polarity reversal. This Reversing Chrome Rectifier alternates between forward plating and reverse etching cycles without operator action. Furthermore, the Reversing Chrome Rectifier improves adhesion and builds stress-free deposits on hardened steel. Consequently, platers use it for crankshafts, shafts and other fatigue-critical parts. Moreover, reverse chrome plating facilities select this Reversing Chrome Rectifier for its water cooled design and 10000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Reverse Chrome Plating | Ripple: ≤5% | Interface: RS485
The 10000A 15V rectifier serves hard chrome tanks of 5000L to 8000L with reverse-etch sequences for better bonding. It is ideal for crankshaft journals, camshafts, hydraulic rods and landing-gear components where deposit adhesion decides component life. For example, an engine rebuilder can etch and plate a crank journal in one automated cycle. Furthermore, the polarity-switching function removes smut and oxide before the chromium layer forms. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485 standard port allows remote monitoring.
Moreover, reverse cycles help dissolve thin chromium in selective strip-and-replate operations. In addition, the timing control allows precise forward and reverse intervals from seconds to minutes. Consequently, operators reproduce the same surface quality on every part, shift after shift. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Reversing Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–10000A adjustable |
| DC Output Voltage | 0–15V adjustable |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485 standard |
| Polarity Reversal | Automatic, programmable timing |
| Dimensions | 1300 × 850 × 1700 mm |
| Weight | 950 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 8000A 18V Switchable Chrome Rectifier.
Need more current? Check the 20000A 15V Automatic Chrome Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
