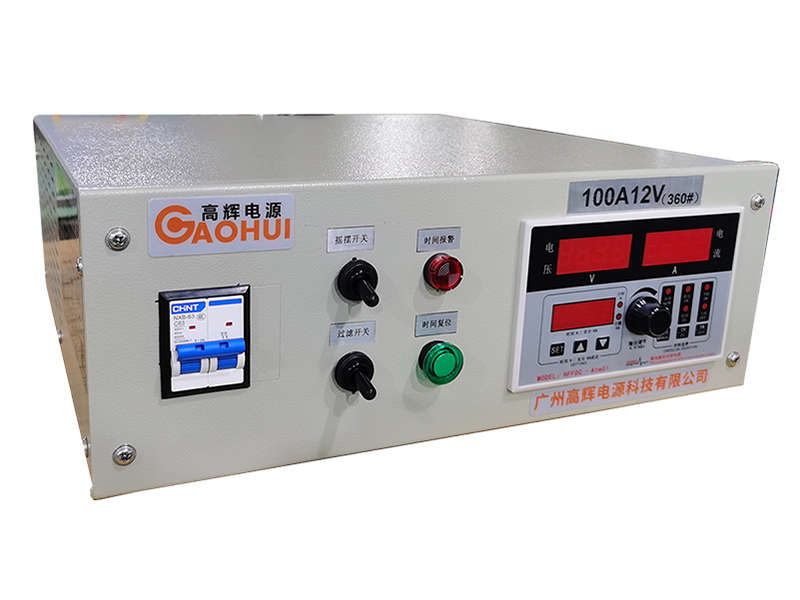

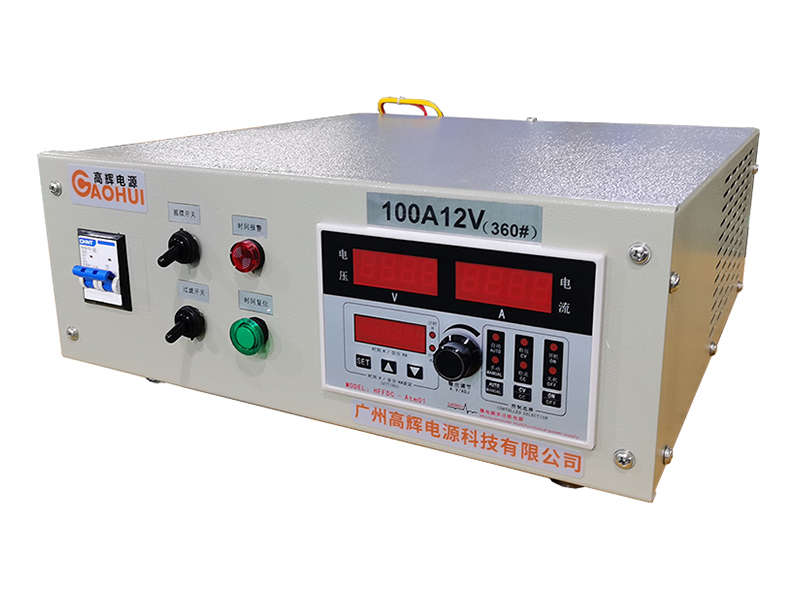

The Small Barrel Rectifier from Gaohui Rectifier powers mini barrel plating of screws, nuts, and small electronic parts. This Small Barrel Rectifier delivers 100A at low voltage for small barrels. Furthermore, the Small Barrel Rectifier handles continuous tumbling loads. Therefore, fastener shops choose it for small parts.
Cooling: Forced Air | Application: Small Fastener Barrels | Ripple: ≤3% | Voltage: 6V
The 100A 6V rectifier drives mini plating barrels measuring 200 × 300 mm. It handles zinc, nickel, and tin plating on screws, washers, and contact pins. Specifically, a loaded mini barrel draws 60 to 90A at 4 to 6V for 20 to 30 minutes. Furthermore, the 6V output matches low-voltage zinc and nickel barrels.
Moreover, the rectifier supports one barrel at a time, making it ideal for job shops with frequent color changes. For instance, a shop processes brass pins, then switches to nickel-plated screws. Consequently, cleaning between runs is quick. The air-cooled design needs no water connection.
Furthermore, small parts tumble in the barrel and need constant current. The rectifier maintains output as contact resistance fluctuates. Consequently, every screw receives even plating.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 220V ±10%, 50/60Hz |
| DC Output Current | 0–100A adjustable |
| DC Output Voltage | 0–6V adjustable |
| Cooling Method | Forced air |
| Ripple Factor | ≤3% |
| Barrel Size | Mini barrel 200 × 300 mm |
| Timer | Digital |
| Dimensions | 450 × 350 × 250 mm |
| Weight | 30 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
