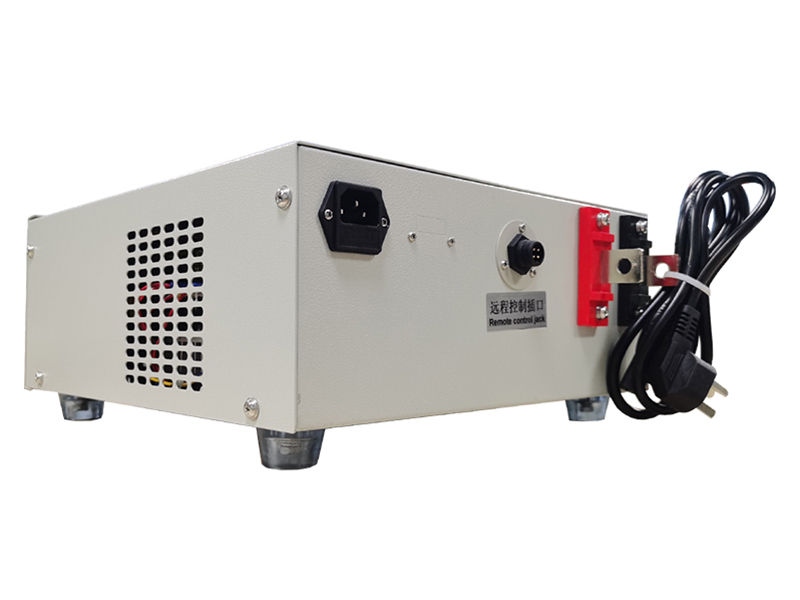

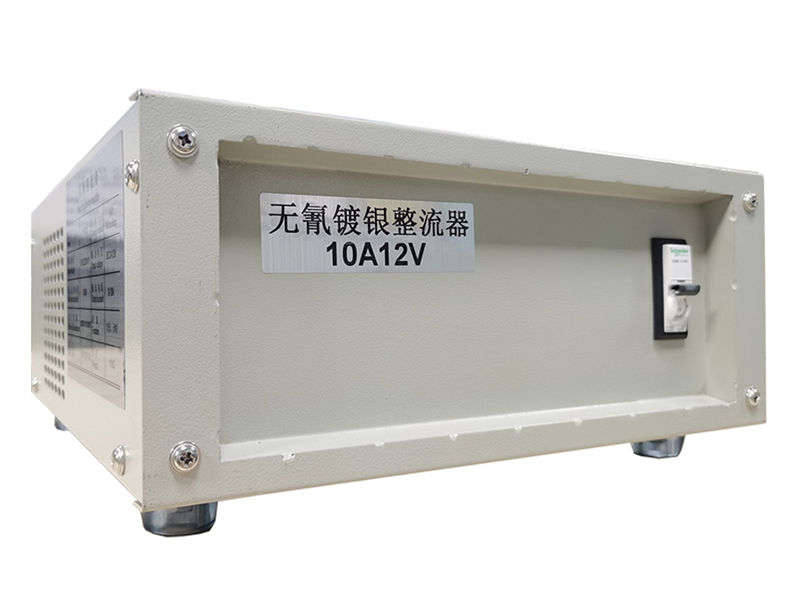

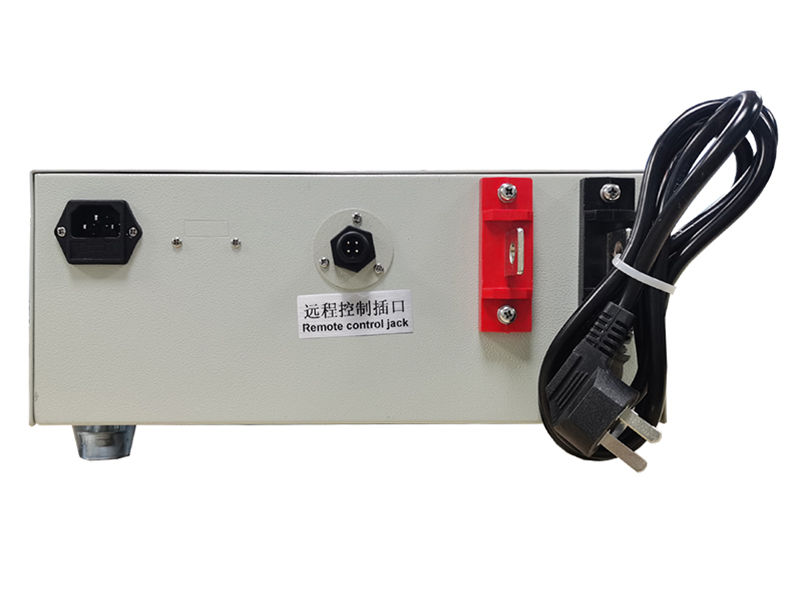

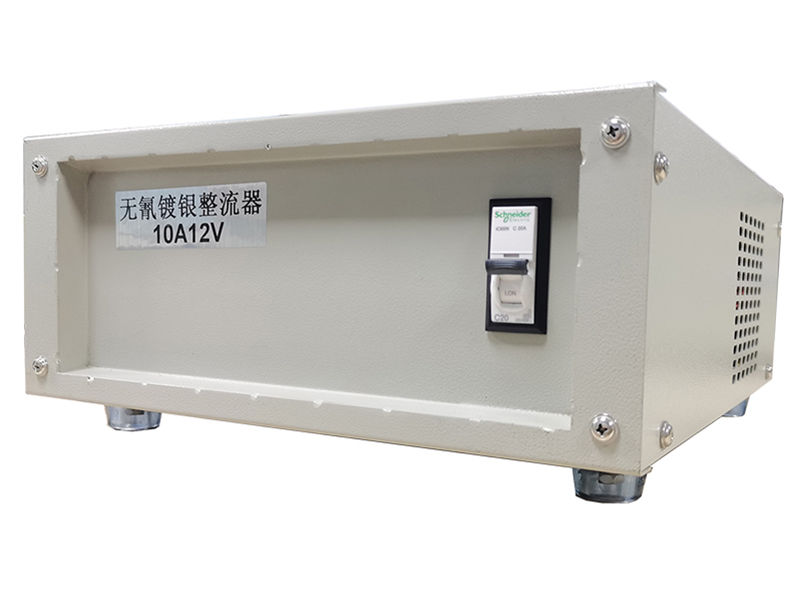

The Silver Plating Rectifier from Gaohui Rectifier powers cyanide-free silver plating on tableware and electronics. This Silver Plating Rectifier provides stable DC for bright silver deposits. Furthermore, the Silver Plating Rectifier supports low-current precision plating. Therefore, silver platers achieve consistent luster.
Cooling: Forced Air | Application: Cyanide-Free Silver | Ripple: ≤2% | Accuracy: ±1%
The 10A 12V rectifier serves silver plating shops processing cutlery and electronic contacts. Cyanide-free silver chemistry requires tight current control to avoid burnt deposits. Specifically, a spoon rack draws 5 to 8A at 4 to 6V for 10 to 15 minutes. Furthermore, the ≤2% ripple prevents streaks on reflective surfaces.
Moreover, the rectifier supports timed cycles for automated small-batch production. Consequently, every piece matches in color and brightness.
Furthermore, cyanide-free silver baths require stable temperature control. The rectifier pairs with standard chiller units. Consequently, silver brightness stays consistent across seasons.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 220V ±10% |
| DC Output Current | 0–10A adjustable |
| DC Output Voltage | 0–12V adjustable |
| Cooling Method | Forced air |
| Ripple Factor | ≤2% RMS |
| Current Stability | ±1% |
| Control Mode | IGBT/PWM, CV/CC |
| Dimensions | 320 × 220 × 180 mm |
| Weight | 9 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Jewelry silver? View Jewelry Plating Rectifier 100A.
Gold instead? Check Gold Plating Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
