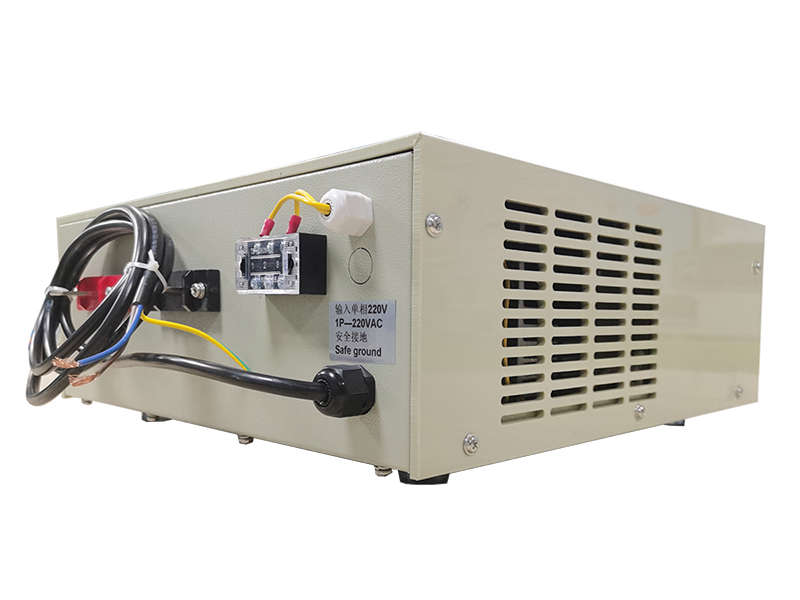

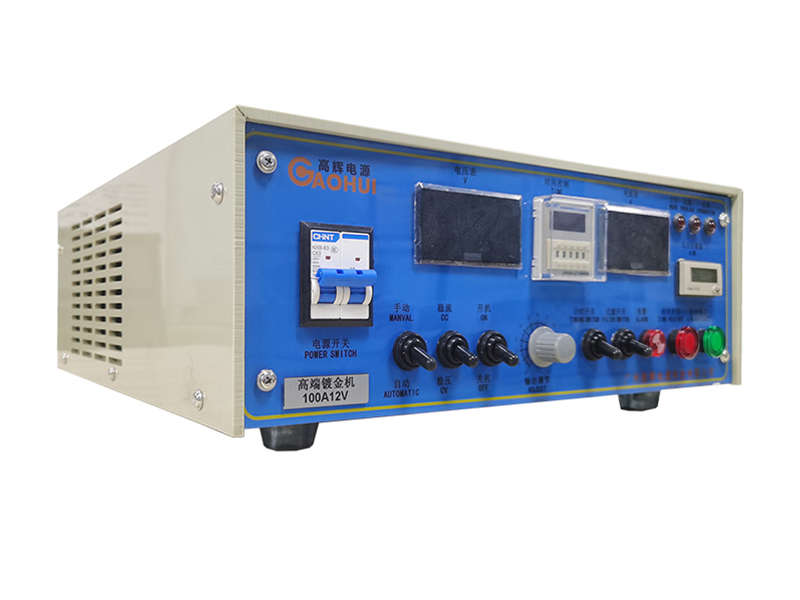

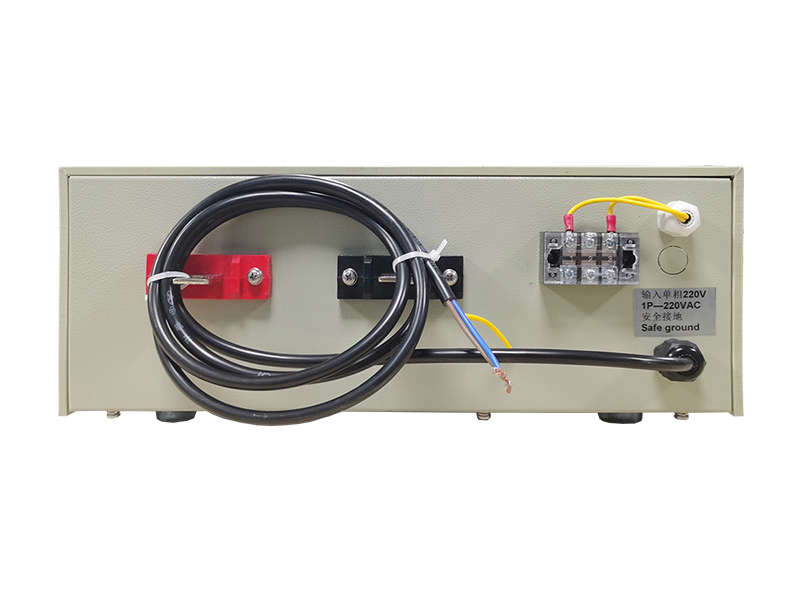

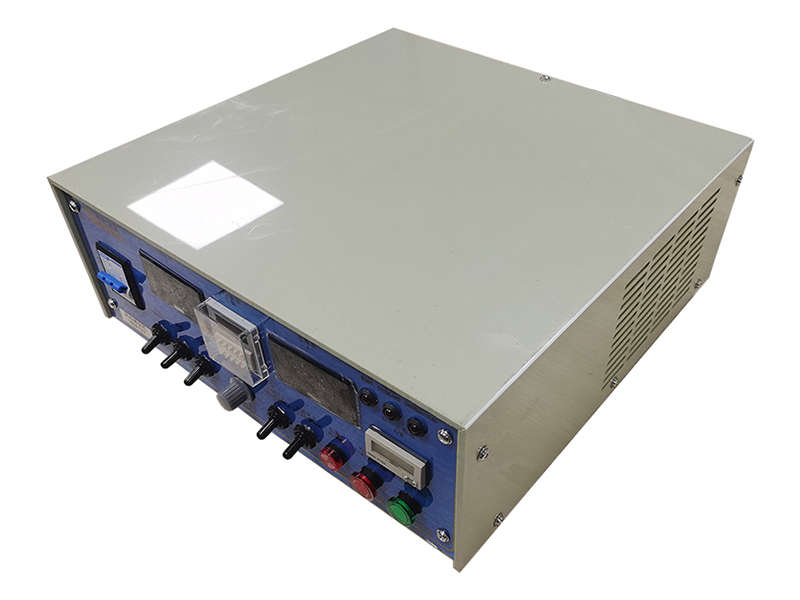

The Premium Gold Rectifier from Gaohui Rectifier offers touchscreen control and ultra-low ripple for high-end jewelry. This Premium Gold Rectifier stores up to 20 recipes. Furthermore, the Premium Gold Rectifier provides 1.5% ripple for mirror finishes. Therefore, luxury brands choose it.
Cooling: Forced Air | Application: High-End Jewelry | Control: Touchscreen | Ripple: ≤1.5%
The 100A 12V premium rectifier features a 7-inch touchscreen storing up to 20 plating recipes. Each recipe saves current, voltage, time, and ramp settings. Specifically, a luxury watch brand stores separate recipes for yellow gold, rose gold, and rhodium. Furthermore, the ≤1.5% ripple produces mirror-bright finishes.
Moreover, the rectifier includes USB data logging for quality records. Consequently, traceability is automatic.
Moreover, the HMI displays real-time output curves and alarms. Operators see any deviation immediately. Consequently, quality issues are caught before parts leave the rack.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 220V ±10% |
| DC Output Current | 0–100A adjustable |
| DC Output Voltage | 0–12V adjustable |
| Cooling Method | Forced air, quiet fan |
| Ripple Factor | ≤1.5% RMS |
| Display | 7-inch touchscreen, 20 recipes |
| Data Logging | USB export |
| Dimensions | 450 × 350 × 250 mm |
| Weight | 32 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Standard gold? View Gold Plating Rectifier 100A.
Artisan studio? Check Jewelry Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
