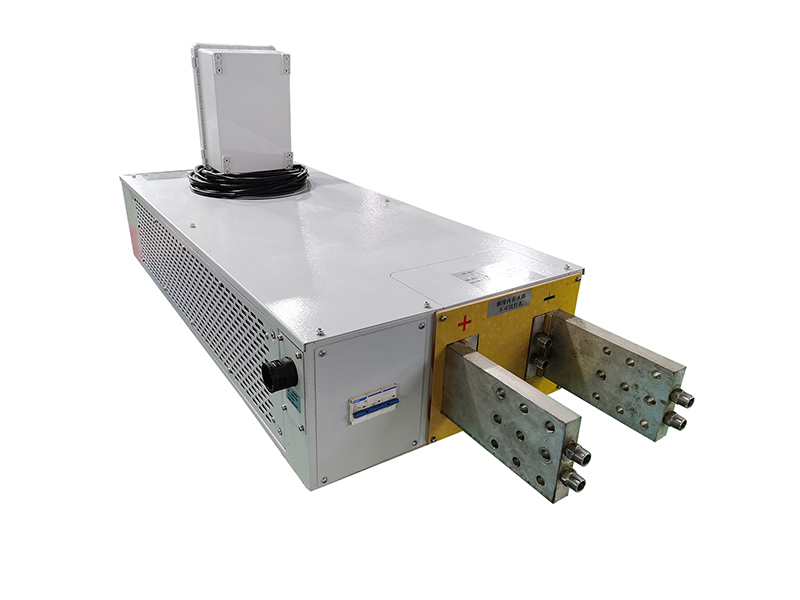

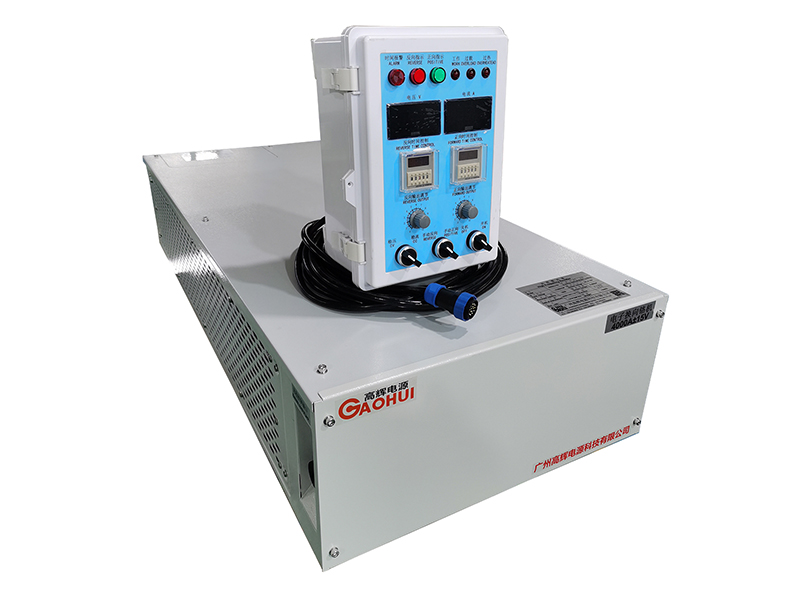

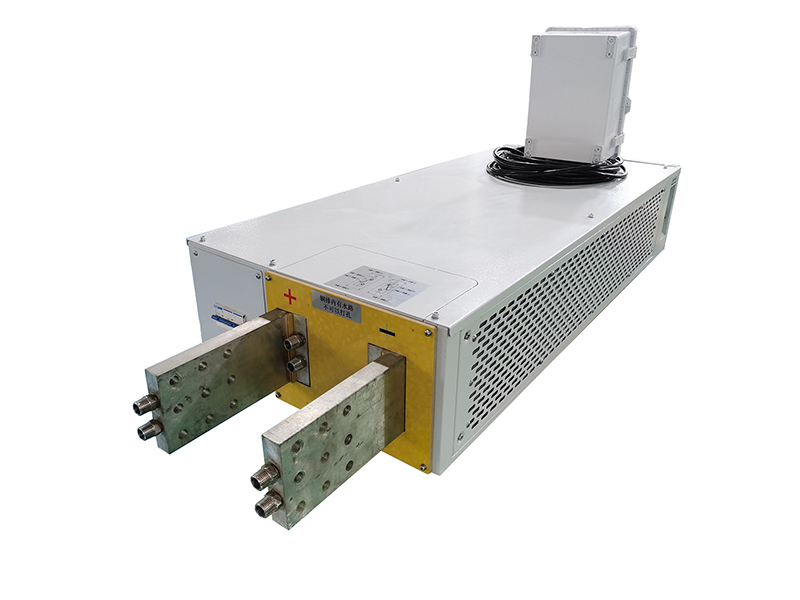

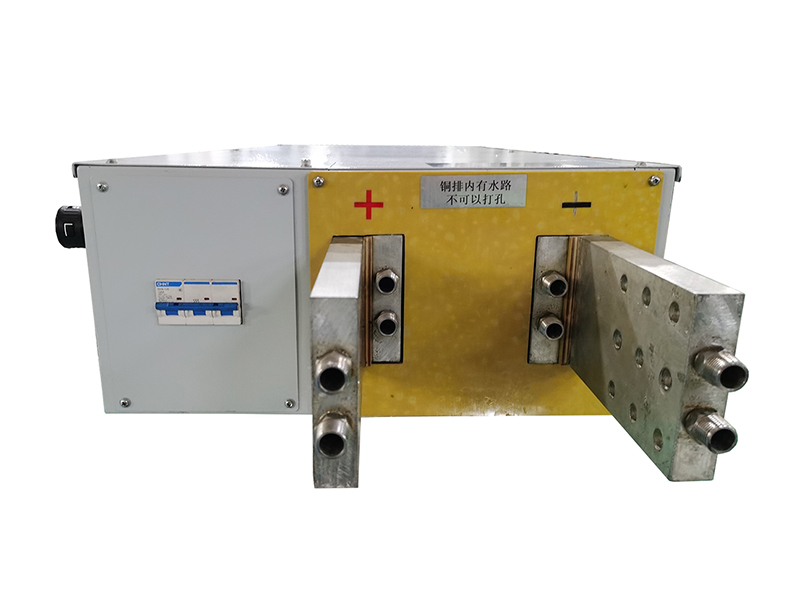

The Chrome Plating Rectifier from Gaohui Rectifier powers hard chrome lines with automatic periodic reverse. This Chrome Plating Rectifier delivers high-current DC for chromium baths. Furthermore, the Chrome Plating Rectifier ensures dense, smooth deposits through reverse pulses. Therefore, chrome platers achieve uniform coatings.
Cooling: Water-Cooled | Application: Hard Chrome & Decorative | Ripple: ≤2% | Reverse: 0.1-99s
The 4000A 15V water-cooled rectifier serves chrome tanks of 2000L to 4000L. It handles hard chrome on hydraulic shafts and decorative chrome on automotive trim. Specifically, a typical cycle runs 9 minutes forward and 15 seconds reverse. Furthermore, the reverse pulse reduces pitting and edge buildup.
Moreover, the 15V output matches hexavalent chrome bath requirements. Chrome baths need higher voltage due to lower conductivity. Consequently, the chrome layer builds evenly with excellent adhesion.
Furthermore, Gaohui provides chrome-specific training. We explain how reverse pulse timing affects deposit hardness and roughness. Consequently, your operators get the best performance from the rectifier.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, 3-phase |
| DC Output Current | 0–4000A adjustable |
| DC Output Voltage | 0–15V adjustable |
| Cooling Method | Water-cooled |
| Ripple Factor | ≤2% RMS |
| Reverse Pulse | 0.1–99 seconds adjustable |
| Protection | Over-current, over-temp, water alarm |
| Dimensions | 1200 × 800 × 600 mm |
| Weight | 500 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Smaller chrome line? View 500A Water Cooled Reversing Rectifier.
Bigger? Check Heavy Duty Rectifier 6000A.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
