The Experimental Rectifier from Gaohui Rectifier supports process development and pilot-scale plating trials. This Experimental Rectifier bridges bench units and production machines. Furthermore, the Experimental Rectifier offers flexible programming for bath optimization. Therefore, engineers use it to qualify new chemistries.
Cooling: Forced Air | Application: Process Development | Ripple: ≤3% | Timer: Digital

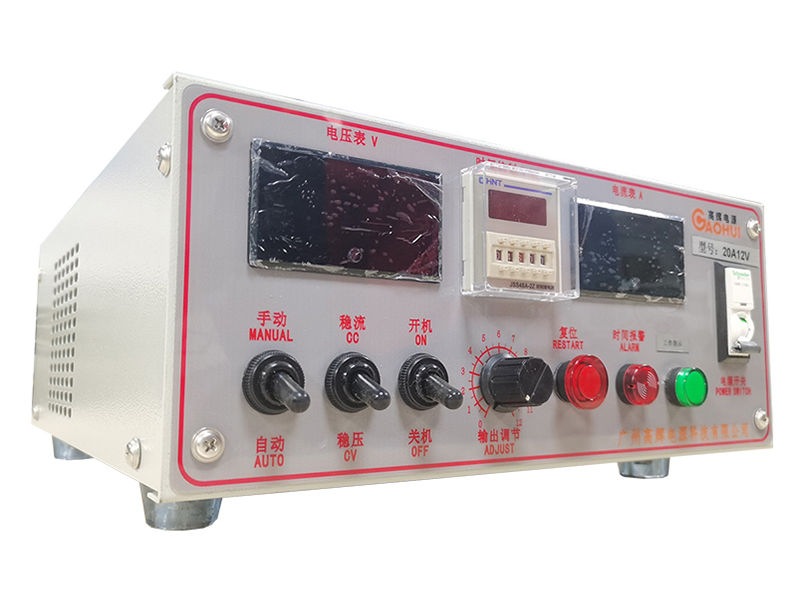

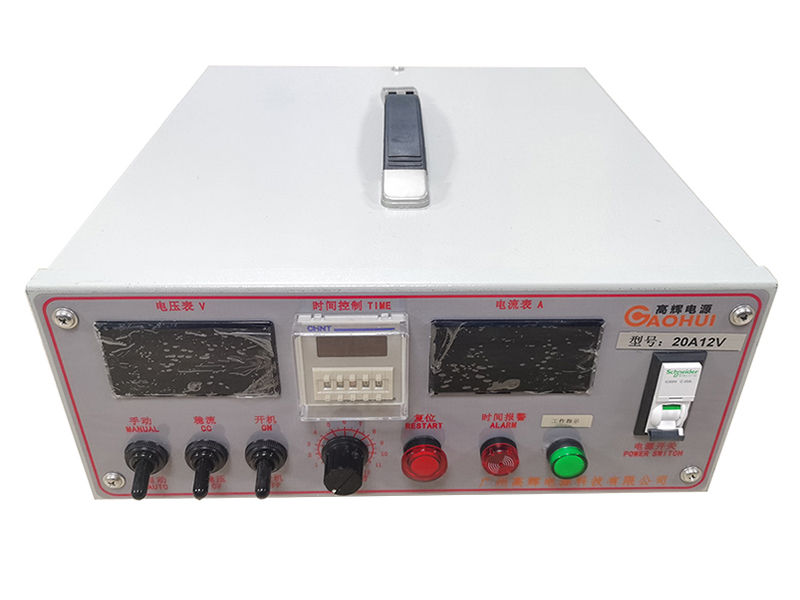

The 20A 12V rectifier serves labs and pilot lines testing new plating chemistries. It handles medium-sized workpieces and test racks up to 500 cm². Specifically, a trial nickel plating runs at 15A for 20 minutes. Furthermore, the multi-segment function programs different current levels at different times.
Moreover, the rectifier records time and current via digital display. Consequently, the lab produces reports that production teams trust.
Moreover, the rectifier supports data output via RS485 for lab records. Researchers export current-time curves to Excel. Consequently, papers and reports include verified equipment data.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 220V ±10% |
| DC Output Current | 0–20A adjustable |
| DC Output Voltage | 0–12V adjustable |
| Cooling Method | Forced air |
| Ripple Factor | ≤3% |
| Multi-segment | Up to 10 steps |
| Control Mode | IGBT/PWM, CV/CC |
| Dimensions | 350 × 250 × 180 mm |
| Weight | 12 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
