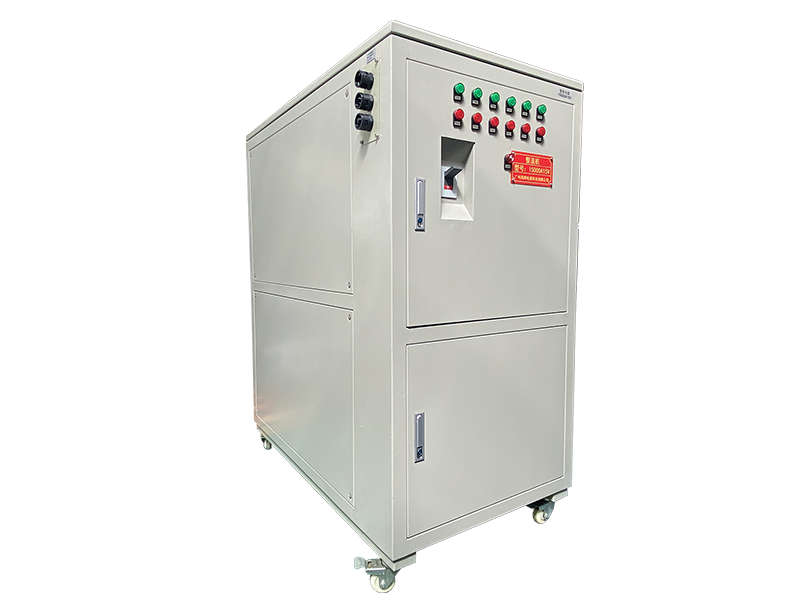

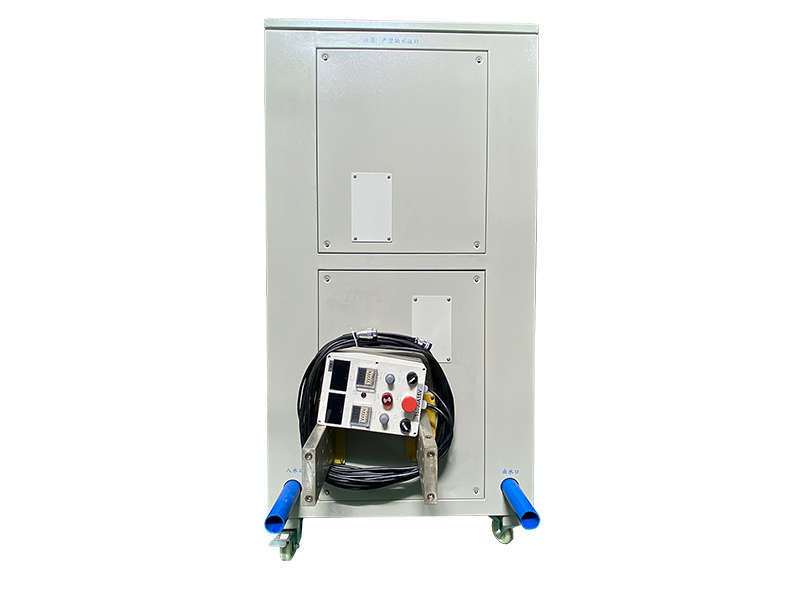

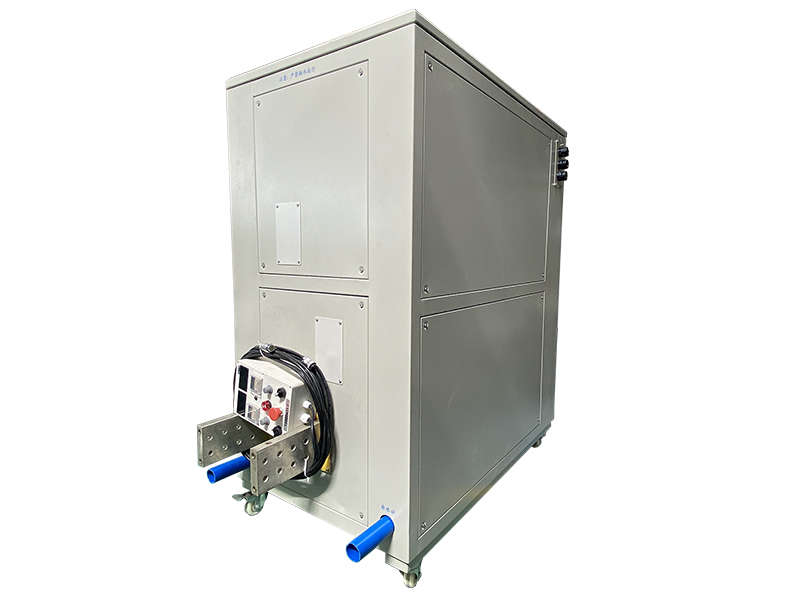

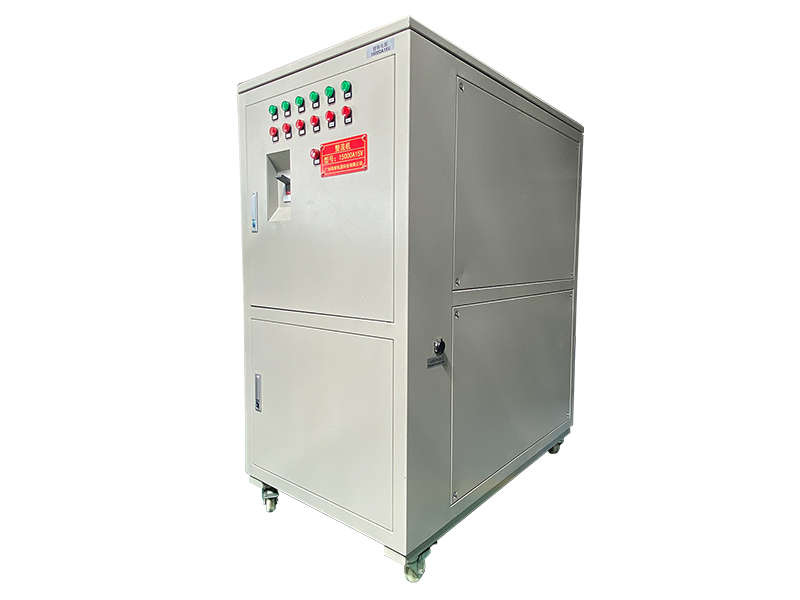

This ultra‑high current water‑cooled chrome rectifier outputs 225kW stable DC power, relying on optimized liquid cooling to sustain continuous heavy‑load chrome‑plating production for oversized work‑pieces.
Ultra‑High Current Water‑Cooled Chrome Rectifier targets large metal‑finishing facilities running heavy‑duty chrome‑plating for extra‑large components. Massive rollers, oversized hydraulic cylinders and heavy mining castings demand extreme continuous current to build dense, uniform chrome coatings. Many conventional rectifier units struggle with excessive heat buildup under such extreme amperage; thermal drift will shift output values and shorten component service cycles over long production shifts. This 15000A 15V water‑cooled chrome plating rectifier solves those pain points through refined water‑cooled thermal management and high‑frequency IGBT conversion inside heavy‑duty cabinet assembly. Once operators finish busbar hook‑ups and coolant pipeline installation, they adjust voltage and current set‑points from front‑panel digital controls before launching high‑volume plating batches.
This rectifier maintains stable performance under non‑stop full‑load conditions. Its water‑flow interlock automatically limits power output once coolant circulation drops below safe thresholds, and this mechanism protects internal power modules against thermal damage during extended production runs.
High‑frequency IGBT power conversion forms the core of this ultra‑high current water‑cooled chrome rectifier, keeping overall operating efficiency higher than 92 percent. Liquid cooling outperforms air‑cooled alternatives under extreme‑current operating scenarios, as circulating water removes heat directly without relying on ambient workshop ventilation. As a result, internal component temperatures stay balanced even through days‑long continuous production cycles.
Fast‑responding closed‑loop control adapts quickly to load changes brought by workpiece loading and unloading. Finished parts gain consistent chrome deposition quality and better surface uniformity. Meanwhile modular internal layout makes routine inspections and component replacement straightforward, and it reduces maintenance‑caused downtime for your plating production line.
Our engineering team optimizes internal thermal flow paths and control algorithms specifically for 15000A high‑current operation. Hence this unit holds low‑ripple output even when running at full rated capacity, and it creates steady process conditions for high‑volume chrome‑plating workshops.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | 0‑15V adjustable |
| DC Output Parameters | Output Current Range | 0‑15000A adjustable |
| DC Output Parameters | Rated Output Power | 225kW |
| DC Output Parameters | Voltage Regulation Accuracy | ≤1% |
| DC Output Parameters | Current Regulation Accuracy | ≤1% |
| DC Output Parameters | Ripple Factor | ≤1% |
| Control and Automation Functions | Operating Modes | Constant Current, Constant Voltage |
| Control and Automation Functions | Auxiliary Hardware | Digital control panel, ampere‑hour counter, fault log recorder |
| Control and Automation Functions | Programming Features | Output limit lock, historical alarm storage |
| Physical and Communication Parameters | Cooling Method | Water‑cooled with water‑flow interlock protection |
| Physical and Communication Parameters | Protection Class | IP20 for indoor industrial plating workshop |
| Physical and Communication Parameters | Communication Interface | RS485 Modbus RTU |
| Physical and Communication Parameters | Operating Efficiency | Above 92% |
We can provide:
This ultra‑high current water‑cooled chrome rectifier carries standard factory warranty and delivers more than 10‑year service lifespan under compliant operating conditions. Water‑flow detection module belongs to standard delivery scope. Modular power layout supports convenient on‑site servicing work. Multi‑dimensional alarm protection responds swiftly to all abnormal runtime states. Just share your plating‑bath specifications and workpiece details, and we deliver practical configuration recommendations.
This ultra‑high current water‑cooled chrome rectifier fits ultra‑high‑current chrome‑plating tasks, large‑size component refurbishment and heavy‑duty industrial surface finishing. It serves plating workshops processing large industrial rollers, heavy‑bore hydraulic cylinders and rebuilt mining mechanical assemblies.
High‑throughput plating facilities gain obvious advantages from this single‑cabinet ultra‑high‑current hardware, which removes complexity caused by multiple parallel‑connected rectifier set‑ups. It also supports chrome‑plating process development and parameter comparison trials. Thanks to flexible tunable output, technicians can run groups of plating contrast tests conveniently. Furthermore Modbus‑compatible data output allows operators to archive full production logs for complete quality traceability.
We build durable ultra‑high‑current rectifier hardware for demanding metal‑finishing production lines, and we specialise in water‑cooled single‑cabinet units for heavy‑duty chrome‑plating workflows. Our engineering crew calibrates thermal performance and safety thresholds to match real‑world on‑site workshop operating environments.
Every finished unit passes full‑load continuous aging test and ripple‑value inspection according to industry‑standard quality requirements before shipment; accordingly you obtain hardware validated for long‑run 15000A plating cycles.
Our full‑lifecycle support package includes hands‑on operational guidance, remote fault troubleshooting and stable spare‑parts provision. When your production capacity expands in future, this unit supports parallel‑running function without heavy reconstruction work. In short, trust our reliable rectifier solutions for your heavy‑duty chrome‑plating production tasks.
