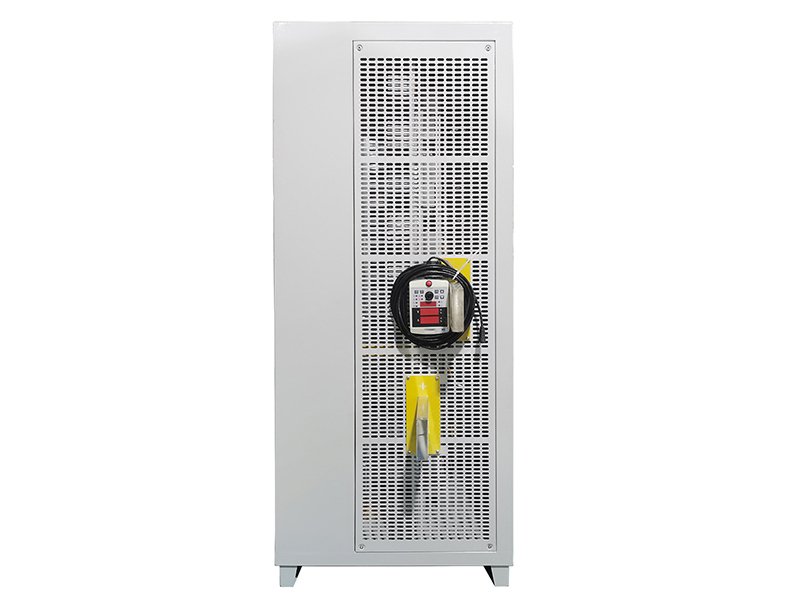

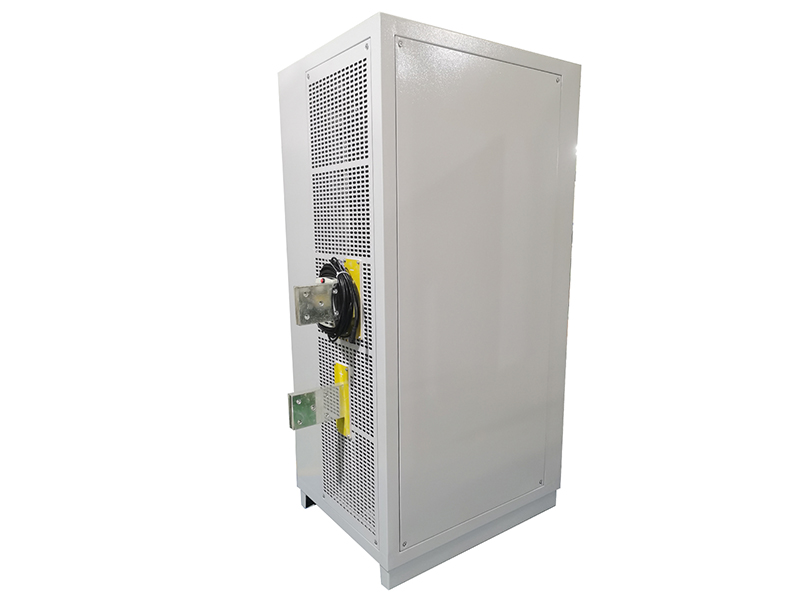

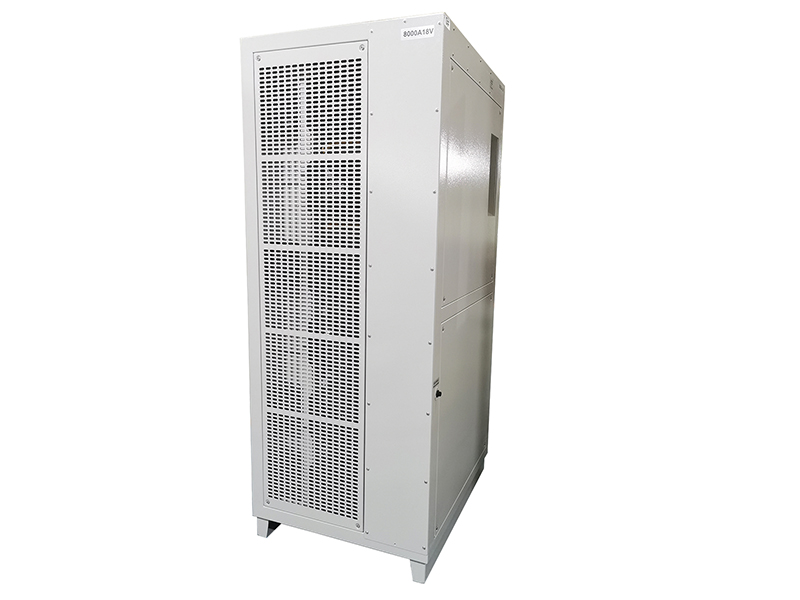

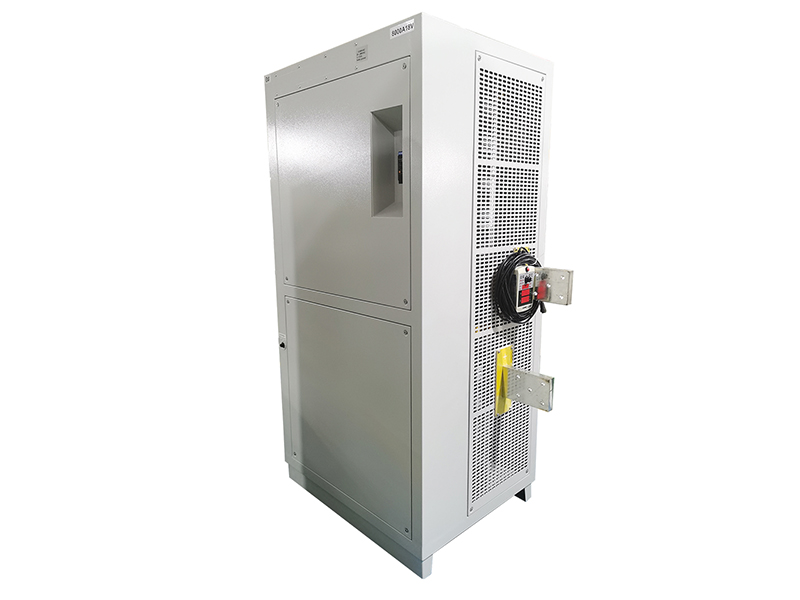

This 8000A 18V galvanizing rectifier delivers 144kW DC output for heavy‑duty galvanizing tanks and high‑current plating bus architectures in industrial surface treatment workshops.
Gaohui Power Supply engineers the 8000A 18V Galvanizing Rectifier for plating‑line integrators and heavy‑duty galvanizing workshop designers. As galvanizing production scales to large‑batch steel component processing, unstable power output brings uneven zinc coating and high energy consumption; therefore, many workshop designers shift toward high‑current low‑voltage power supplies to guarantee uniform zinc deposition and cut overall operating cost. Conventional rectifiers rarely combine 18V output with 8000A current in a single compact unit, and insufficient current stability will create uneven coating, burning spots and poor anti‑corrosion performance on steel workpieces. For this reason, this rectifier integrates high‑precision current regulation, low‑ripple output and reliable short‑circuit protection into one industrial cabinet to deliver 144kW clean DC power. Beyond steady continuous operation, it also supports programmable voltage‑current profiling when process engineers need it for special galvanizing startup and shutdown sequences.
This galvanizing rectifier primarily powers large‑volume galvanizing tanks for steel pipes, structural steel parts, fasteners and heavy mechanical workpieces. Furthermore, its 0‑18V adjustable output allows operators to fine‑tune voltage according to bath temperature, zinc solution concentration and workpiece surface area, maximizing coating quality and current efficiency across varying process conditions. Meanwhile, built‑in over‑current and short‑circuit detection circuits continuously monitor the low‑voltage high‑current output, ensuring safe operation for both equipment and on‑site personnel.
This galvanizing rectifier uses advanced IGBT power conversion with soft‑switching topology and reaches system efficiency above ninety‑five percent. Under continuous full‑load 8000A‑18V operation, its optimized dual‑loop cooling structure removes heat from both power semiconductors and magnetic components; hence it maintains stable operating temperature even during long‑batch non‑stop galvanizing cycles. What is more, precise high‑current output guarantees even current distribution across multiple workpieces inside the galvanizing tank, which dramatically reduces uneven coating and lowers post‑processing rework demand.
Its precision current control loop holds output steady within one percent even under sudden load changes caused by workpiece hooking‑on or tank‑parameter fluctuation. Accordingly, workpieces inside the galvanizing bath receive consistent current density across every surface, preventing partial over‑plating or insufficient zinc deposition. Besides, multi‑segment programming lets operators define staged current ramp‑up and voltage‑limit profiles during galvanizing startup, which protects workpieces from surface burning during the critical initial plating phase.
Our engineering team builds every unit with anti‑corrosion cabinet treatment and isolated sensing circuits. Consequently, the rectifier meets stringent industrial safety standards for plating‑process DC equipment, and it operates reliably even in humid, acid‑fume‑rich galvanizing workshop environments. In turn, this process‑oriented design reduces compliance certification effort for system integrators and lowers long‑term equipment failure risk for galvanizing workshop operators.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | Zero to 18V adjustable |
| DC Output Parameters | Output Current Range | Zero to 8000A adjustable |
| DC Output Parameters | Rated Output Power | 144kW |
| DC Output Parameters | Voltage Regulation Accuracy | Within one percent |
| DC Output Parameters | Current Regulation Accuracy | Within one percent |
| DC Output Parameters | Ripple Factor | Within one percent |
| Control and Automation Functions | Operation Modes | Constant Voltage, Constant Current |
| Control and Automation Functions | Auxiliary Control Devices | Digital ampere‑hour meter, programmable timer, multi‑stage ramp‑up |
| Control and Automation Functions | Programming Functions | Programmable voltage‑current ramp, multi‑segment parameter setting |
| Physical and Communication Parameters | Cooling Mode | Air‑cooled with dual‑loop forced airflow |
| Physical and Communication Parameters | Protection Grade | IP21 for indoor galvanizing workshop application |
| Physical and Communication Parameters | Communication Protocol | RS485 Modbus RTU |
| Physical and Communication Parameters | Working Efficiency | Above ninety‑five percent |
We can provide: This rectifier includes a one‑year warranty and delivers expected service life exceeding 10 years. To begin with, anti‑corrosion cabinet treatment and short‑circuit detection come as standard safety features. Furthermore, we integrate soft‑switching IGBT topology and isolated high‑current sensing into every unit. In addition, we pre‑install RS485 communication and comprehensive over‑voltage / over‑current protection in all models. Therefore, feel free to send us your galvanizing tank specifications for a tailored power supply solution.
This galvanizing rectifier fits heavy‑duty industrial galvanizing production with high‑current low‑voltage DC distribution architecture. First and foremost, it serves as the main power source for large galvanizing tanks for steel pipes, structural steel, fasteners and heavy mechanical parts in mass‑production surface treatment workshops.
In addition, surface treatment factories, steel processing manufacturers and hardware component factories deploy this unit to power large on‑site galvanizing lines where stable high‑current output is critical for coating performance. As a matter of fact, its 8000A output allows workshop designers to run multi‑workpiece batches within one galvanizing tank with uniform current density.
It also works well with shared plating‑bus architectures where multiple rectifier units feed a common bus that powers several independent galvanizing tanks. Thanks to its tight current regulation, multiple units can operate in parallel on the same bus without circulating current issues. What's more, it functions as a high‑power benchmark supply for galvanizing process testing and new plating‑formula research.
Gaohui Power Supply develops custom‑optimized Galvanizing Rectifier for plating‑line integrators and heavy‑duty surface‑treatment workshop designers, and galvanizing‑process power engineering expertise forms our core competitive advantage. Above all, our engineering team adjusts output voltage‑current range, configures anti‑corrosion cabinet levels and customizes control logic to match your specific galvanizing tank and workshop bus architecture.
Apart from that, we validate every unit against CE safety standards under ISO 9001 quality‑management protocols. Each finished 8000A 18V rectifier undergoes 100% continuous full‑load ageing testing plus current‑stability and short‑circuit verification before shipment; as a result, customers receive hardware proven for safe, reliable operation in demanding corrosive galvanizing‑workshop environments.
Our full‑lifecycle service covers remote commissioning support, on‑site operation training and spare‑parts provision. Whenever you expand plating‑line capacity or upgrade galvanizing process technology, our team can reconfigure voltage and current parameters without full hardware replacement. In short, partner with Gaohui Power Supply for safe, efficient galvanizing rectifier solutions for your largest projects.

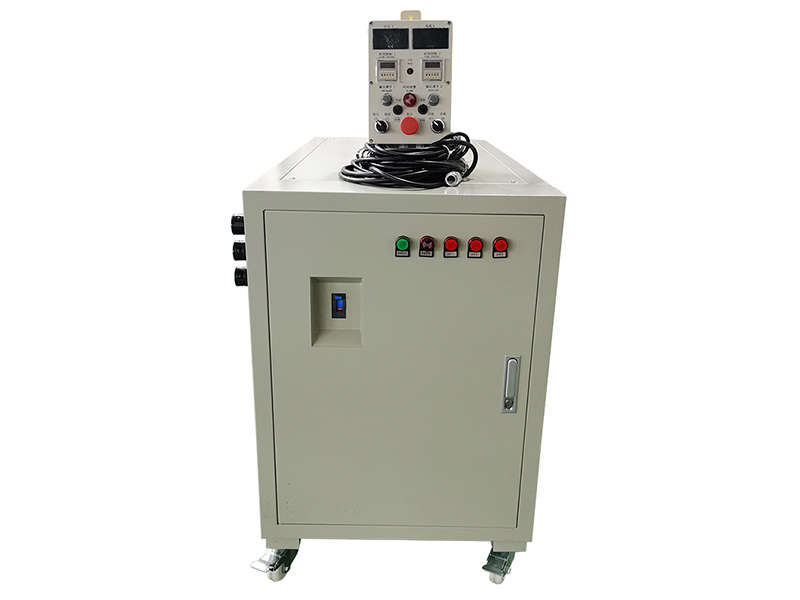

Learn more about related products：12000A 18V Water-cooled hard chrome plating rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
