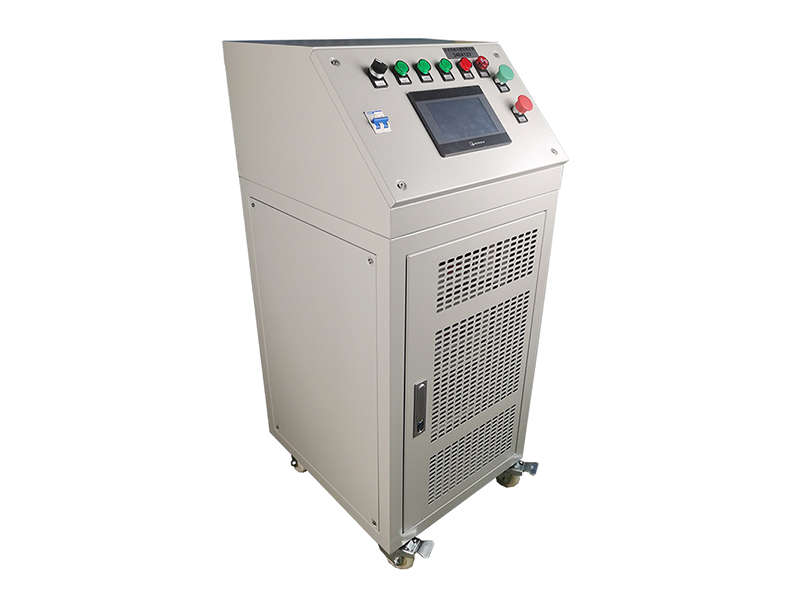

This air‑cooled multi‑channel commutating rectifier supplies 4.08kW regulated DC power, built for cyclic reverse‑current chrome plating cycles without water‑cooling infrastructure.
Metal finishing sites performing cyclic chrome plating need power hardware that reliably handles regular current reversal across multiple output channels. Gaohui Power Supply designed the 340A 12V Air‑Cooled Multi‑Channel Commutating Chrome Plating Rectifier to satisfy this unique operational demand. Many mid‑size plating shops avoid complex water‑cooled setups yet still require automatic commutation to enhance coating adhesion and lower surface defects. This unit adopts forced air‑cooled architecture alongside independent multi‑channel output control, removing the need for external reversing contactors. Operators only complete basic electrical connections, then configure commutation timings directly through the local control panel before launching plating runs.

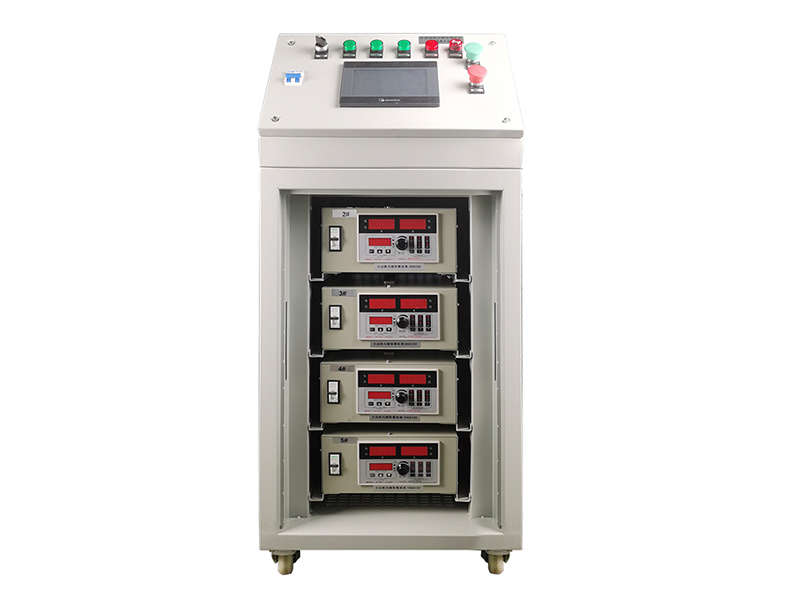

This air‑cooled multi‑channel commutating chrome plating rectifier suits cyclic chrome treatment for automotive hardware, hydraulic valve parts and medium‑size structural fittings. Unlike single‑output basic rectifiers, it manages several plating zones simultaneously while executing synchronized current reversal. Meanwhile real‑time channel‑by‑channel monitoring protects hardware against overload triggered by uneven part loading across different baths.
High‑frequency power conversion forms the core of this air‑cooled multi‑channel commutating chrome plating rectifier and achieves working efficiency above 93 percent. Since fan‑driven heat dissipation takes the place of water‑circulation loops, production teams skip pipe layout and fluid‑related maintenance; accordingly facilities reduce auxiliary investment and shorten equipment commissioning cycles. What is more, integrated commutation logic replaces bulky external switch assemblies, so the whole system occupies less overall floor area inside busy plating workshops.
Independent channel regulation stabilises current output even when individual plating tanks experience load variations. As a result, every processing bath maintains correct cyclic forward‑reverse timings, and workpieces gain improved chrome layer uniformity and bonding performance. Besides, detachable dust filter panels trap corrosive plating mist, slowing internal component wear in humid metal‑finishing surroundings.
Our engineering group optimises internal switching circuits to suppress impulse spikes during commutation events. Therefore the unit sustains long‑hour cyclic operation with fewer component failures. In turn this robust design lowers unexpected downtime for mid‑volume cyclic chrome‑plating production.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | 0‑12V adjustable |
| DC Output Parameters | Total Output Current Range | 0‑340A adjustable, multi‑channel split output |
| DC Output Parameters | Rated Output Power | 4.08kW |
| DC Output Parameters | Voltage Regulation Accuracy | ≤1% |
| DC Output Parameters | Per‑Channel Current Deviation | ≤1% |
| DC Output Parameters | Ripple Factor | ≤1% |
| Control and Automation Functions | Operating Modes | Constant Current, Constant Voltage, Automatic Forward‑Reverse Commutation |

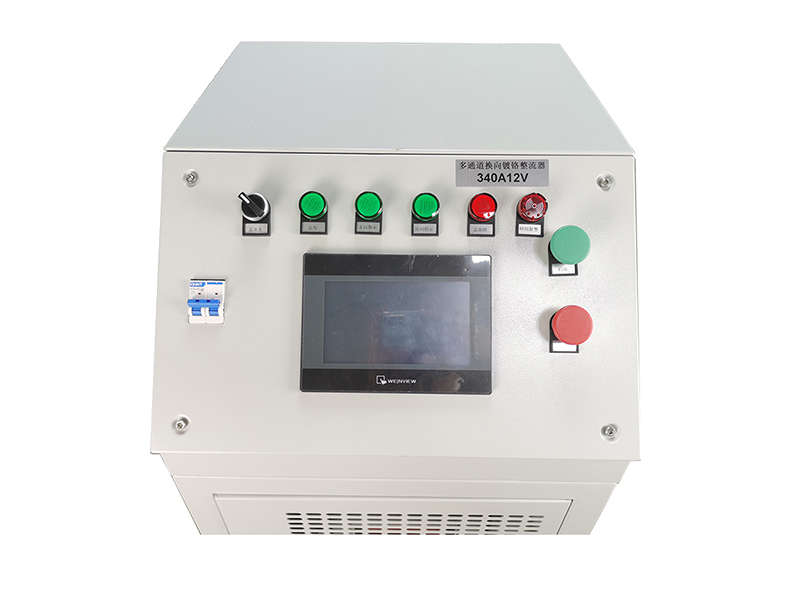

| Control and Automation Functions | Auxiliary Hardware | Local digital control panel, ampere‑hour counter, commutation cycle timer |
| Control and Automation Functions | Programming Features | Independent commutation time setting for each output channel |

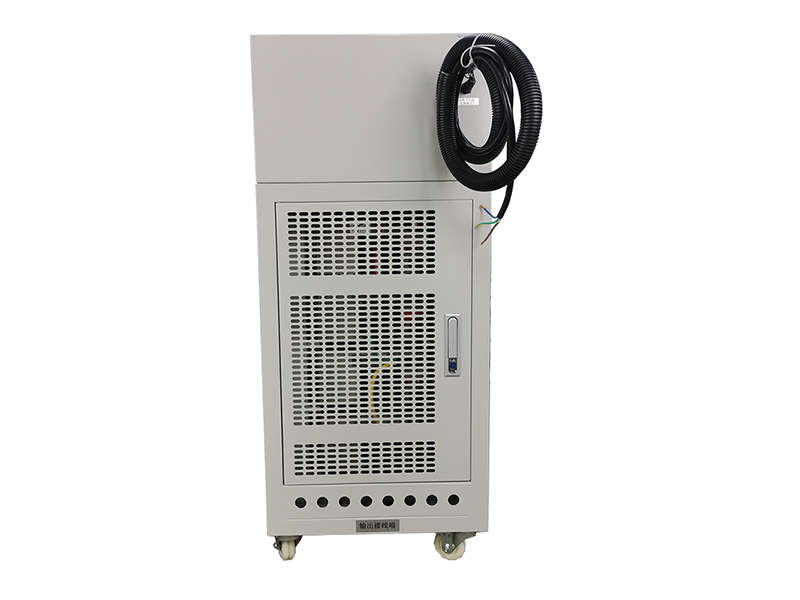

| Physical and Communication Parameters | Cooling Method | Forced air‑cooled |
| Physical and Communication Parameters | Protection Class | IP20 for indoor metal‑finishing workshop |
| Physical and Communication Parameters | Communication Interface | RS485 Modbus RTU |
| Physical and Communication Parameters | Operating Efficiency | Above 93% |
We can provide:
This air‑cooled multi‑channel commutating chrome plating rectifier includes one‑year factory warranty and delivers over 10‑year service life under proper operating conditions. To start with, forced‑air cooling modules and dust‑resistant filter assemblies belong to standard configuration. Furthermore built‑in multi‑channel commutation control removes requirements for extra reversing hardware. In addition multi‑dimensional protection defends against over‑current, over‑temperature, short‑circuit and channel unbalance risks. Simply share your plating‑bath quantity and target commutation cycle parameters, and we can supply practical configuration suggestions.
This air‑cooled multi‑channel commutating chrome plating rectifier fits mid‑volume cyclic chrome‑plating production, multi‑tank metal‑surface finishing and process‑parameter optimisation tests. Above all else, it acts as dedicated power equipment for plating facilities processing automotive components, hydraulic valve bodies and medium‑sized mechanical fittings.
Likewise mid‑scale finishing factories select this commutating rectifier to run multiple plating zones concurrently, instead of deploying several separate single‑channel reversing power supplies. In fact its air‑cooled framework avoids plumbing‑installation work and accelerates on‑site commissioning progress.
It also works well for process‑development laboratories exploring cyclic chrome‑plating formulas. Thanks to per‑channel independent timing adjustment, technicians compare different commutation cycles across test baths conveniently. What is more Modbus‑supported data output helps operators log full cyclic production data for quality traceability.
Gaohui Power Supply develops custom‑oriented rectifier hardware for cyclic metal‑plating production lines, and we focus on multi‑channel commutating power solutions for mid‑volume finishing demands. Most importantly our engineering crew adjusts channel quantity, commutation response speed and cabinet layout to match your workshop layout and real‑world production scale.
On top of that each finished unit completes full‑load cyclic commutation aging testing and ripple‑value inspection following ISO9001 quality standards before shipment; hence you receive hardware validated for repeated forward‑reverse switching operating cycles.
Our full‑lifecycle support covers hands‑on operation guidance, remote fault troubleshooting and spare‑parts supply. Should your production throughput expand in future periods, you can expand channel capacity or upgrade to higher‑current models without full reconstruction of existing plating‑tank infrastructure. In short, partner with us for reliable power solutions supporting your multi‑bath cyclic chrome‑plating workflows.
