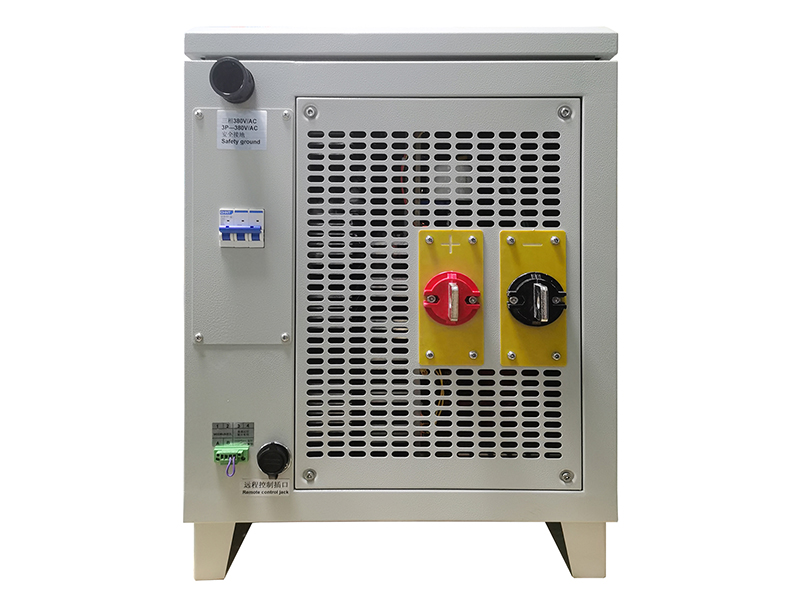

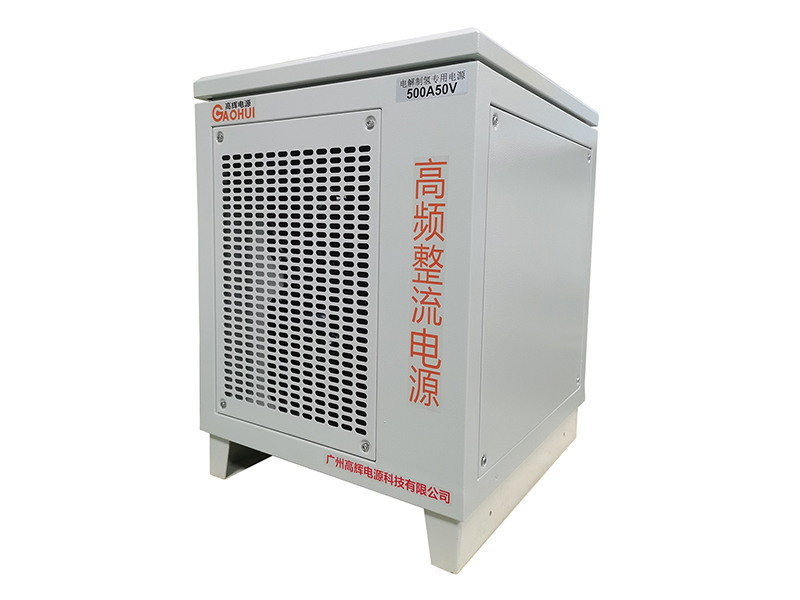

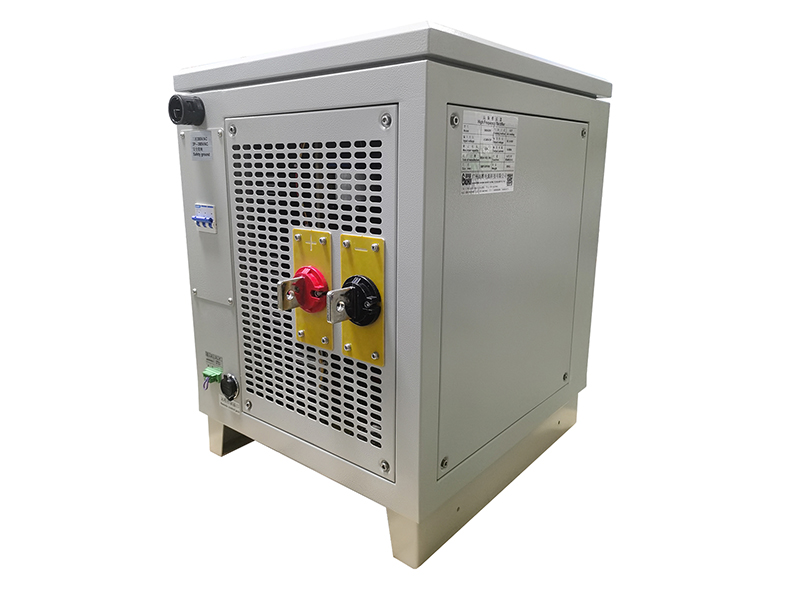

This high‑power electrolytic hydrogen rectifier delivers 25kW stable DC output for large alkaline electrolyser stacks and utility‑scale green hydrogen production projects.
Gaohui Power Supply manufactures the 500A 50V High‑Power Electrolytic Hydrogen Rectifier for large‑scale alkaline electrolyser integrators and utility‑grade hydrogen project developers. As green hydrogen projects scale from pilot demonstrations to multi‑megawatt commercial plants, operators need power supplies that can sustain 24/7 heavy‑duty operation without performance drift. Ordinary mid‑range rectifiers lack the current capacity and thermal robustness to drive large electrolyser stacks continuously, and premature component failure will cause costly unplanned downtime. For this reason, this rectifier combines multi‑module parallel architecture with industrial‑grade thermal management to deliver dependable 500A output under full‑load conditions. Beyond steady grid‑connected base‑load operation, it also supports automatic power curtailment when plant operators integrate it with wind and solar farms.
This high‑power electrolytic hydrogen rectifier primarily drives large alkaline electrolyser stacks, while it also feeds multi‑stack PEM arrays through properly sized distribution busbars. Furthermore, its 0‑50V adjustable output covers the voltage range of most commercial medium‑size alkaline electrolyser modules. Meanwhile, redundant cooling fans and temperature‑controlled airflow ensure that power semiconductors operate within safe thermal limits even during summer peak ambient conditions.
This high‑power electrolytic hydrogen rectifier uses interleaved IGBT power conversion and reaches system efficiency above ninety‑four percent. Under continuous full‑load 500A‑50V operation, its dual‑zone air‑cooling structure draws cool air through the bottom and exhausts hot air from the top; hence it prevents heat buildup and keeps power devices at stable operating temperatures. What is more, modular design allows technicians to swap individual power modules in the field without removing the entire cabinet, which dramatically cuts mean time to repair.
Its master‑slave current‑sharing control balances load across all parallel modules within two percent deviation. Accordingly, no single module bears disproportionate stress, and the whole system achieves longer service life than single‑block designs. Besides, programmable multi‑segment ramp profiles let operators define custom startup and shutdown sequences, which protects large electrolyser stacks from sudden current surges and thermal shock during daily cycling.
Our engineering team equips the output stage with heavy‑duty copper busbars and high‑accuracy Hall‑effect current sensors. Consequently, voltage drop at full 500A load stays below one percent, and current measurement remains precise across the entire operating range. In turn, this accuracy translates directly into predictable hydrogen yield and stable gas purity for utility‑scale production.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | Zero to 50V adjustable |
| DC Output Parameters | Output Current Range | Zero to 500A adjustable |
| DC Output Parameters | Rated Output Power | 25kW |
| DC Output Parameters | Voltage Regulation Accuracy | Within one percent |
| DC Output Parameters | Current Regulation Accuracy | Within one percent |
| DC Output Parameters | Ripple Factor | Within one percent |
| Control and Automation Functions | Operation Modes | Constant Current, Constant Voltage |
| Control and Automation Functions | Auxiliary Control Devices | Digital ampere‑hour meter, programmable timer, multi‑stage ramp‑up |
| Control and Automation Functions | Programming Functions | Programmable current‑voltage ramp, multi‑segment parameter setting |
| Physical and Communication Parameters | Cooling Mode | Air‑cooled with redundant fans |
| Physical and Communication Parameters | Protection Grade | IP21 for indoor application |
| Physical and Communication Parameters | Communication Protocol | RS485 Modbus RTU |
| Physical and Communication Parameters | Working Efficiency | Above ninety‑four percent |
| Physical and Communication Parameters | Size and Weight | Fully customizable based on customer demands |
We can provide:
This rectifier includes a one‑year warranty and delivers expected service life exceeding 10 years. To begin with, multi‑module current sharing and redundant cooling fans come as standard configuration. Furthermore, we build heavy‑duty copper busbars and Hall‑effect current sensors into every unit. In addition, we pre‑install RS485 communication and comprehensive over‑temperature / over‑current protection in all models. Therefore, feel free to send us your electrolyser stack specifications for a tailored high‑power solution.
This high‑power electrolytic hydrogen rectifier targets large‑scale industrial and utility‑grade water electrolysis applications. First and foremost, it serves as the main power source for large alkaline electrolyser stacks in commercial hydrogen production plants and renewable‑to‑hydrogen facilities.
In addition, refineries, ammonia plants and steel mills deploy multiple units in parallel to supply bulk hydrogen for chemical processing and reduction reactions. As a matter of fact, its modular scalability makes it easy to expand capacity from 25kW to hundreds of kilowatts by adding more rectifier units.
It also pairs with utility‑scale solar and wind farms for power‑to‑hydrogen energy storage. Thanks to its fast power‑curtailment response, it absorbs surplus renewable generation and converts it into hydrogen during high‑production periods, helping grid operators balance supply and demand. What's more, it functions as a reliable benchmark power source for large electrolyser stack testing and industrial hydrogen technology demonstration projects.
Gaohui Power Supply develops custom‑optimized High‑Power Electrolytic Hydrogen Rectifier for large electrolyser manufacturers and utility‑scale hydrogen project developers, and heavy‑duty engineering capability forms our core competitive strength. Above all, our engineering team scales output power, configures module redundancy and customizes control logic to match your specific electrolyser array and plant automation architecture.
Apart from that, we validate every unit against CE safety standards under ISO 9001 quality‑management protocols. Each finished 500A 50V rectifier undergoes 100% continuous full‑load ageing testing plus current‑sharing balance and thermal performance verification before shipment; as a result, customers receive hardware proven for long‑term reliability in demanding 24/7 industrial environments.
Our full‑lifecycle service covers remote commissioning support, on‑site maintenance training and spare‑parts provision. Whenever you expand plant capacity or upgrade electrolyser stack technology, our team can reconfigure system parameters and add modules without replacing existing cabinets. In short, partner with Gaohui Power Supply for scalable, high‑performance electrolytic hydrogen rectifier solutions for your most demanding projects.
Learn more about related products:60A50V Electrolytic Hydrogen Generation Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
