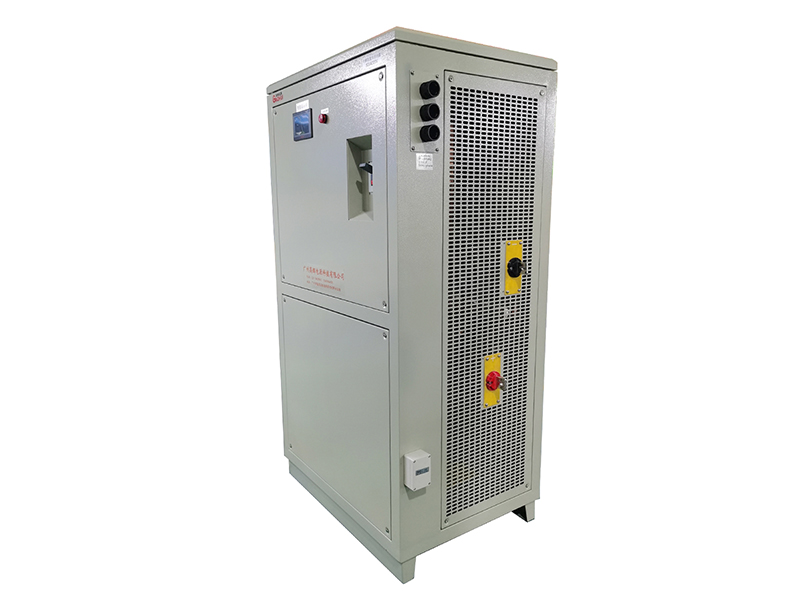

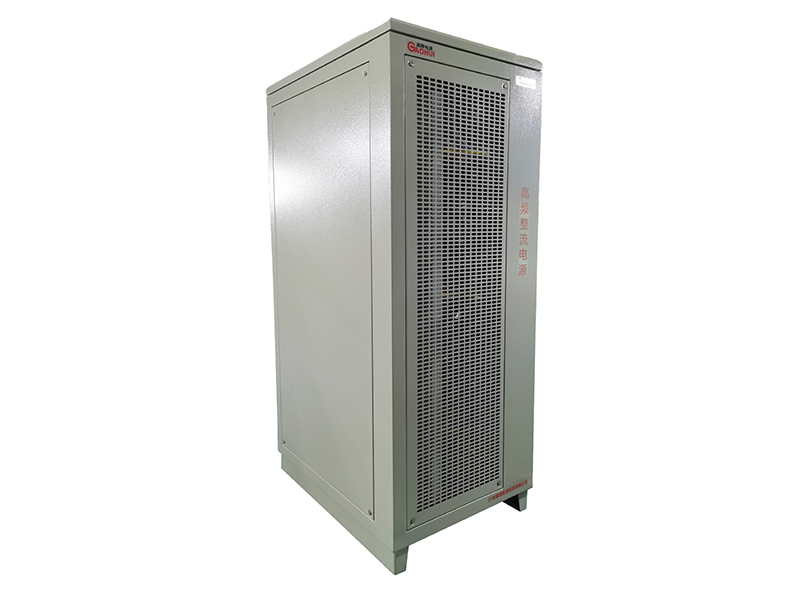

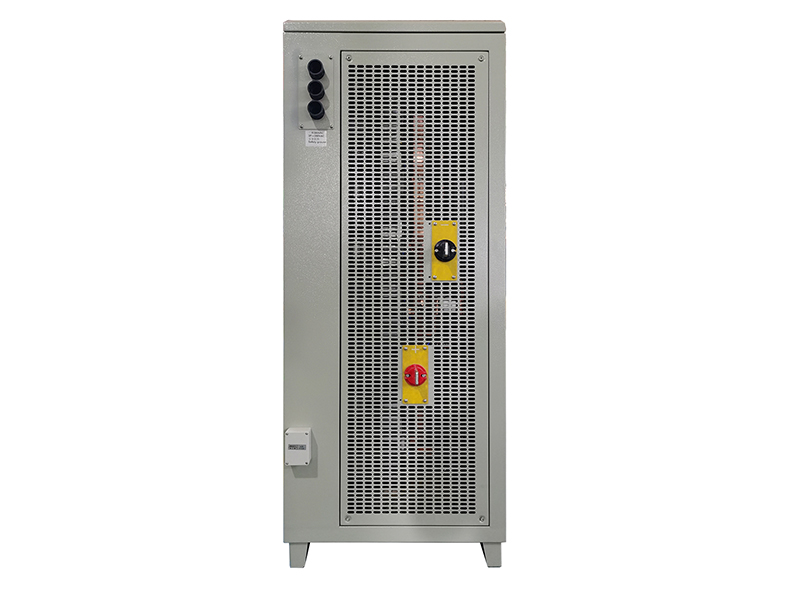

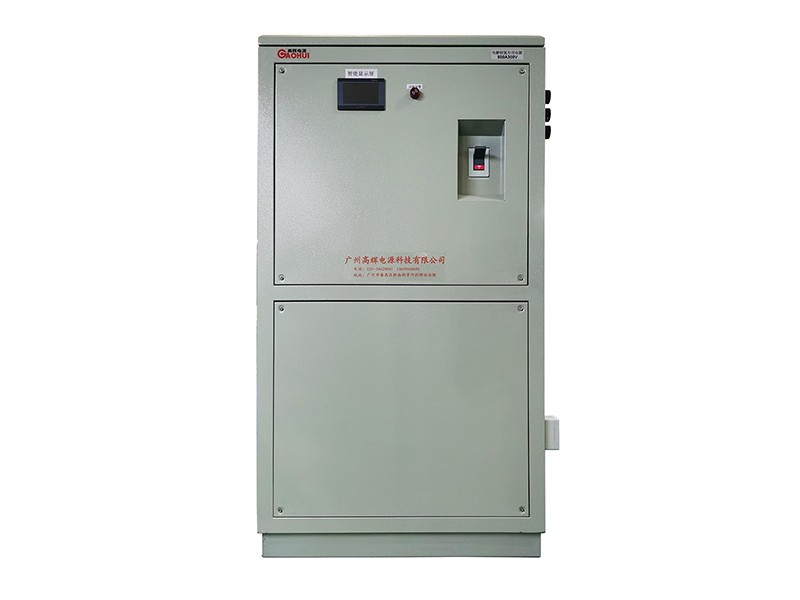

This high‑voltage electrolytic hydrogen rectifier delivers 150kW DC output for large electrolyser arrays and high‑voltage DC bus architectures in industrial hydrogen plants.
Gaohui Power Supply engineers the 500A 300V High‑Voltage Electrolytic Hydrogen Rectifier for large electrolyser array integrators and industrial hydrogen plant designers. As hydrogen production scales to multi‑megawatt levels, low‑voltage high‑current power architectures face severe busbar losses and costly copper consumption; therefore, many plant designers shift toward high‑voltage DC distribution to reduce transmission current and cabling cost. Conventional rectifiers rarely combine 300V output with 500A current in a single compact unit, and insufficient voltage isolation will create safety hazards in high‑power electrolysis environments. For this reason, this rectifier integrates reinforced insulation, high‑voltage sensing and precision current control into one industrial cabinet to deliver 150kW clean DC power. Beyond steady continuous operation, it also supports programmable voltage‑current profiling when process engineers need it for special electrolyser startup and shutdown sequences.
This high‑voltage electrolytic hydrogen rectifier primarily powers series‑connected alkaline electrolyser stacks and high‑voltage PEM arrays. Furthermore, its 0‑300V adjustable output allows operators to fine‑tune voltage according to stack temperature and electrolyte concentration, maximizing energy efficiency across varying process conditions. Meanwhile, built‑in over‑voltage and ground‑fault detection circuits continuously monitor the high‑voltage output, ensuring safe operation for both equipment and on‑site personnel.
This high‑voltage electrolytic hydrogen rectifier uses advanced IGBT power conversion with soft‑switching topology and reaches system efficiency above ninety‑five percent. Under continuous full‑load 500A‑300V operation, its optimized dual‑loop cooling structure removes heat from both power semiconductors and magnetic components; hence it maintains stable operating temperature even during long production cycles. What is more, the high‑voltage output means that only 500A flows through the main busbars instead of thousands of amperes, which dramatically reduces I²R losses and lowers plant cooling demand.
Its precision voltage control loop holds output steady within one percent even under sudden load changes. Accordingly, series‑connected electrolyser stacks receive consistent voltage across every cell, preventing individual cells from operating outside their safe voltage window. Besides, multi‑segment programming lets operators define staged voltage ramp‑up and current‑limit profiles during electrolyser startup, which protects cell membranes from electrical stress during the critical warm‑up phase.
Our engineering team builds every unit with reinforced insulation barriers and isolated high‑voltage sensing circuits. Consequently, the rectifier meets stringent industrial safety standards for high‑voltage DC equipment, and it operates reliably even in humid, hydrogen‑rich plant environments. In turn, this safety‑first design reduces compliance certification effort for system integrators and lowers long‑term liability risk for plant operators.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | Zero to 300V adjustable |
| DC Output Parameters | Output Current Range | Zero to 500A adjustable |
| DC Output Parameters | Rated Output Power | 150kW |
| DC Output Parameters | Voltage Regulation Accuracy | Within one percent |
| DC Output Parameters | Current Regulation Accuracy | Within one percent |
| DC Output Parameters | Ripple Factor | Within one percent |
| Control and Automation Functions | Operation Modes | Constant Voltage, Constant Current |
| Control and Automation Functions | Auxiliary Control Devices | Digital ampere‑hour meter, programmable timer, multi‑stage ramp‑up |
| Control and Automation Functions | Programming Functions | Programmable voltage‑current ramp, multi‑segment parameter setting |
| Physical and Communication Parameters | Cooling Mode | Air‑cooled with dual‑loop forced airflow |
| Physical and Communication Parameters | Protection Grade | IP21 for indoor application |
| Physical and Communication Parameters | Communication Protocol | RS485 Modbus RTU |
| Physical and Communication Parameters | Working Efficiency | Above ninety‑five percent |
| Physical and Communication Parameters | Size and Weight | Fully customizable based on customer demands |
We can provide:
This rectifier includes a one‑year warranty and delivers expected service life exceeding 10 years. To begin with, reinforced insulation and ground‑fault detection come as standard safety features. Furthermore, we integrate soft‑switching IGBT topology and high‑voltage isolated sensing into every unit. In addition, we pre‑install RS485 communication and comprehensive over‑voltage / over‑current protection in all models. Therefore, feel free to send us your electrolyser array specifications for a tailored high‑voltage solution.
This high‑voltage electrolytic hydrogen rectifier fits large‑scale industrial hydrogen production with high‑voltage DC distribution architecture. First and foremost, it serves as the main power source for series‑connected alkaline electrolyser stacks and high‑voltage PEM arrays in multi‑megawatt hydrogen plants.
In addition, chemical plants, refineries and steel mills deploy this unit to power large on‑site hydrogen generation systems where long cable runs make low‑voltage high‑current designs impractical. As a matter of fact, its 300V output allows plant designers to use smaller, lighter and less expensive DC cables throughout the facility.
It also works well with central high‑voltage DC bus architectures where multiple rectifier units feed a common bus that powers distributed electrolyser modules. Thanks to its tight voltage regulation, multiple units can operate in parallel on the same bus without circulating current issues. What's more, it functions as a high‑power benchmark supply for large electrolyser stack testing and high‑voltage electrolysis technology research.
Gaohui Power Supply develops custom‑optimized High‑Voltage Electrolytic Hydrogen Rectifier for large electrolyser integrators and industrial hydrogen plant designers, and high‑voltage power engineering expertise forms our core competitive advantage. Above all, our engineering team adjusts output voltage range, configures insulation levels and customizes control logic to match your specific electrolyser array and plant distribution architecture.
Apart from that, we validate every unit against CE safety standards under ISO 9001 quality‑management protocols. Each finished 500A 300V rectifier undergoes 100% continuous full‑load ageing testing plus high‑voltage insulation and ground‑fault verification before shipment; as a result, customers receive hardware proven for safe, reliable operation in demanding high‑voltage industrial environments.
Our full‑lifecycle service covers remote commissioning support, on‑site safety training and spare‑parts provision. Whenever you expand plant capacity or upgrade electrolyser stack technology, our team can reconfigure voltage and current parameters without full hardware replacement. In short, partner with Gaohui Power Supply for safe, efficient high‑voltage electrolytic hydrogen rectifier solutions for your largest projects.
