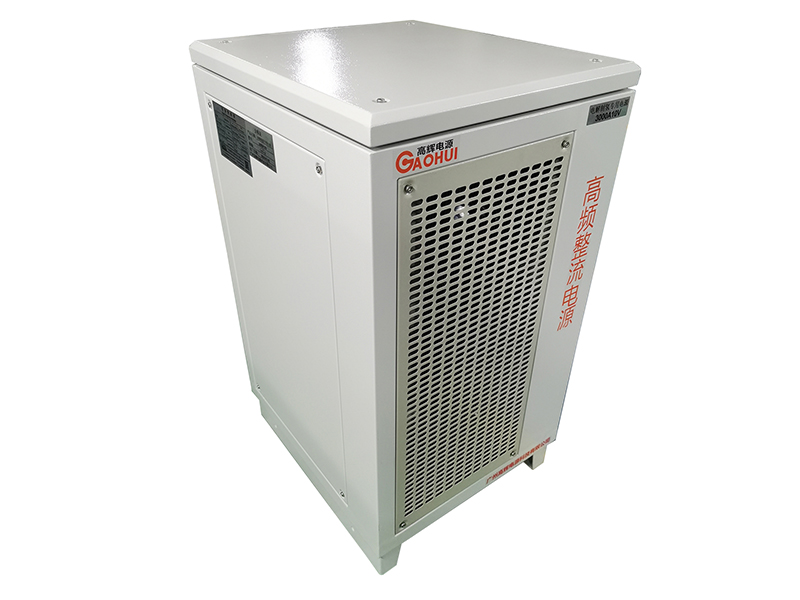

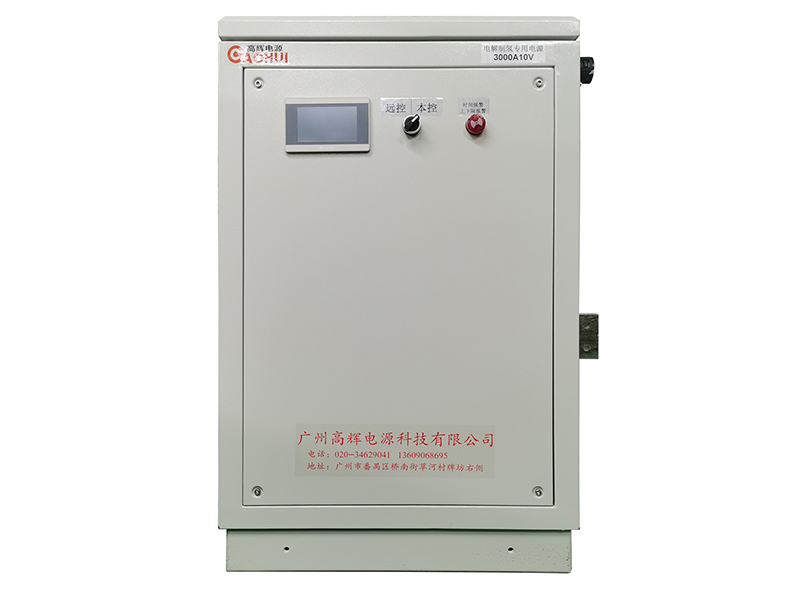

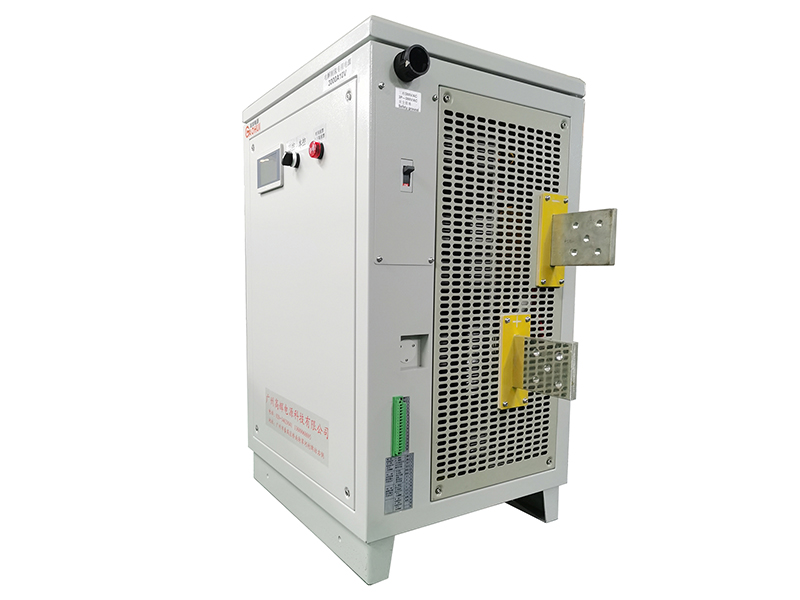

This ultra‑high‑current electrolytic hydrogen rectifier provides 30kW stable DC output for large alkaline electrolyser arrays and multi‑megawatt green hydrogen production plants.
Gaohui Power Supply builds the 3000A 10V Ultra‑High‑Current Electrolytic Hydrogen Rectifier for large‑scale alkaline electrolyser manufacturers and multi‑megawatt hydrogen project integrators. As utility‑scale green hydrogen plants move toward megawatt and gigawatt deployment, electrolyser arrays demand power supplies that can deliver thousands of amperes reliably while maintaining tight current accuracy. Conventional single‑block rectifiers cannot handle 3000A output without severe thermal stress and current imbalance, and uneven current distribution will create local hotspots inside electrolyser cells that accelerate electrode degradation. For this reason, this rectifier employs a heavily parallel multi‑module architecture with master‑slave current sharing to deliver uniform 3000A output across every channel. Beyond continuous base‑load operation, it also supports rapid power ramping when grid operators use it for demand‑response and renewable energy absorption.
This ultra‑high‑current electrolytic hydrogen rectifier primarily drives large alkaline electrolyser stacks, while it also powers multi‑stack PEM arrays through properly rated distribution busbars. Furthermore, its 0‑10V adjustable output matches the low‑voltage, high‑current profile of modern high‑pressure alkaline electrolyser modules. Meanwhile, oversized copper busbars and low‑inductance internal layout minimize resistive losses and voltage drop, ensuring that maximum power reaches the electrolyser rather than dissipating as heat inside the cabinet.
This ultra‑high‑current electrolytic hydrogen rectifier adopts advanced interleaved IGBT power conversion and achieves system efficiency above ninety‑four percent. Under sustained full‑load 3000A‑10V operation, its multi‑zone forced‑air cooling system distributes airflow evenly across all power modules; hence it prevents localized overheating and maintains stable performance throughout 24/7 operation. What is more, the modular architecture allows maintenance technicians to replace a faulty power module in minutes without shutting down the entire electrolyser line, which maximizes plant uptime.
Its digital current‑sharing control loop balances load across all parallel modules within two percent deviation. Accordingly, every module carries an equal share of the 3000A output, and no single component bears disproportionate thermal stress. Besides, programmable multi‑segment ramp profiles let operators define custom startup curves for large electrolyser arrays, which prevents inrush current from damaging cell diaphragms and busbar connections during cold startup.

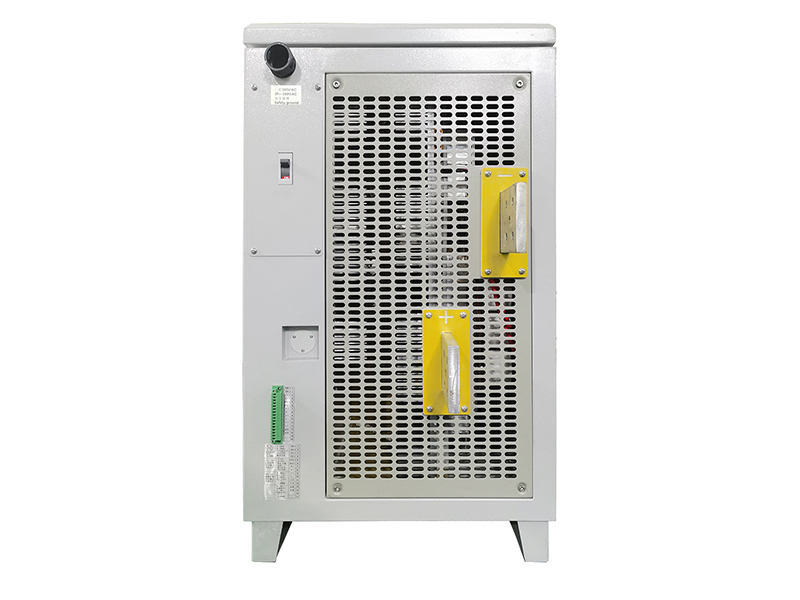

Our engineering team equips the output stage with precision‑machined heavy copper busbars and high‑bandwidth Hall‑effect current sensors. Consequently, total voltage drop from the power module terminals to the electrolyser connection stays below one percent at full 3000A load. In turn, this low loss translates directly into higher overall system efficiency and lower cooling costs for large hydrogen plants.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | Zero to 10V adjustable |
| DC Output Parameters | Output Current Range | Zero to 3000A adjustable |
| DC Output Parameters | Rated Output Power | 30kW |
| DC Output Parameters | Voltage Regulation Accuracy | Within one percent |
| DC Output Parameters | Current Regulation Accuracy | Within one percent |
| DC Output Parameters | Current Sharing Deviation | Below two percent |
| DC Output Parameters | Ripple Factor | Within one percent |
| Control and Automation Functions | Operation Modes | Constant Current, Constant Voltage |
| Control and Automation Functions | Auxiliary Control Devices | Digital ampere‑hour meter, programmable timer, multi‑stage ramp‑up |
| Control and Automation Functions | Programming Functions | Programmable current‑voltage ramp, multi‑segment parameter setting |
| Physical and Communication Parameters | Cooling Mode | Air‑cooled with multi‑zone forced airflow |
| Physical and Communication Parameters | Protection Grade | IP21 for indoor application |
| Physical and Communication Parameters | Communication Protocol | RS485 Modbus RTU |
| Physical and Communication Parameters | Working Efficiency | Above ninety‑four percent |
| Physical and Communication Parameters | Size and Weight | Fully customizable based on customer demands |
We can provide:
This rectifier includes a one‑year warranty and delivers expected service life exceeding 10 years. To begin with, heavily parallel module architecture and N+1 redundancy come as standard configuration. Furthermore, we integrate oversized copper busbars and high‑bandwidth current sensors into every unit. In addition, we pre‑install RS485 communication and comprehensive over‑temperature / over‑current protection in all models. Therefore, you are welcome to share your large electrolyser array specifications for a customised ultra‑high‑current solution.
This ultra‑high‑current electrolytic hydrogen rectifier targets very‑large‑scale industrial and utility‑grade water electrolysis applications. First and foremost, it serves as the core power module for large alkaline electrolyser arrays in multi‑megawatt green hydrogen plants and renewable‑to‑hydrogen energy hubs.
In addition, ammonia plants, refineries and direct‑reduction iron facilities deploy multiple units in parallel to supply bulk hydrogen for chemical synthesis and metal reduction processes. As a matter of fact, its 30kW modular output makes it easy to scale from a single unit to multi‑hundred‑kilowatt arrays by adding more rectifiers in parallel.
It also integrates with utility‑scale solar and wind farms for grid‑balancing power‑to‑hydrogen operation. Thanks to its fast power‑ramping capability, it absorbs surplus renewable generation within seconds and converts it into hydrogen, helping grid operators stabilize frequency and reduce curtailment. What's more, it functions as a high‑current benchmark power source for large electrolyser stack validation and next‑generation electrode technology testing.
Gaohui Power Supply develops custom‑optimized Ultra‑High‑Current Electrolytic Hydrogen Rectifier for large electrolyser manufacturers and utility‑scale hydrogen project developers, and extreme‑current engineering capability forms our core competitive strength. Above all, our engineering team scales output current, configures module redundancy and customizes busbar layouts to match your specific electrolyser array and plant automation architecture.
Apart from that, we validate every unit against CE safety standards under ISO 9001 quality‑management protocols. Each finished 3000A 10V rectifier undergoes 100% continuous full‑load ageing testing plus current‑sharing balance and thermal performance verification before shipment; as a result, customers receive hardware proven for long‑term reliability in the most demanding 24/7 industrial environments.
Our full‑lifecycle service covers remote commissioning support, on‑site maintenance training and spare‑parts provision. Whenever you expand plant capacity or upgrade to next‑generation electrolyser technology, our team can reconfigure system parameters and add modules without replacing existing cabinets. In short, partner with Gaohui Power Supply for scalable, ultra‑high‑performance electrolytic hydrogen rectifier solutions for your largest projects.
Learn more about related products:100A 36V Electrolytic Hydrogen Generation Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
