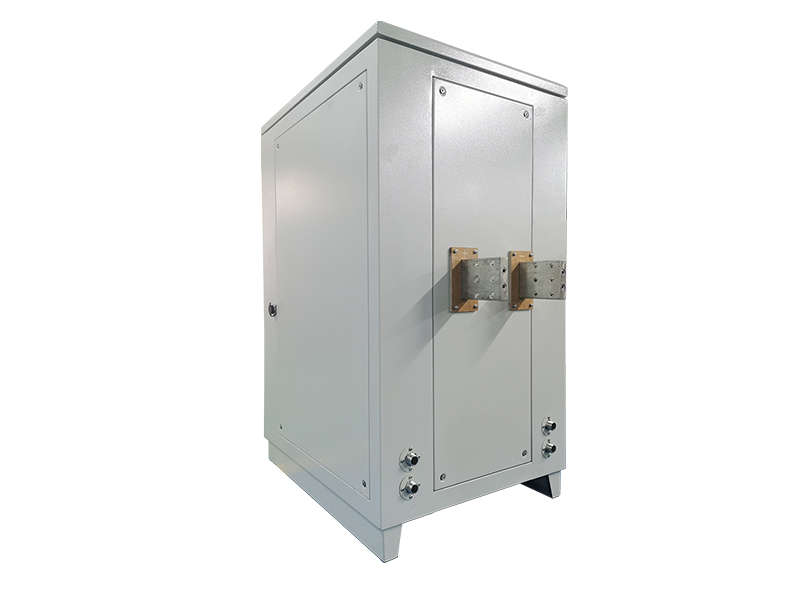

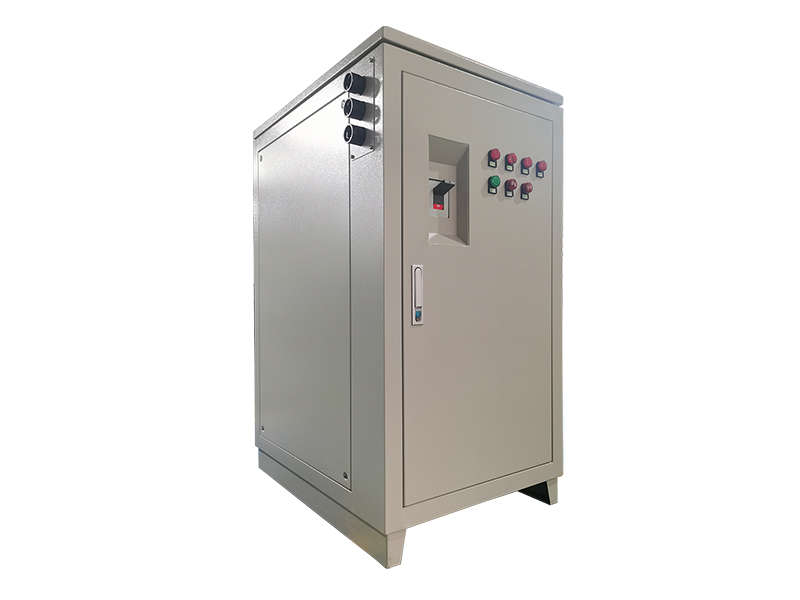

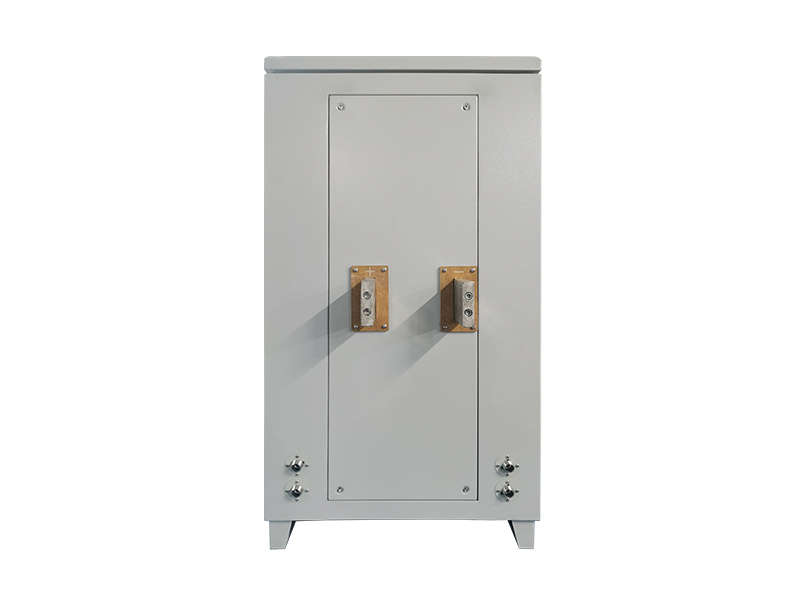

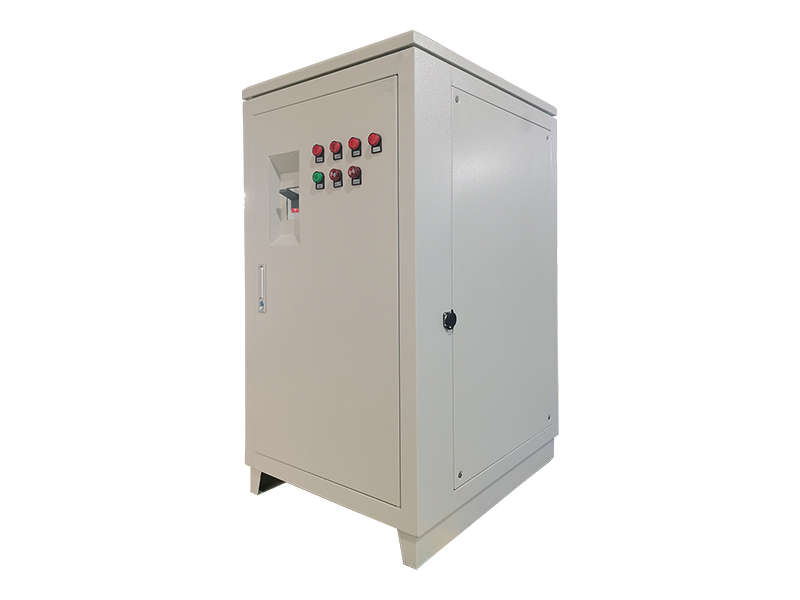

Producing 216kW regulated DC power, this high‑output water‑cooled hard chrome rectifier handles extreme current loads and maintains steady performance for continuous heavy‑duty hard chrome plating production.
High‑Output Water‑Cooled Hard Chrome Rectifier is built for large‑scale metal finishing plants that run high‑current hard‑chrome plating for oversized workpieces. Heavy‑duty parts such as large‑dimension industrial rollers, thick‑wall hydraulic cylinders and heavy mining components demand massive continuous current to achieve uniform, dense chrome layers. Many conventional rectifier models struggle with heat accumulation when operating near maximum amperage for days on end, which may trigger output drift and shorten equipment service cycles. The 12000A 18V water‑cooled hard chrome plating rectifier addresses those pain points with optimized liquid cooling and high‑frequency IGBT conversion inside a single robust cabinet. Once operators complete busbar connections and coolant pipeline installation, they adjust voltage and current setpoints from the front‑panel control before starting large‑volume plating batches.
This rectifier holds reliable performance under sustained full‑load conditions. Its water‑flow interlock mechanism cuts back power output automatically whenever coolant circulation falls below safe thresholds, shielding internal power modules from thermal damage during long‑shift production.
High‑frequency IGBT conversion sits at the core of this high‑output water‑cooled hard chrome rectifier, maintaining operational efficiency above 92 percent. Liquid cooling outperforms air‑cooled alternatives under ultra‑high‑current conditions, as circulating water carries heat away directly without relying on workshop ambient ventilation. Therefore internal component temperatures stay stable even during non‑stop production cycles.
Precision closed‑loop control reacts quickly to load shifts brought by workpiece loading and unloading. As a result, finished parts gain uniform chrome deposition and improved surface quality. Besides, modular internal assembly makes routine inspection and component replacement straightforward, which reduces maintenance downtime for your production line.
Our engineering team optimizes thermal flow paths and control logic specifically for 12000A high‑current operating scenarios. Consequently the unit keeps low ripple output even running at full rated capacity, bringing stable process conditions for hard‑chrome plating workshops.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | 0‑18V adjustable |
| DC Output Parameters | Output Current Range | 0‑12000A adjustable |
| DC Output Parameters | Rated Output Power | 216kW |
| DC Output Parameters | Voltage Regulation Accuracy | ≤1% |
| DC Output Parameters | Current Regulation Accuracy | ≤1% |
| DC Output Parameters | Ripple Factor | ≤1% |
| Control and Automation Functions | Operating Modes | Constant Current, Constant Voltage |
| Control and Automation Functions | Auxiliary Hardware | Digital control panel, ampere‑hour counter, fault log recorder |
| Control and Automation Functions | Programming Features | Output limit lock, historical alarm storage |
| Physical and Communication Parameters | Cooling Method | Water‑cooled with water‑flow interlock protection |
| Physical and Communication Parameters | Protection Class | IP20 for indoor industrial plating workshop |
| Physical and Communication Parameters | Communication Interface | RS485 Modbus RTU |
| Physical and Communication Parameters | Operating Efficiency | Above 92% |
| Physical and Communication Parameters | Dimensions & Weight | Cabinet‑type unit, customizable dimensions upon request |
We can provide:
This high‑output water‑cooled hard chrome rectifier includes standard factory warranty and achieves over 10‑year operating lifespan under compliant running conditions. Water‑flow detection module belongs to standard delivery scope. Modular power layout supports convenient on‑site servicing work. Multi‑dimensional alarm protection responds swiftly to all abnormal runtime states. Simply share your plating‑bath specifications and workpiece details, and we can deliver practical configuration recommendations.
This high‑output water‑cooled hard chrome rectifier fits ultra‑high‑current hard‑chrome plating, large‑size component refurbishment and heavy‑duty industrial surface finishing. It serves plating workshops processing large industrial rollers, heavy‑bore hydraulic cylinders and rebuilt mining mechanical assemblies.
Plating facilities targeting high throughput benefit greatly from this single‑cabinet high‑current solution, which removes complexity caused by multiple paralleled rectifiers for many production setups. Meanwhile it also supports hard‑chrome process development and parameter comparison trials. Thanks to flexible tunable output, technicians run multiple sets of plating contrast tests conveniently. What is more, Modbus‑compatible data output allows operators to archive full production logs for complete quality traceability.
We build robust high‑current rectifier hardware for high‑demand metal‑finishing production lines, and we specialise in water‑cooled single‑cabinet units for mass hard‑chrome workflows. Our engineering crew calibrates thermal performance and safety thresholds to align with your real‑world on‑site production setup.
Every finished unit completes full‑load continuous aging test and ripple‑value inspection following industry quality standards before shipment; hence you receive hardware validated for long‑run 12000A plating cycles.
Our full‑lifecycle support includes hands‑on operational guidance, remote fault troubleshooting and spare‑parts provision. If your production capacity expands in future, the unit supports parallel‑running function without heavy reconstruction. In short, count on us for dependable rectifier solutions supporting your heavy‑duty hard‑chrome plating tasks.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
