This high‑current reversing chrome plating power supply generates 144kW regulated DC output, combining water‑cooled thermal management and integrated reversing hardware for non‑stop ultra‑high‑current hard‑chrome production.

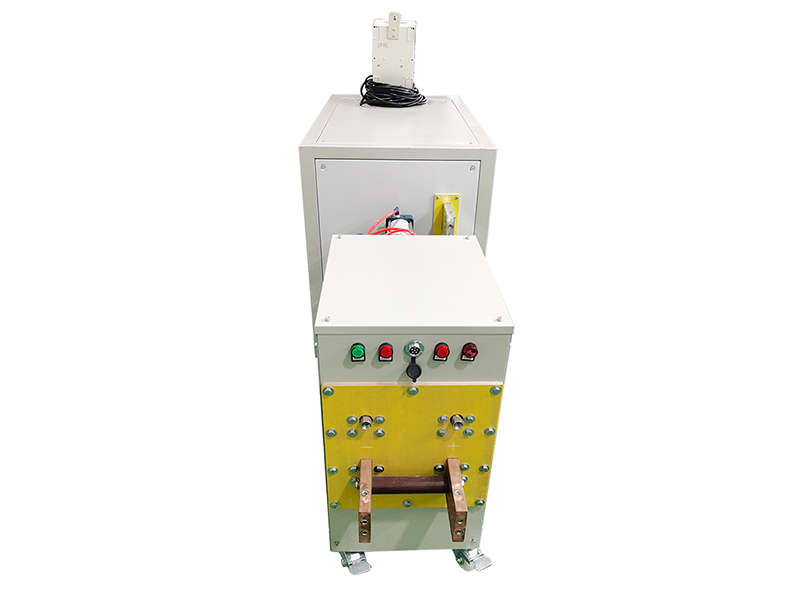

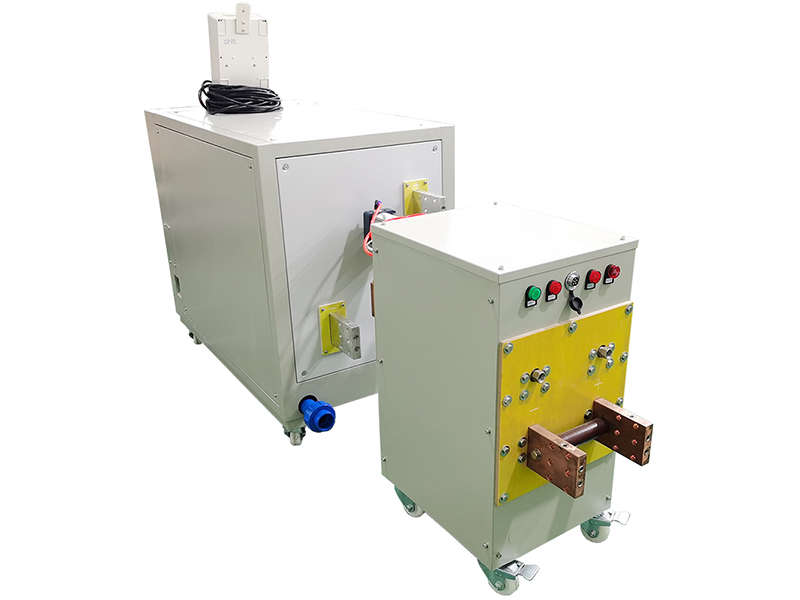

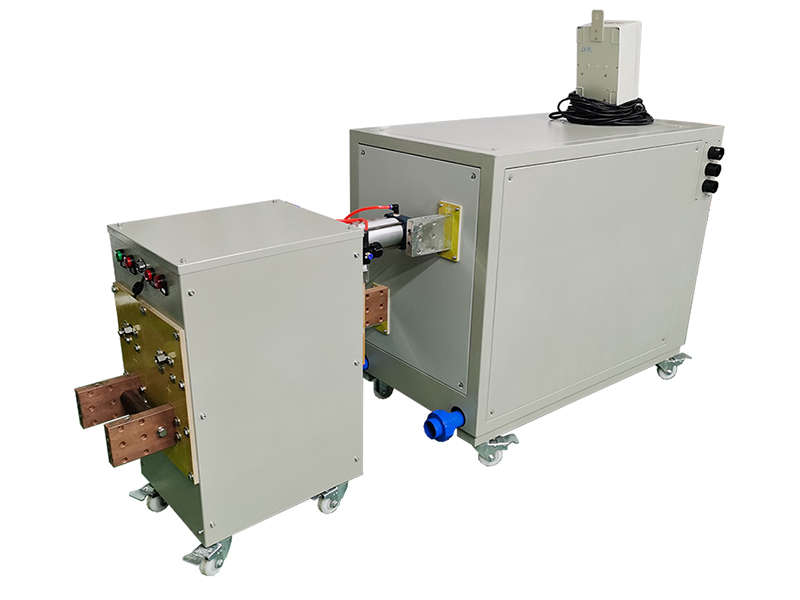

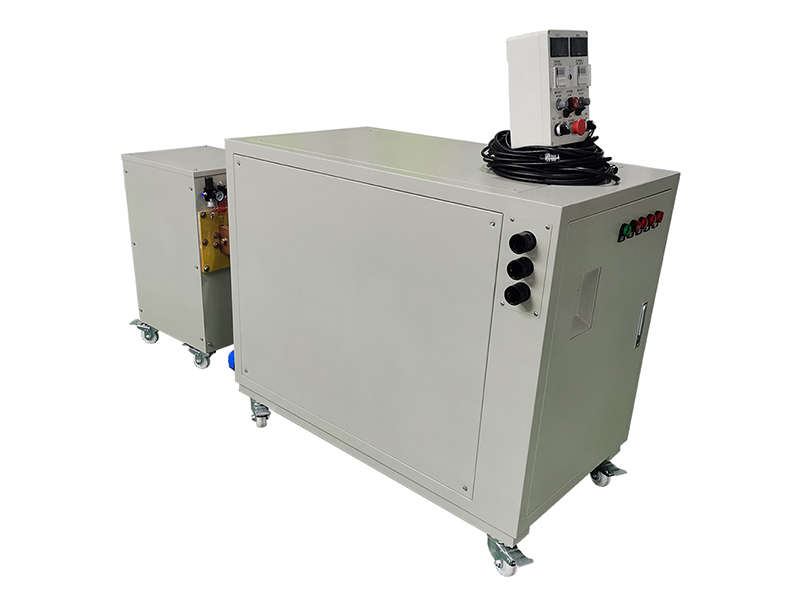

High‑Current Reversing Chrome Plating Power Supply meets strict production demands for heavy‑duty hard‑chrome lines that operate at extreme amperage and require controlled polarity reversal cycles. Modern heavy‑component plating facilities handle oversized rolls, hydraulic barrels and mining parts, yet standalone reversing cabinets bring extra wiring complexity and potential connection faults. For these real‑world manufacturing challenges, the 8000A 18V water‑cooled hard chrome rectifier with reversing switch integrates high‑frequency IGBT conversion, liquid cooling circuit and reversing switch within one unified cabinet. Operators complete heavy‑gauge power terminations and connect cooling water pipelines, then adjust output levels and reversal timings via front‑panel controls before launching large‑volume plating batches.
This high‑current reversing chrome plating power supply excels for surface restoration of large industrial rollers, heavy hydraulic cylinder assemblies and massive rebuilt mining machinery components. Its robust water‑circulation design draws away tremendous heat under continuous 8000A full‑load conditions. Meanwhile water‑flow interlock protection instantly limits power output once coolant flow falls below safe thresholds and protects internal power modules against thermal damage.
Advanced IGBT high‑frequency power conversion forms the core of this high‑current reversing chrome plating power supply and sustains operational efficiency above 92 percent. Because reversing hardware installs inside the main cabinet, production teams skip purchasing external reversing assemblies; accordingly workshops shrink overall equipment footprint and cut failure points created by intermediate cabling. What is more, circulating‑water cooling keeps internal component temperatures stable even when the unit runs at maximum rated output for extended periods.
Dynamic real‑time output adjustment reacts quickly as operators mount and dismount bulky workpieces. As a result, finished parts achieve dense chrome layers and improved coating adhesion driven by accurately calibrated reversing cycles. Besides, modular internal construction simplifies component inspection and replacement during scheduled maintenance breaks.
Our engineering team optimizes reversing trigger algorithms and water‑cooling thermal pathways specifically for 8000A ultra‑high‑current operating scenarios. Therefore the power supply carries out reliable polarity switching without harmful voltage spikes under full‑load conditions. In turn this all‑in‑one unit delivers notable time savings during equipment commissioning for large‑scale metal‑finishing plants.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | 0‑18V adjustable |
| DC Output Parameters | Output Current Range | 0‑8000A adjustable |
| DC Output Parameters | Rated Output Power | 144kW |
| DC Output Parameters | Voltage Regulation Accuracy | ≤1% |
| DC Output Parameters | Current Regulation Accuracy | ≤1% |
| DC Output Parameters | Ripple Factor | ≤1% |
| Control and Automation Functions | Operating Modes | Constant Current, Constant Voltage, Automatic Polarity Reversing Mode |
| Control and Automation Functions | Auxiliary Hardware | Digital control panel, ampere‑hour counter, reversing cycle timer, fault log recorder |
| Control and Automation Functions | Programming Features | Output limit lock, reversal‑duration adjustment, historical alarm storage |
| Physical and Communication Parameters | Cooling Method | Water‑cooled with water‑flow interlock protection |
| Physical and Communication Parameters | Protection Class | IP20 for indoor industrial plating workshop |
| Physical and Communication Parameters | Communication Interface | RS485 Modbus RTU |
| Physical and Communication Parameters | Operating Efficiency | Above 92% |
We can provide:
This high‑current reversing chrome plating power supply includes one‑year factory warranty and achieves over 10‑year operating lifespan under compliant running conditions. To start with, integrated reversing switch and water‑flow detection module belong to standard delivery scope. Furthermore modular power layout supports straightforward on‑site servicing work. In addition multi‑dimensional alarm protection responds swiftly to all abnormal runtime states. Simply share your plating‑bath specifications and preferred reversing‑cycle timings, and we can deliver practical configuration recommendations.
This high‑current reversing chrome plating power supply fits ultra‑high‑current continuous hard‑chrome plating requiring polarity reversal, large‑size component refurbishment and heavy‑duty industrial surface finishing. Above all else, it serves as dedicated power hardware for plating workshops processing large industrial rollers, heavy‑bore hydraulic cylinders and rebuilt mining mechanical assemblies.
Likewise many large‑scale finishing plants select this integrated unit rather than combining separate rectifier plus standalone reversing cabinets. In fact its built‑in reversing function significantly shortens installation and full‑system commissioning timelines.
It also suits hard‑chrome process development and parameter comparison trials. Thanks to flexible tunable reversing cycles and precise power output, technicians run multiple sets of plating contrast tests conveniently. What is more, Modbus‑compatible data output allows operators to archive full production logs for complete quality traceability.
We build robust integrated power‑supply hardware for high‑demand metal‑finishing production lines, and we specialise in water‑cooled ultra‑high‑current units equipped with built‑in reversing capability for mass hard‑chrome workflows. Most importantly our engineering crew calibrates reversing timings, cooling performance and safety thresholds to align with your real‑world on‑site production setup.
On top of that every finished unit completes full‑load continuous aging test and ripple‑value inspection following ISO quality standards before shipment; hence you receive hardware validated for long‑run 8000A plating cycles with automatic polarity reversal.
Our full‑lifecycle support includes hands‑on operational guidance, remote fault troubleshooting and spare‑parts provision. If your production capacity expands in future, you can activate parallel‑running function without reconstructing existing plating‑tank infrastructure. In short, count on us for dependable integrated power solutions supporting your heavy‑duty hard‑chrome plating tasks.
