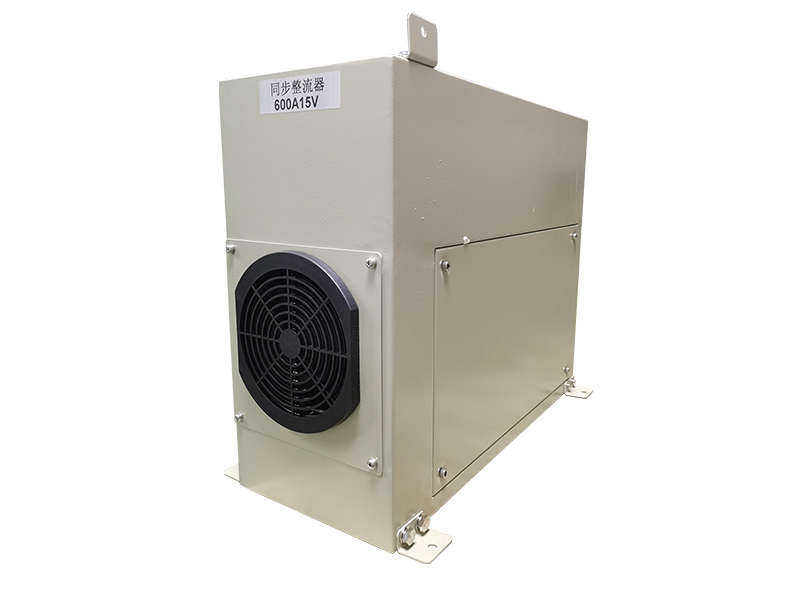

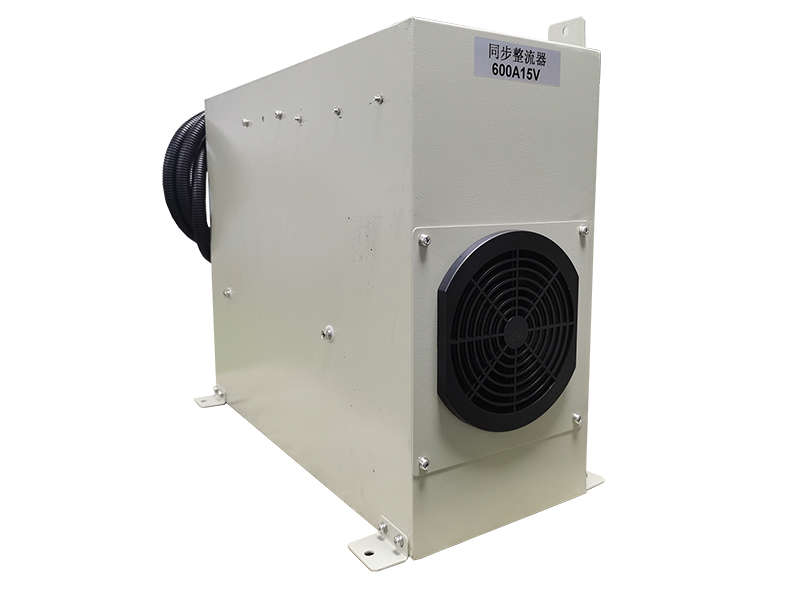

Built for high‑efficiency heavy‑current industrial tasks, the Air‑Cooled Synchronous Rectifier outputs adjustable 600A 15V DC power. Meanwhile, its fan‑driven cooling removes water‑circuit requirements, so operators arrange units flexibly inside production workshops.
The Air‑Cooled Synchronous Rectifier provides highly‑efficient DC power conversion for heavy‑current low‑voltage industrial workflows. In contrast to conventional diode‑based rectifiers, synchronous rectification cuts conduction losses and improves overall energy efficiency under continuous load. Particularly, you will handle sustained high‑current output, tight efficiency targets and minor load shifts as production conditions change. Most water‑cooled rectifiers require complete circulating water infrastructure. For this reason, they raise installation costs for small‑to‑mid industrial production facilities. Excessive power loss generates extra heat and increases long‑term operating expenses. These drawbacks push up energy bills and shorten equipment service cycles.
The Air‑Cooled Synchronous Rectifier supports full stepless adjustment from 0‑600A current and 0‑15V voltage. It fits power demands for electroplating, electrochemical processing and other low‑voltage heavy‑current industrial applications. Besides, its optimized air‑cooled heat dissipation draws away heat during continuous heavy‑duty operation. You need no circulating‑water supporting hardware. Our synchronous control circuit keeps high conversion efficiency even when output load fluctuates. It reduces thermal buildup and lowers overall energy consumption. Furthermore, multi‑layer safety safeguards protect hardware against overload, over‑temperature and unexpected short‑circuit events during extended operating shifts.
‑ Above all, delivers 600A/15V adjustable DC output. Our engineers calibrate it for high‑efficiency synchronous rectification under heavy continuous load ‑ Uses optimized air‑cooled fan cooling. It eliminates water‑cooling dependency and cuts workshop installation spend plus routine maintenance workload ‑ Implements high‑efficiency synchronous control logic. It reduces conduction loss and brings lower heat generation for long‑run industrial operation ‑ Supports dual CC/CV working modes. Operators switch modes freely across pre‑processing, main production and post‑processing stages ‑ Adds industrial‑grade multi‑path safety protection. It absorbs unexpected overload shocks and maximises uptime for round‑the‑clock production ‑ Includes reserved RS485 data interface. Users track live process metrics and store historical records to fine‑tune production parameters
In fact, many heavy‑current rectifiers rely on traditional diode‑based water‑cooled structures. They serve large‑scale production lines with complete circulating water supply systems. Even so, the Air‑Cooled Synchronous Rectifier works best for medium‑size production plants and pilot industrial lines. Plenty of manufacturing sites run variable‑load production cycles, and this unit adapts perfectly to such real‑world operating patterns. Our team carries out full‑load and thermal stress tests on every unit before shipment. Therefore, each unit delivers stable and energy‑saving performance across successive production runs.
Our closed‑loop regulation system corrects tiny output deviations quickly. Changing load conditions and ambient temperature trigger these small fluctuations. It maintains precise current and voltage output under varying working states. As a result, you reduce energy waste and cut long‑term operational costs. The unit saves multiple groups of production process parameters. Operators call up proven saved recipes rapidly. This behaviour shortens equipment setup time and lifts overall workshop efficiency.
The reinforced integrated cabinet maintains a compact footprint. It simplifies workshop layout and equipment relocation. You avoid complicated water pipe assembly and water quality maintenance tasks. It reduces hardware failure rates noticeably. Meanwhile, it runs steadily for long periods within humid or dust‑prone industrial‑shop surroundings.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 600A |
| Rated Output | Rated Voltage | 15V |
| Working Mode | Operation Type | Constant Current / Constant Voltage |
| Cooling System | Cooling Method | High‑efficiency Air‑cooled Fan Cooling |
| Input Power | Input Voltage | Three‑phase AC Customized |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection |
| Applicable Scenarios | Main Applications | Heavy‑current electroplating, electrochemical treatment, industrial DC power supply, energy‑saving industrial conversion tasks |
Further, we back this rectifier with a 1‑year warranty and design it for over 10 years of service life. It supports constant‑current and constant‑voltage modes. It also offers programmable current and voltage ramp‑up to match different industrial startup workflows. Notably, multi‑segment parameter settings and timing controls enable automatic production sequence operations. Its built‑in RS485 port lets staff view live data and connect with other workshop equipment. We supply optional polarity reversal and custom function upgrades. These options satisfy unique industrial process demands. Reach out to us for tailored custom solutions.
The Air‑Cooled Synchronous Rectifier serves medium‑size metal finishing factories, electrochemical processing plants and general industrial manufacturing sites. Teams deploy it for heavy‑current plating, electrochemical treatment and other low‑voltage high‑current conversion jobs. It also supports process testing for new energy‑saving production formulas.
Likewise, the hardware operates reliably through extended batch cycles and trial production runs. Its high‑efficiency synchronous DC output reduces thermal loss and stabilises production conditions. For instance, it cuts energy consumption and equipment fault risks, and accelerates process iteration for custom industrial projects.
We build custom power supply solutions for heavy‑current industrial conversion scenarios. In contrast to ordinary diode‑type rectifiers, the Air‑Cooled Synchronous Rectifier gets dedicated tuning for high‑efficiency energy conversion and harsh workshop environments. It brings higher operational stability and environmental adaptability.
Our technicians complete load simulation testing and full‑load ageing checks for every unit before dispatch. This step guarantees reliable real‑world performance during industrial production operations. We accept non‑standard parameter adjustments and custom feature development. We also offer professional process guidance and full‑cycle after‑sales support. In short, we deliver trustworthy power for your mass‑production and pilot industrial projects.
