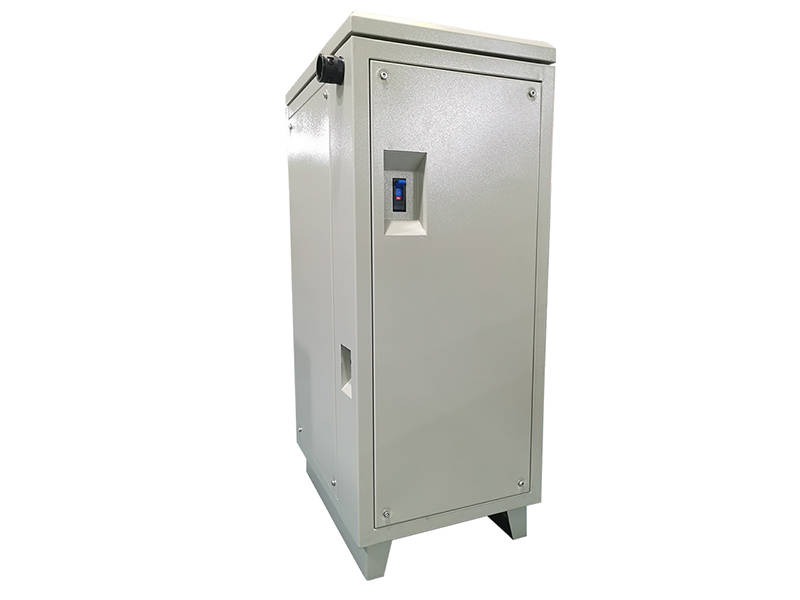

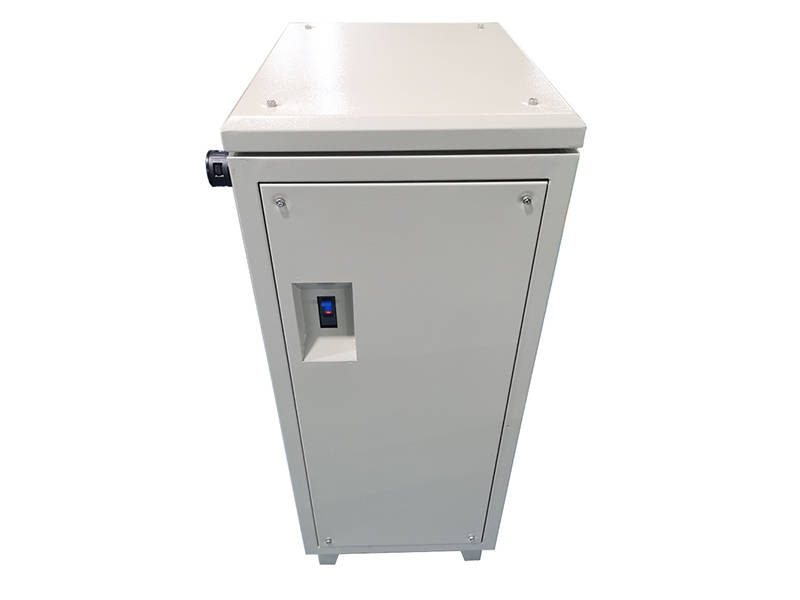

Built to maintain consistent power in non-stop electrolytic operations, the Low Ripple Water‑Cooled Synchronous Rectifier supplies adjustable 5000A 6V stable DC output. Meanwhile, effective water cooling dissipates massive heat generated under sustained full load.
The Low Ripple Water‑Cooled Synchronous Rectifier provides stable high-efficiency DC power built for heavy-duty metal electrowinning, large tank electrolysis and metal recovery applications. Unlike standard diode rectifier units, this synchronous design reduces conduction losses and maintains steady power output over long peak-current production cycles. For example, it holds consistent performance when bath ion density and raw material loading change during production. Many air-cooled rectifiers cannot withstand such extreme thermal pressure. As a result, they trigger thermal protection shutdowns and cannot support round-the-clock electrolysis manufacturing. Unstable power output lowers metal recovery efficiency and increases chemical consumption. These drawbacks raise operating costs and shorten total equipment service life.
The Low Ripple Water‑Cooled Synchronous Rectifier supports full stepless adjustment from 0‑5000A and 0‑6V. It meets power requirements for metal electrowinning, industrial electrolysis and other low-voltage ultra-high-current electrochemical workflows. In addition, its high-performance water cooling system removes heat steadily during extended full-load cycles. It maintains stable operating temperature even under continuous peak-current running. Its closed-loop synchronous control preserves precise DC output amid variable load changes. It boosts electrolysis efficiency and stabilizes bath working conditions. Furthermore, multi-layer safety safeguards protect internal hardware against overload, over-temperature and unexpected short-circuit events throughout long production shifts.
Provides adjustable 5000A 6V low ripple DC output, designed for heavy-duty electrowinning and large-scale metal recovery projects.
Adopts advanced synchronous circuit topology. It cuts conduction heat loss effectively and reduces power consumption during long continuous electrolysis runs. Equipped with robust water-cooled heat dissipation. It removes large amounts of heat efficiently and supports 24-hour non-stop ultra-high-current production.
Features CC and CV dual operating modes. Operators can switch modes flexibly for bath preparation, metal deposition and electrolyte maintenance tasks.
Built with complete industrial-grade multi-protection system. It withstands sudden current surges and maximizes uptime for continuous heavy-duty production lines.
Fitted with standard RS485 communication port. Operators monitor real-time process data and store historical logs to optimize electrolysis parameters.
In fact, many electrolytic plants rely on conventional diode rectifiers for metal recovery work. Those units create excessive heat and waste more power under continuous heavy loads. Even so, the Low Ripple Water‑Cooled Synchronous Rectifier works perfectly for large electrolytic refineries and metal recycling facilities. Plenty of chemical processing plants run non-stop production with shifting bath conditions, and this unit adapts well to these practical working scenarios. Our team carries out full-load and thermal stress testing on every unit before shipment. Therefore, each unit maintains stable energy-saving performance across repeated production batches.
Our closed-loop regulation system responds quickly to minor output deviations. Changing workpiece loads and cooling water inlet temperature create these small fluctuations. It maintains highly accurate current and voltage output under diverse working states. As a result, you cut energy waste and reduce long-term operating expenditure. The unit stores multiple groups of electrolysis process parameters. Operators retrieve validated process recipes rapidly. This action shortens equipment setup cycles and improves overall workshop productivity.

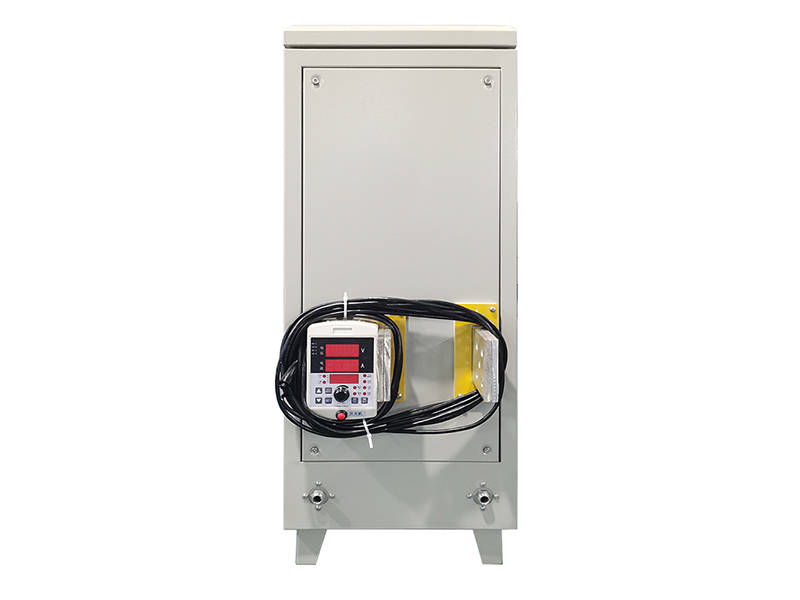

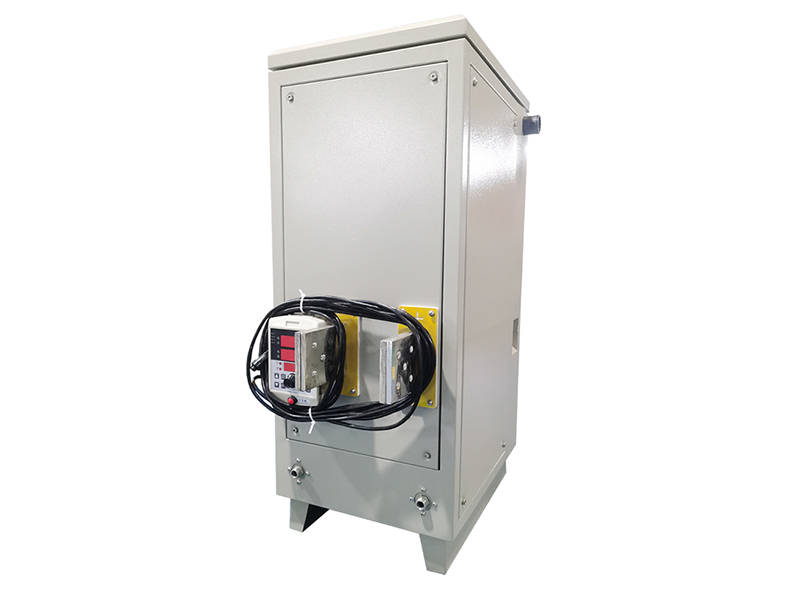

The reinforced integrated cabinet reserves dedicated ports for water pipeline installation. It suits fixed-installation mass-production workshop environments. You only need to arrange standard water inlet and outlet pipelines for regular operation. It effectively lowers hardware failure risks caused by overheating. Meanwhile, it operates reliably for long hours inside humid, corrosive electrolysis workshop surroundings.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 5000A |
| Rated Output | Rated Voltage | 0‑6V |
| Working Mode | Operation Type | Constant Current / Constant Voltage, Low Ripple DC |
| Cooling System | Cooling Method | High‑efficiency Water‑Cooled |
| Input Power | Input Voltage | Three‑phase AC Customized |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection |
| Applicable Scenarios | Main Applications | Metal electrowinning, industrial electrolysis, heavy metal recovery, low-voltage ultra-high-current electrochemical processing |
Further, we back this rectifier with a 1‑year warranty and design it for over 10 years of service life. It supports constant-current and constant-voltage modes. It also provides programmable current and voltage ramp-up to suit different electrolysis startup workflows. Notably, multi-segment parameter settings enable flexible process configuration. Its built-in RS485 port allows staff to view live data and connect with other workshop equipment. We supply optional custom function upgrades. These options satisfy special high-current electrolysis process requirements. Reach out to us for tailored custom solutions.
The Low Ripple Water‑Cooled Synchronous Rectifier serves large electrolytic refineries, metal recycling manufacturers and high-volume electrochemical workshops. Operators deploy it for large-scale metal electrowinning and industrial electrolysis for various metal substrates. It also supports process testing for newly developed electrolysis bath formulas.
Moreover, the machine runs reliably through long-duration batch cycles and round-the-clock production runs. Its low-loss synchronous DC output cuts energy consumption and stabilizes production working conditions. For instance, it improves metal recovery rates and speeds up process iteration for custom heavy-duty electrolysis projects.
We develop custom power-supply solutions for ultra heavy-current electrolysis scenarios. In contrast to ordinary diode-based rectifiers, the Low Ripple Water‑Cooled Synchronous Rectifier receives specialized tuning for low energy loss and continuous water-cooled mass-production conditions. It delivers excellent operational stability and corrosion resistance for harsh electrolysis environments.
Our technicians complete load-simulation testing and full-load ageing checks for every unit before shipment. This step guarantees dependable real-world performance during continuous electrolysis production. We accept non-standard parameter adjustments and custom-feature development. We also provide professional process guidance and complete after-sales support. In short, we deliver trustworthy power hardware for your mass-production and pilot-scale industrial projects.
Learn more about related products：100A/12V precious metal rectifier (transistor type)
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
