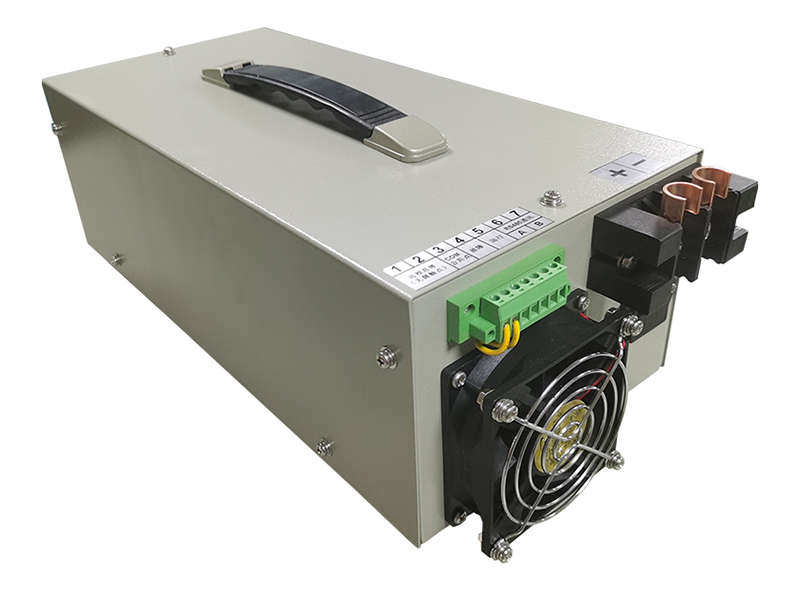

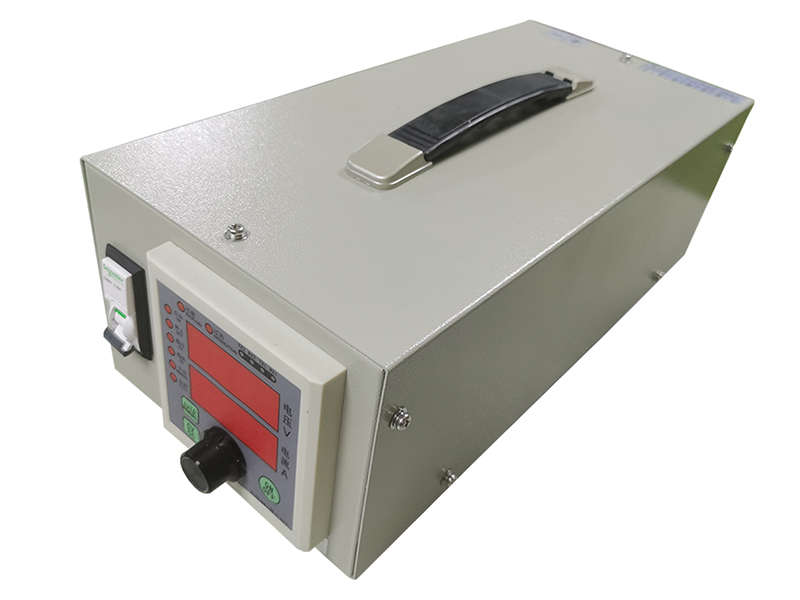

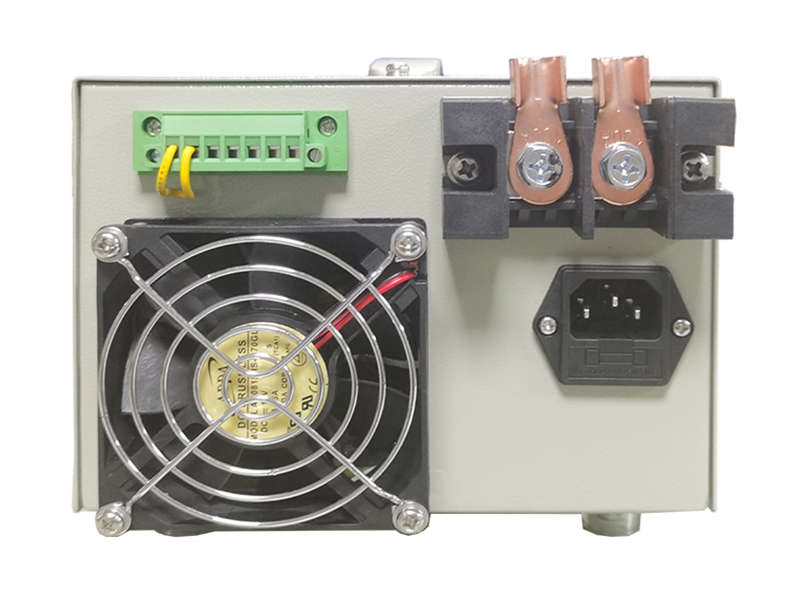

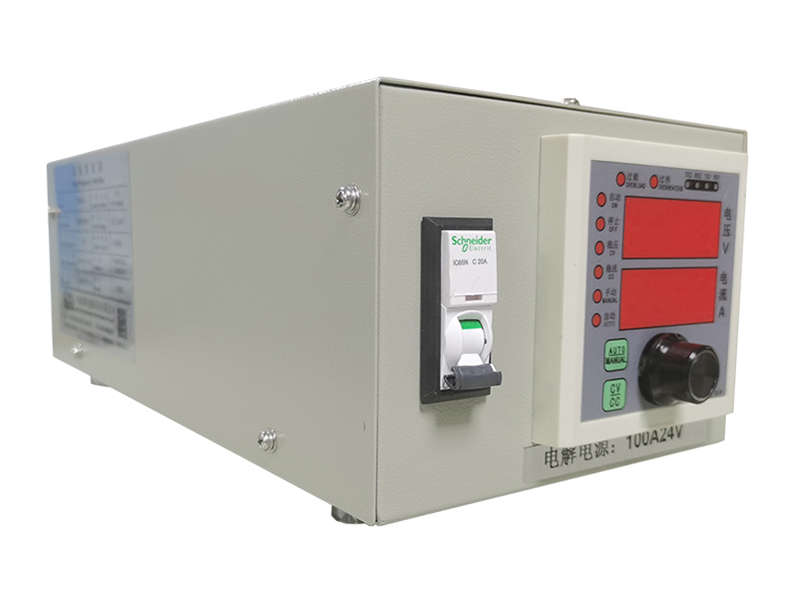

Suited for pilot‑grade electrochemical operations, the Air‑Cooled Electrolysis Rectifier delivers adjustable 100A 24V DC output. Furthermore, fan‑driven air cooling eliminates water circulation hardware for flexible workshop and lab placement.
The Air‑Cooled Electrolysis Rectifier is a robust power unit engineered for pilot‑scale electrolytic workflows. Small‑scale recycling facilities and material research labs often carry out metal recovery, electrolytic decomposition and surface treatment trials. Yet many off‑the‑shelf power supplies struggle to hold steady output when electrolytic cell impedance shifts during long‑run tests. Meanwhile, water‑cooled rectifiers demand pipe installation and routine fluid maintenance, which creates unnecessary overhead for test‑oriented workstations. Even minor power fluctuation will alter reaction kinetics and ruin the repeatability of experimental results. For this reason, the Air‑Cooled Electrolysis Rectifier offers a low‑fuss alternative for non‑continuous electrolytic applications.
This Air‑Cooled Electrolysis Rectifier supports continuous stepless adjustment within 0‑100A and 0‑24V. In addition, its output range covers most working parameters for aqueous electrolytic cell systems used in metal recycling and lab research. It adopts high‑efficiency fan‑based air‑cooled structure. As a result, operators can position the unit on standard workbenches without plumbing modifications. Refined high‑frequency circuitry keeps output ripple tightly contained. Moreover, this clean DC input maintains stable ion migration inside electrolytic cells and generates more consistent reaction outcomes. Real‑time closed‑loop control reacts to changing cell loading conditions. Besides, multi‑layer built‑in protection shields internal circuits against over‑current, over‑voltage and accidental short‑circuit events.
Numerous industrial electrolytic power supplies are built for non‑stop heavy‑duty production lines. In contrast, this Air‑Cooled Electrolysis Rectifier caters to stop‑start pilot testing and low‑volume electrolytic processing. It retains high energy efficiency under irregular operating cycles. In fact, this intermittent usage pattern is common for recycling pilot plants and university research laboratories. Every unit passes full‑load ageing and ripple performance validation prior to shipment. Accordingly, researchers and workshop operators achieve reproducible electrolytic outcomes across separate test batches.
Dynamic closed‑loop feedback offsets output deviations caused by electrolyte temperature drift or changing electrode surface conditions. As a result, electrolytic reaction speed remains predictable and invalid test sample rates drop significantly. Multiple groups of operating parameters can be saved locally on the device. Furthermore, users can recall stored profiles quickly to cut down formula debugging periods.
Its compact metal cabinet occupies minimal bench or floor space. Without cooling‑water auxiliary parts, equipment relocation and daily visual inspections become far simpler. For these reasons, this Air‑Cooled Electrolysis Rectifier fits recycling pilot workshops, university material labs and electrochemical process‑development projects.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 100A |
| Rated Voltage | 24V | |
| Working Mode | Operation Type | Constant Current / Constant Voltage |
| Cooling System | Cooling Method | Air‑cooled Fan Cooling |
| Input Power | Input Voltage | AC 220V Single‑phase |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit Protection |
| Applicable Scenarios | Main Applications | Pilot metal recovery, lab‑scale electrolysis, electrolytic decomposition, electrochemical process development |
We can provide: The product comes with a one‑year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp‑up function for current or voltage settings. For time‑sensitive applications, you can use the timed operation mode. Moreover, the multi‑segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute‑level timing function. If you need customization, please contact us for further details.
This Air‑Cooled Electrolysis Rectifier finds wide adoption within metal‑recycling pilot sites, university material laboratories and small electrochemical processing facilities. Teams leverage it for metal electro‑extraction, electrolytic decomposition and different kinds of exploratory electrochemical testing. In addition, it carries out validation work for newly developed electrolyte formulations.
It delivers dependable performance for intermittent lab tests as well as light‑duty pilot‑batch processing. Meanwhile, its finely adjustable DC output helps operators hold electrolytic reaction conditions steady. Thus, research teams can lower invalid sample waste and accelerate process iteration work.
We design practical power hardware focused on pilot‑scale and lab‑grade electrolytic requirements. Unlike large water‑cooled rectifiers built for mass continuous production, our Air‑Cooled Electrolysis Rectifier prioritizes easy deployment and straightforward maintenance for test‑focused scenarios.
Each unit goes through waveform calibration and full‑load ageing testing before dispatch. In addition, custom adjustments for output ratings and auxiliary features are available upon request. Supported by process‑oriented technical guidance and complete after‑sales service, we supply trustworthy power equipment for all your electrolysis‑related projects.
