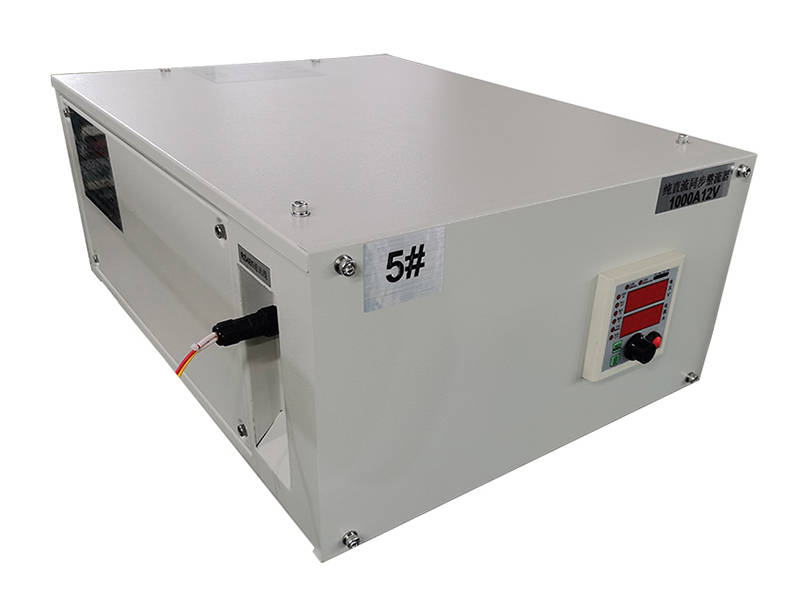

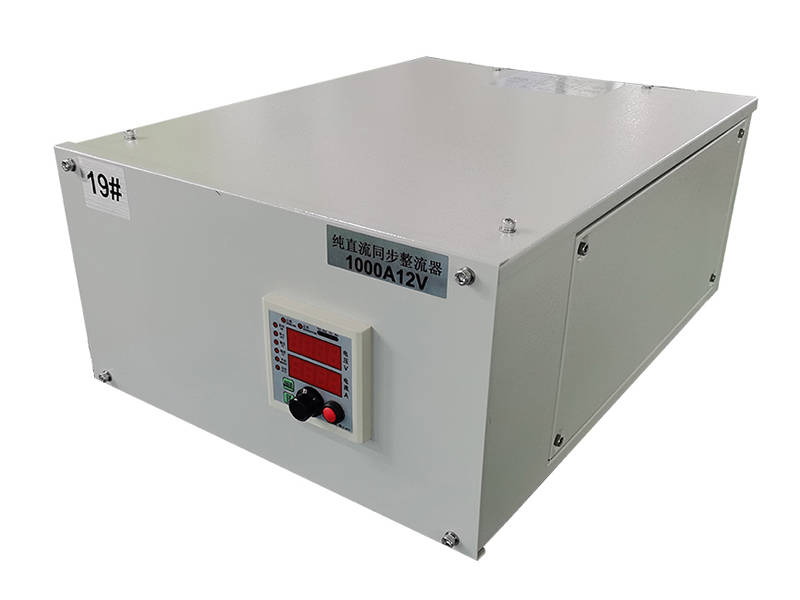

Built for high‑precision heavy‑current electroplating tasks, the Water‑Cooled Pure DC Synchronous Rectifier generates adjustable 1000A 12V ripple‑free pure DC output. Meanwhile, reliable water‑cooled thermal design handles continuous full‑load heat dissipation for non‑stop manufacturing.
The Water‑Cooled Pure DC Synchronous Rectifier generates low‑ripple pure DC power tailored for high‑demand heavy‑current electroplating and electrochemical production. In contrast to conventional rectifier models, this synchronous topology suppresses output ripple and reduces heat loss under long‑duration full‑load operation. Particularly, you will manage sustained heavy‑current output, continuous production cycles and minor load variations as workpiece batch sizes change. Many air‑cooled power supplies hit thermal limits under permanent high‑current workloads. For this reason, they cannot sustain stable performance for round‑the‑clock plating workshops. Excessive output ripple creates uneven coating quality and raises finished‑part rejection rates. These drawbacks increase chemical consumption and limit overall production throughput.
The Water‑Cooled Pure DC Synchronous Rectifier supports full stepless adjustment from 0‑1000A and 0‑12V. It matches power demands for precision electroplating, precious‑metal deposition and multiple high‑standard low‑voltage heavy‑current industrial processes. Besides, its efficient water‑cooled cooling system draws away heat steadily during extended full‑load cycles. It maintains stable working temperature even under continuous peak‑current operation. Its synchronous control loop keeps pure DC output with minimal ripple regardless of shifting load conditions. It stabilises plating bath status and improves finished‑part consistency. Furthermore, multi‑layer safety safeguards protect internal hardware against overload, over‑temperature and unexpected short‑circuit events throughout long production shifts.
‑ Delivers adjustable 1000A 12V low‑ripple pure DC output, engineered for precision heavy‑current electroplating and electrochemical manufacturing
‑ Implements advanced synchronous circuit topology. It lowers conduction loss and maintains clean pure DC waveform under continuous full‑load operation
‑ Adopts heavy‑duty water‑cooled thermal system. It achieves stable heat dissipation and supports 24‑hour non‑stop heavy‑current production workloads
‑ Supports CC and CV dual working modes. Operators switch modes flexibly across pre‑treatment, deposition and post‑processing production phases
‑ Equipped with complete industrial‑grade multi‑protection functions. It resists sudden current surges and maximises uptime for continuous plating production lines
‑ Fitted with standard RS485 communication interface. Operators monitor real‑time process data and archive historical logs to refine plating production parameters
In fact, many heavy‑current plating rectifiers use traditional diode‑based air‑cooled structures. They struggle to hold consistent performance during long‑term peak‑current operation. Even so, the Water‑Cooled Pure DC Synchronous Rectifier fits large‑scale metal‑finishing factories and mass‑production plating lines perfectly. Many plating facilities run around‑the‑clock production with variable batch sizes, and this unit adapts well to such practical working scenarios. Our team performs full‑load and thermal stress testing for every unit before shipment. Therefore, each device delivers steady low‑ripple performance across repeated production batches.
Our closed‑loop regulation system responds quickly to minor output deviations. Changing workpiece loads and water‑cooling inlet temperature trigger these small fluctuations. It holds highly accurate current and voltage output under diverse working states. As a result, you cut part reject rates and reduce long‑term chemical and operating expenditure. The unit stores multiple groups of plating process parameters. Operators recall validated process recipes rapidly. This practice shortens equipment setup cycles and lifts overall workshop productivity.

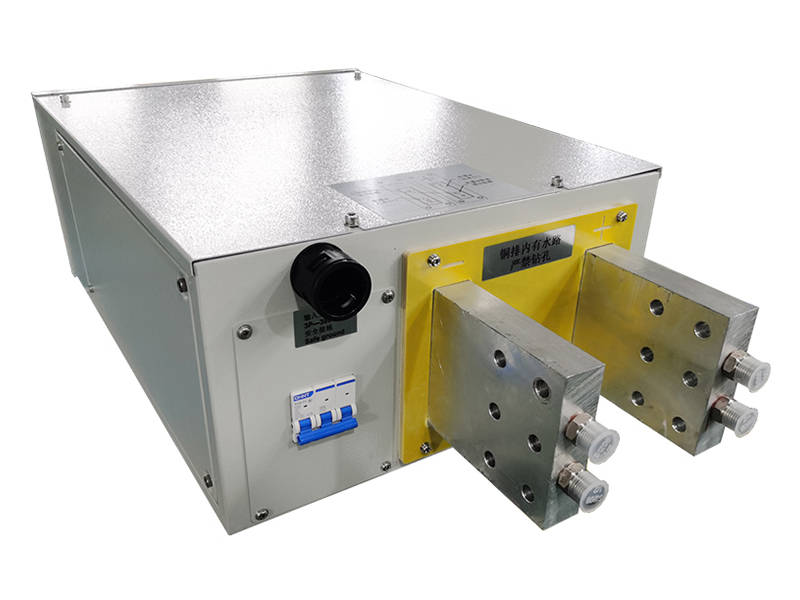

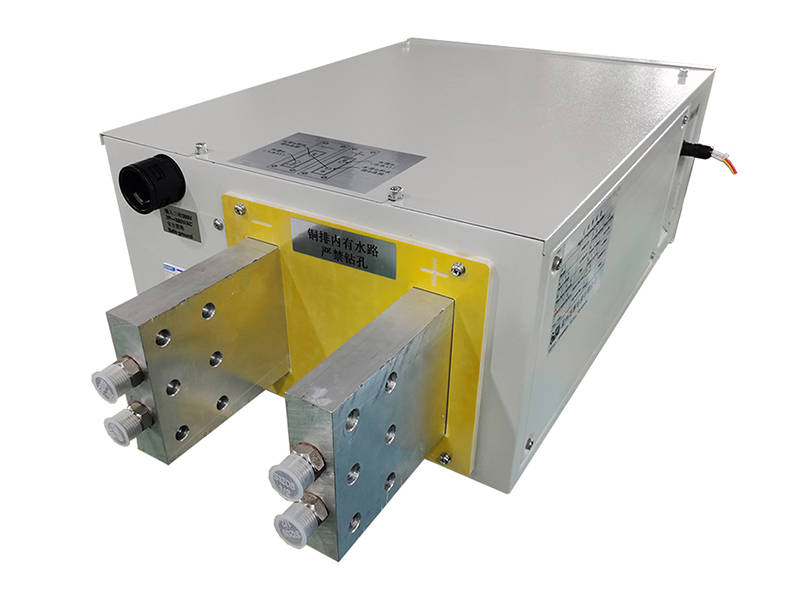

The reinforced integrated cabinet optimises layout for water‑cooled pipeline connection. It suits fixed‑installation mass‑production workshop environments. You only need to arrange standard water‑inlet and water‑outlet pipelines for regular operation. It effectively lowers overheating‑caused hardware failure risks. Meanwhile, it operates reliably for extended hours inside humid, chemical‑exposed plating workshop surroundings.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 1000A |
| Rated Output | Rated Voltage | 0‑12V |
| Working Mode | Operation Type | Constant Current / Constant Voltage, Pure DC Low‑Ripple Output |
| Cooling System | Cooling Method | High‑efficiency Water‑Cooled |
| Input Power | Input Voltage | Three‑phase AC Customized |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection |
| Applicable Scenarios | Main Applications | Precision heavy‑current electroplating, precious‑metal deposition, metal surface finishing, 24‑hour continuous electrochemical production |
Further, we back this rectifier with a 1‑year warranty and design it for over 10 years of service life. It supports constant‑current and constant‑voltage modes. It also provides programmable current and voltage ramp‑up to match diverse plating startup workflows. Notably, multi‑segment parameter settings enable flexible process configuration. Its built‑in RS485 port allows staff to view live data and connect with other workshop equipment. We supply optional custom function upgrades. These options satisfy special precision plating process requirements. Reach out to us for tailored custom solutions.
The Water‑Cooled Pure DC Synchronous Rectifier serves large‑scale metal‑finishing plants, component manufacturers and high‑standard electroplating workshops. Operators deploy it for precision heavy‑current plating and metal surface finishing on various metal substrates. It also supports process testing for newly‑developed high‑demand plating bath formulas.
Likewise, the unit runs reliably through long‑duration batch cycles and round‑the‑clock production runs. Its low‑ripple pure DC output optimises coating uniformity and stabilises plating‑bath conditions. For instance, it reduces component rejection risks and speeds‑up process iteration for custom high‑precision plating projects.
We develop custom power‑supply solutions for high‑precision heavy‑current electrochemical scenarios. In contrast to ordinary conventional rectifiers, the Water‑Cooled Pure DC Synchronous Rectifier receives specialised tuning for low‑ripple pure‑DC output and continuous water‑cooled mass‑production conditions. It delivers outstanding operational stability and environmental adaptability.
Our technicians complete load‑simulation testing and full‑load ageing checks for every unit before shipment. This step guarantees dependable real‑world performance during continuous plating production. We accept non‑standard parameter adjustments and custom‑feature development. We also provide professional process guidance and complete after‑sales support. In short, we deliver trustworthy power hardware for your mass‑production and pilot‑scale industrial projects.
