Introduction of Electrolytic Polishing Rectifier

An Electrolytic Polishing Rectifier powers high-quality metal surface finishing. It converts AC to stable, precise DC power for smooth, bright metal surfaces. We specialize in fully customized units for both electrolytic and plasma electropolishing. We skip generic off-the-shelf models. Every unit matches your workpiece material, production scale and process parameters for consistent, optimal results.

Electrolytic Polishing vs Plasma Electropolishing

Electrolytic polishing and plasma electropolishing both finish metal surfaces, but they work differently. We customize rectifiers to meet each process’s unique power needs.

Traditional electrolytic polishing uses chemical electrolyte and controlled DC power. It dissolves metal surfaces to remove micro-roughness, burrs and impurities. It creates a smooth, corrosion-resistant finish ideal for stainless steel, aluminum and copper parts in hardware and sanitary ware.

Plasma electropolishing (plasma electrolytic polishing) runs at higher voltage. It generates a plasma layer around the workpiece for faster polishing and deeper burr removal. It delivers mirror-like finishes in shorter cycles, perfect for eyewear frames, jewelry and precision hardware.

The two processes need different voltage, current and ripple control. Our custom rectifiers adapt seamlessly to both, so you get the right power for your method.

Core Features of Electrolytic Polishing Rectifier

Our electrolytic polishing rectifiers use advanced IGBT/PWM high-frequency technology. They deliver ultra-stable, low-ripple DC output to boost finishing uniformity and eliminate surface defects.

We fully customize all functions. We adjust voltage, current, control modes and cooling systems for both electrolytic and plasma electropolishing.

The rectifiers support precise constant current and constant voltage modes. You can switch modes to match different polishing stages for consistent results during long runs.

We add comprehensive safety protection to every unit. This includes phase loss, overheat, overcurrent, short circuit, undervoltage and overvoltage protection. It cuts equipment failure risks and keeps your line running smoothly.

Technical Parameters of Electrolytic Polishing Rectifier

Electrolysis Power Supply Model Selection (Air/Water-Cooled Customizable)
Model	Output Current (A)	Output Voltage (V)	Power (kW)	Input Current (A)	Input Voltage (V)	Weight (kg)	W×L×H (mm)
DJ5036	50	36	1.8	8.2	220	10	270×380×160
DJ10024	100	24	2.4	10.9	220	17	420×420×170
DJ50015	500	15	7.5	11.4	380	27	450×480×210
DJ75024	750	24	18	27.3	380	76	510×580×690
DJ100015	1000	15	15	22.8	380	45	520×570×290
DJ100048	1000	48	48	72.9	380	78	510×580×690
DJ18009	1800	9	16.2	27.5	380	69	540×740×290
DJ30006	3000	6	18	27.3	380	110	510×580×690
DJ300012	3000	12	36	54.7	380	120	510×580×690
DJ300018	3000	18	54	82	380	150	510×580×690
DJ300024	3000	24	72	109.4	380	180	510×580×690
DJ300060	3000	60	180	273.5	380	230	510×580×1160
DJ50006	5000	6	30	45.6	380	150	510×580×1160
DJ500012	5000	12	60	91.2	380	160	510×580×1160
DJ500018	5000	18	90	136.7	380	180	510×580×1160
DJ500060	5000	60	300	455.8	380	255	510×580×1620
DJ60006	6000	6	36	54.7	380	165	510×580×1160
DJ600012	6000	12	72	109.4	380	175	510×580×1160
DJ600018	6000	18	108	164.1	380	190	510×580×1160
DJ600060	6000	60	360	547	380	280	510×580×1620
DJ80006	8000	6	48	72.9	380	300	510×580×1620
DJ800012	8000	12	96	145.9	380	320	510×580×1620
DJ800018	8000	18	144	218.8	380	350	700×900×1780
DJ800060	8000	60	480	729.3	380	450	700×900×1780
DJ100006	10000	6	60	91.2	380	500	700×900×1780
DJ1000012	10000	12	120	182.3	380	530	700×900×1780
DJ1000018	10000	18	180	273.5	380	580	700×900×1780
DJ1000060	10000	60	600	911.6	380	657	700×900×1780
Applications: Electrolytic stripping (e.g., electronic parts stripping, circuit board stripping, paper/fiber/scrap stripping), electrolytic metal recovery, gold/silver refining, copper extraction, electrodeposition, electrolytic nickel plating, electrolytic smelting, degreasing, etc.
Electrolytic Plasma Polishing (Air-Cooled)
Model	Output Current (A)	Output Voltage (V)	Power (kW)	Input Current (A)	Input Voltage (V)	Weight (kg)	W×L×H (mm)
PG20350	20	350	7	10.6	380	25	320×450×160
PG30350	30	350	10.5	16	380	28	455×585×270
PG45350	45	350	15.7	238.5	380	30	460×500×290
PG70350	70	350	24.5	37.2	380	78	510×580×790
PG80350	80	350	28	42.5	380	83	510×580×790
PG200350	200	350	70	106.4	380	167	510×580×1170
PG10020	100	20	2	9.1	220	9	275×420×170
PG15036	150	36	5.4	24.5	220	36	450×550×230
PG20012	200	12	2.4	10.9	220	20	420×420×170
PG20036	200	36	7.2	10.9	380	36	450×550×230
PG30020	300	20	6	9.11	380	20	420×420×170
PG100024	1000	24	24	36.5	380	54	540×740×290
PG300018	3000	18	54	82	380	120	510×580×920
Optional Functions:Smart Panel Control, Omron PLC Control, Mitsubishi PLC (Q Series, FX Series)

The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.

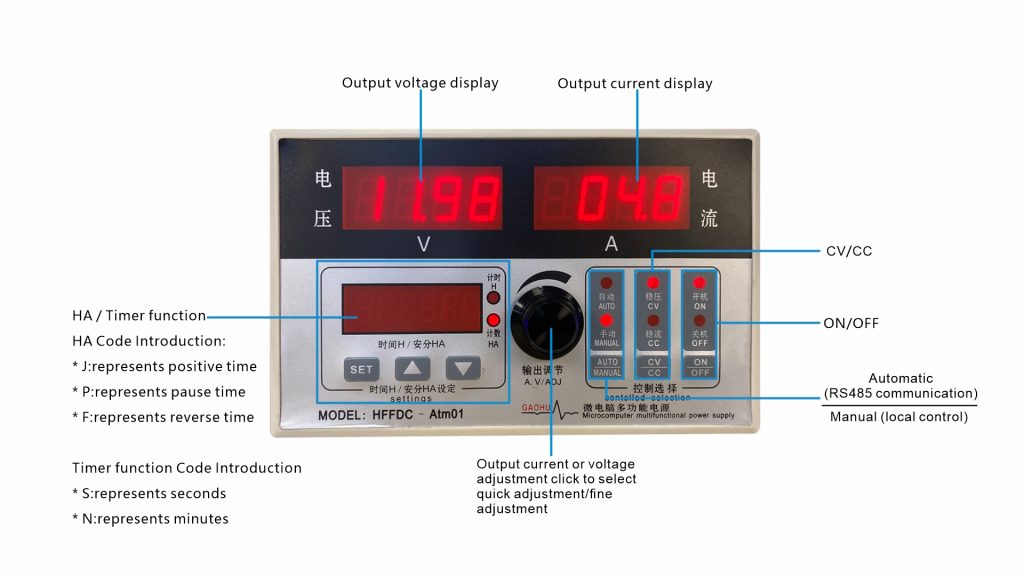

Smart Panel Control

1. Output voltage display

Shows real-time output voltage (V) of the power supply.

2. Output current display

Shows real-time output current (A) of the power supply.

3. HA / Timer function

Displays cumulative ampere-minutes or timer value for process control.

4. Output current or voltage adjustment

Click to switch between quick/fine adjustment, then rotate to set the output voltage or current.

5. Automatic (RS485 communication) / Manual (local control)

Switches between remote communication control and local manual operation modes.

6. CV/CC

Switches between constant voltage (CV) and constant current (CC) operating modes.

7. ON/OFF

Turns the power supply output on or off.

8. HA Code Introduction

- J: Positive time

- P: Pause time

- F: Reverse time

9. Timer function Code Introduction

- S: Seconds

- N: Minutes

Product Advantages of Electrolytic Polishing Rectifier

Customization is our core advantage. We never force customers to use fixed models that don’t fit their needs.

Our rectifiers deliver ultra-low ripple output. This ensures smooth, defect-free finishes for both electrolytic and plasma electropolishing, for small jewelry and large industrial parts alike.

They support continuous long-hour operation for mass production lines. The high-efficiency IGBT design cuts power consumption and lowers daily operating costs.

The user-friendly control panel simplifies parameter setup and monitoring. It reduces training time for your team. The robust industrial design ensures long service life and low maintenance.

Most importantly, our rectifiers work seamlessly with both traditional electrolytic polishing and advanced plasma electropolishing. This gives you flexibility to adapt to different processes and products.

Application Scope of Electrolytic Polishing Rectifier

Our custom electrolytic polishing rectifiers are versatile enough to support both electrolytic polishing and plasma electropolishing, making them suitable for a wide range of industries and applications. They are widely used in eyewear frame manufacturing, sanitary ware and tableware production, watch and jewelry processing, precision hardware parts finishing, and stainless steel, zinc alloy, copper alloy, and aluminum alloy surface treatment. Whether you need to remove burrs from stamping parts, achieve a mirror finish on stainless steel products, or process small decorative components, we can customize a rectifier to fit your production scale and process requirements.

Why Choose Us

We focus on providing professional custom power solutions for the metal surface finishing industry, with rich experience in designing rectifiers for both electrolytic polishing and plasma electropolishing processes. All our products hold CE and ISO9001 certifications, and our engineering team communicates with you thoroughly to understand your workpiece characteristics, polishing process, and production environment before developing a targeted solution. We use high-quality components and strict manufacturing standards to ensure each rectifier delivers stable performance and high durability, supporting full-load long-time operation for continuous production. We also provide complete technical support, including installation guidance, on-site commissioning, and after-sales service, to help you run your production line smoothly and efficiently.

Get Your Custom Solution

Tell us your polishing type (electrolytic or plasma electropolishing), workpiece material, required voltage and current, and production capacity, and we will provide a customized electrolytic polishing rectifier solution just for you. Contact us today to get a professional proposal and free quote for your metal finishing line.

Learn more about related products:Synchronous Rectifier

Frequently Asked Questions (FAQs) About Gaohui Power Supply

Q: Do you have a price list for your products?

A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.

Q: How can I obtain detailed technical specifications and images for a specific product?

A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.

Q: What should I do if I cannot find the specific output current and voltage specifications I require?

A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
