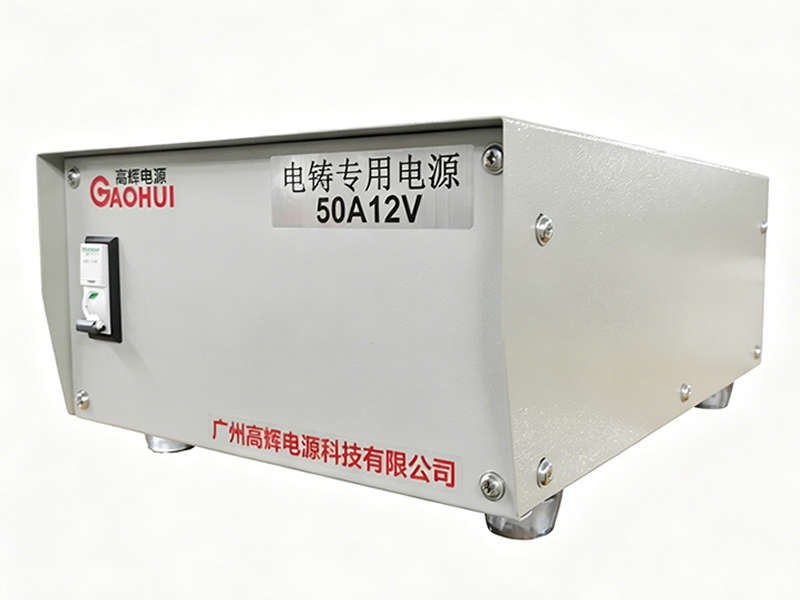

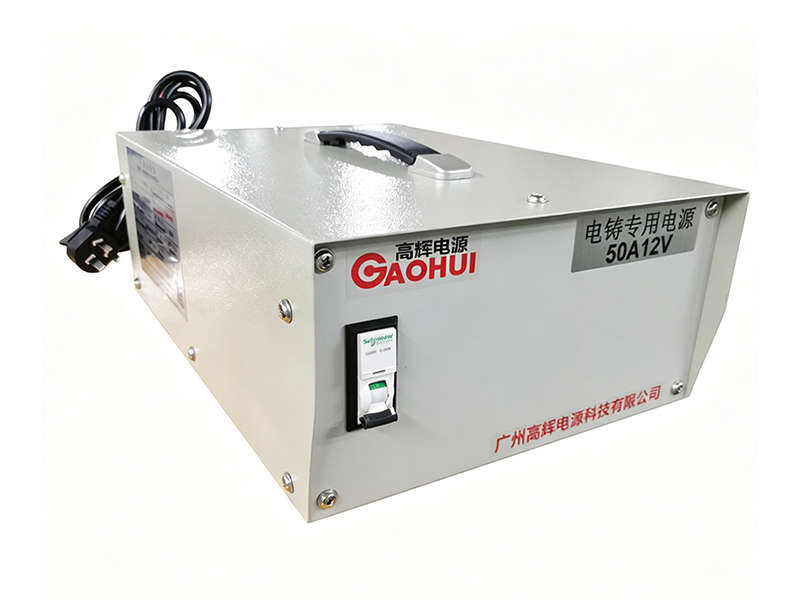

Built for precision metal replication tasks, the Air-cooled Electroforming Power Supply outputs adjustable 50A 12V steady DC power. Meanwhile, reliable air cooling maintains consistent operating temperature during long forming cycles.
The Air-cooled Electroforming Power Supply provides highly stable adjustable DC power tailored for precision electroforming and metal mould replication. Unlike general electroplating power units, this model maintains tight current and voltage consistency over lengthy forming cycles. For example, it holds uniform power output as metal deposits build up on mandrels over dozens of continuous working hours. Many ordinary power supplies suffer output drift after long runtime. As a result, they create uneven metal layers and force operators to scrap expensive electroformed parts. Unstable power also causes surface defects and inconsistent part thickness. These drawbacks raise material waste and extend production lead times.
The Air-cooled Electroforming Power Supply supports full stepless adjustment from 0‑50A and 0‑12V. It meets power requirements for precision nickel electroforming, mould replication and other low-voltage metal electroforming workflows. In addition, its robust air cooling system dissipates heat steadily during extended production cycles. It maintains stable operating temperature even under continuous full-load operation. Its closed-loop control preserves accurate DC output amid gradual load changes. It improves thickness uniformity of deposited metal and stabilizes bath working conditions. Furthermore, multi-layer safety safeguards protect internal hardware against overload, over-temperature and unexpected short-circuit events throughout long production runs.
Delivers adjustable 50A 12V precision DC output, custom engineered for precision electroforming and metal mandrel replication.
Adopts high-precision closed-loop feedback control. It reduces output drift and guarantees uniform metal deposition across long forming cycles.
Comes with dependable air-cooled heat dissipation. It removes heat steadily and supports uninterrupted batch electroforming production.
Features CC and CV dual operating modes. Operators can switch modes flexibly for mandrel preparation, metal deposition and post-run inspection.
Integrates full industrial-grade multi-protection system. It withstands sudden current surges and prevents damage to workpieces and the power unit.
Fitted with standard RS485 communication port. Operators track real-time production data and store historical logs to refine electroforming recipes.
In fact, many electroforming workshops still use standard electroplating power supplies for mould replication work. Those units produce noticeable output variation and lead to inconsistent metal layer thickness. Even so, the Air-cooled Electroforming Power Supply fits perfectly for precision electroforming factories and mould manufacturing workshops. Many production lines run non-stop forming batches with changing mandrel surface resistance, and this unit adapts well to these practical working scenarios. Our team runs full-load stability testing for every unit before shipment. Therefore, each unit maintains consistent precision across repeated electroforming batches.
Our closed-loop regulation system responds quickly to minor output deviations. Changing mandrel resistance and ambient workshop temperature create these small fluctuations. It maintains highly accurate current and voltage output under diverse working states. As a result, you cut scrap rates and reduce long-term production expenditure. The unit stores multiple groups of electroforming process parameters. Operators retrieve validated process presets rapidly. This action shortens equipment setup cycles and improves overall workshop productivity.

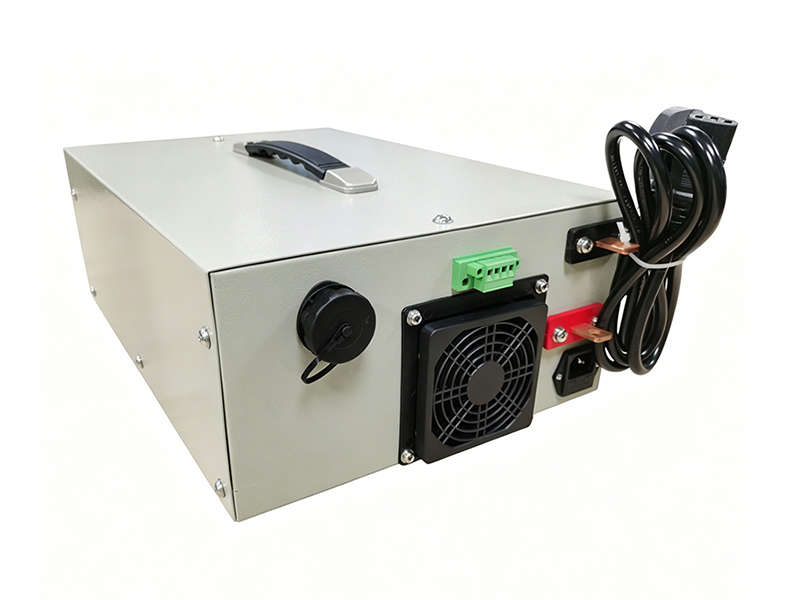

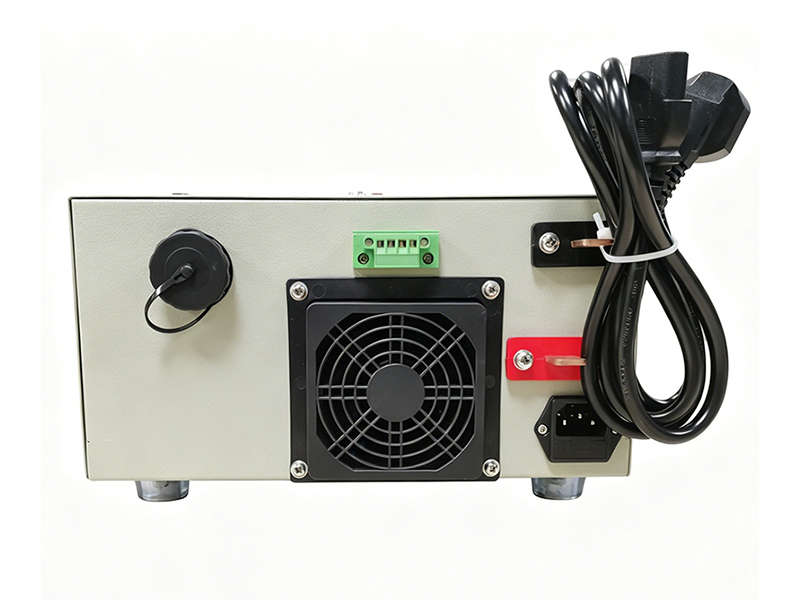

The compact reinforced cabinet is designed with optimized ventilation for air cooling. It suits bench-top and fixed installation inside electroforming workshop environments. You only need standard AC mains power input for regular operation. It effectively lowers hardware failure risks caused by overheating. Meanwhile, it operates reliably for long hours inside humid electroforming workshop surroundings.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 50A |
| Rated Output | Rated Voltage | 0‑12V |
| Working Mode | Operation Type | Constant Current / Constant Voltage, Low Drift DC |
| Cooling System | Cooling Method | Air‑Cooled |
| Input Power | Input Voltage | Single-phase AC Customized |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection |
| Applicable Scenarios | Main Applications | Precision electroforming, nickel mould replication, thin metal shell fabrication, mandrel electroforming |
Further, we back this power supply with a 1‑year warranty and design it for over 10 years of service life. It supports constant-current and constant-voltage modes. It also provides programmable current and voltage ramp-up to suit different electroforming startup workflows. Notably, multi-segment parameter settings enable flexible process configuration. Its built-in RS485 port allows staff to view live data and connect with other workshop equipment. We supply optional custom function upgrades. These options satisfy special precision electroforming process requirements. Reach out to us for tailored custom solutions.
The Air-cooled Electroforming Power Supply serves precision mould makers, electroforming manufacturers and metal component fabrication workshops. Operators deploy it for high-precision nickel electroforming and mandrel replication to make seamless metal shells. It also supports trial testing for newly developed electroforming bath formulations.
Moreover, the unit runs reliably through long-duration batch cycles and round-the-clock production runs. Its low-drift DC output improves metal layer consistency and stabilizes electroforming bath conditions. For instance, it reduces surface defects and speeds up prototype validation for custom electroforming projects.
We develop custom power-supply solutions for precision electroforming production scenarios. In contrast to ordinary electroplating power supplies, the Air-cooled Electroforming Power Supply receives specialized tuning for low output drift and continuous air-cooled batch production conditions. It delivers excellent operational stability for humid electroforming workshop environments.
Our technicians complete stability simulation testing and full-load ageing checks for every unit before shipment. This step guarantees dependable real-world performance during continuous electroforming production. We accept non-standard parameter adjustments and custom-feature development. We also provide professional process setup guidance and complete after-sales support. In short, we deliver trustworthy power hardware for your mass-production and pilot-scale electroforming projects.
