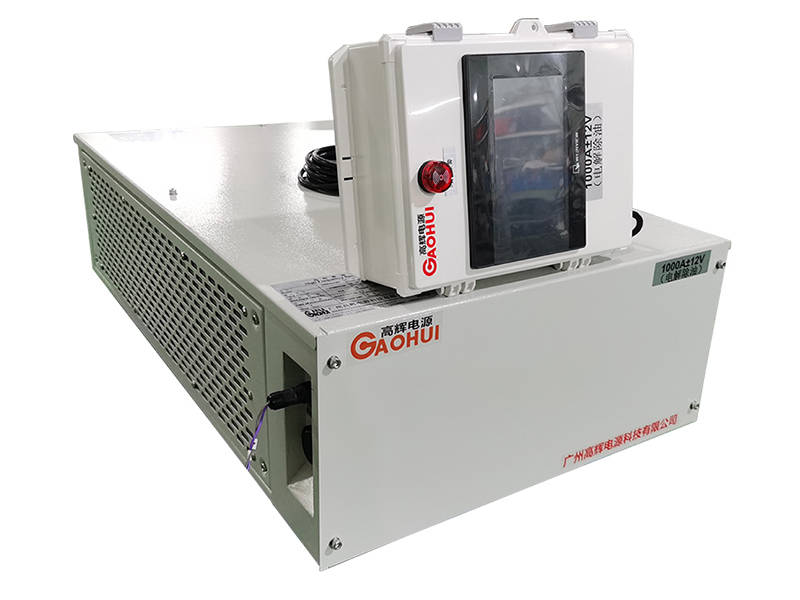

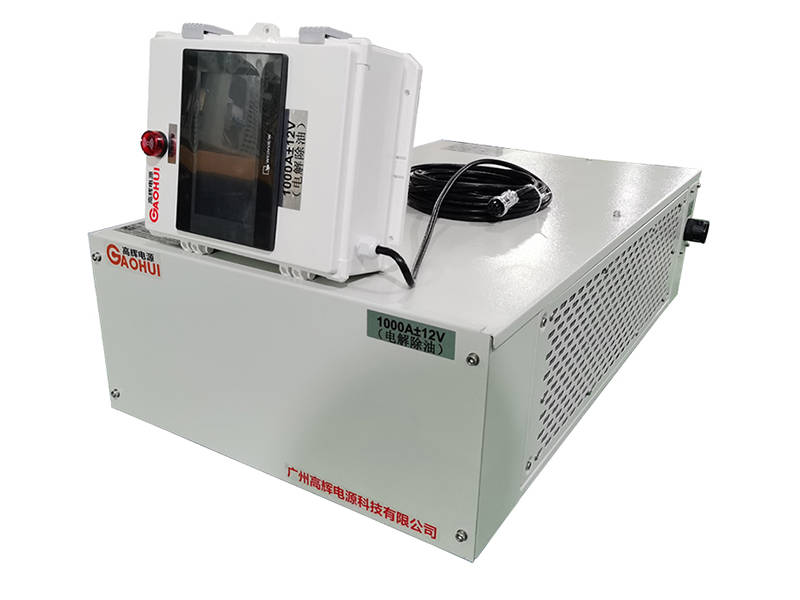

Built for demanding plating pre‑treatment workflows, the Water‑Cooled Electrolytic Degreasing Rectifier delivers adjustable 1000A 12V consistent DC output. Meanwhile, robust water‑cooled thermal architecture dissipates sustained heat load for long‑hour non‑stop degreasing operations.
The Water‑Cooled Electrolytic Degreasing Rectifier provides dependable DC power engineered for industrial electrolytic degreasing pre‑treatment processes. In contrast to universal rectifier units, this model is optimised to withstand harsh alkaline bath conditions and hold steady output amid frequent cyclic load shifts. Particularly, you will face continuous heavy‑current operation, repeated batch cycles and minor load variations as workpiece volumes change. Many air‑cooled rectifiers suffer thermal throttling under non‑stop high‑current degreasing conditions. For this reason, they cannot sustain reliable performance for round‑the‑clock pre‑treatment workshops. Unstable power supply weakens oil‑removal efficiency and leaves residual contaminants on workpiece surfaces. These issues reduce plating layer adhesion and push up finished‑part rejection rates.
The Water‑Cooled Electrolytic Degreasing Rectifier supports full stepless adjustment of 0‑1000A current and 0‑12V voltage. It satisfies power requirements for large‑tank electrolytic degreasing, metal substrate cleaning and various high‑current low‑voltage pre‑plating procedures. Besides, its high‑efficiency water‑cooled cooling system removes heat steadily through extended full‑load cycles. It maintains proper operating temperature even under continuous peak‑current running. Its closed‑loop control system preserves precise output despite changing load conditions. It optimises oil‑stripping performance and prepares clean surfaces for follow‑up finishing steps. Furthermore, multi‑layer safety safeguards protect internal hardware against overload, over‑temperature and unexpected short‑circuit events over long production shifts.
‑ Supplies adjustable 1000A 12V stable DC output, purpose‑calibrated for heavy‑duty industrial electrolytic degreasing pre‑treatment workflows
‑ Optimised for cyclic alkaline bath operating environments. It holds consistent output and improves oil‑removal performance for mass‑batch workpiece processing
‑ Equipped with heavy‑duty water‑cooled heat‑dissipation structure. It delivers reliable heat removal and supports 24‑hour non‑stop heavy‑current degreasing production
‑ Features CC and CV dual operating modes. Operators switch modes flexibly for degreasing, rinsing transition and other pre‑treatment processing stages
‑ Built‑in comprehensive industrial‑grade multi‑protection system. It resists sudden current surges and raises uptime for continuous pre‑treatment production lines
‑ Fitted with standard RS485 communication interface. Operators track real‑time process data and store historical logs to optimise electrolytic degreasing parameters
In fact, many pre‑treatment workshops adopt general‑purpose rectifiers for degreasing tasks. Those devices easily generate thermal drift during long‑term cyclic heavy‑current operation. Even so, the Water‑Cooled Electrolytic Degreasing Rectifier fits large‑scale metal‑finishing factories and high‑volume pre‑treatment lines perfectly. Numerous plating plants run non‑stop pre‑treatment cycles with variable batch sizes, and this unit adapts well to such real‑world working conditions. Our team carries out full‑load and thermal stress testing for every unit before shipment. Therefore, each unit delivers consistent and trustworthy performance across repeated production batches.
Our closed‑loop regulation system reacts rapidly to minor output deviations. Changing workpiece loads and cooling‑water inlet temperature create these small fluctuations. It maintains highly accurate current and voltage output under diverse working states. As a result, you improve degreasing uniformity and cut long‑term operating expenditure. The unit stores multiple groups of degreasing process parameters. Operators can quickly recall verified process recipes. This behaviour shortens equipment setup cycles and boosts overall workshop productivity.

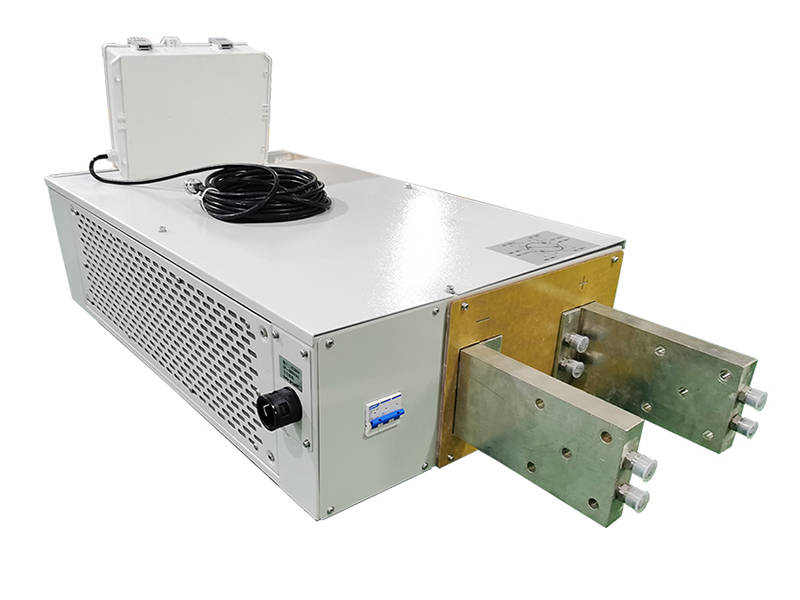

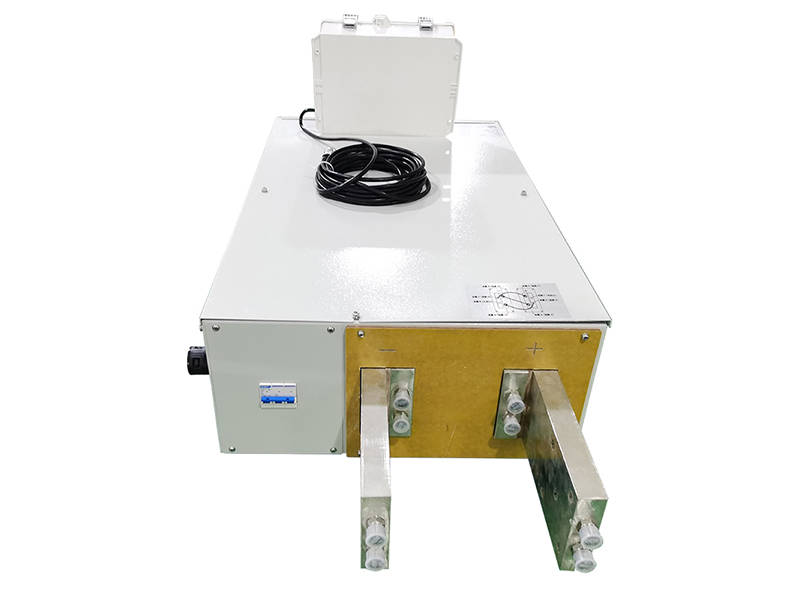

The reinforced integrated cabinet reserves dedicated ports for water pipeline assembly. It suits fixed‑installation mass‑production workshop environments. You only need to arrange standard water inlet and outlet pipelines for regular operation. It effectively lowers hardware failure risks caused by overheating. Meanwhile, it runs reliably for extended hours within humid, vapor‑filled pre‑treatment workshop surroundings.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 1000A |
| Rated Output | Rated Voltage | 0‑12V |
| Working Mode | Operation Type | Constant Current / Constant Voltage |
| Cooling System | Cooling Method | High‑efficiency Water‑Cooled |
| Input Power | Input Voltage | Three‑phase AC Customized |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection |
| Applicable Scenarios | Main Applications | Industrial electrolytic degreasing, metal pre‑treatment, pre‑plating surface cleaning, large‑tank alkaline processing, continuous electroplating pre‑treatment lines |
Further, we back this rectifier with a 1‑year warranty and design it for over 10 years of service life. It supports constant‑current and constant‑voltage modes. It also provides programmable current and voltage ramp‑up to match different pre‑treatment startup workflows. Notably, multi‑segment parameter settings enable flexible process configuration. Its built‑in RS485 port allows staff to view live data and connect with other workshop equipment. We supply optional custom function upgrades. These options satisfy special electrolytic degreasing process requirements. Reach out to us for tailored custom solutions.
The Water‑Cooled Electrolytic Degreasing Rectifier serves large‑scale metal‑finishing plants, component manufacturers and high‑volume electroplating pre‑treatment workshops. Operators deploy it for large‑tank electrolytic degreasing and metal surface cleaning prior to plating procedures. It also supports process testing for newly‑developed alkaline degreasing bath formulas.
Likewise, the unit operates reliably through long‑duration batch cycles and round‑the‑clock pre‑treatment runs. Its stable DC output achieves thorough oil removal and delivers clean substrate surfaces. For instance, it enhances adhesion performance of subsequent plating layers and accelerates process iteration for custom pre‑treatment projects.
We develop custom power‑supply solutions for heavy‑duty electroplating pre‑treatment scenarios. In contrast to ordinary general‑purpose rectifiers, the Water‑Cooled Electrolytic Degreasing Rectifier gets specialised tuning for cyclic alkaline degreasing and continuous water‑cooled mass‑production conditions. It provides excellent operational stability and environmental adaptability.
Our technicians complete load‑simulation testing and full‑load ageing checks for every unit before shipment. This step guarantees stable real‑world performance during continuous electrolytic degreasing production. We accept non‑standard parameter adjustments and custom‑feature development. We also provide professional process guidance and complete after‑sales support. In short, we deliver trustworthy power hardware for your mass‑production and pilot‑scale industrial projects.
Learn more about related products：1500A ±12V Air-Cooled Commutating Rectifier for Alkaline Copper Plating
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
