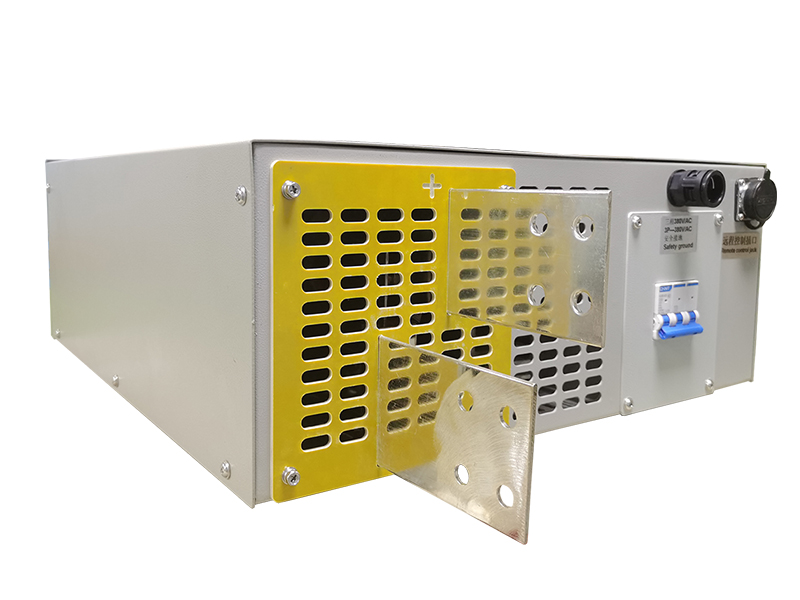

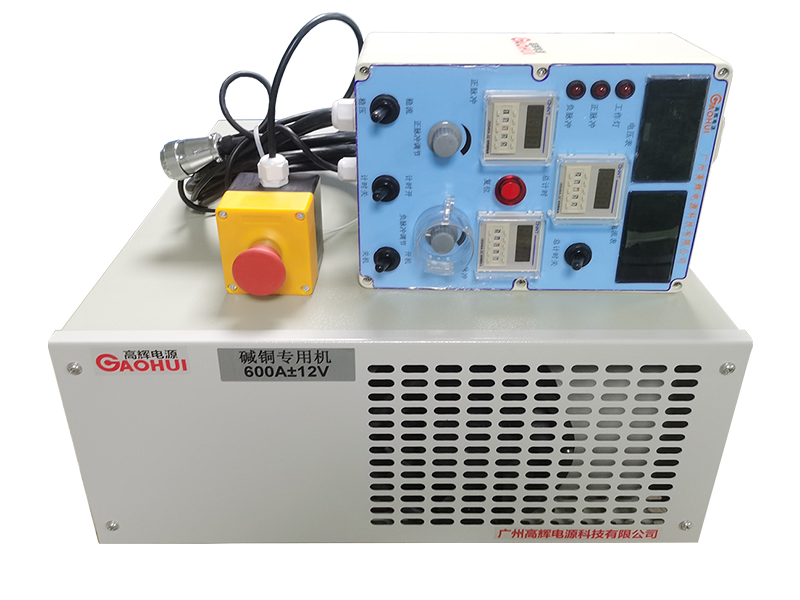

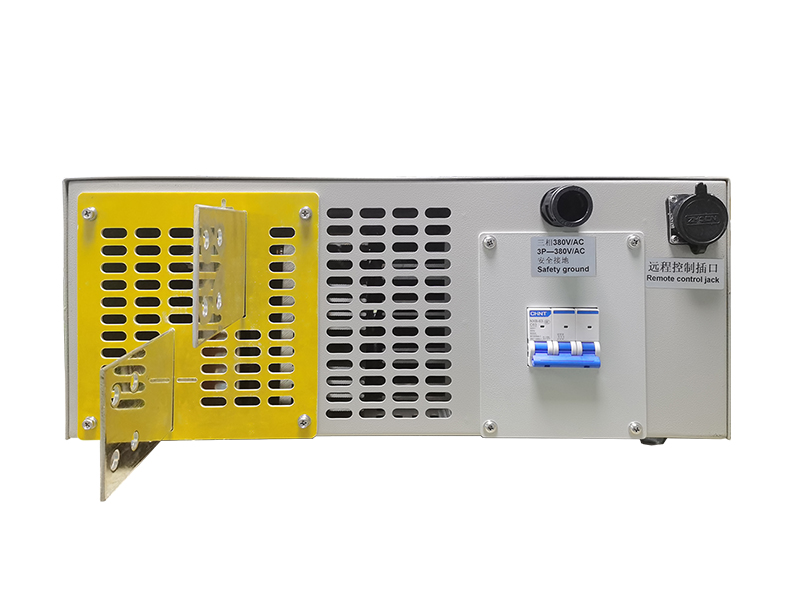

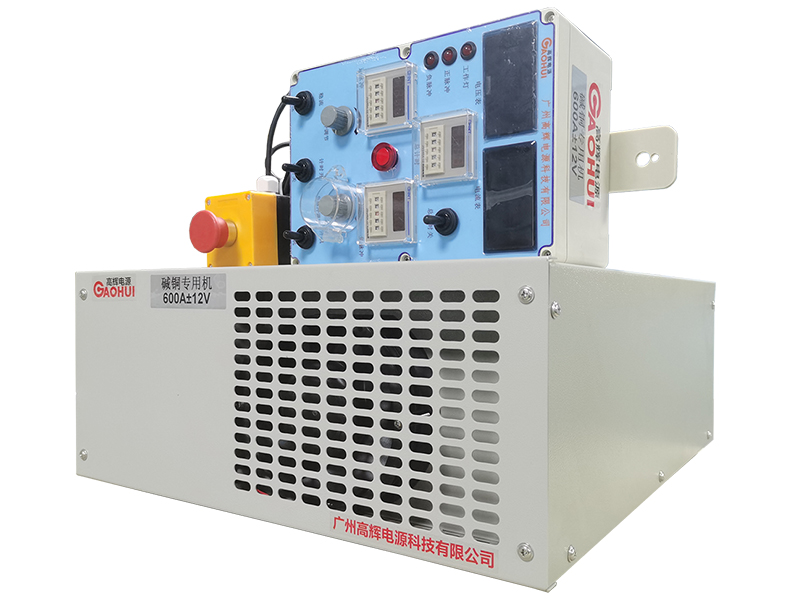

Built for high‑capacity alkaline copper finishing work, the Air‑Cooled Alkaline Copper Plating Rectifier provides adjustable 600A 12V DC power. Meanwhile, its fan‑based cooling eliminates water‑circuit requirements, so operators arrange units flexibly inside plating workshops.
The Air‑Cooled Alkaline Copper Plating Rectifier provides precise DC power conversion for industrial alkaline copper plating workflows. In contrast to acid copper plating systems, alkaline copper plating calls for steady current output across long batch cycles and complex part geometries. Particularly, you will work with corrosive alkaline bath chemistry, complex shaped substrates and minor load shifts as multiple workpieces load into plating tanks. Most water‑cooled rectifiers need complete circulating water infrastructure. For this reason, they raise installation costs for small‑to‑mid alkaline copper plating facilities. Unstable power triggers uneven copper deposition, poor throwing power and high volumes of rejected components. These defects reduce production yield and increase chemical consumption.
The Air‑Cooled Alkaline Copper Plating Rectifier supports full stepless adjustment from 0‑600A current and 0‑12V voltage. It meets power requirements for mass‑scale alkaline copper plating on steel, alloy and pre‑treated base materials. Besides, its optimized air‑cooled heat dissipation dissipates heat during continuous heavy‑current production cycles. You require no circulating water hardware at all. Our low‑ripple control circuit maintains consistent output even when workpiece quantities and surface conditions change. It yields uniform copper layers and lowers overall scrap rates. Furthermore, multi‑layer safety safeguards protect hardware against overload, over‑temperature and unexpected short‑circuit events during extended operating shifts.
‑ Above all, delivers 600A/12V adjustable DC output. Our engineers calibrate it specifically to match demanding alkaline copper plating production conditions ‑ Uses optimized air‑cooled fan cooling. It removes water‑cooling dependency and cuts workshop installation investment plus routine maintenance workload ‑ Implements low‑ripple control logic. It sustains stable current flow and improves throwing power for complex‑geometry plated workpieces ‑ Supports dual CC/CV working modes. Operators switch modes freely across pre‑treatment, copper deposition and post‑plating processing stages ‑ Adds industrial‑grade multi‑path safety protection. It withstands sudden overload incidents and maximises uptime for continuous batch plating operations ‑ Includes reserved RS485 data interface. Users view real‑time process data and save historical records to optimise alkaline copper plating parameters
In fact, many high‑current plating rectifiers adopt water‑cooled structural designs. They serve large‑scale production lines equipped with full circulating water supply systems. Even so, the Air‑Cooled Alkaline Copper Plating Rectifier fits medium‑size metal finishing plants and pilot alkaline copper plating lines perfectly. Many manufacturing sites run mixed‑batch production schedules, and this unit adapts well to such real‑world operating modes. Our team completes full‑load and thermal stress tests for every unit before shipment. Therefore, each device delivers repeatable plating performance across successive production batches.
Our closed‑loop regulation system compensates for minor output fluctuations rapidly. Changing workpiece counts and alkaline bath status create these small deviations. It preserves consistent copper coating thickness across intricate part surfaces. As a result, you cut reject rates and conserve expensive plating bath chemicals. The unit stores multiple groups of plating process parameters. Operators recall verified process recipes quickly. This practice shortens equipment setup cycles and lifts overall workshop throughput.
The reinforced integrated cabinet holds a compact footprint. It simplifies workshop layout planning and equipment relocation. You skip complicated water pipe fitting and water quality upkeep procedures. It noticeably lowers hardware failure risks. Meanwhile, it maintains stable operation for long hours within humid, chemical‑laden plating‑shop environments.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 600A |
| Rated Output | Rated Voltage | 12V |
| Working Mode | Operation Type | Constant Current / Constant Voltage |
| Cooling System | Cooling Method | High‑efficiency Air‑cooled Fan Cooling |
| Input Power | Input Voltage | Three‑phase AC Customized |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection |
| Applicable Scenarios | Main Applications | Alkaline copper plating, complex‑part copper deposition, pre‑treatment underlayer plating, batch metal component finishing |
Further, we back this rectifier with a 1‑year warranty and design it for over 10 years of service life. It supports constant‑current and constant‑voltage modes. It also provides programmable current and voltage ramp‑up to suit gentle alkaline copper deposition workflows. Notably, multi‑segment parameter settings and timing controls enable automatic plating sequence operations. Its built‑in RS485 port lets staff monitor live data and connect with other workshop equipment. We supply optional polarity reversal and custom function upgrades. These options satisfy unique alkaline copper plating process requirements. Reach out to us for tailored custom solutions.
The Air‑Cooled Alkaline Copper Plating Rectifier works for medium‑sized metal finishing factories, component manufacturers and specialized alkaline plating job‑shops. Teams deploy it for alkaline copper underlayer plating and surface finishing of various metal substrates. It also supports formula validation and process tuning for new alkaline copper plating solutions.
Likewise, the hardware runs reliably through long‑duration batch cycles and pilot production trials. Its low‑ripple DC output delivers homogeneous copper layers and sound surface quality on complex parts. For instance, it reduces material waste and part rejection rates, and speeds up process iteration for custom plated components.
We develop custom power supply solutions for alkaline copper plating applications. In contrast to general‑purpose electroplating rectifiers, the Air‑Cooled Alkaline Copper Plating Rectifier receives targeted tuning for alkaline bath working conditions and long‑hour batch operation. It delivers superior operational stability and environmental tolerance.
Our technicians carry out load simulation testing and full‑load ageing checks for every unit before dispatch. This procedure guarantees dependable real‑world performance during alkaline copper plating operations. We accept non‑standard parameter adjustments and custom feature development. We also deliver professional process guidance and full‑cycle after‑sales support. In short, we supply reliable power for your mass‑production and pilot alkaline copper plating projects.

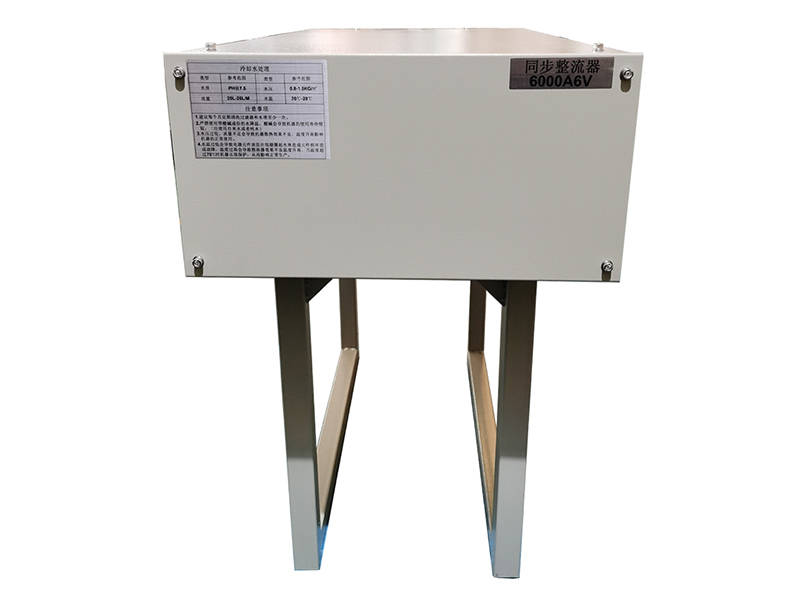

Learn more about related products：6000A 6V Water-Cooled Synchronous Rectifier (with Mounting Bracket)
