Built for non-stop heavy electrolytic production, the 6000A Water‑Cooled Synchronous Rectifier with Mounting Bracket delivers adjustable 6000A 6V low-loss DC power. Meanwhile, the included mounting bracket streamlines stable installation on production racks.
The 6000A Water‑Cooled Synchronous Rectifier with Mounting Bracket provides high-efficiency DC power built for heavy-duty industrial electrolysis and bulk metal recovery operations. Unlike conventional diode rectifiers, its synchronous power topology cuts conduction losses and maintains steady output through extended peak-current production cycles. For example, it holds consistent performance when electrolyte concentration and raw material loading shift during electrolysis runs. Many air-cooled power supplies cannot withstand such severe thermal stress. As a result, they trigger thermal protection shutdowns and fail to support 24-hour continuous electrolysis manufacturing. Unstable power lowers metal recovery yield and increases electrolyte consumption. These drawbacks raise operating costs and shorten overall equipment service life.
The 6000A Water‑Cooled Synchronous Rectifier with Mounting Bracket supports full stepless adjustment from 0‑6000A and 0‑6V. It meets power demands for metal electrowinning, bulk electrolysis and other low-voltage ultra-high-current electrochemical workflows. In addition, its high-performance water cooling system dissipates heat steadily during extended full-load cycles. It keeps stable operating temperature even under continuous peak-current running. Its closed-loop synchronous control maintains precise DC output amid variable load changes. It lifts electrolysis efficiency and stabilizes electrolyte working conditions. Furthermore, multi-layer safety safeguards protect internal hardware against overload, over-temperature and unexpected short-circuit events throughout long production shifts.
Offers adjustable 6000A 6V low-loss DC output, engineered for heavy-duty electrolysis and large-scale metal recovery applications.
Adopts advanced synchronous circuit topology. It cuts conduction heat loss effectively and reduces energy consumption during long continuous electrolysis operations.
Comes with heavy-duty water-cooled heat dissipation. It removes large volumes of heat efficiently and supports round-the-clock ultra-high-current production.
Supports CC and CV dual operating modes. Operators can switch modes flexibly for bath preparation, metal extraction and electrolyte maintenance stages.
Integrates complete industrial-grade multi-protection system. It resists sudden current surges and maximizes uptime for continuous electrolysis production lines.
Fitted with standard RS485 communication port and factory-supplied mounting bracket. Operators track real-time process data and achieve fast, rigid equipment mounting.
In fact, many electrolytic refineries use conventional diode rectifiers for metal recovery work. Those units generate excessive heat and waste more power under continuous heavy loads. Even so, the 6000A Water‑Cooled Synchronous Rectifier with Mounting Bracket fits perfectly within large electrolytic refineries and metal recycling facilities. Many chemical processing plants run non-stop production with changing bath conditions, and this unit adapts well to these real working scenarios. Our team runs full-load and thermal stress testing for every unit before shipment. Therefore, each unit maintains stable energy-saving performance across repeated production batches.
Our closed-loop regulation system responds quickly to minor output deviations. Changing workpiece loads and cooling water inlet temperature create these small fluctuations. It maintains highly accurate current and voltage output under diverse working states. As a result, you reduce energy waste and cut long-term operating expenditure. The unit stores multiple groups of electrolysis process parameters. Operators retrieve validated process recipes rapidly. This action shortens equipment setup cycles and improves overall workshop productivity.

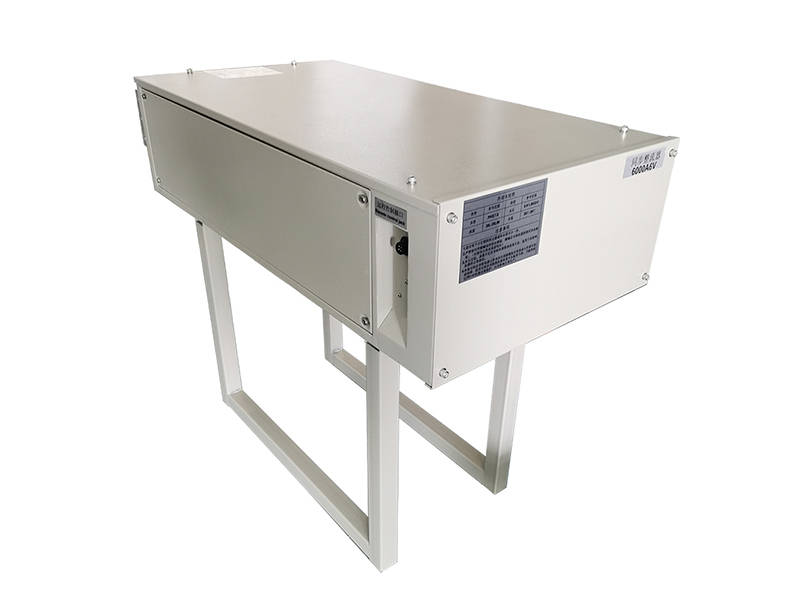

The reinforced integrated cabinet reserves dedicated ports for water pipeline installation. It suits fixed-installation mass-production workshop environments. The supplied mounting bracket helps technicians lock the unit firmly onto support frames. It effectively lowers hardware failure risks caused by vibration and overheating. Meanwhile, it operates reliably for long hours inside humid, corrosive electrolysis workshop surroundings.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 6000A |
| Rated Output | Rated Voltage | 0‑6V |
| Working Mode | Operation Type | Constant Current / Constant Voltage, Low Loss DC |
| Cooling System | Cooling Method | High‑efficiency Water‑Cooled |
| Input Power | Input Voltage | Three‑phase AC Customized |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection |
| Extra Accessory | Included Parts | Heavy-duty mounting bracket |
| Applicable Scenarios | Main Applications | Industrial electrolysis, metal electrowinning, heavy metal recovery, low-voltage ultra-high-current electrochemical processing |
Further, we back this rectifier with a 1‑year warranty and design it for over 10 years of service life. It supports constant-current and constant-voltage modes. It also provides programmable current and voltage ramp-up to suit different electrolysis startup workflows. Notably, multi-segment parameter settings enable flexible process configuration. Its built-in RS485 port allows staff to view live data and connect with other workshop equipment. We supply optional custom function upgrades. These options satisfy special high-current electrolysis process requirements. Reach out to us for tailored custom solutions.
The 6000A Water‑Cooled Synchronous Rectifier with Mounting Bracket serves large electrolytic refineries, metal recycling manufacturers and high-volume electrochemical workshops. Operators deploy it for large-scale metal electrowinning and industrial electrolysis for various metal substrates. It also supports process testing for newly developed electrolysis bath formulas.
Moreover, the machine runs reliably through long-duration batch cycles and round-the-clock production runs. Its low-loss synchronous DC output cuts energy consumption and stabilizes production working conditions. For instance, it improves metal recovery rates and speeds up process iteration for custom heavy-duty electrolysis projects.
We develop custom power-supply solutions for ultra heavy-current electrolysis scenarios. In contrast to ordinary diode-based rectifiers, the 6000A Water‑Cooled Synchronous Rectifier with Mounting Bracket receives specialized tuning for low energy loss and continuous water-cooled mass-production conditions. It delivers excellent operational stability and corrosion resistance for harsh electrolysis environments.
Our technicians complete load-simulation testing and full-load ageing checks for every unit before shipment. This step guarantees dependable real-world performance during continuous electrolysis production. We accept non-standard parameter adjustments and custom-feature development. We also provide professional process guidance and complete after-sales support. In short, we deliver trustworthy power hardware for your mass-production and pilot-scale industrial projects.
Learn more about related products：30A/350V air-cooled electrolytic polishing rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
