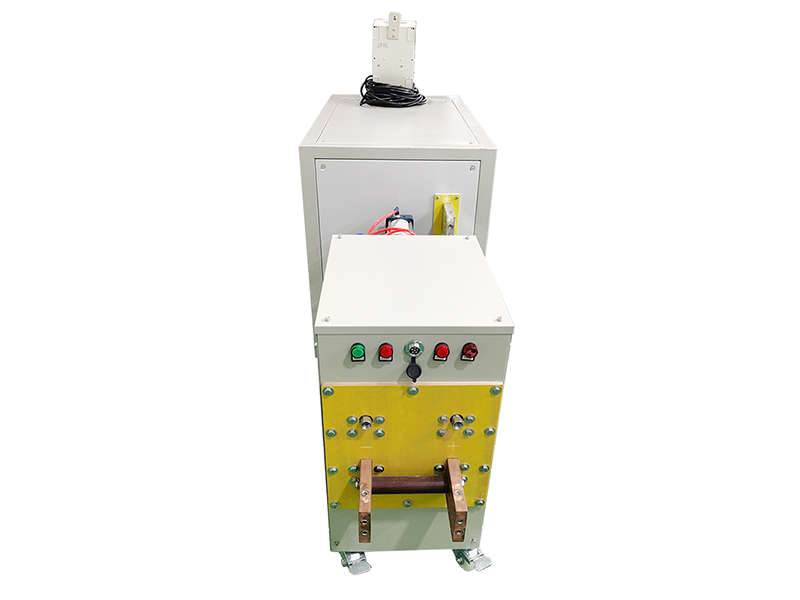

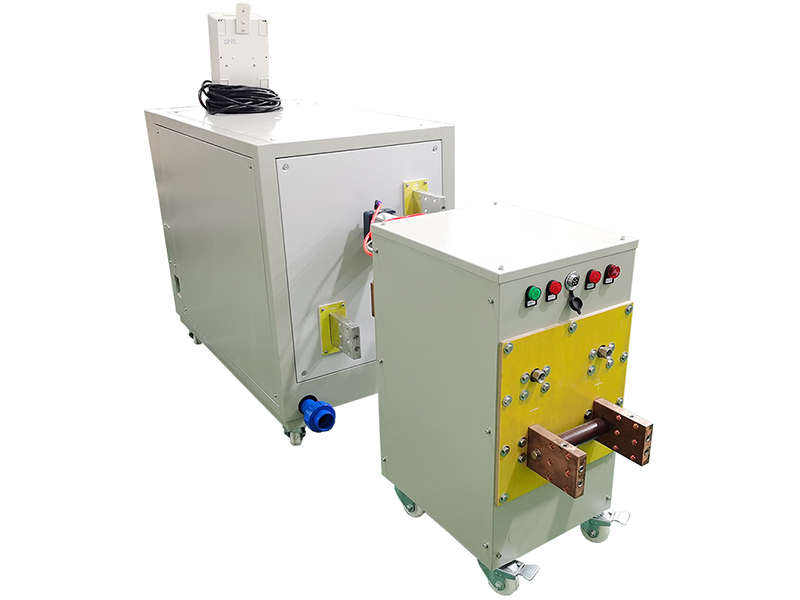

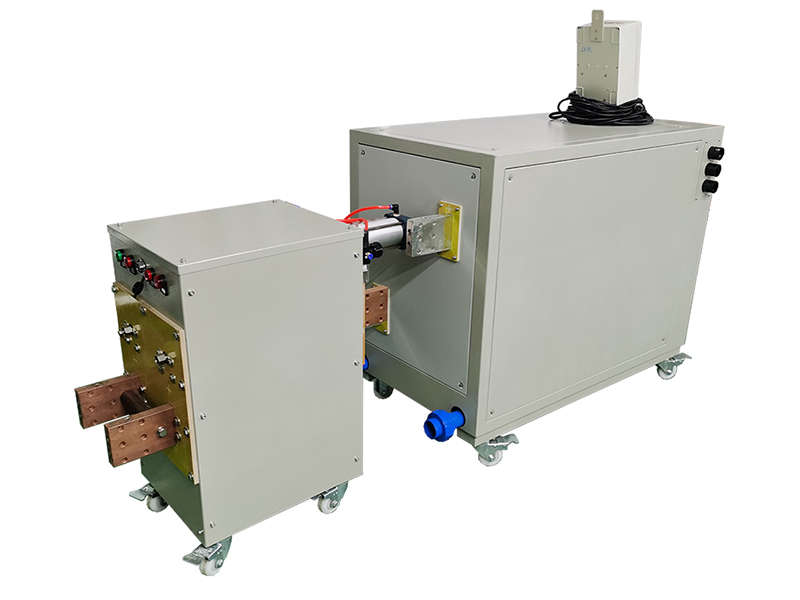

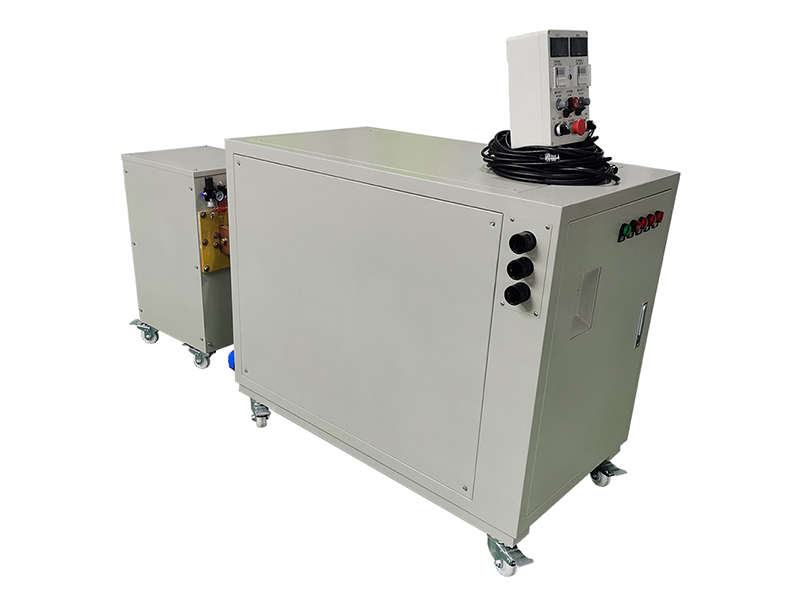

The Switchable Chrome Rectifier from Gaohui Rectifier gives 8000A at 18V with an integrated reversing switch. This Switchable Chrome Rectifier performs reverse etching and selective stripping under full load. Furthermore, the Switchable Chrome Rectifier keeps the switching circuit simple and serviceable for line maintenance crews. Consequently, mid-size hard chrome lines get flexible reversing at a practical cost. Moreover, reverse & strip facilities select this Switchable Chrome Rectifier for its water cooled design and 8000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Reverse & Strip | Ripple: ≤5% | Interface: RS485
The 8000A 18V rectifier serves hard chrome tanks from 4000L to 7000L where periodic reversal improves adhesion and uniformity. It is ideal for cylinder liners, extrusion screws and large rollers. For example, a line can etch a screw for 45 seconds, then switch to forward plating without breaking contact. Furthermore, the 18V output covers the higher voltage needed for longer rack runs. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485 standard port allows remote monitoring.
Moreover, the switch mechanism is mechanically interlocked to prevent operator errors. In addition, water cooling ensures the contacts and IGBT stages remain cool during heavy reversing duty. Consequently, this rectifier balances capability, cost and reliability for growing chrome departments. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Switchable Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–8000A adjustable |
| DC Output Voltage | 0–18V adjustable |
| Reversing | Integrated switch, full-load rated |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485 standard |
| Dimensions | 1200 × 800 × 1600 mm |
| Weight | 880 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:

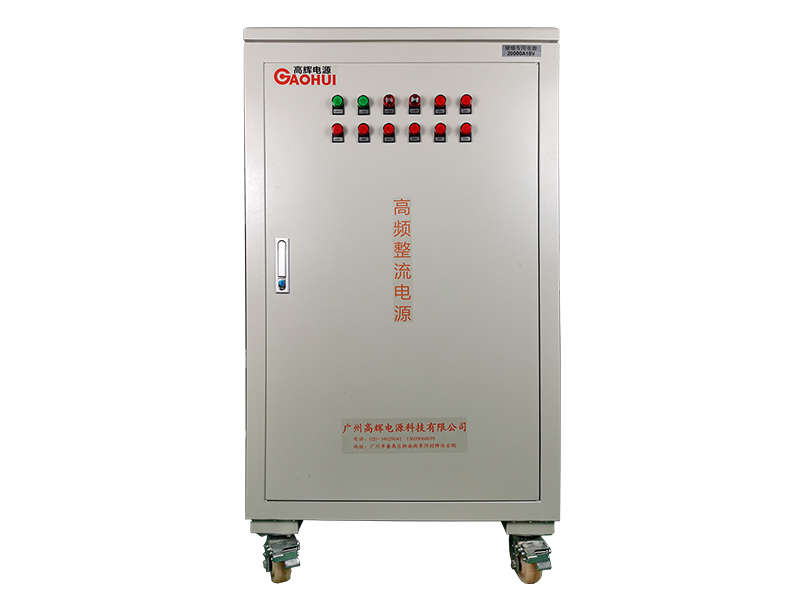

Need less power? View the 6000A 15V Chrome Rectifier with Switch.
Need more current? Check the 10000A 15V Reversing Chrome Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
