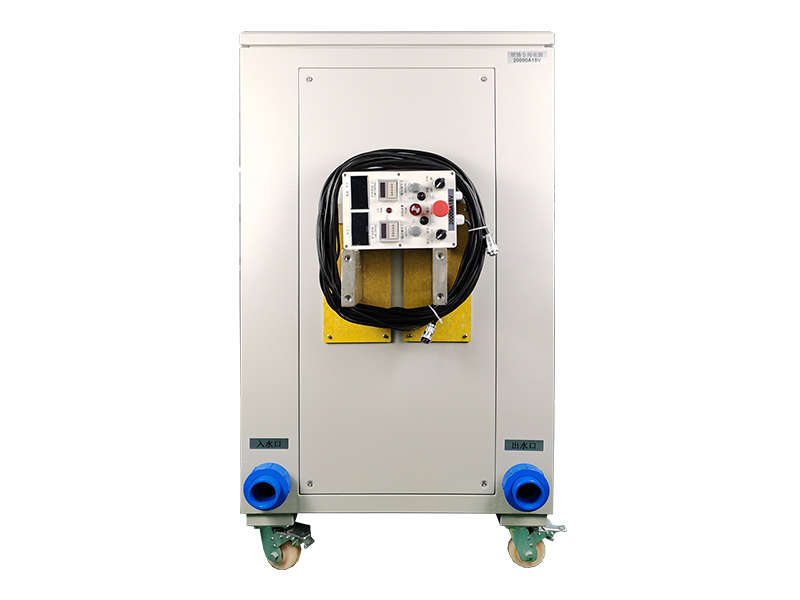

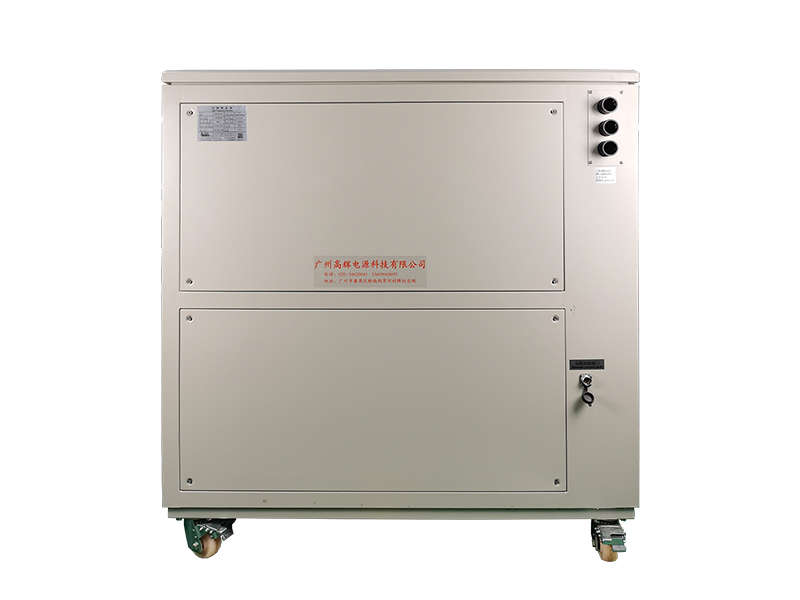

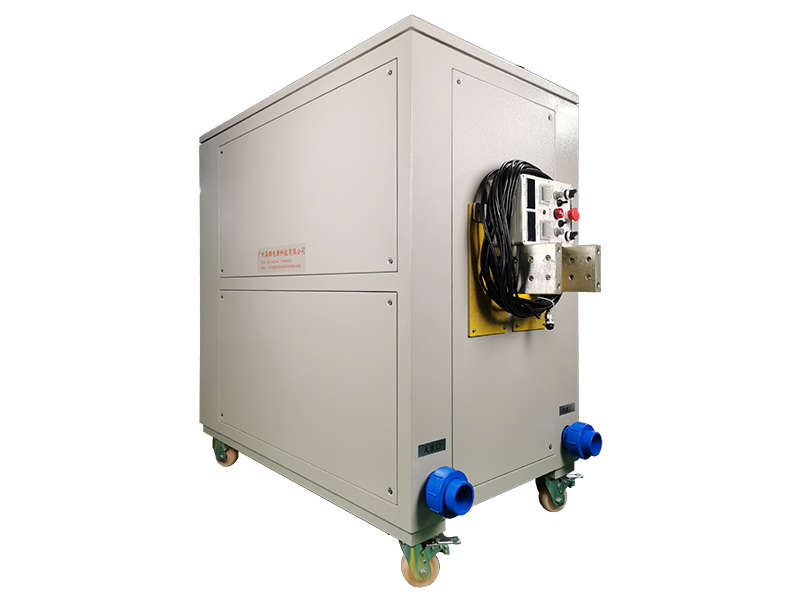

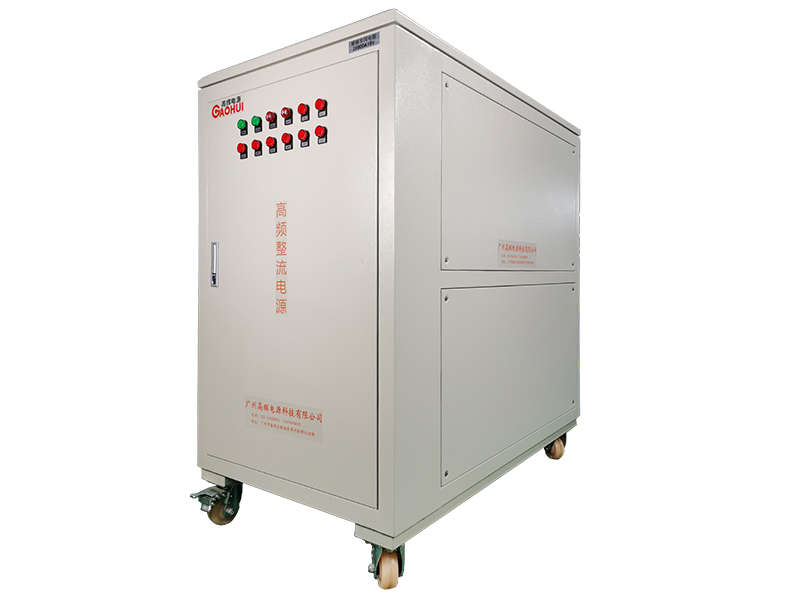

The Polarity Reversing Chrome Rectifier from Gaohui Rectifier switches between positive and negative output at 20000A and 18V. This Polarity Reversing Chrome Rectifier runs advanced etch-plate cycles for demanding hard chrome work. Furthermore, the Polarity Reversing Chrome Rectifier manages the full 20000A load during both polarities. Consequently, platers achieve premium adhesion and deposit quality on critical parts. Moreover, positive-negative cycles facilities select this Polarity Reversing Chrome Rectifier for its water cooled design and 20000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Positive-Negative Cycles | Ripple: ≤5% | Interface: RS485/PLC
The 20000A 18V rectifier serves very large hard chrome tanks above 10000L with positive-negative cycling programs. It is ideal for crankshafts, landing-gear components, heavy rolls and tool-steel dies. For example, an aerospace supplier can execute precise reverse-etch cycles on large landing-gear parts. Furthermore, the 18V output supports longer racks and more resistive electrolytes. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485, PLC port allows remote monitoring.
Moreover, polarity changes are executed with minimal delay, protecting deposit integrity. In addition, PLC communication allows the cycles to be synchronized with line automation. Consequently, this rectifier delivers the control depth that premium hard chrome demands. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Polarity Reversing Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–20000A adjustable |
| DC Output Voltage | 0–18V adjustable |
| Reversing | Positive-negative, programmable |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485, PLC |
| Dimensions | 1600 × 1000 × 1900 mm |
| Weight | 1560 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
