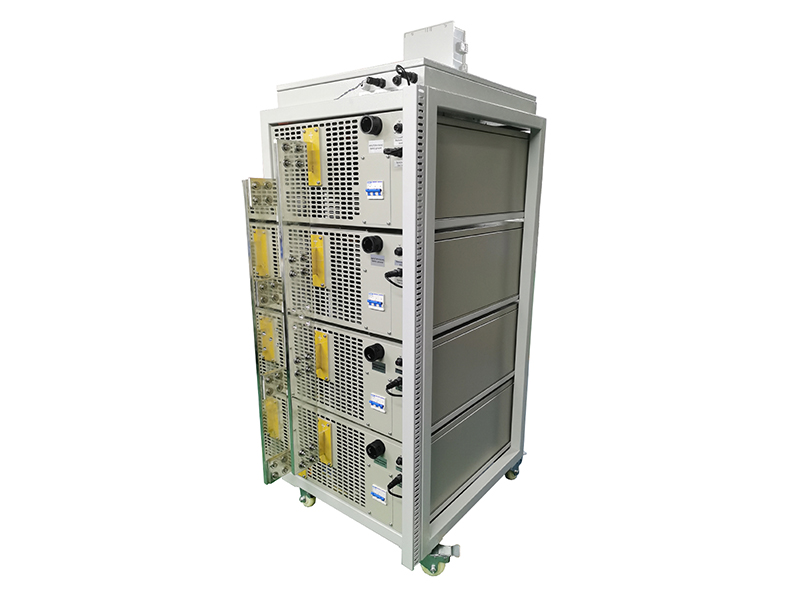

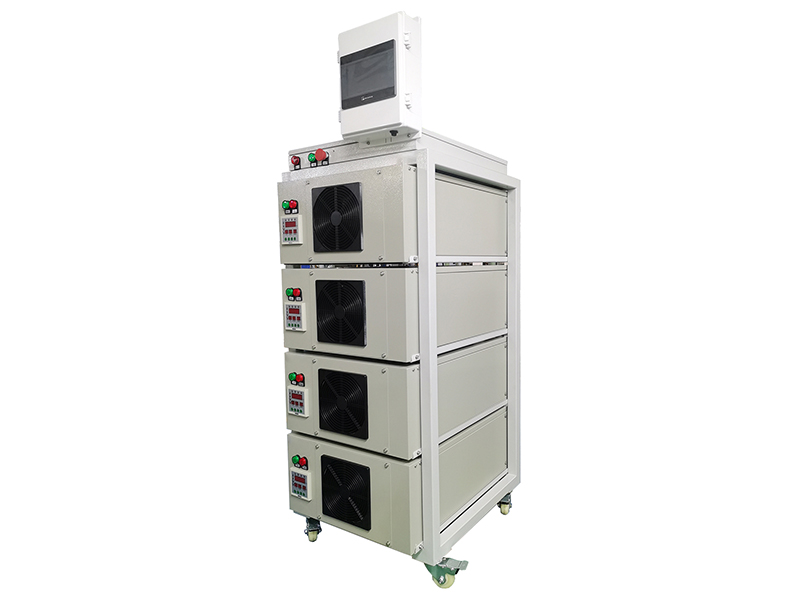

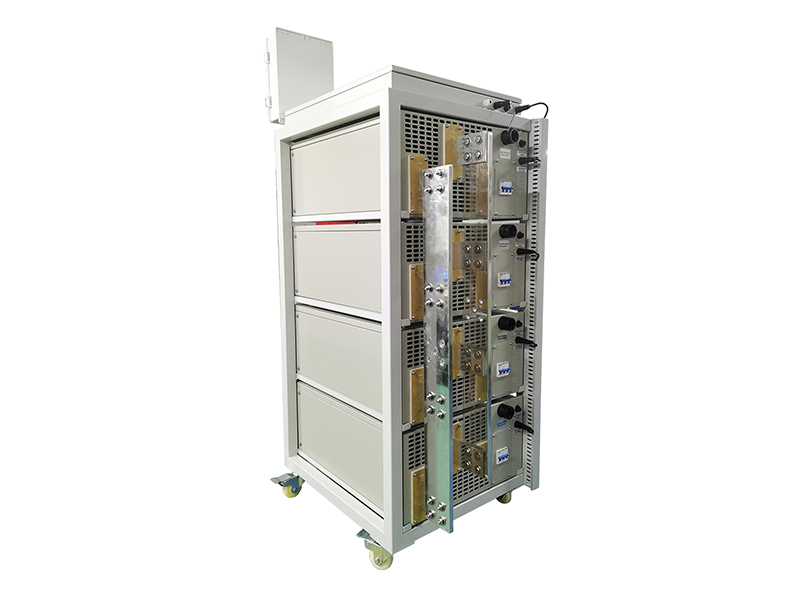

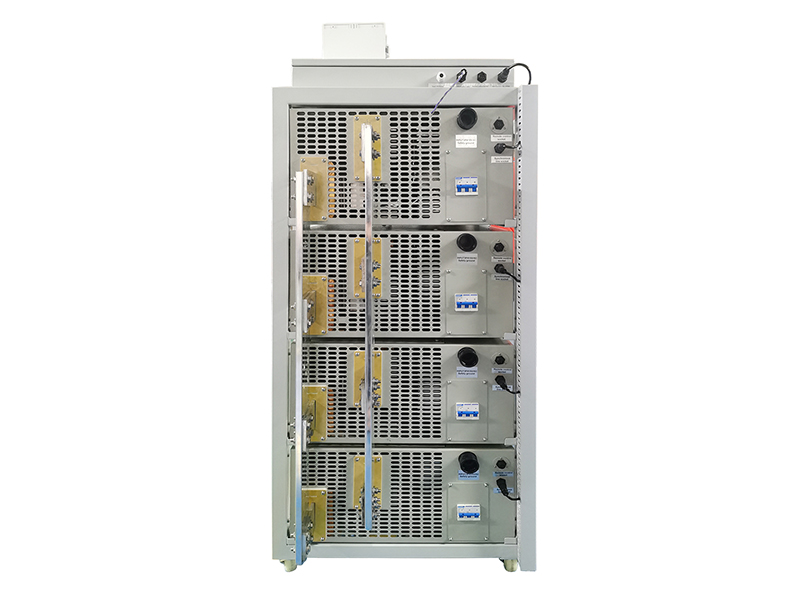

The Functional Chrome Rectifier from Gaohui Rectifier is built for mid-size hard chrome lines. This Functional Chrome Rectifier delivers 6000A at 16V for shafts, rolls and cylinder liners. Furthermore, the Functional Chrome Rectifier uses a water-cooled IGBT stage with smooth DC output. Therefore, job shops gain consistent deposit quality without oversized equipment. Moreover, mid-size hard chrome facilities select this Functional Chrome Rectifier for its water cooled design and 6000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Mid-Size Hard Chrome | Ripple: ≤5% | Interface: RS485
The 6000A 16V rectifier fits hard chrome tanks from 3000L to 5000L, running typical current densities of 30-50 A/dm2. It is ideal for plating machine tool spindles, hydraulic rods and printing cylinders in small production batches. For example, a tool reconditioner can rebuild a lathe spindle and a press ram in the same week. In addition, the 16V output covers most rack and bus-bar voltage losses found in mid-size shops. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485 standard port allows remote monitoring.
Moreover, this model includes programmable ramp-up and timed operation to control deposit initiation. Furthermore, its compact water-cooled cabinet can be placed beside the tank, saving valuable floor space. Consequently, it is a popular choice for expanding an existing decorative or functional chrome department. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Functional Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–6000A adjustable |
| DC Output Voltage | 0–16V adjustable |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485 standard |
| Dimensions | 1100 × 700 × 1500 mm |
| Weight | 620 kg |
| Special Feature | Timed operation mode |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 3000A 12V General Chrome Rectifier.
Need more current? Check the 8000A 18V Heavy Chrome Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
