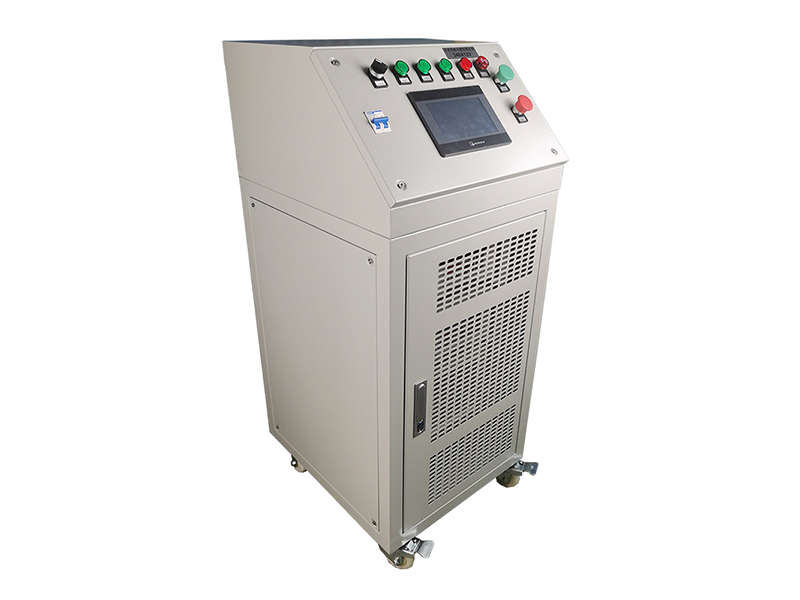

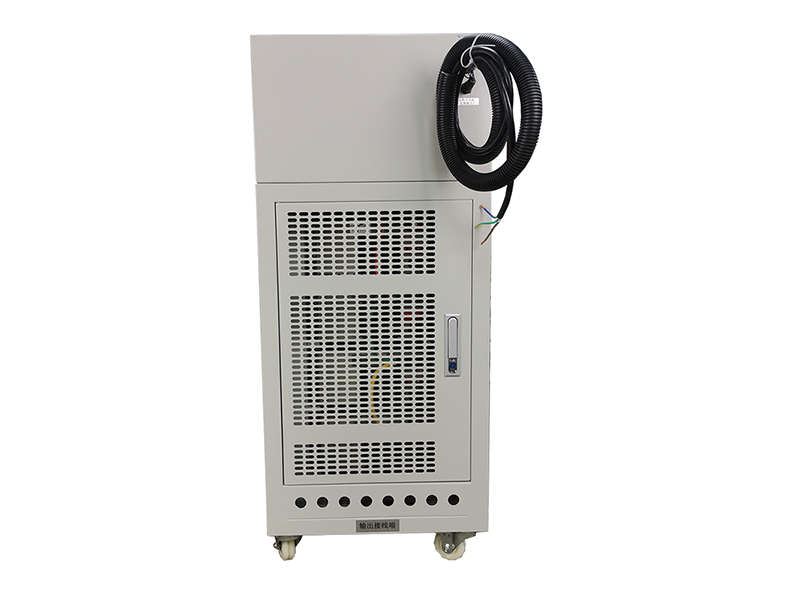

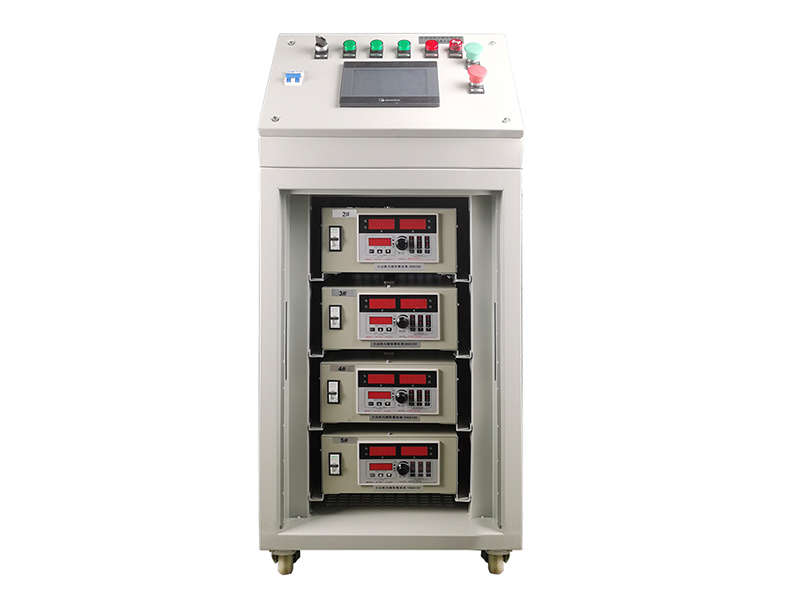

The Multi Channel Chrome Rectifier from Gaohui Rectifier controls several plating zones from one compact cabinet. This Multi Channel Chrome Rectifier outputs 340A at 12V across independent channels for selective chrome plating. Furthermore, the Multi Channel Chrome Rectifier lets operators set different currents on different racks simultaneously. Consequently, shops plate mixed batches with individual current control per fixture. Moreover, selective rack plating facilities select this Multi Channel Chrome Rectifier for its forced air design and 340A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Forced Air | Application: Selective Rack Plating | Ripple: ≤3% | Interface: RS485
The 340A 12V rectifier fits small decorative and functional chrome tanks of 50L to 200L, where several racks hang in one bath. It is ideal for plating mixed batches of fasteners, fittings and small housings that need different current densities. For example, an operator can plate bright trim parts and functional parts in the same tank while each channel carries its own setting. Furthermore, multi-channel control prevents over-plating on small workpieces. Moreover, the 220V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485 standard port allows remote monitoring.

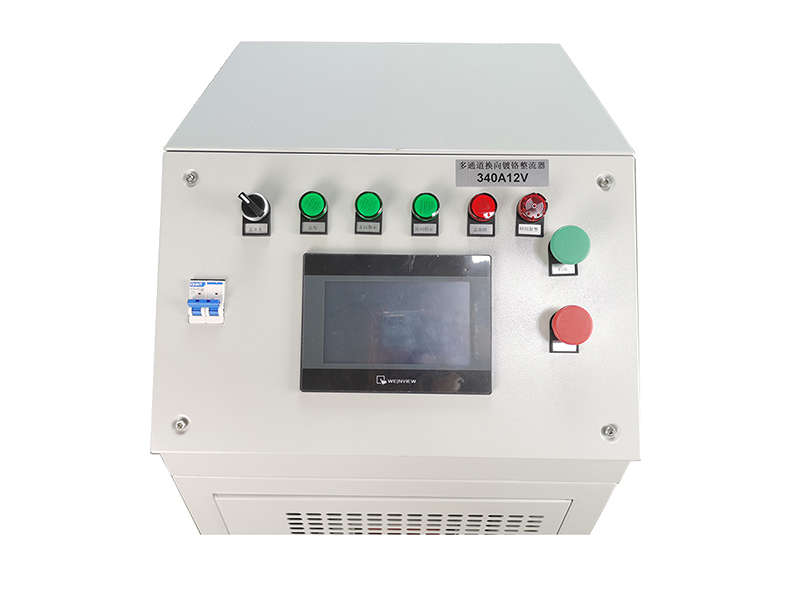

Moreover, each channel supports independent timing and ramp-up, simplifying job scheduling. In addition, the air-cooled cabinet runs quietly and requires no water supply. Consequently, small plating departments gain flexibility without buying separate rectifiers for each line. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Multi Channel Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 220V ±10%, single phase |
| DC Output Current | 0–340A total, per-channel adjustable |
| DC Output Voltage | 0–12V adjustable |
| Channels | Independent multi-channel outputs |
| Cooling Method | Forced air |
| Ripple Factor | ≤3% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485 standard |
| Dimensions | 600 × 400 × 800 mm |
| Weight | 85 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 100A 18V Air Cooled Hard Chrome Rectifier.

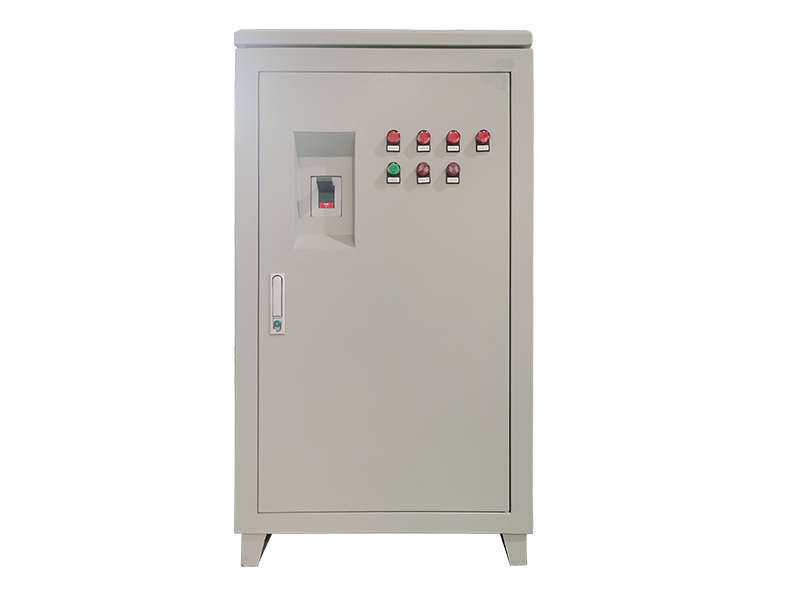

Need more current? Check the 3000A 12V General Chrome Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
