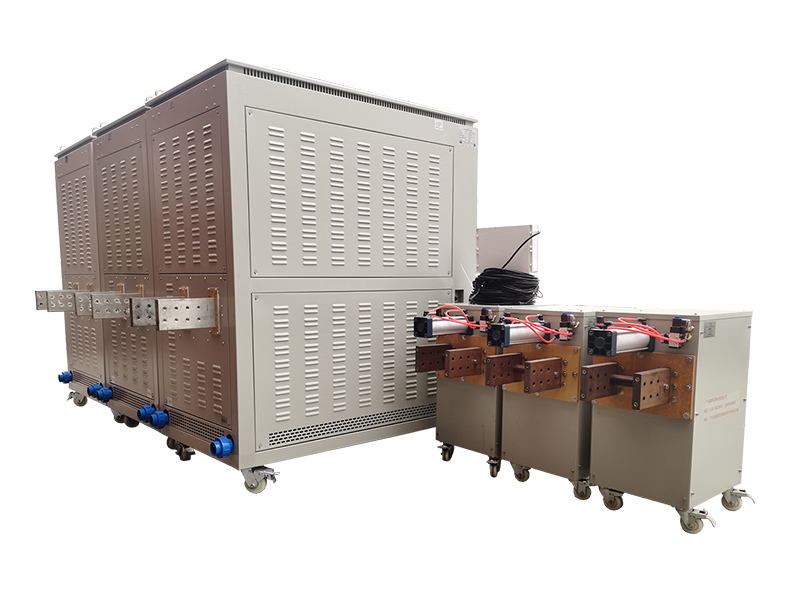

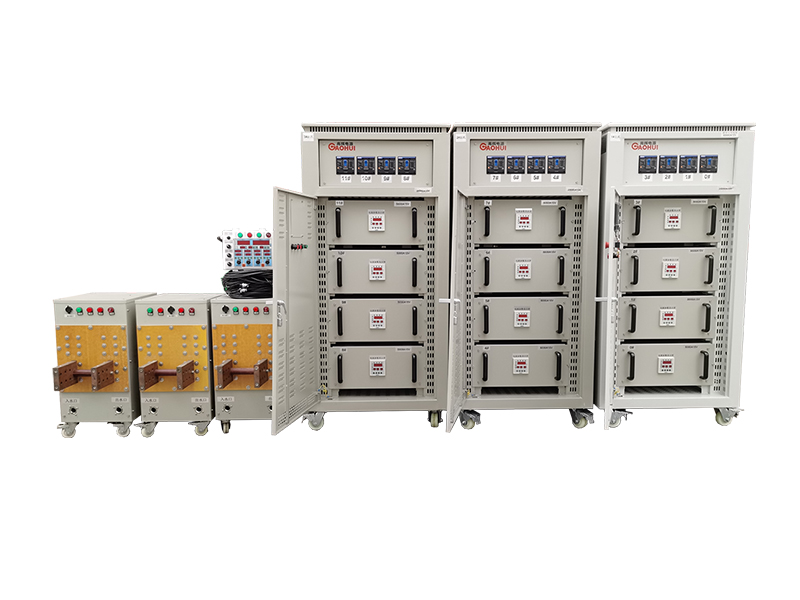

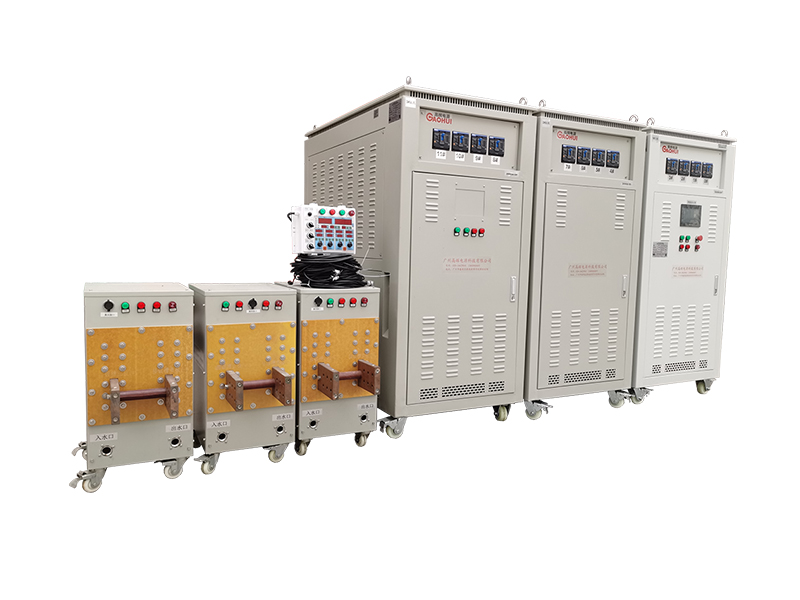

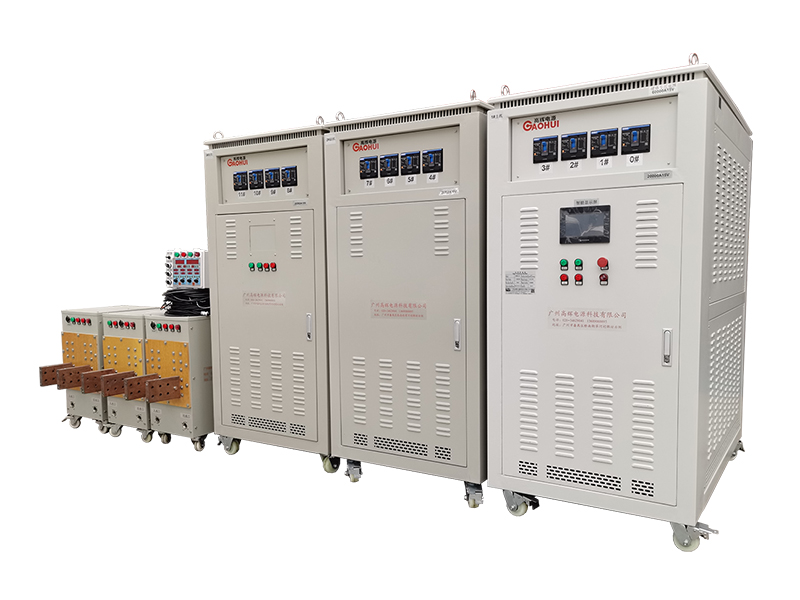

The High Power Chrome Rectifier from Gaohui Rectifier is the largest model in the series at 60000A and 15V. This High Power Chrome Rectifier drives the biggest hard chrome lines through a three-bay N+1 parallel system. Furthermore, the High Power Chrome Rectifier includes automatic polarity reversal on every bay. Consequently, heavy industry relies on it for mill rolls, marine shafts and giant hydraulic cylinders. Moreover, mega hard chrome lines facilities select this High Power Chrome Rectifier for its water cooled design and 60000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Mega Hard Chrome Lines | Ripple: ≤5% | Interface: PLC
The 60000A 15V system is designed for ultra-large hard chrome tanks above 40000L and for plating very long rolls and shafts. It is ideal for steel mill backup rolls, paper machine rolls, ship propeller shafts and mining equipment cylinders. For example, a roll manufacturer can maintain a 10-ton roll at full current density without voltage drop. Furthermore, the three-bay layout balances load automatically across N+1 modules. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the PLC supervision port allows remote monitoring.
Moreover, each bay carries its own reversing contactor and cooling circuit, so failure in one bay never halts the line. In addition, PLC supervision provides alarm, ramp and recipe management for the entire system. Consequently, a 60000A installation behaves like one powerful, dependable rectifier. Moreover, operators appreciate the straightforward layout and clearly marked controls on this High Power Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–60000A adjustable |
| DC Output Voltage | 0–15V adjustable |
| Parallel Bays | 3 bays, N+1 modules each |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | PLC supervision |
| Dimensions | 3 × 2000 × 1200 × 2000 mm |
| Weight | 5200 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
