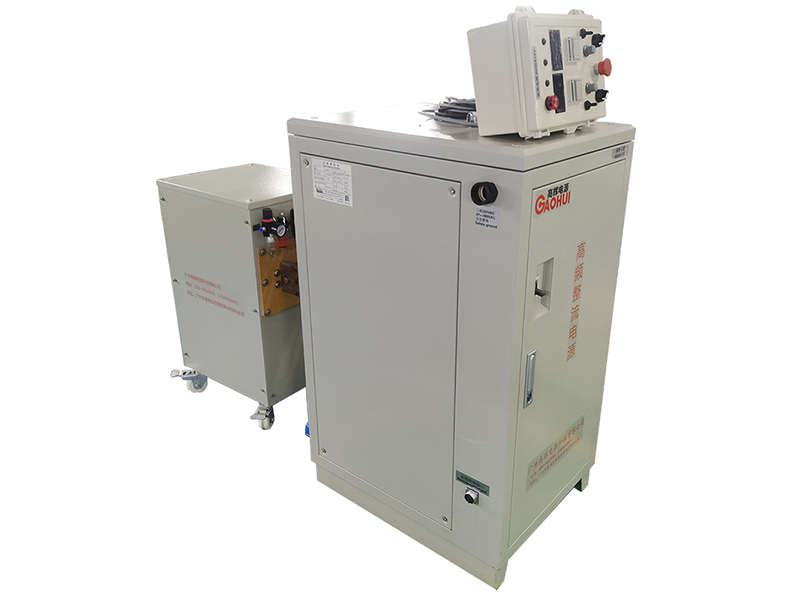

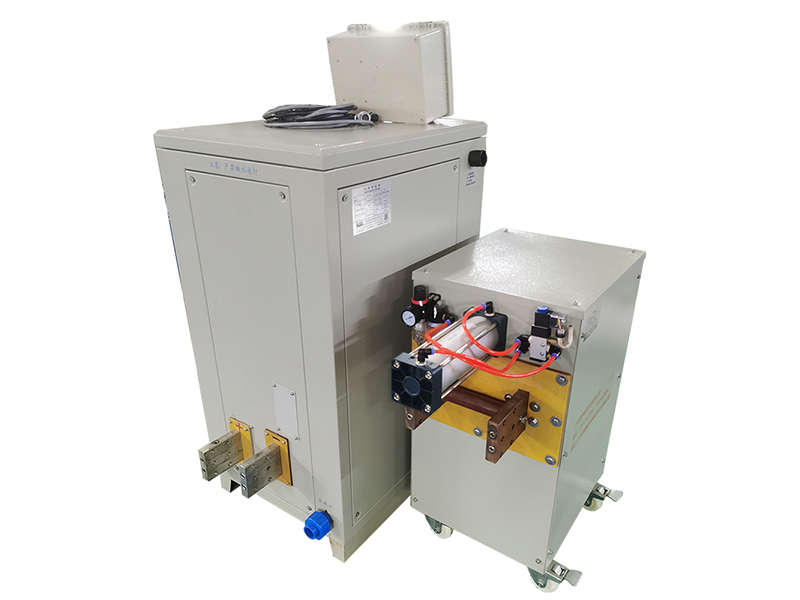

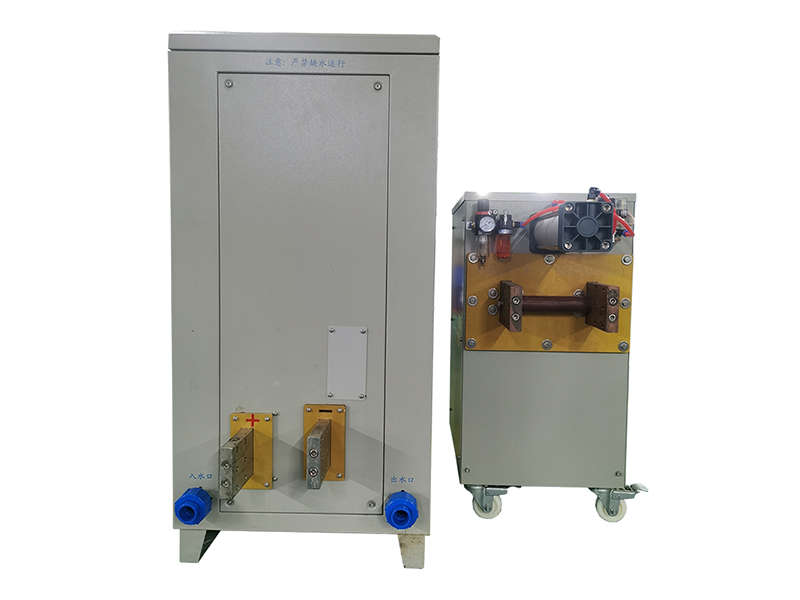

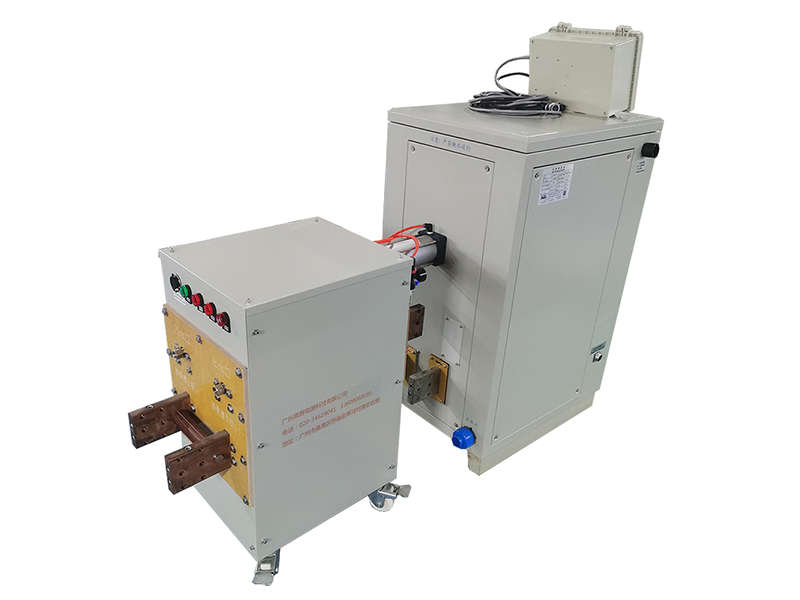

The Chrome Rectifier with Switch from Gaohui Rectifier adds a manual reversing switch to a 6000A 15V water-cooled base. This Chrome Rectifier with Switch lets operators reverse polarity for etching, stripping and bath maintenance. Furthermore, the Chrome Rectifier with Switch keeps the switch gear simple, rugged and easy to service. Consequently, shops gain reverse capability without complex electronics. Moreover, manual reverse etch facilities select this Chrome Rectifier with Switch for its water cooled design and 6000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Manual Reverse Etch | Ripple: ≤5% | Interface: RS485
The 6000A 15V rectifier serves hard chrome tanks from 3000L to 5000L where occasional reverse etching improves adhesion. It is ideal for shafts, rolls and machine parts processed with a quick reverse cycle before plating. For example, an operator can etch a grinder roll for 30 seconds, then switch to forward plating automatically. Furthermore, the manual switch design is easy for line staff to operate and maintain. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485 standard port allows remote monitoring.
Moreover, the switch contacts are rated for full load, so reversing is safe under load. In addition, water cooling keeps the cabinet stable during long plating runs. Consequently, this model offers dependable reverse functionality at a lower cost than fully electronic reversing modules. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Chrome Rectifier with Switch. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–6000A adjustable |
| DC Output Voltage | 0–15V adjustable |
| Reversing | Manual switch, full-load rated |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485 standard |
| Dimensions | 1100 × 700 × 1500 mm |
| Weight | 640 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 3000A 12V General Chrome Rectifier.
Need more current? Check the 8000A 18V Switchable Chrome Rectifier.
