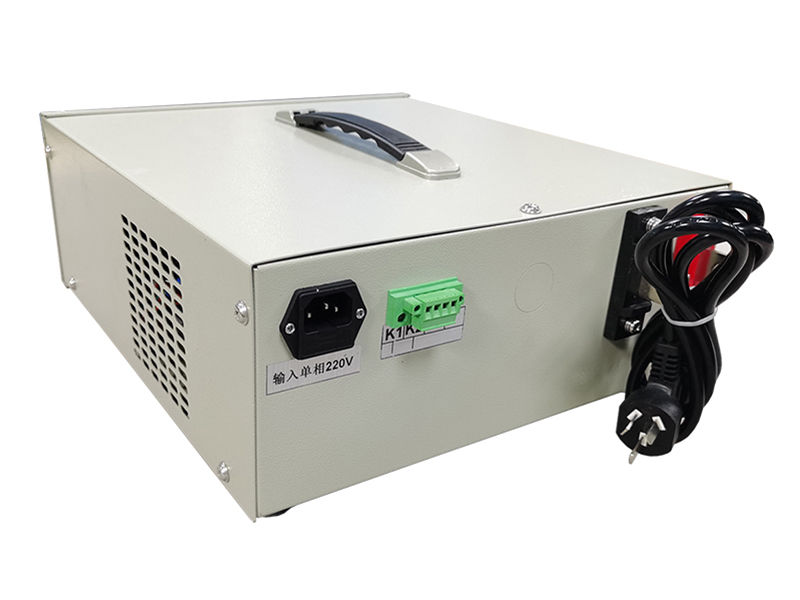

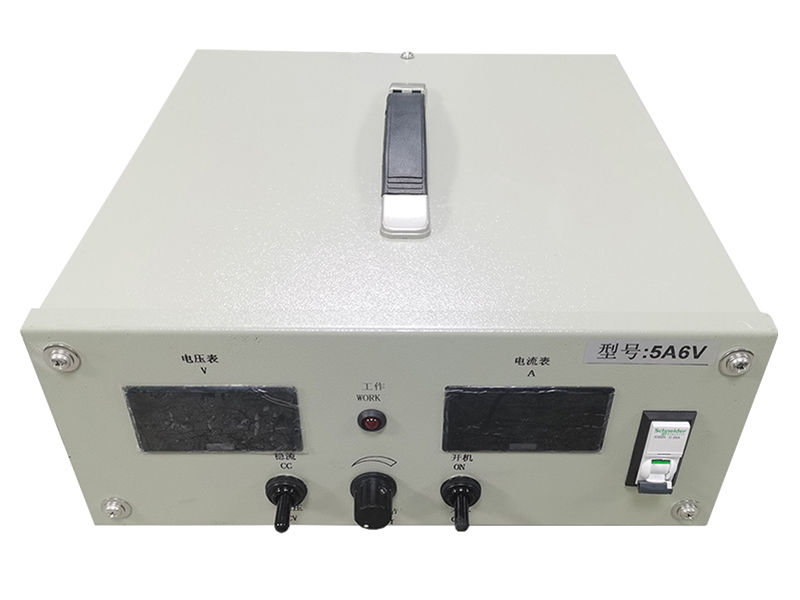

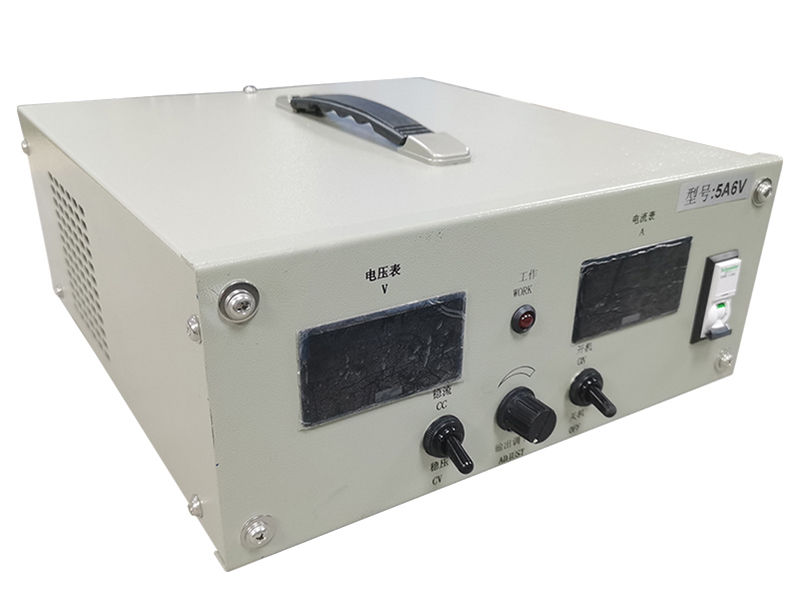

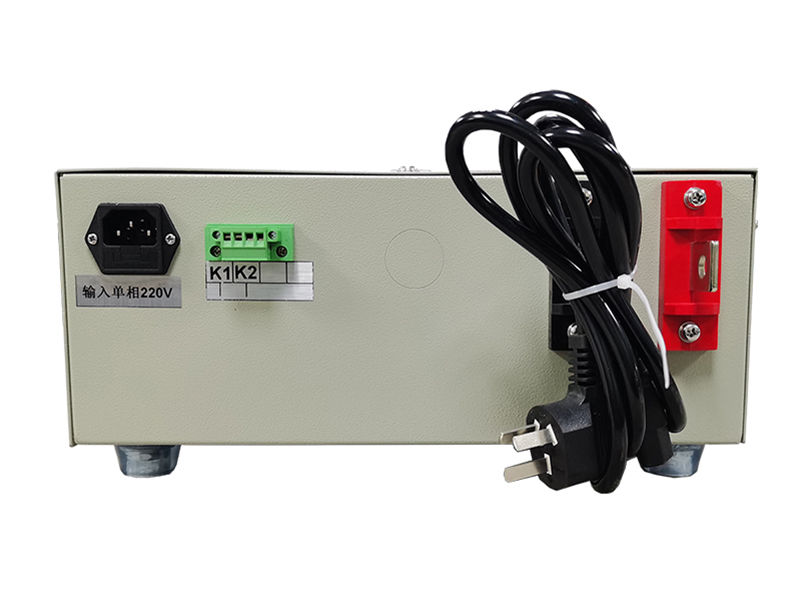

The High Frequency Rectifier from Gaohui Rectifier delivers switching-mode DC for small plating and electrolysis tasks. This High Frequency Rectifier uses IGBT technology for energy-efficient operation. Furthermore, the High Frequency Rectifier provides tight ripple control at low voltage. Therefore, small workshops choose it for precision work.
Cooling: Forced Air | Application: Hobby & Prototype | Frequency: 20 kHz | Efficiency: ≥85%
The 5A 6V high-frequency rectifier suits hobbyists, jewelers, and prototype shops. It runs from a standard 220V outlet and weighs only 6 kg. Specifically, a small electroforming cell draws 1 to 4A. Furthermore, the 20 kHz switching frequency means smaller transformers and lighter weight.
Moreover, the rectifier includes both constant current and constant voltage modes. For instance, a jewelry hobbyist plates a ring at 2A for 8 minutes. Consequently, the finish stays bright and even.
Moreover, the rectifier includes a 1-year warranty and 10-year service life. Gaohui ships spare parts worldwide. Consequently, small hobbyists and prototype shops get enterprise-grade support.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 220V ±10% |
| DC Output Current | 0–5A adjustable |
| DC Output Voltage | 0–6V adjustable |
| Cooling Method | Forced air, thermostatic fan |
| Switching Frequency | 20 kHz |
| Efficiency | ≥85% |
| Protection | Short-circuit, over-temperature |
| Dimensions | 260 × 180 × 140 mm |
| Weight | 6 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
More current? View Lab Plating Rectifier 10A 18V.
Copper work? Check Copper Plating Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
