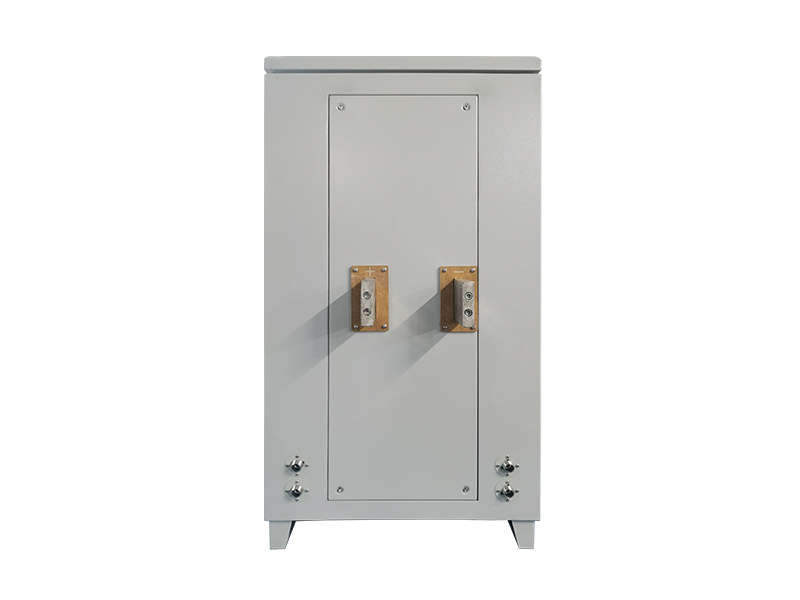

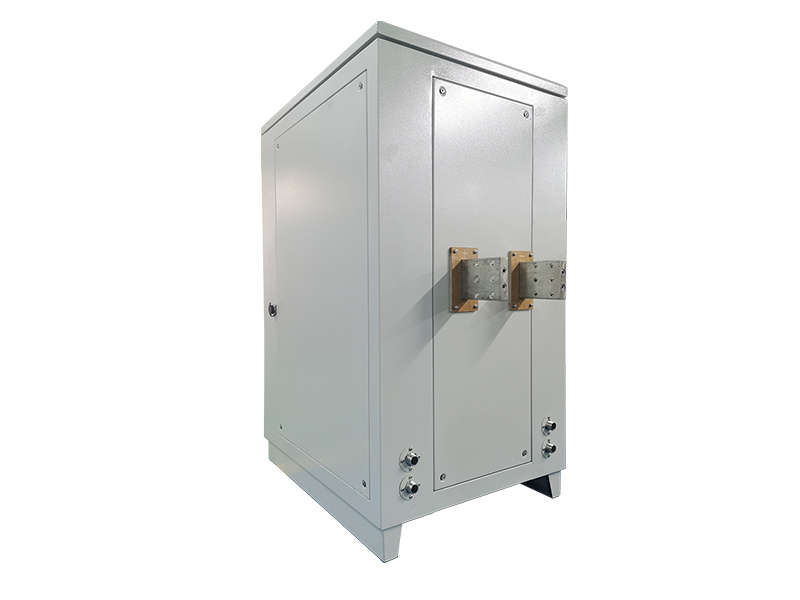

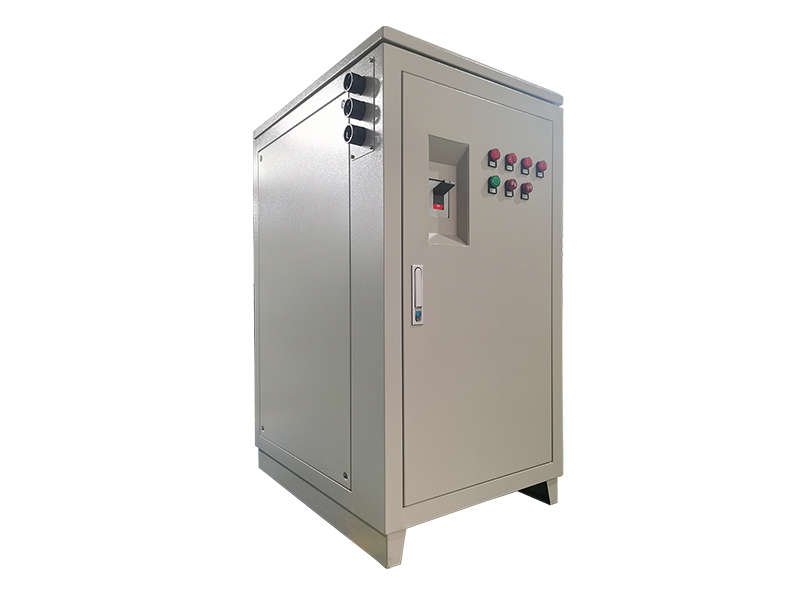

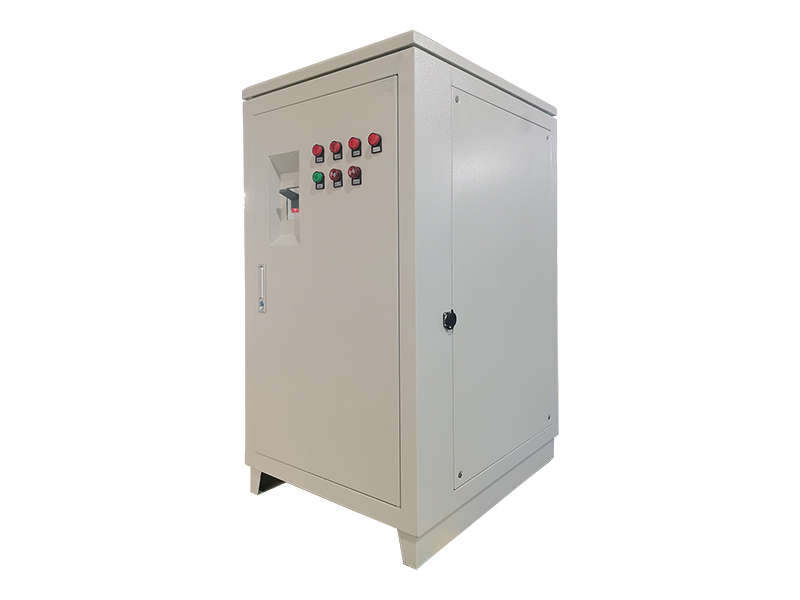

The Industrial Chrome Rectifier from Gaohui Rectifier delivers 12000A at 18V for heavy production lines. This Industrial Chrome Rectifier powers large hard chrome tanks with full rated output around the clock. Furthermore, the Industrial Chrome Rectifier combines robust IGBT stages with water cooling and PLC connectivity. Consequently, industrial platers depend on it for predictable, high-volume output. Moreover, heavy production lines facilities select this Industrial Chrome Rectifier for its water cooled design and 12000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Heavy Production Lines | Ripple: ≤5% | Interface: RS485/PLC
The 12000A 18V rectifier is engineered for hard chrome tanks from 6000L to 10000L, including roll and cylinder lines. It is ideal for printing rolls, paper rolls, hydraulic cylinders and construction machine parts. For example, a roll finisher can plate multiple 4-meter rolls per shift at consistent thickness. Furthermore, the 18V output provides headroom for heavy bus bars and large rack systems. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485, PLC port allows remote monitoring.
Moreover, PLC communication supports recipe management and production reporting. In addition, water cooling keeps the cabinet stable through summer heat and long shifts. Consequently, this rectifier fits seamlessly into modern industrial chrome departments. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Industrial Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–12000A adjustable |
| DC Output Voltage | 0–18V adjustable |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485, PLC |
| Dimensions | 1350 × 850 × 1700 mm |
| Weight | 1020 kg |
| Special Feature | PLC-ready interface |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 6000A 16V Hard Chrome Plating Rectifier.
Need more current? Check the 15000A 16V Hard Chrome Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
