The Industrial Reversing Rectifier from Gaohui Rectifier powers heavy reversing plating lines for zinc-nickel and bright nickel. This Industrial Reversing Rectifier delivers 3000A with programmable reverse cycles. Furthermore, the Industrial Reversing Rectifier handles 24/7 production. Therefore, automotive suppliers choose it.
Cooling: Water-Cooled | Application: Heavy Reversing Lines | Ripple: ≤2% | Reverse: Programmable

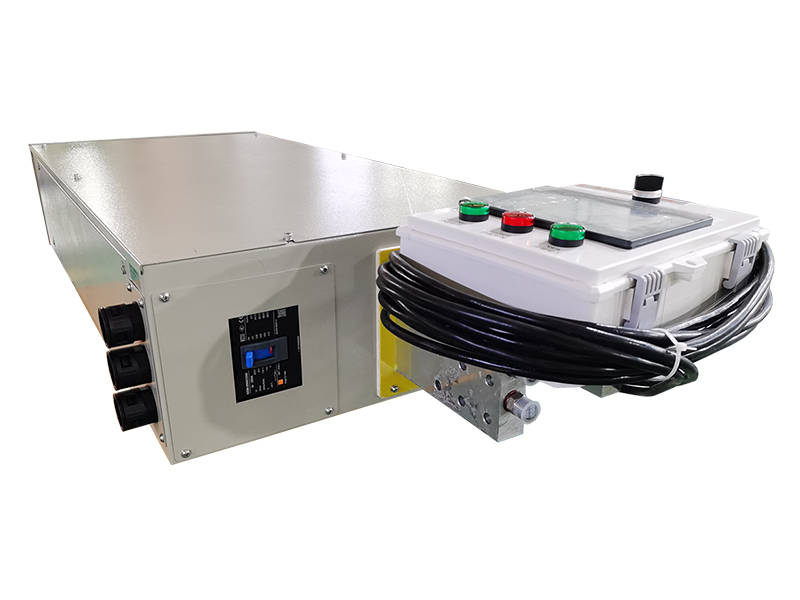

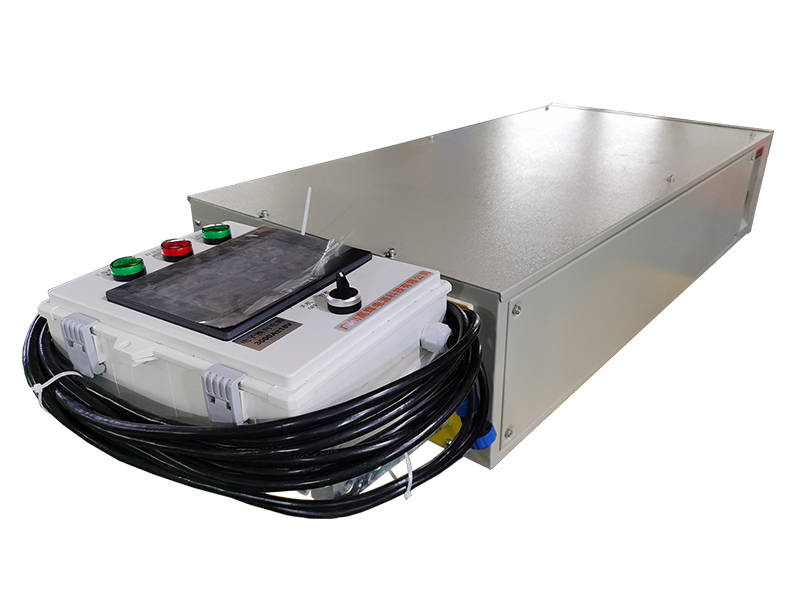

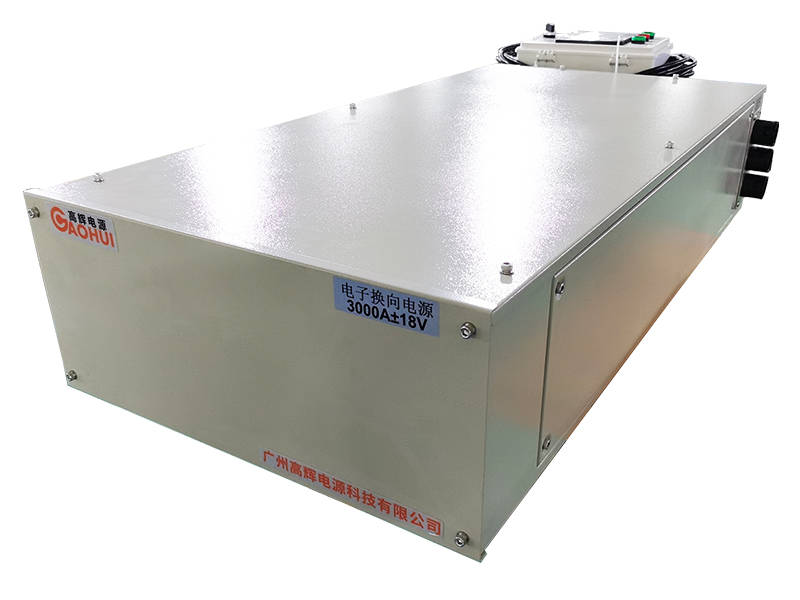

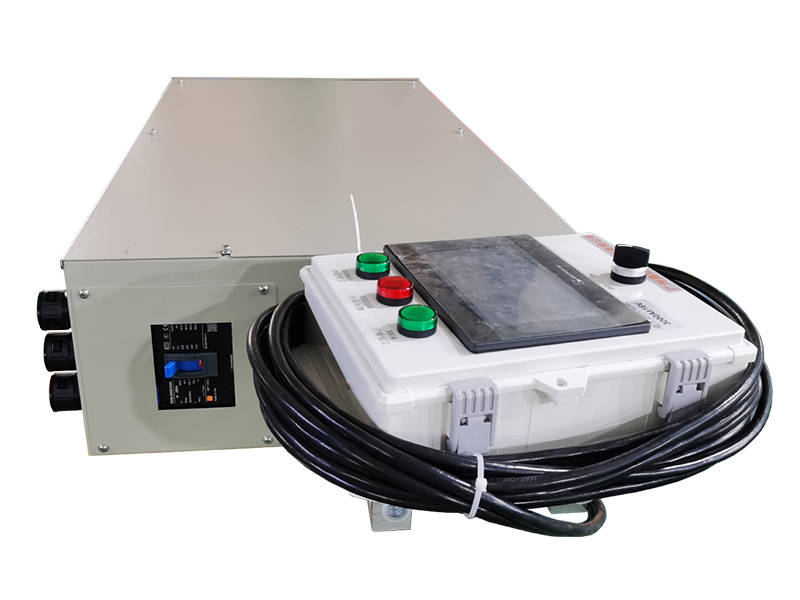

The 3000A 18V water-cooled rectifier serves automotive plating lines processing chassis parts and fasteners. It supports periodic reverse for zinc-nickel alloy plating. Specifically, a typical cycle runs 5 minutes forward and 10 seconds reverse. Furthermore, the 18V output covers multi-tank arrangements and long bus bars.
Moreover, the rectifier integrates with line PLC via RS485 or Profibus. For instance, a bumper plating line syncs reverse timing to conveyor speed. Consequently, coating uniformity stays within ±5% across the entire rack. The water-cooled cabinet fits in a utility room away from the tank area.
Furthermore, automotive plating requires ISO-certified traceability. The RS485 interface logs every cycle to the line control system. Consequently, quality audits pass without extra paperwork.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, 3-phase, 50/60Hz |
| DC Output Current | 0–3000A bidirectional |
| DC Output Voltage | 0–18V adjustable |
| Cooling Method | Water-cooled, closed loop |
| Ripple Factor | ≤2% |
| Reverse Cycle | 0.1–99 seconds, programmable |
| Communication | RS485 / Profibus optional |
| Efficiency | ≥90% |
| Dimensions | 1500 × 900 × 700 mm |
| Weight | 600 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Smaller reversing? View Water Cooled Reversing Rectifier 500A.
Chrome? Check Chrome Plating Rectifier 4000A.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
