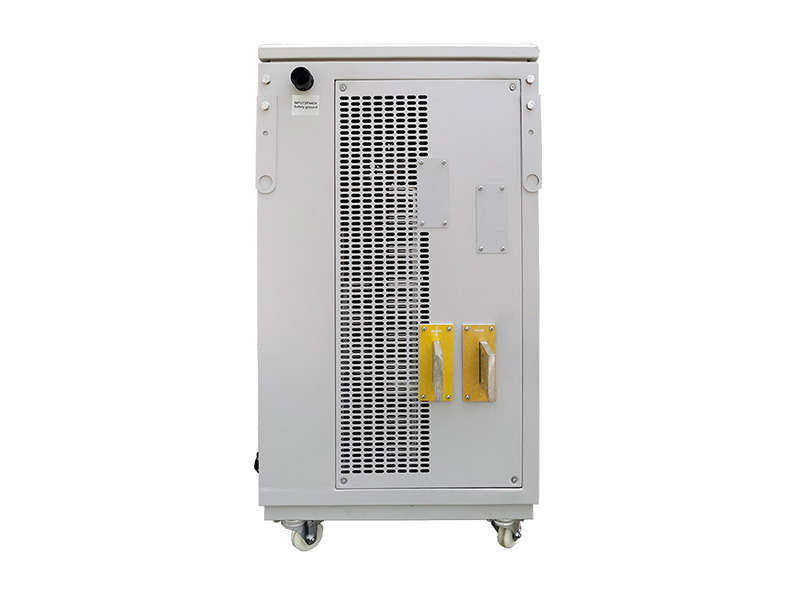

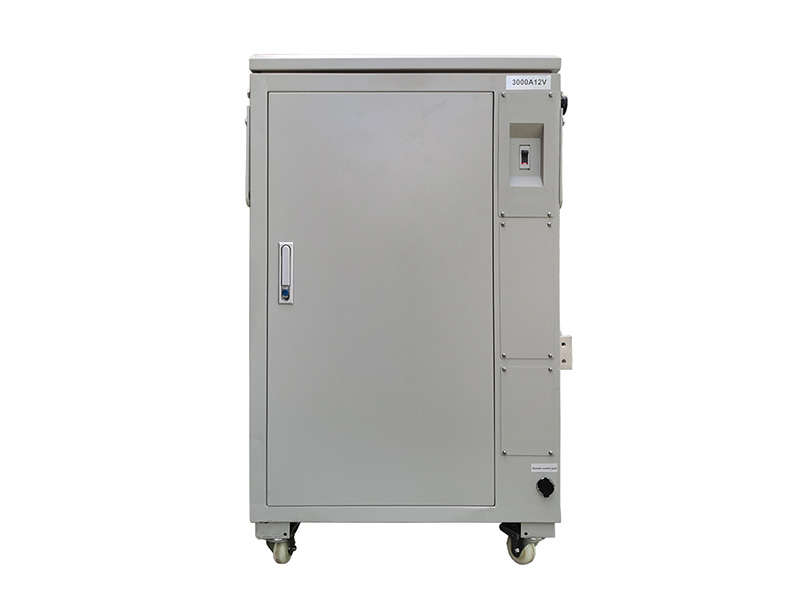

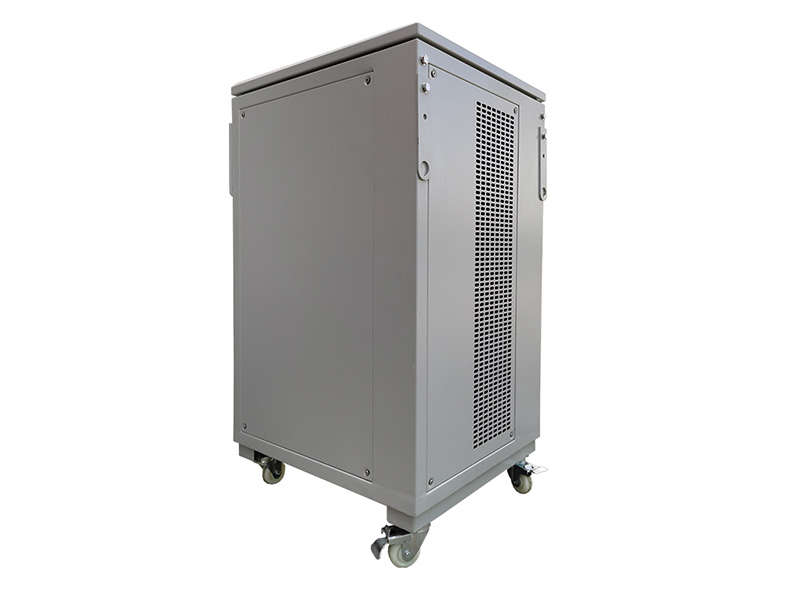

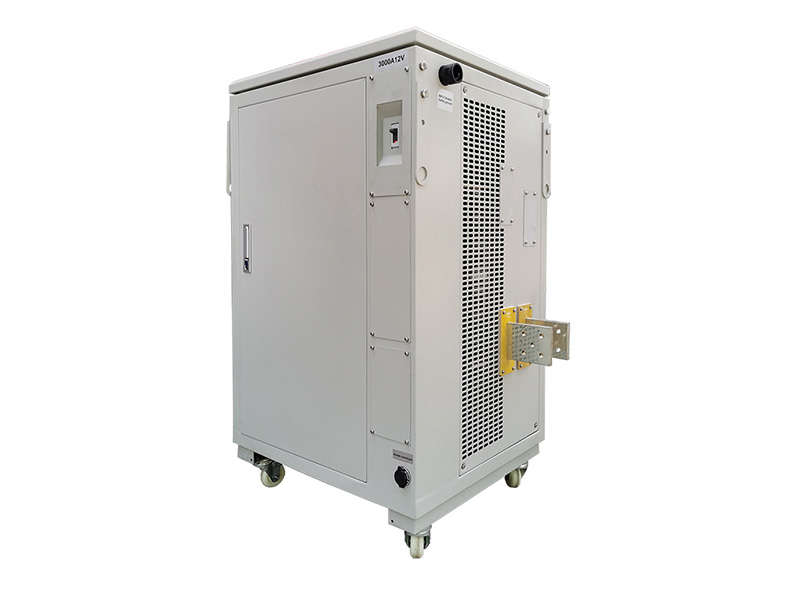

The General Chrome Rectifier from Gaohui Rectifier offers 3000A at 12V for broad plating-line duties. This General Chrome Rectifier handles decorative chrome, light hard chrome and chromium stripping with one flexible cabinet. Furthermore, the General Chrome Rectifier uses air cooling, so it can be placed in almost any workshop. Consequently, multi-purpose plating lines gain a single, versatile power source. Moreover, multi-purpose lines facilities select this General Chrome Rectifier for its forced air design and 3000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Forced Air | Application: Multi-Purpose Lines | Ripple: ≤3% | Interface: RS485
The 3000A 12V rectifier fits chrome tanks from 1200L to 2500L, covering most small production lines. It is ideal for plating furniture hardware, tooling, fasteners and moderate-size rolls. For example, a contract finisher can run decorative trim batches and functional wear parts on the same equipment. Furthermore, the 12V output is well matched to standard chrome bath voltages with modest bus-bar losses. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485 standard port allows remote monitoring.
Moreover, this model includes both constant current and constant voltage modes for different job types. In addition, the air-cooled cabinet avoids water piping and can be relocated easily as lines change. Consequently, it is the practical all-rounder for growing plating departments. Moreover, operators appreciate the straightforward layout and clearly marked controls on this General Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–3000A adjustable |
| DC Output Voltage | 0–12V adjustable |
| Cooling Method | Forced air |
| Ripple Factor | ≤3% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485 standard |
| Dimensions | 950 × 600 × 1300 mm |
| Weight | 320 kg |
| Special Feature | CV/CC dual mode |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 1500A 16V Medium Chrome Rectifier.
Need more current? Check the 6000A 16V Hard Chrome Plating Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
