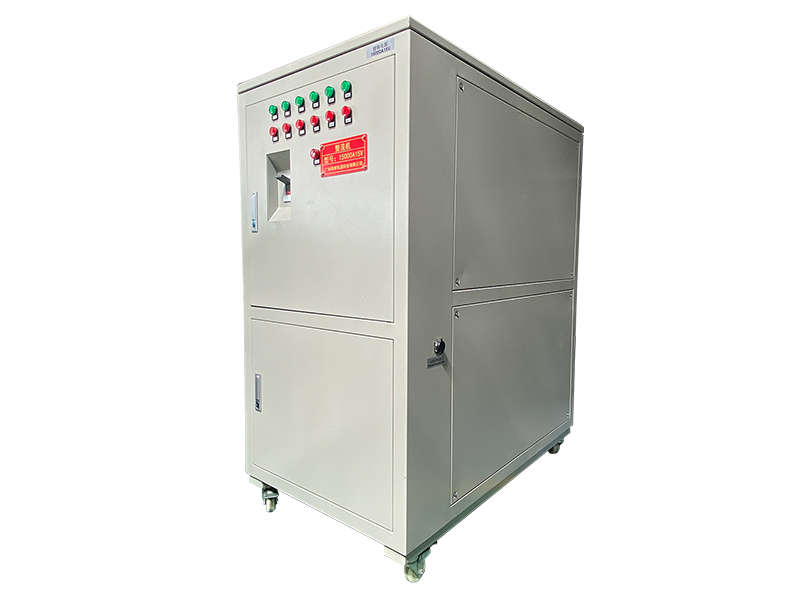

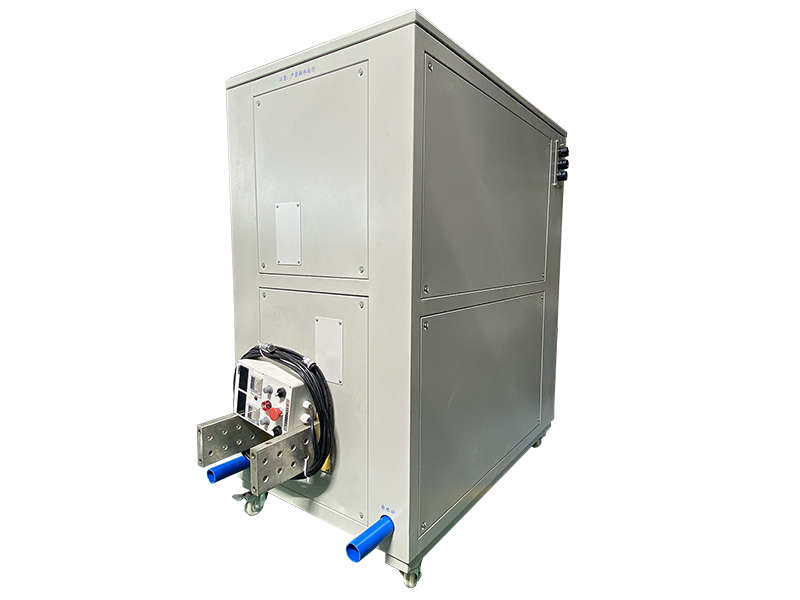

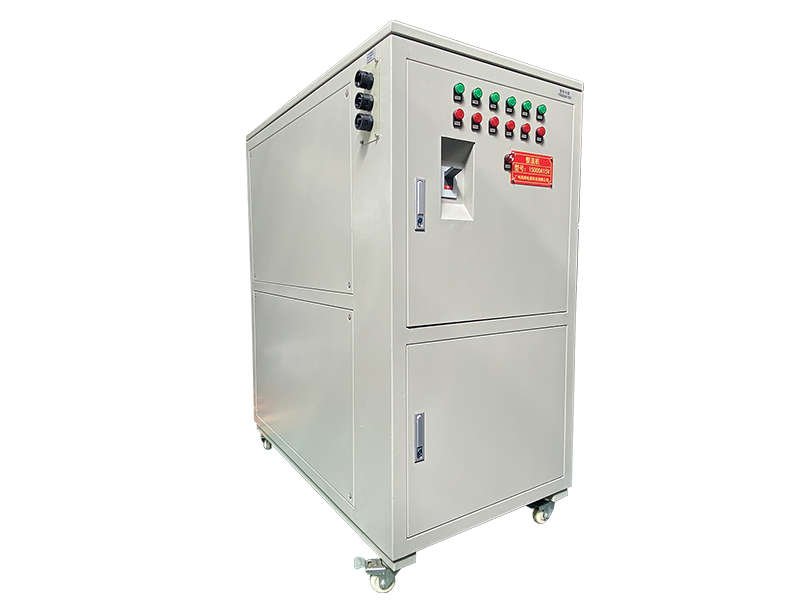

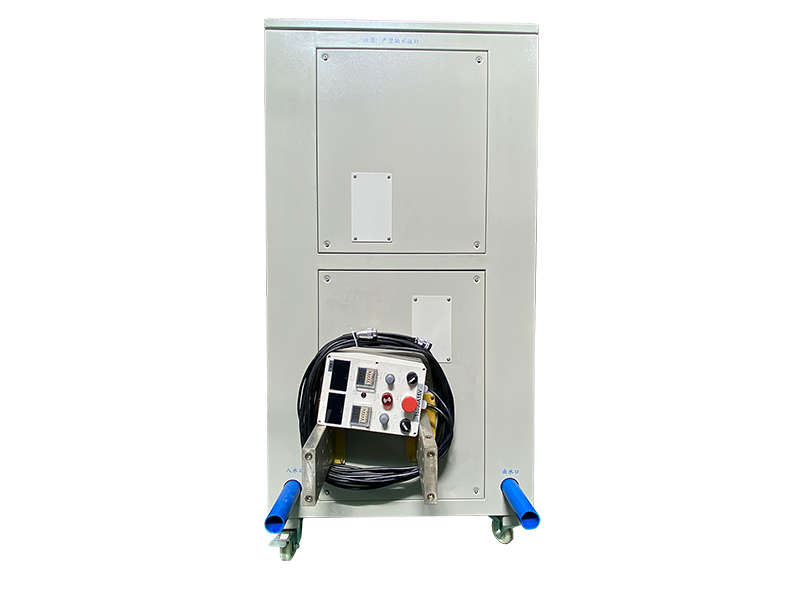

The Production Chrome Rectifier from Gaohui Rectifier is built for high-volume chrome lines that run continuously. This Production Chrome Rectifier provides 15000A at 15V with stable, repeatable output. Furthermore, the Production Chrome Rectifier is designed around water-cooled IGBT stages that tolerate full load all day. Consequently, manufacturers count on it to hold production schedules and quality standards. Moreover, high-volume lines facilities select this Production Chrome Rectifier for its water cooled design and 15000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: High-Volume Lines | Ripple: ≤5% | Interface: RS485/PLC
The 15000A 15V rectifier serves chrome tanks from 8000L to 11000L in high-throughput facilities. It is ideal for hydraulic component lines, roller production and large decorative chrome departments. For example, a cylinder manufacturer can plate rods on a continuous conveyor cycle. Furthermore, the 15V setting matches standard chrome baths while leaving margin for contact losses. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485, PLC port allows remote monitoring.
Moreover, PLC communication enables automated start-stop with line conveyor systems. In addition, programmable ramp-up protects workpieces during immersion. Consequently, this rectifier integrates smoothly into automated plating lines. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Production Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–15000A adjustable |
| DC Output Voltage | 0–15V adjustable |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485, PLC |
| Dimensions | 1400 × 900 × 1800 mm |
| Weight | 1090 kg |
| Special Feature | Line-integration ready |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 12000A 18V Industrial Chrome Rectifier.
Need more current? Check the 20000A 15V Water Cooled Chrome Rectifier.
