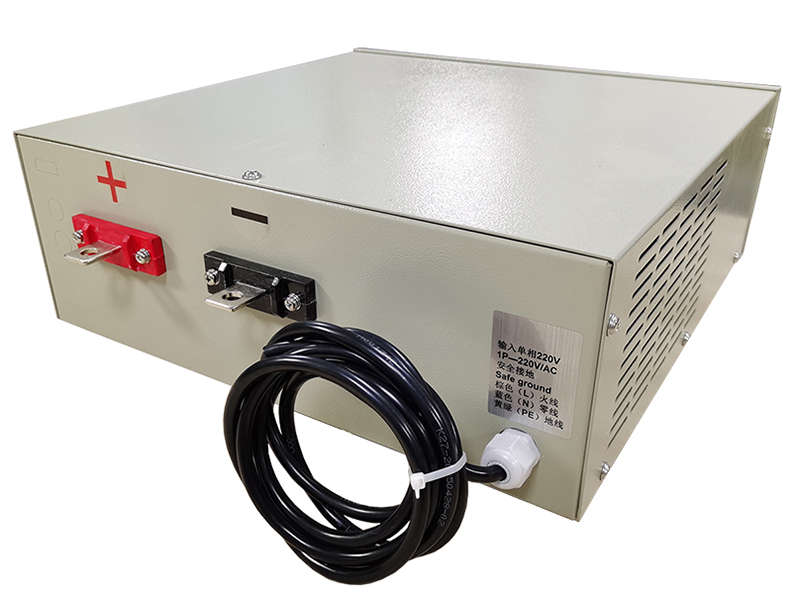

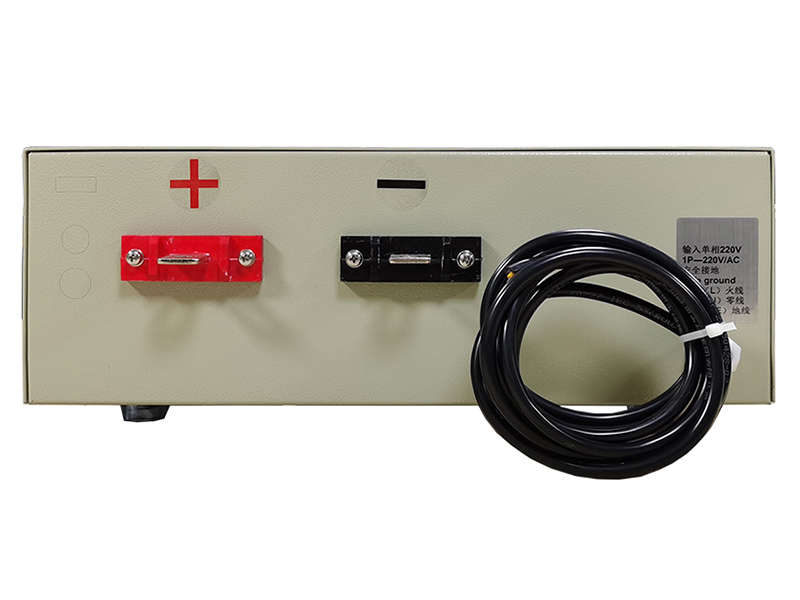

The Electroplating Laboratory Rectifier from Gaohui Rectifier includes USB connectivity for data logging and remote control. This Electroplating Laboratory Rectifier records current and voltage over time. Furthermore, the Electroplating Laboratory Rectifier supports PC-based recipe programming. Therefore, research labs use it for documented experiments.
Cooling: Forced Air | Application: Data Logging Lab | Interface: USB + RS485 | Ripple: ≤2%

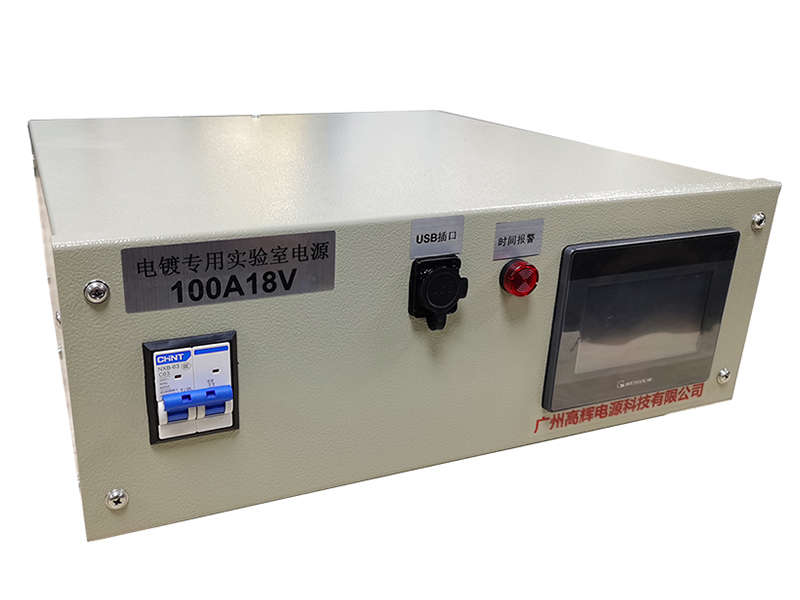

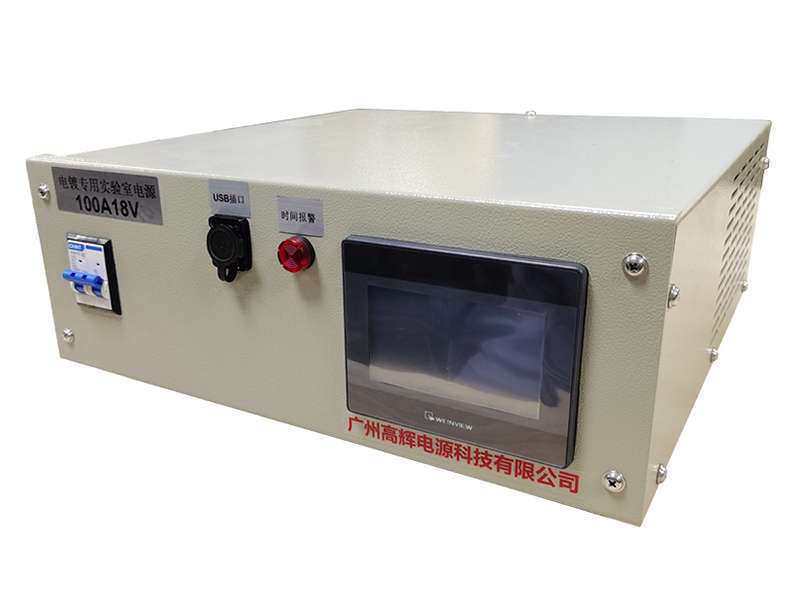

The 100A 18V rectifier bridges lab-scale and pilot-scale with built-in USB data logging. It records current, voltage, and elapsed time to a CSV file. Specifically, a research team studying deposition rates exports the data directly to Excel. Furthermore, the 18V output supports both standard plating and mild anodizing experiments.
Moreover, the USB connection lets you program multi-step recipes from a PC. For instance, a protocol ramps from 10A to 50A over 5 minutes, then holds for 30 minutes. Consequently, the experiment runs unattended. The rectifier also includes RS485 for integration with larger lab systems.
Moreover, PC-based control lets you run experiments overnight. Set the ramp, press start, and collect data in the morning. Consequently, research throughput doubles.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 220V ±10%, 50/60Hz |
| DC Output Current | 0–100A adjustable |
| DC Output Voltage | 0–18V adjustable |
| Cooling Method | Forced air |
| Ripple Factor | ≤2% |
| USB Port | Type-B, data logging & control |
| Communication | USB + RS485 |
| Software | Windows PC software included |
| Dimensions | 450 × 350 × 250 mm |
| Weight | 30 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Pulse research? View Lab Electroplating Rectifier.
Standard lab? Check Plating Lab Rectifier 30A.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
