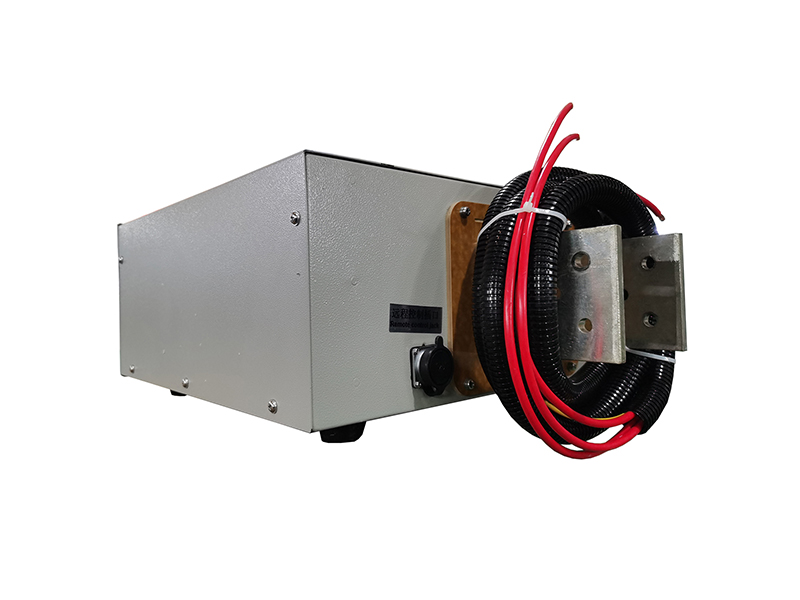

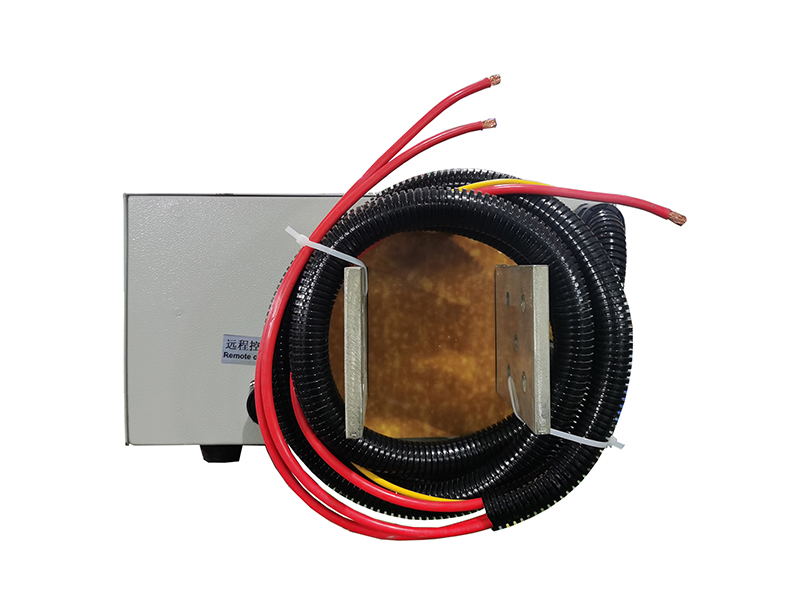

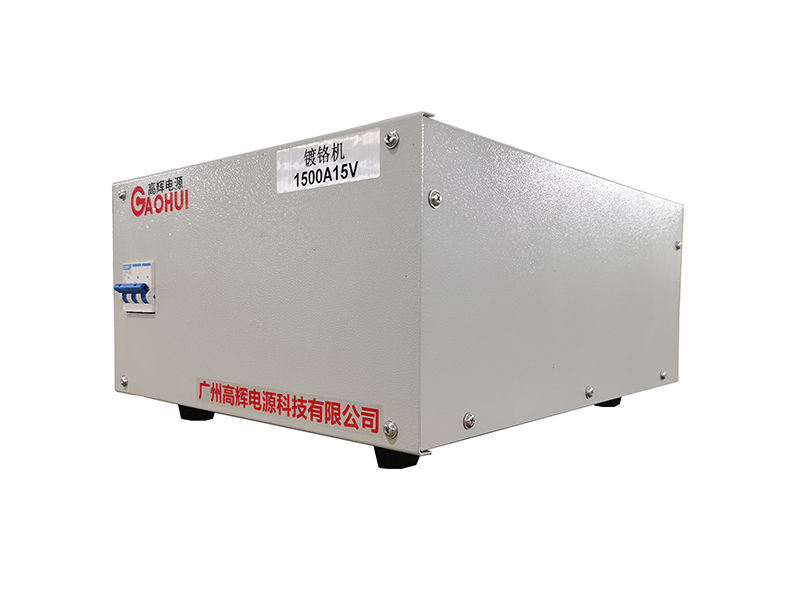

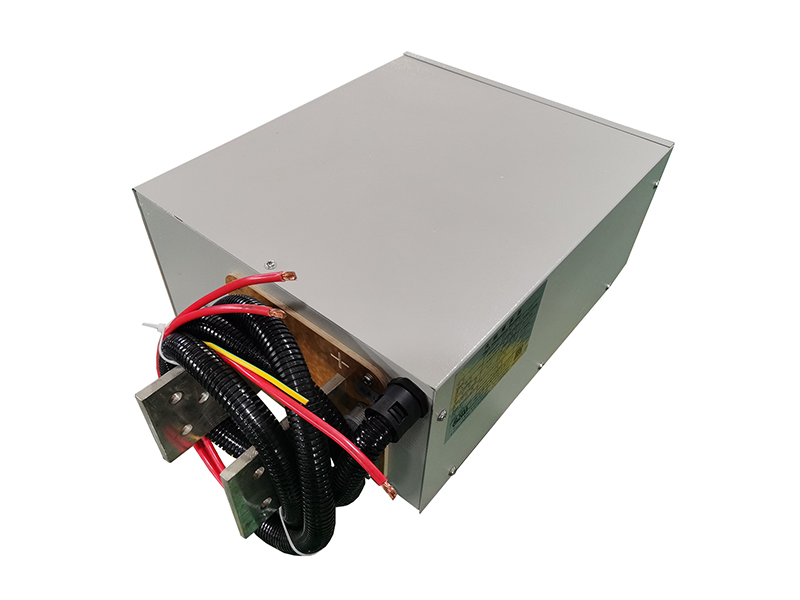

The Water Cooled Hard Chrome Rectifier from Gaohui Rectifier offers 15000A at 15V for continuous-duty hard chrome plating. This Water Cooled Hard Chrome Rectifier maintains stable output on large tanks through long shifts. Furthermore, the Water Cooled Hard Chrome Rectifier rejects heat efficiently so components never derate in summer. Therefore, production lines keep a steady plating rate all year round. Moreover, continuous hard chrome facilities select this Water Cooled Hard Chrome Rectifier for its water cooled design and 15000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Continuous Hard Chrome | Ripple: ≤5% | Interface: RS485
The 15000A 15V rectifier is designed for hard chrome tanks from 8000L to 11000L and typical current densities of 25-50 A/dm2. It suits hydraulic cylinder lines, large printing rollers and paper-making rolls that run around the clock. For example, a roller shop can plate a 6-meter calendar roll without stopping the line. Furthermore, the 15V setting provides an excellent balance of speed and control for thick deposits. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485 standard port allows remote monitoring.
Moreover, water cooling keeps the cabinet compact and quiet, so it fits inside existing plating halls. In addition, programmable ramp-up prevents deposit defects on cold substrates. Consequently, this rectifier is the workhorse choice for hard chrome departments that cannot afford unplanned stops. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Water Cooled Hard Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–15000A adjustable |
| DC Output Voltage | 0–15V adjustable |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485 standard |
| Dimensions | 1400 × 900 × 1800 mm |
| Weight | 1080 kg |
| Special Feature | Continuous-duty rating |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 12000A 18V Industrial Chrome Rectifier.
Need more current? Check the 60000A 15V High Power Chrome Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
