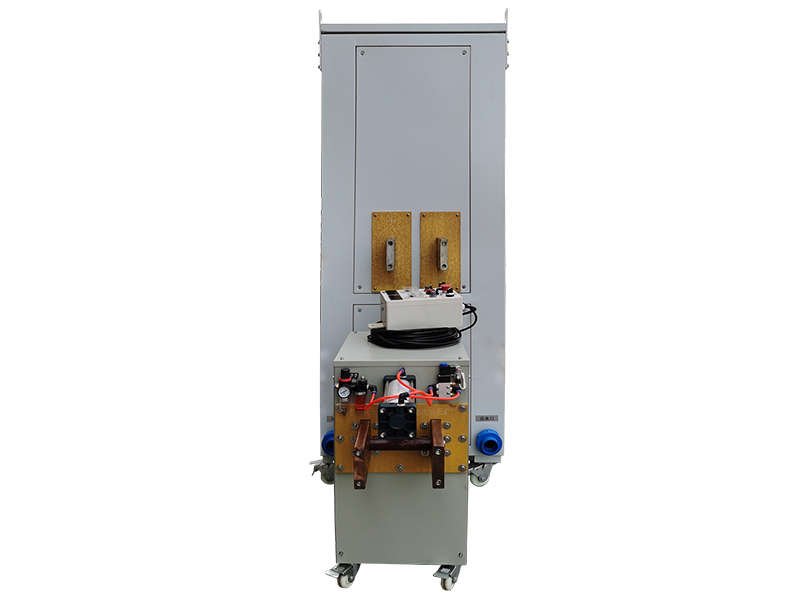

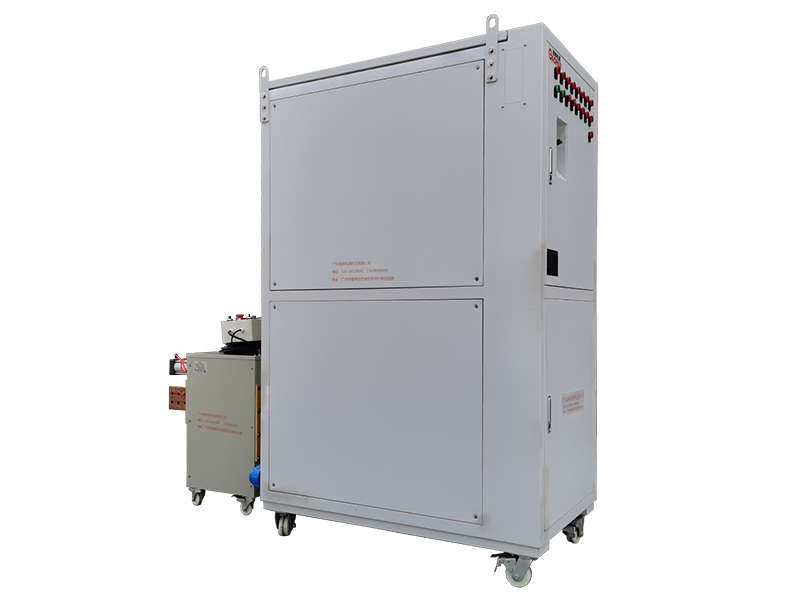

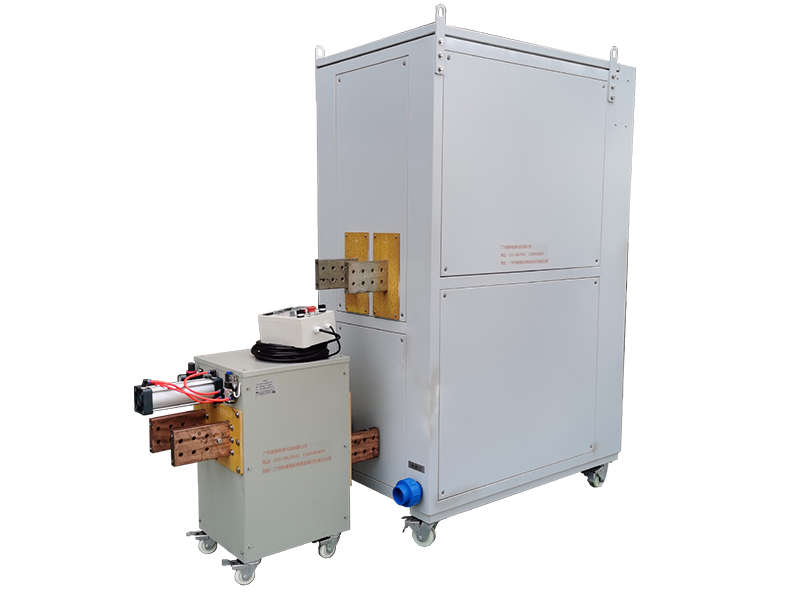

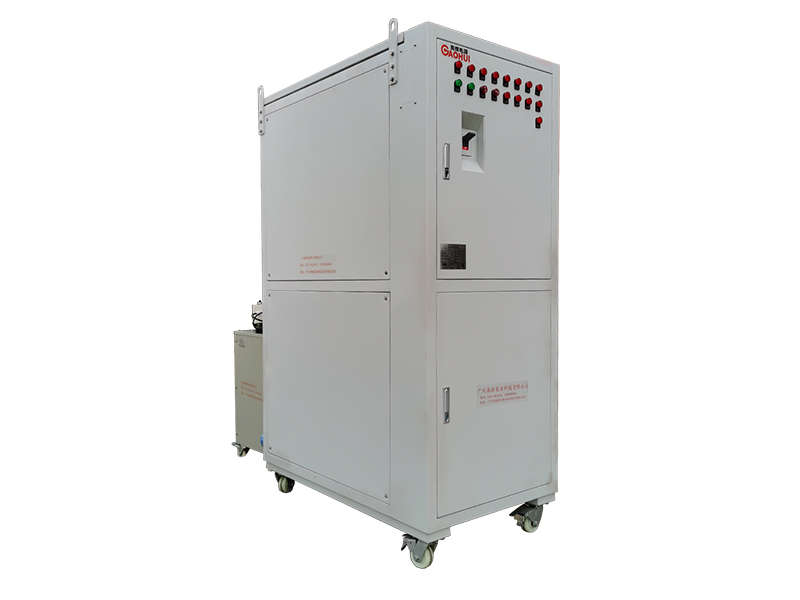

The Automatic Chrome Rectifier from Gaohui Rectifier provides 20000A at 15V with fully programmed polarity reversal. This Automatic Chrome Rectifier runs etch-plate-etch cycles without operator intervention. Furthermore, the Automatic Chrome Rectifier stores multiple recipes for different part families. Consequently, automated chrome lines achieve consistent adhesion and thickness with minimal labor. Moreover, automated reverse plating facilities select this Automatic Chrome Rectifier for its water cooled design and 20000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Automated Reverse Plating | Ripple: ≤5% | Interface: RS485
The 20000A 15V rectifier serves large hard chrome tanks from 10000L to 14000L with periodic reverse sequences. It is ideal for crankshafts, camshafts, heavy rollers and defense components. For example, a line can automatically etch, plate and strip-check a large shaft in one recipe cycle. Furthermore, automatic reversal removes operator timing errors from the process. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485 standard port allows remote monitoring.
Moreover, recipe storage lets the line switch between part families in seconds. In addition, water cooling sustains the reversing duty without overheating the switches. Consequently, this rectifier brings laboratory-style repeatability to large production chrome. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Automatic Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–20000A adjustable |
| DC Output Voltage | 0–15V adjustable |
| Reversing | Automatic, multi-recipe |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485 standard |
| Dimensions | 1600 × 1000 × 1900 mm |
| Weight | 1520 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 10000A 15V Reversing Chrome Rectifier.
Need higher voltage? Check the 20000A 18V Polarity Reversing Chrome Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
