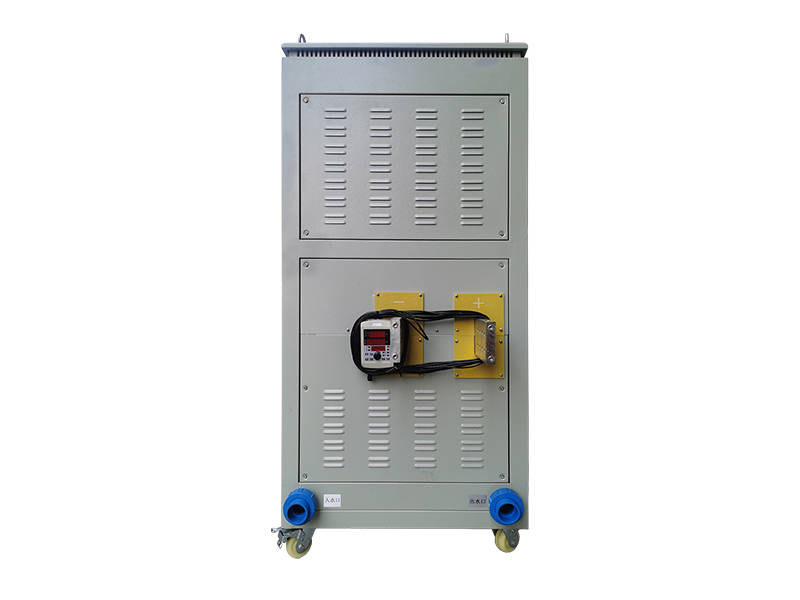

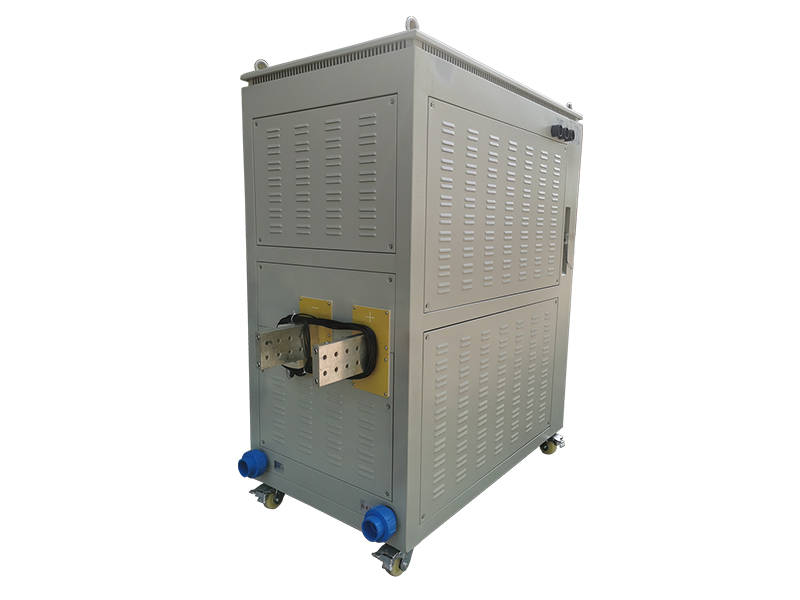

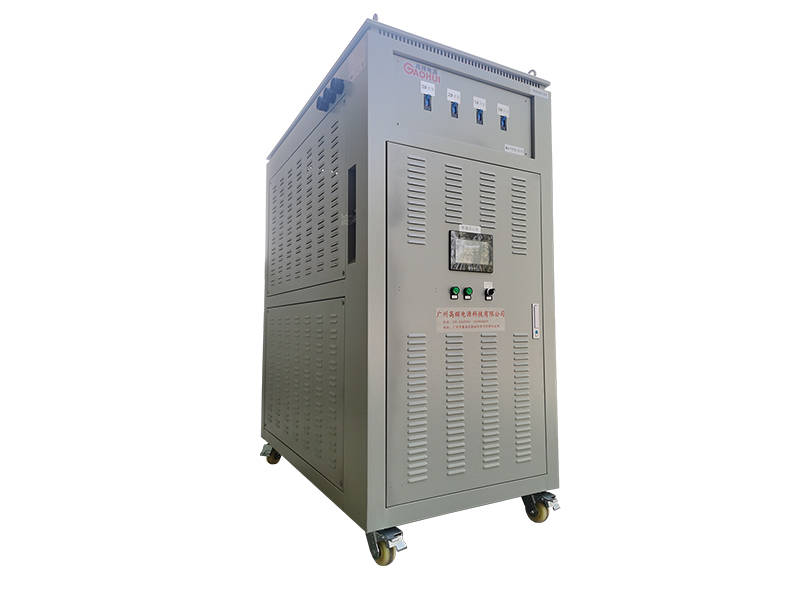

The Water-Cooled Galvanizing Rectifier from Gaohui Rectifier powers continuous hot-dip and electro-galvanizing lines for steel strip. This Water-Cooled Galvanizing Rectifier delivers 18000A through four parallel units. Furthermore, the Water-Cooled Galvanizing Rectifier provides N+1 redundancy for 24/7 operation. Therefore, steel mills choose it.
Cooling: Water-Cooled | Application: Continuous Strip Galvanizing | Ripple: ≤3% | Redundancy: N+1 Parallel

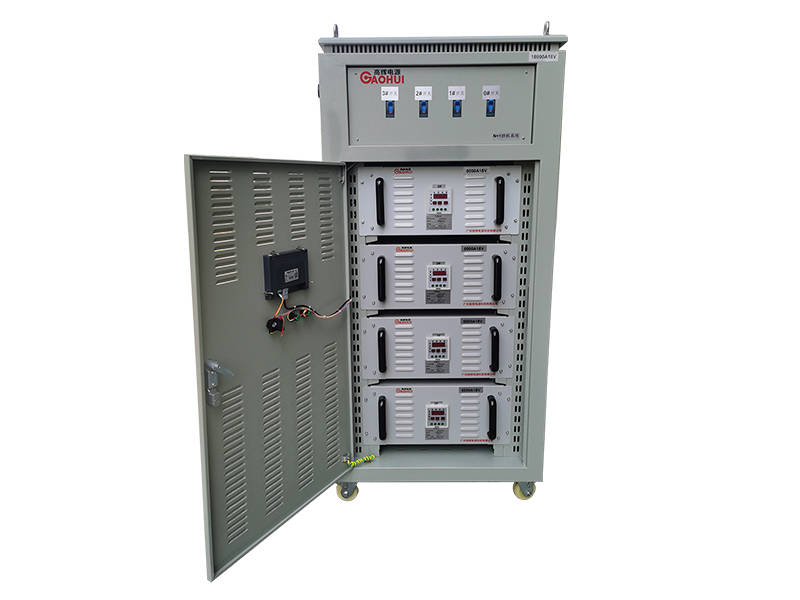

The 18000A 18V system consists of four 4500A water-cooled rectifiers in parallel (N+1). It serves electro-galvanizing lines processing steel strip 800 to 1500 mm wide. Specifically, a line at 60 m/min draws 12000 to 18000A. Furthermore, one rectifier acts as backup.
Moreover, the system syncs current to strip speed via PLC. Consequently, zinc coating weight stays consistent across speed changes.
Furthermore, the N+1 design means you never stop the line for maintenance. One rectifier can be serviced while three carry production. Consequently, the mill avoids costly scrap.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, 3-phase |
| DC Output Current | 0–18000A (4×4500A) |
| DC Output Voltage | 0–18V adjustable |
| Redundancy | N+1: 4 units, 3+1 |
| Cooling Method | Water-cooled, closed-loop |
| Ripple Factor | ≤3% |
| Line Sync | 0-10V / RS485 / Profibus |
| Total Weight | 2400 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
