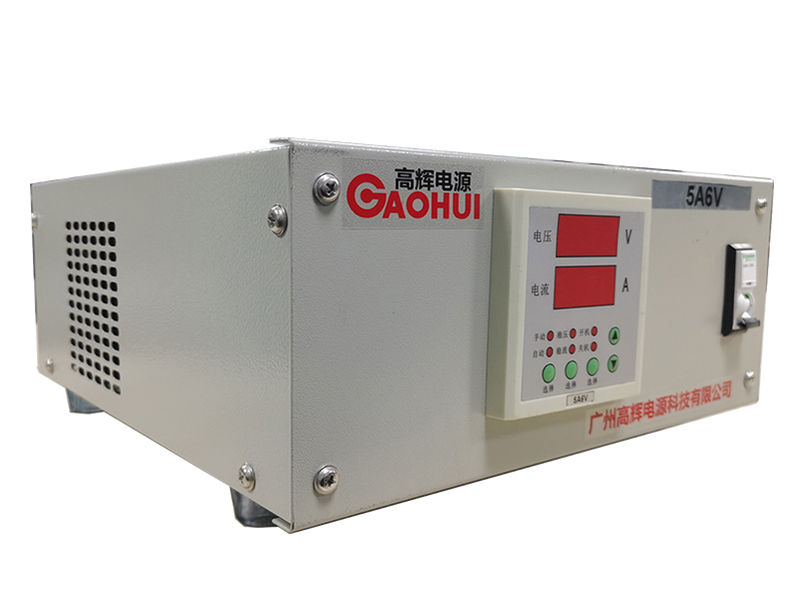

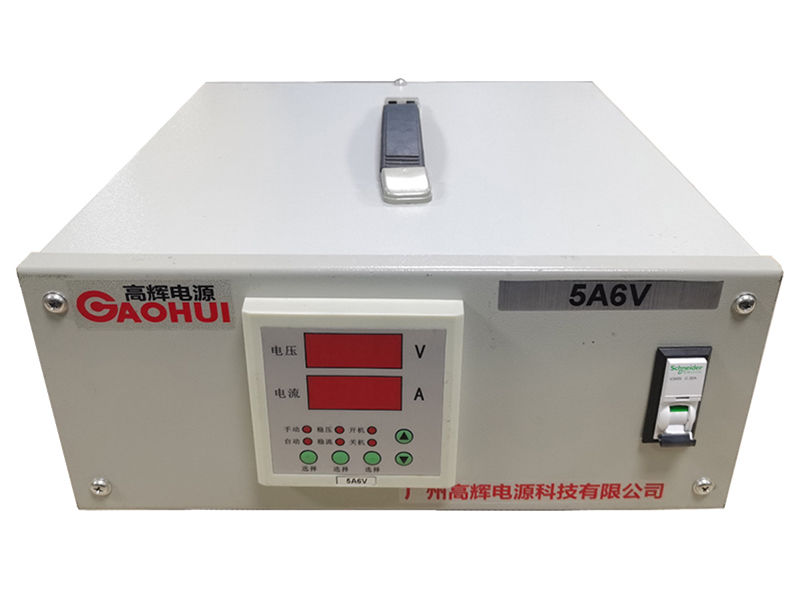

The Copper Plating Rectifier from Gaohui Rectifier supports small-scale copper plating and PCB through-hole metallization. This Copper Plating Rectifier provides stable low-voltage DC for controlled deposition. Furthermore, the Copper Plating Rectifier suits lab and pilot production. Therefore, researchers use it for consistent copper layers.
Cooling: Forced Air | Application: PCB & Lab Copper | Ripple: ≤3% | Resolution: 0.01A
The 5A 6V rectifier fits small electroforming and copper strike cells of 5L to 20L. It serves PCB prototype shops and university labs. Specifically, a PCB panel plating at 2A for 30 minutes builds uniform copper on through-holes. Furthermore, the 0.01A resolution lets researchers study deposition at low current densities.

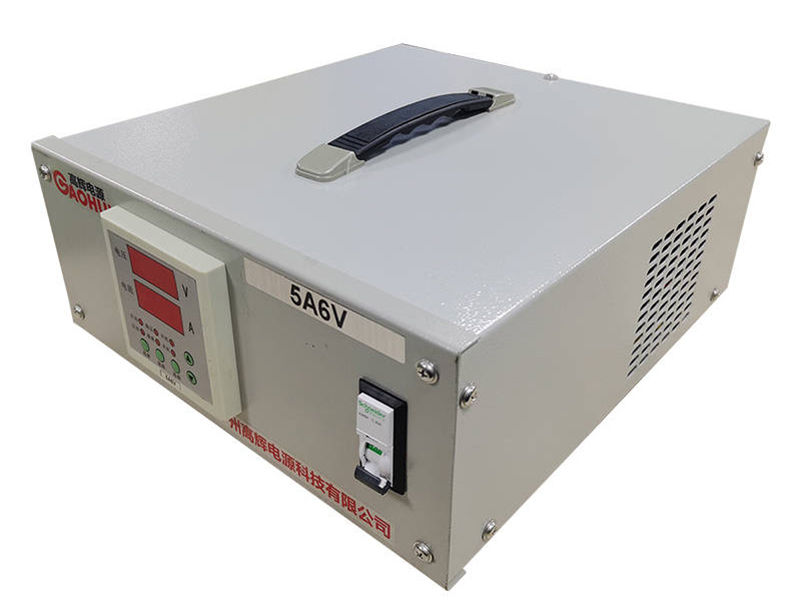

Moreover, the rectifier weighs under 10 kg and plugs into a standard outlet. For instance, a materials team compares electroless copper acceleration methods. Consequently, data remains reproducible across experiments. The compact chassis fits on any lab bench.
Furthermore, PCB shops need consistent copper thickness across all holes. The stable 5A output prevents uneven deposition. Consequently, through-hole reliability improves for prototype boards.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 220V ±10%, 50/60Hz |
| DC Output Current | 0–5A adjustable |
| DC Output Voltage | 0–6V adjustable |
| Cooling Method | Forced air, built-in fan |
| Ripple Factor | ≤3% |
| Current Resolution | 0.01A |
| Control Mode | IGBT/PWM, CV/CC |
| Dimensions | 280 × 200 × 150 mm |
| Weight | 8 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:

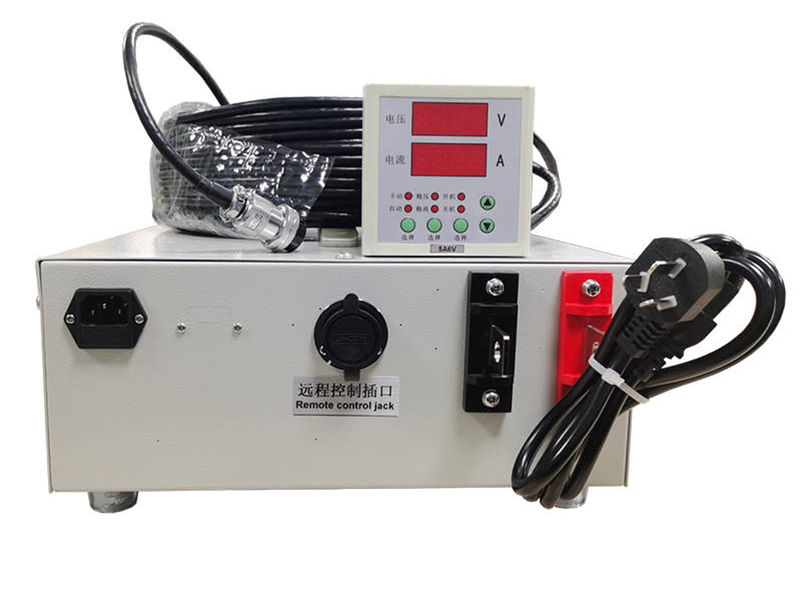

The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Low voltage strike? View Copper Strike Rectifier 10A 1.5V.
More power? Check Lab Plating Rectifier 10A 18V.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
