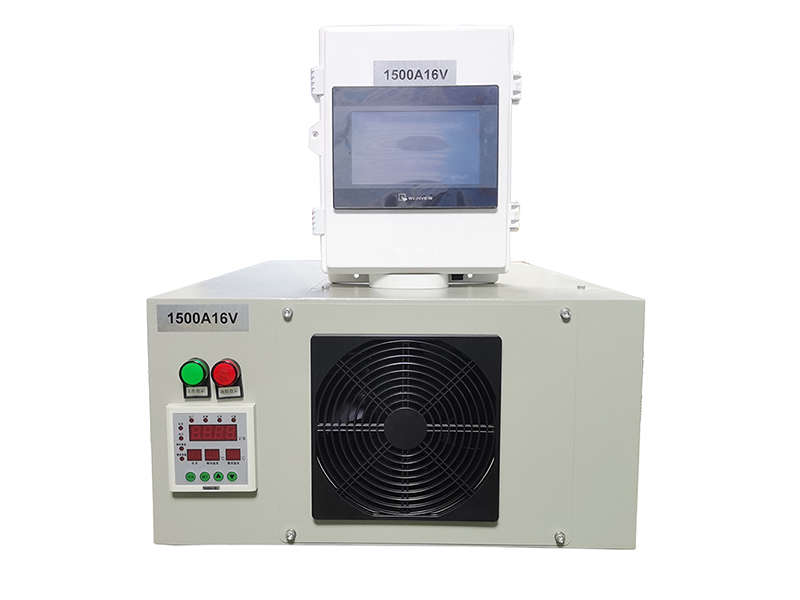

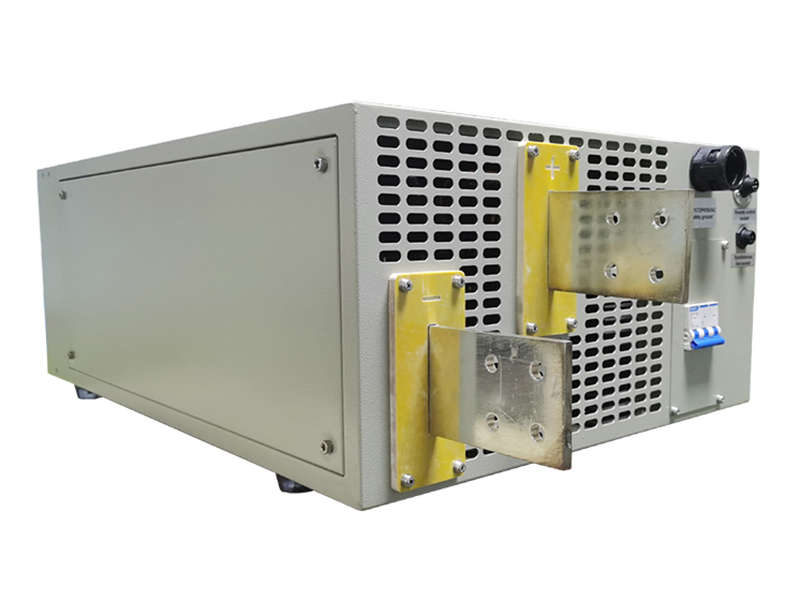

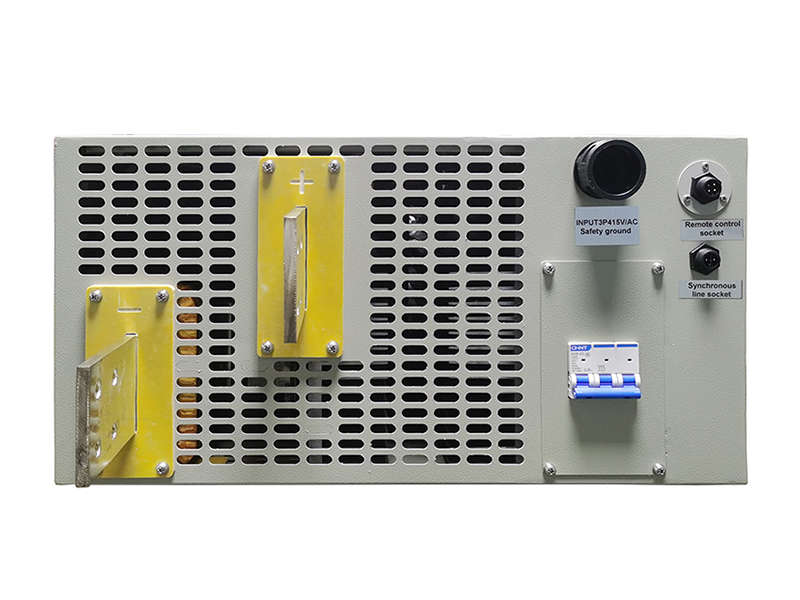

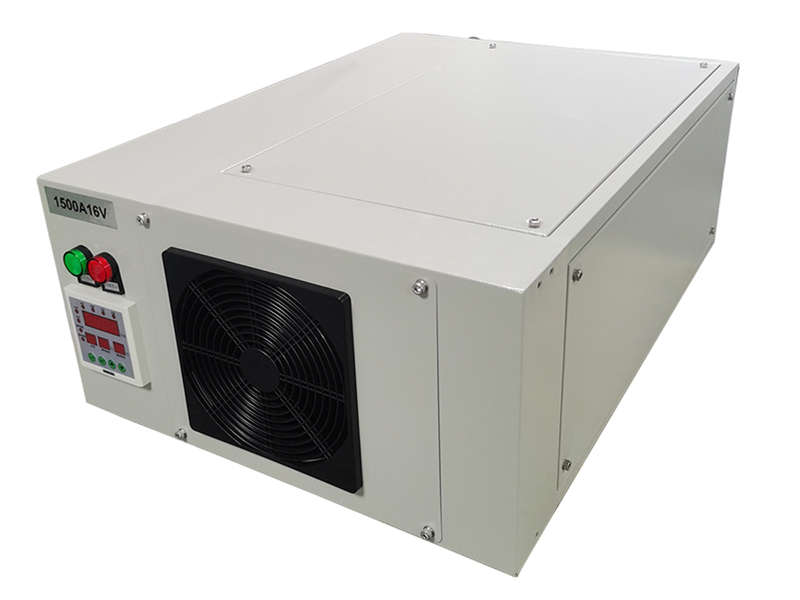

The Medium Chrome Rectifier from Gaohui Rectifier delivers 1500A at 16V in an air-cooled package. This Medium Chrome Rectifier supports job shops that plate a wide variety of parts without dedicated water cooling. Furthermore, the Medium Chrome Rectifier combines clean DC output with simple installation. Consequently, it is a dependable choice for flexible hard and decorative chrome work. Moreover, job-shop chrome facilities select this Medium Chrome Rectifier for its forced air design and 1500A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Forced Air | Application: Job-Shop Chrome | Ripple: ≤3% | Interface: RS485
The 1500A 16V rectifier serves chrome tanks from 500L to 1200L, covering both functional and decorative work. It is ideal for plating rollers, molds, fixtures and automotive parts in a job-shop environment. For example, a shop can hard chrome a small roll in the morning and bright chrome trim in the afternoon. Furthermore, the 16V ceiling provides extra headroom for cooler, more resistive baths. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485 standard port allows remote monitoring.
Moreover, forced-air cooling removes the need for a cooling tower, cutting installation cost. In addition, low ripple improves brightness for decorative work and uniformity for functional deposits. Consequently, this rectifier gives small lines the versatility of larger systems. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Medium Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–1500A adjustable |
| DC Output Voltage | 0–16V adjustable |
| Cooling Method | Forced air |
| Ripple Factor | ≤3% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485 standard |
| Dimensions | 800 × 550 × 1100 mm |
| Weight | 210 kg |
| Special Feature | No water required |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 1000A 15V Compact Hard Chrome Rectifier.
Need more current? Check the 3000A 12V General Chrome Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
