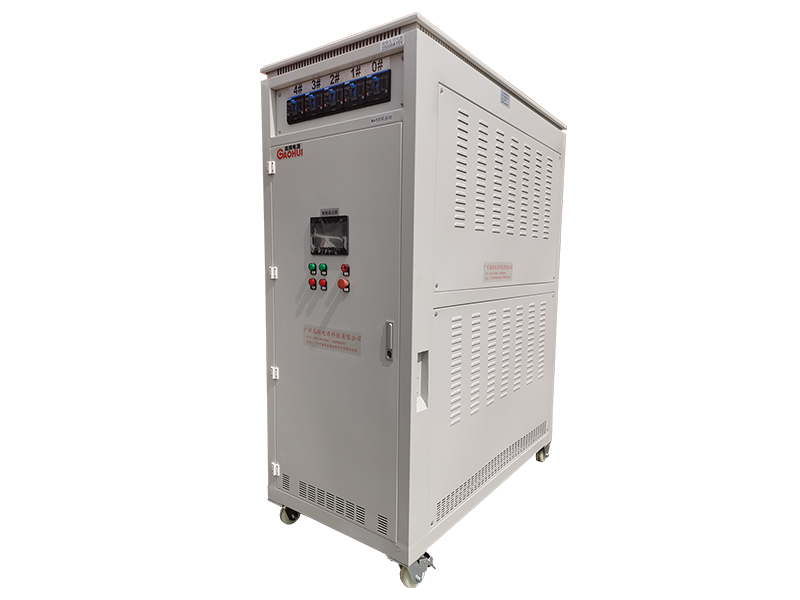

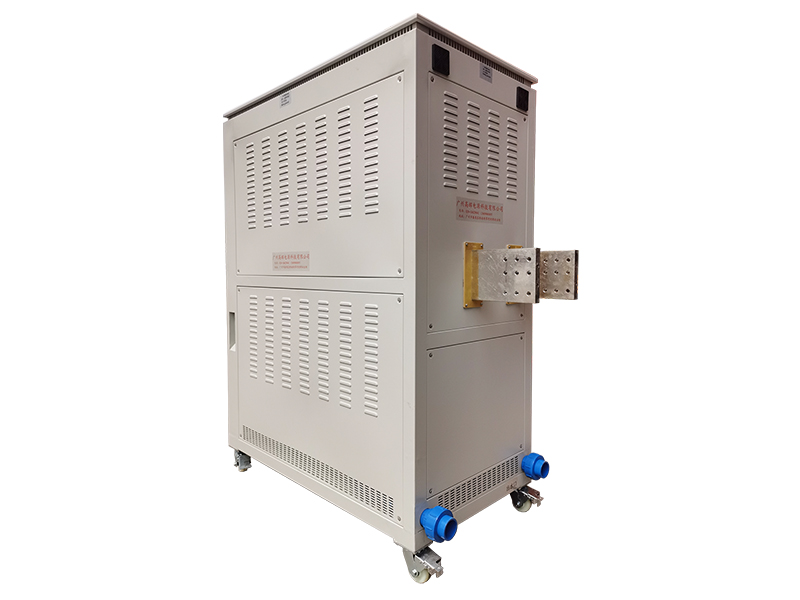

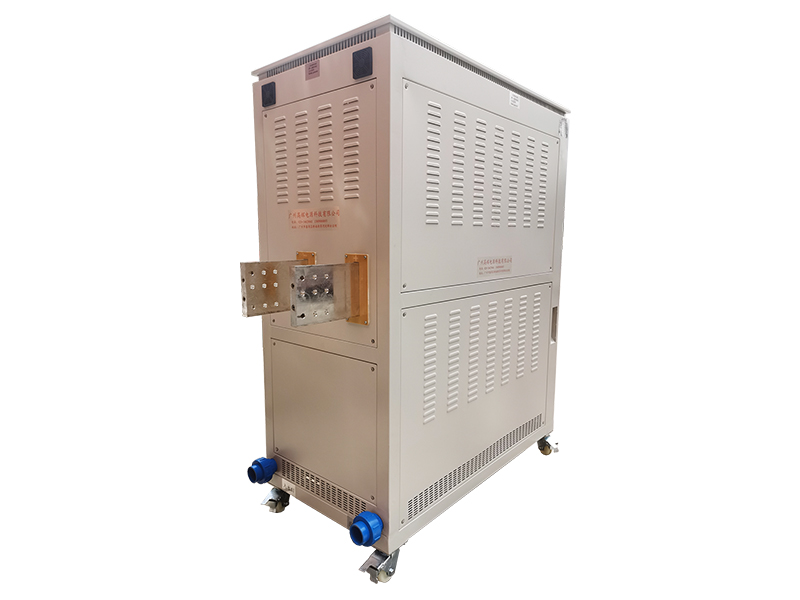

The High Capacity Chrome Rectifier from Gaohui Rectifier delivers 25000A at 15V through five paralleled N+1 modules. This High Capacity Chrome Rectifier is the top current choice for very large hard chrome tanks. Furthermore, the High Capacity Chrome Rectifier combines automatic reversing switches with redundant architecture. Consequently, the largest plating installations achieve both power and dependability. Moreover, very large hard chrome facilities select this High Capacity Chrome Rectifier for its water cooled design and 25000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Very Large Hard Chrome | Ripple: ≤5% | Interface: PLC

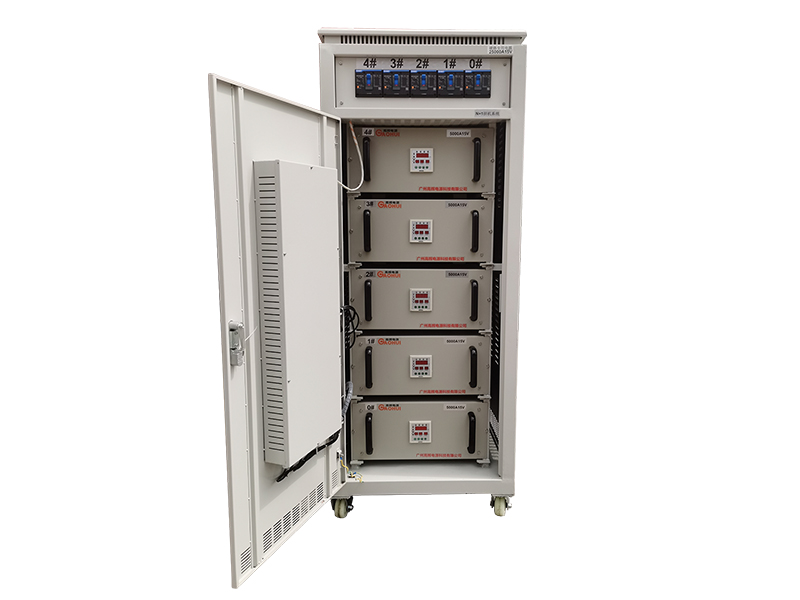

The 25000A 15V system serves hard chrome tanks above 14000L, including the largest roller and cylinder lines. It is ideal for mega mill rolls, ship shafts, giant press columns and mining equipment cylinders. For example, a heavy-industry plant can plate a 15-ton roll at full current density. Furthermore, load sharing across five modules keeps each module well within its safe envelope. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the PLC supervision port allows remote monitoring.
Moreover, automatic reversing switches support periodic reverse etching for very thick deposits. In addition, PLC supervision provides single-point control and comprehensive alarms. Consequently, a 25000A line is operated and maintained as one integrated system. Moreover, operators appreciate the straightforward layout and clearly marked controls on this High Capacity Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–25000A adjustable |
| DC Output Voltage | 0–15V adjustable |
| Parallel Modules | 5 modules, N+1 configuration |
| Reversing | Automatic switch |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | PLC supervision |
| Dimensions | 5 × 1300 × 900 × 1700 mm |
| Weight | 4300 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 20000A 18V Heavy Duty Chrome Rectifier.
Need the largest? Check the 60000A 15V High Power Chrome Rectifier.
