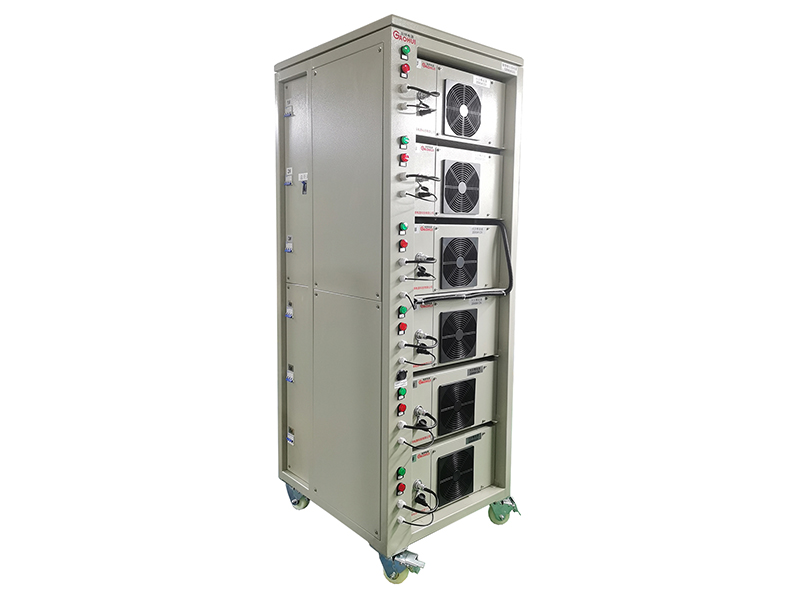

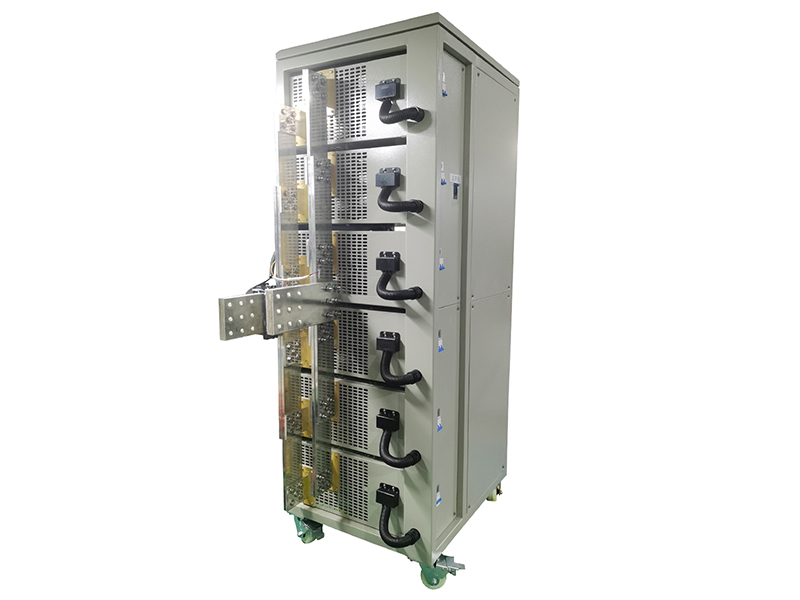

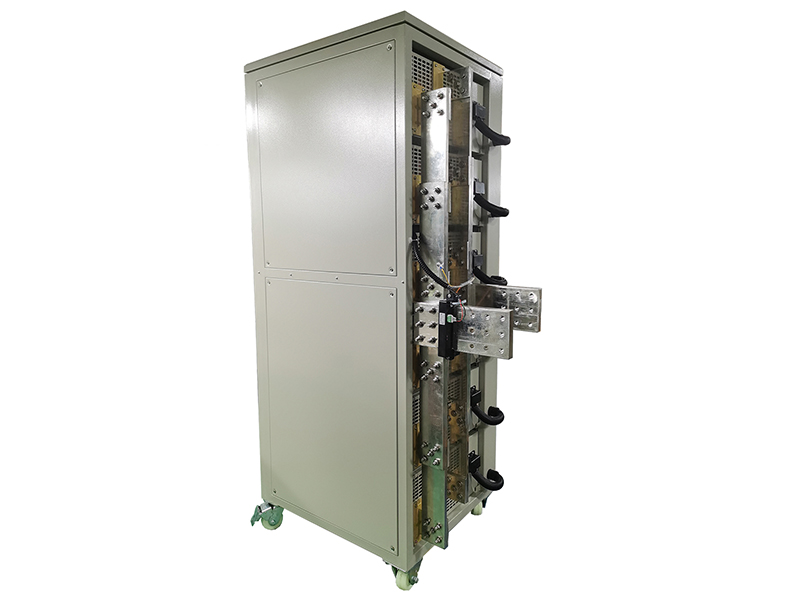

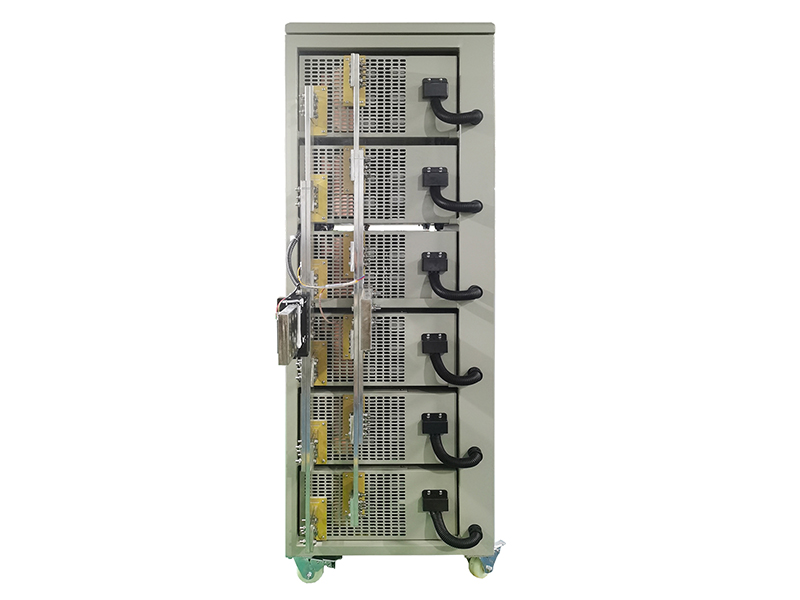

The Decorative Chrome Rectifier from Gaohui Rectifier provides 12000A at 12V for bright decorative chrome lines. This Decorative Chrome Rectifier powers automotive trim, wheels and sanitary fittings with smooth low-ripple DC. Furthermore, the Decorative Chrome Rectifier uses water cooling to sustain full output during peak production shifts. Consequently, decorative platers achieve brilliant, uniform chromium finishes. Moreover, decorative chrome facilities select this Decorative Chrome Rectifier for its water cooled design and 12000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Decorative Chrome | Ripple: ≤5% | Interface: RS485/PLC
The 12000A 12V rectifier is engineered for decorative chrome tanks from 5000L to 9000L, where current density typically stays between 10 and 20 A/dm2. It is ideal for rack plating bumpers, wheel rims, bathroom faucets and appliance trim. For example, an automotive supplier can coat thousands of wheel caps per day on a single line. Furthermore, the 12V output range gives fine control for bright chromium over nickel undercoats. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485, optional PLC port allows remote monitoring.
Moreover, the rectifier features very low ripple, which is essential for bright decorative deposits without burning or hazing. In addition, RS485 and optional PLC communication allow recipe changes between product families. Consequently, manufacturers switch quickly between trim parts, lamp housings and furniture hardware on the same line. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Decorative Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–12000A adjustable |
| DC Output Voltage | 0–12V adjustable |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485, optional PLC |
| Dimensions | 1300 × 850 × 1700 mm |
| Weight | 980 kg |
| Special Feature | Low-ripple output for bright chrome |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
