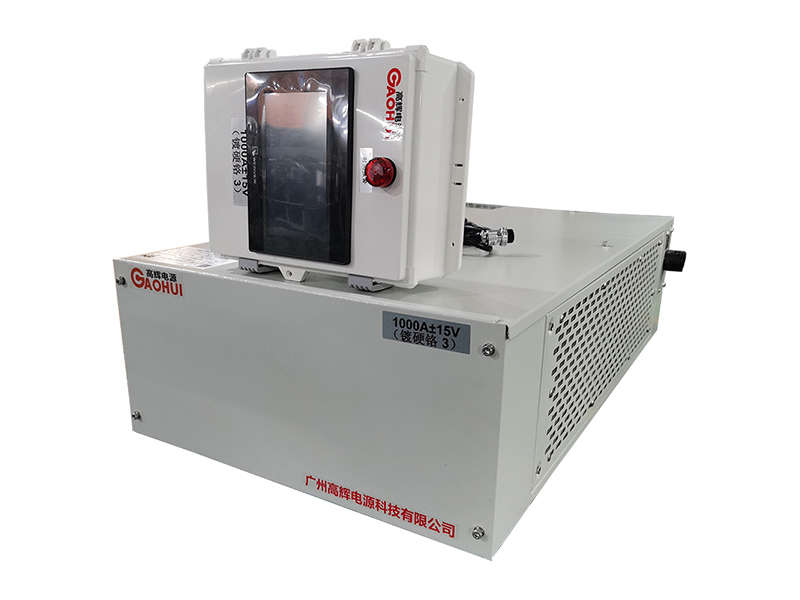

The Compact Hard Chrome Rectifier from Gaohui Rectifier packs 1000A at 15V into a space-saving water-cooled cabinet. This Compact Hard Chrome Rectifier serves small functional chrome tanks that still need industrial-grade stability. Furthermore, the Compact Hard Chrome Rectifier delivers clean DC for shafts, rolls and wear parts in modest batch sizes. Consequently, small factories upgrade from rectifiers to true hard chrome quality without a large footprint. Moreover, small hard chrome facilities select this Compact Hard Chrome Rectifier for its water cooled design and 1000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Small Hard Chrome | Ripple: ≤5% | Interface: RS485
The 1000A 15V rectifier fits hard chrome tanks from 400L to 900L, running at 30-50 A/dm2 for functional deposits. It is ideal for plating press tooling, small hydraulic rods, bushings and machine guards. For example, a repair shop can build up a worn shaft journal and re-machine it in the same day. Furthermore, the 15V range handles normal bus-bar losses in compact installations. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485 standard port allows remote monitoring.
Moreover, water cooling keeps the cabinet small enough to mount near the tank wall. In addition, programmable ramp-up and a timer bring laboratory-like control to small production tanks. Consequently, this model bridges the gap between bench rectifiers and full-size line equipment. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Compact Hard Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–1000A adjustable |
| DC Output Voltage | 0–15V adjustable |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485 standard |
| Dimensions | 700 × 500 × 1000 mm |
| Weight | 180 kg |
| Special Feature | Space-saving layout |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 100A 18V Air Cooled Hard Chrome Rectifier.
Need more current? Check the 1500A 16V Medium Chrome Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
