The Copper Strike Rectifier from Gaohui Rectifier powers low-voltage copper strike stages on plating lines. This Copper Strike Rectifier delivers high current at very low voltage. Furthermore, the Copper Strike Rectifier handles the unique demands of strike chemistry. Therefore, line engineers specify it for adhesion layers.
Cooling: Forced Air | Application: Copper Strike Lines | Ripple: ≤3% | Voltage: Ultra-Low

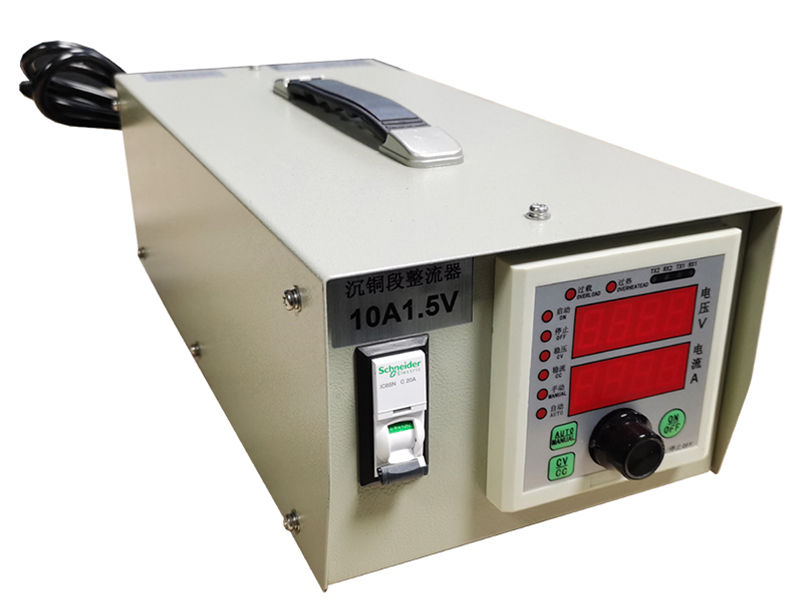

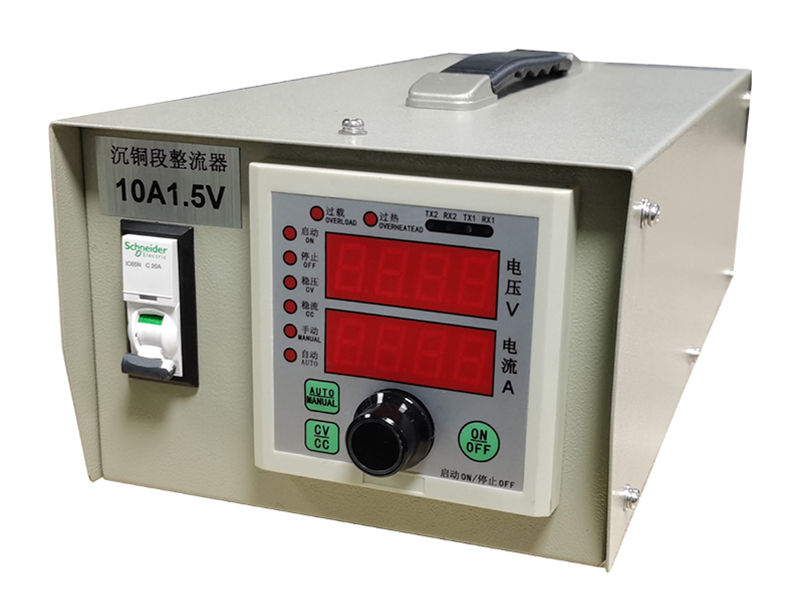

The 10A 1.5V rectifier is built specifically for cyanide copper strike tanks of 100L to 300L. It provides the high-current, low-voltage environment needed for copper strike on zinc die-castings. Specifically, strike baths run at 1 to 2 A/dm² but only 0.8 to 1.5V. The 1.5V output matches this exactly.
Moreover, the rectifier prevents over-voltage that would burn delicate die-cast surfaces. For instance, a zinc buckle goes through a 30-second copper strike before nickel plating. Consequently, the nickel layer adheres firmly. Without proper strike, blistering and peeling occur within weeks.
Furthermore, copper strike must be applied within seconds after cleaning. The rectifier starts instantly when the operator lowers the rack. Consequently, no oxide layer forms between clean and strike.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 220V ±10%, 50/60Hz |
| DC Output Current | 0–10A adjustable |
| DC Output Voltage | 0–1.5V adjustable |

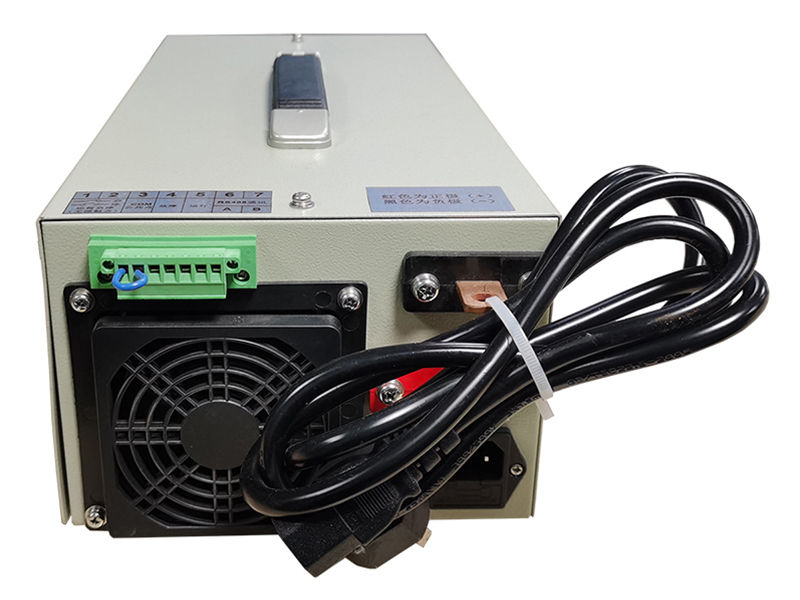

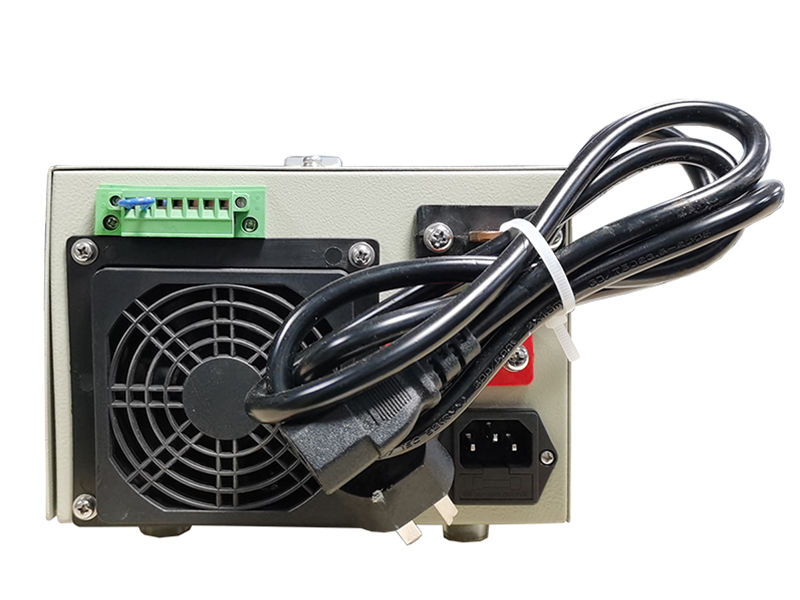

| Cooling Method | Forced air |
| Ripple Factor | ≤3% |
| Voltage Resolution | 0.01V |
| Control Mode | IGBT/PWM, CV/CC |
| Dimensions | 320 × 220 × 180 mm |
| Weight | 9 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Full copper plating? View Copper Plating Rectifier.
Line control? Check Continuous Plating Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
